Procity · SKU:
040565

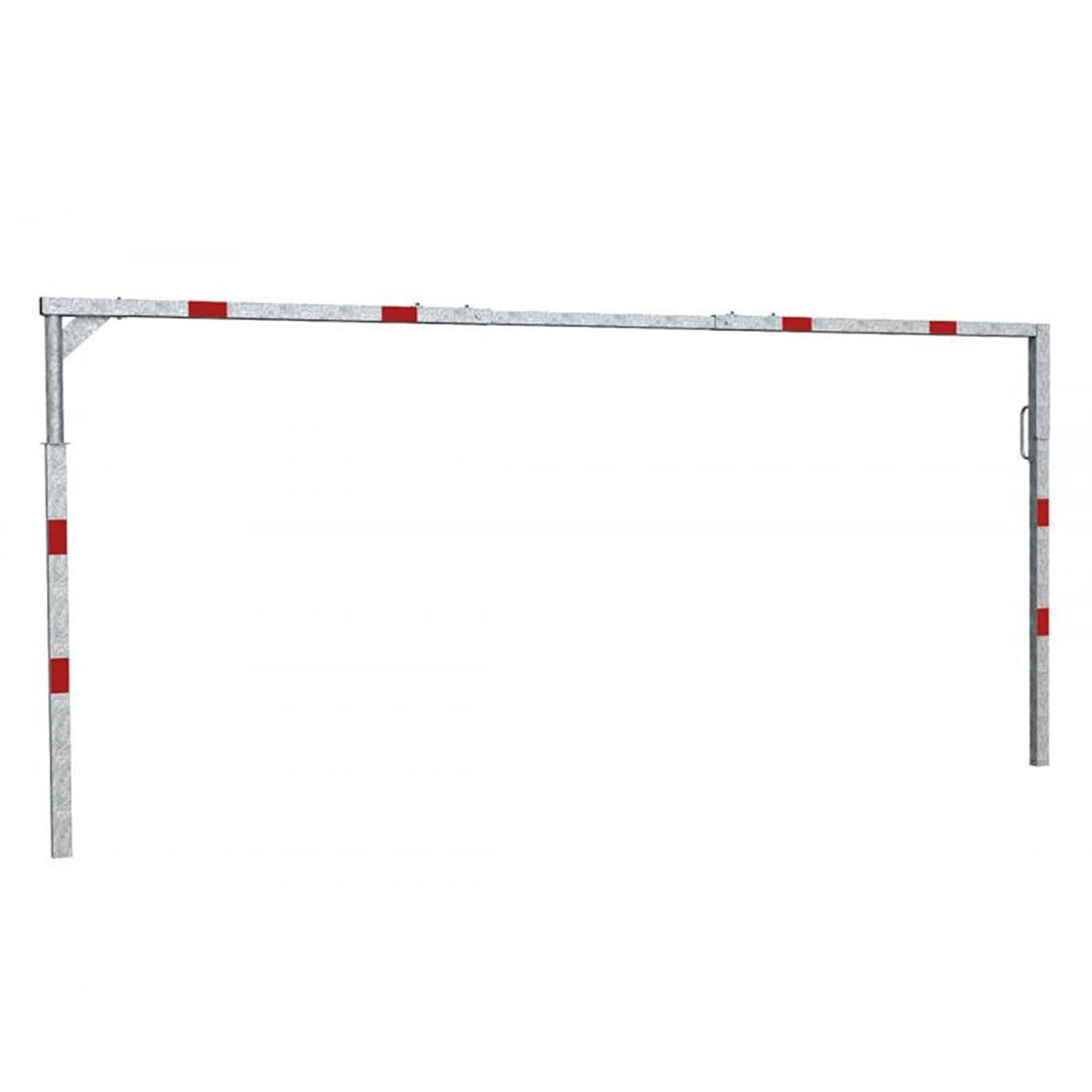

Economy Swivel Height Restrictor
Galvanised steel swivel height restrictor, fixed 2200mm clearance x 5000mm width. Swings open for tall-vehicle access. Padlock included.
£705.83
each, ex VAT
£846.99
inc VAT
Ships in 10 to 20 working days
Economy Swivel Height Restrictor is backordered and will ship as soon as it is back in stock.
Buy more, pay less
Per unit, ex VAT. Applied automatically.
Ships in
10 to 20 working days
Formal quote back in 3 hours. No account needed.
Quote in 3 hours
No account needed
- Made in the UK
- Next Day Delivery Available
- Pay in 30 days with a Trade Account. No fees.
- UK stock. Stock and lead time are shown above.
- Seen it cheaper? We beat any genuine quote. 0161 706 0479
Frequently purchased with
Tick to add
Complete the kit
0 add-ons selected · £0.00 ex VAT
You may also like
See all height restriction barriers ›Other height restriction barriers in the range
Half-Width Swivel Height RestrictorHeight Restriction Barriers
£1,266.66 ex VAT
£1,519.99 inc VAT
Universal Swivel Height RestrictorHeight Restriction Barriers
£2,279.99 ex VAT
£2,735.99 inc VAT
GS6 Telescopic Poles & Bunting PackHeight Restriction Barriers
£199.99 ex VAT
£239.99 inc VAT
You may be looking for
Economy Swivel Height Restrictor
Regular price
£846.99
Unit price
Unavailable
Economy Swivel Height Restrictor is backordered and will ship as soon as it is back in stock.
Why it works
Why choose the Economy Swivel Height Restrictor
Stops oversized vehicles reliably
A fixed 2200mm clearance and 5000mm width keep taller vehicles out without relying on drivers reading a sign.
Reflective bands improve visibility
Red reflective bands on the uprights and crossbar make the barrier visible to approaching vehicles in low light.
Corrosion-resistant finish
The hot-dip galvanised finish resists rust in exposed outdoor locations without the cost of a painted coating.
Simple concreted fitting
No mounting kit is needed - both uprights are concreted directly into the ground for a permanent fixing.

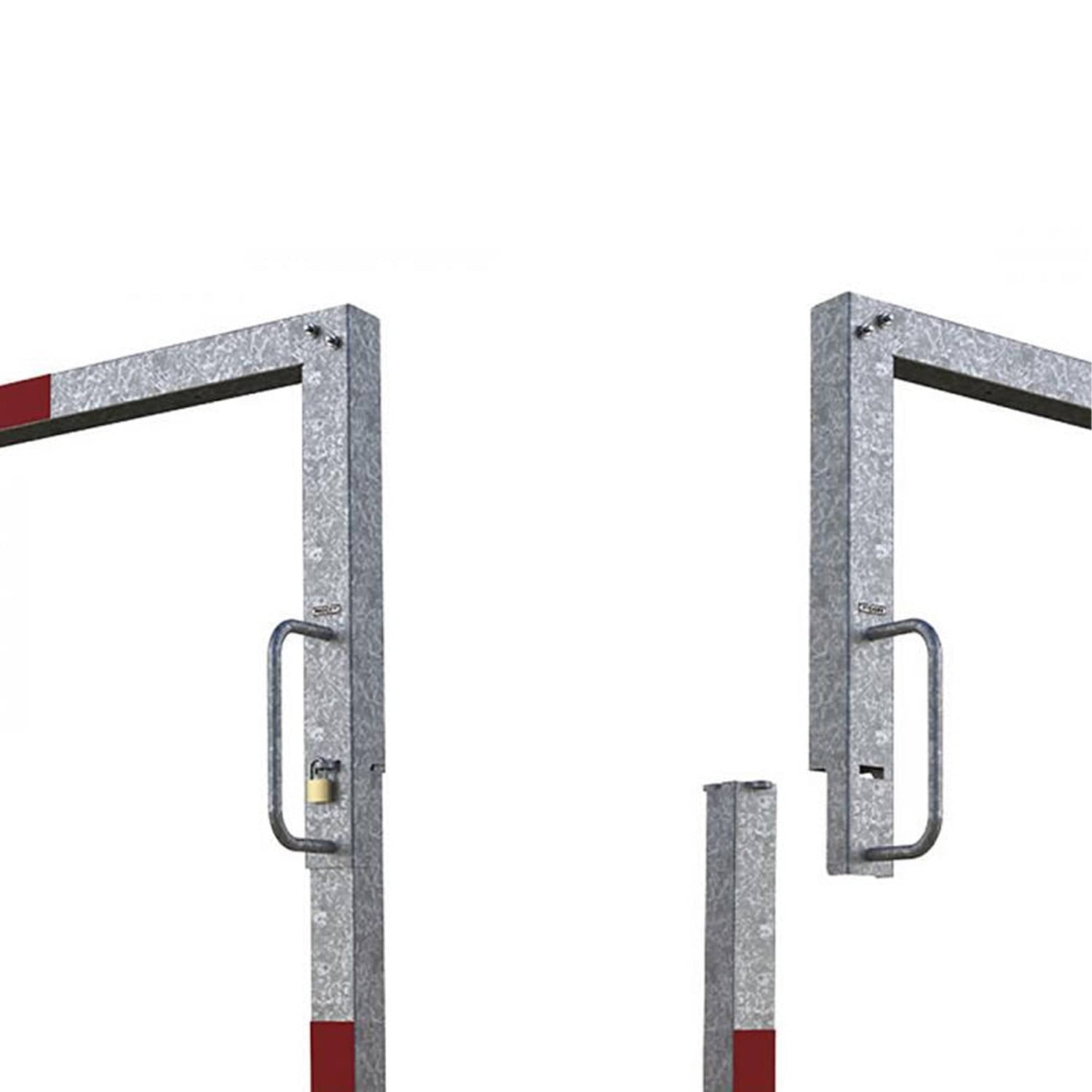

Swing-open access when needed
The barrier swings to one side so taller vehicles can be let through occasionally without removing it.
Overview
Economy Swivel Height Restrictor - Overview
The Economy Swivel Height Restrictor is a fixed-height barrier that blocks oversized vehicles from car parks, loading bays and other low-clearance areas, while allowing controlled access when a taller vehicle genuinely needs to get through.
2200mm
Clearance height
5000mm
Width
80x80mm
Steel box section
| Dimensions | |
|---|---|
| Height above ground | 2200mm (fixed) |
| Width | 5000mm (fixed) |
| Steel tube section | 80x80mm |
| Details | |
|---|---|
| Material | Hot-dip galvanised steel |
| Reflective bands | Red, on uprights and crossbar |
| Locking | Padlock (included) |
| Installation | Concreted directly into ground |
Frequently asked questions
Can I adjust the height or width after installation?
Can I adjust the height or width after installation?
No. The Economy model is a fixed 2200mm x 5000mm barrier with no adjustment built in. If you need a range of clearances, our Universal Swivel Height Restrictor offers adjustable options instead.
How do I let a taller vehicle through occasionally?
How do I let a taller vehicle through occasionally?
Undo the padlock and swing the barrier open to one side. It stays clear of the opening until you close and re-lock it.
Does it need a concrete base or mounting kit?
Does it need a concrete base or mounting kit?
Both uprights are concreted directly into the ground, so no separate mounting kit or surface-fix baseplate is required.
What finish does it come in?
What finish does it come in?
It's supplied in a natural hot-dip galvanised finish, chosen for its corrosion resistance rather than appearance. Red reflective bands are fitted to the uprights and crossbar for visibility.
Is a padlock included?
Is a padlock included?
Yes, a padlock is supplied so the barrier can be secured in the closed position.
What sites is this barrier best suited to?
What sites is this barrier best suited to?
It suits any single-lane entrance where you need a permanent, fixed-height restriction - car parks, loading bay approaches and yard entrances are typical.
Can I order a different height or width?
Can I order a different height or width?
This Economy model is fixed at 2200mm x 5000mm. For other sizes, see our Universal Swivel Height Restrictor and Half-Width Swivel Height Restrictor.
