Autopa | SKU:
057584
Lockable Bollard Socket System
£104.99
Ex. VAT
£125.99
Inc. VAT
Why buy from us
- Pay in 30 days with a Trade Account. No fees.
- Trade and bulk pricing available on request
- UK stock, dispatched fast
Lockable Bollard Socket System - 76mm is backordered and will ship as soon as it is back in stock.
Ships in
3 – 5 working days
Quote in 3 hours
No account needed
- Made in the UK
- Pay in 30 days with Klarna. No fee. Learn more
- Next Day Delivery Available
Lockable Bollard Socket System
Regular priceFrom
£125.99
Unit price
Unavailable
Lockable Bollard Socket System - 76mm is backordered and will ship as soon as it is back in stock.
Why it works
Removable security without the trip hazard
Locked, not just removable

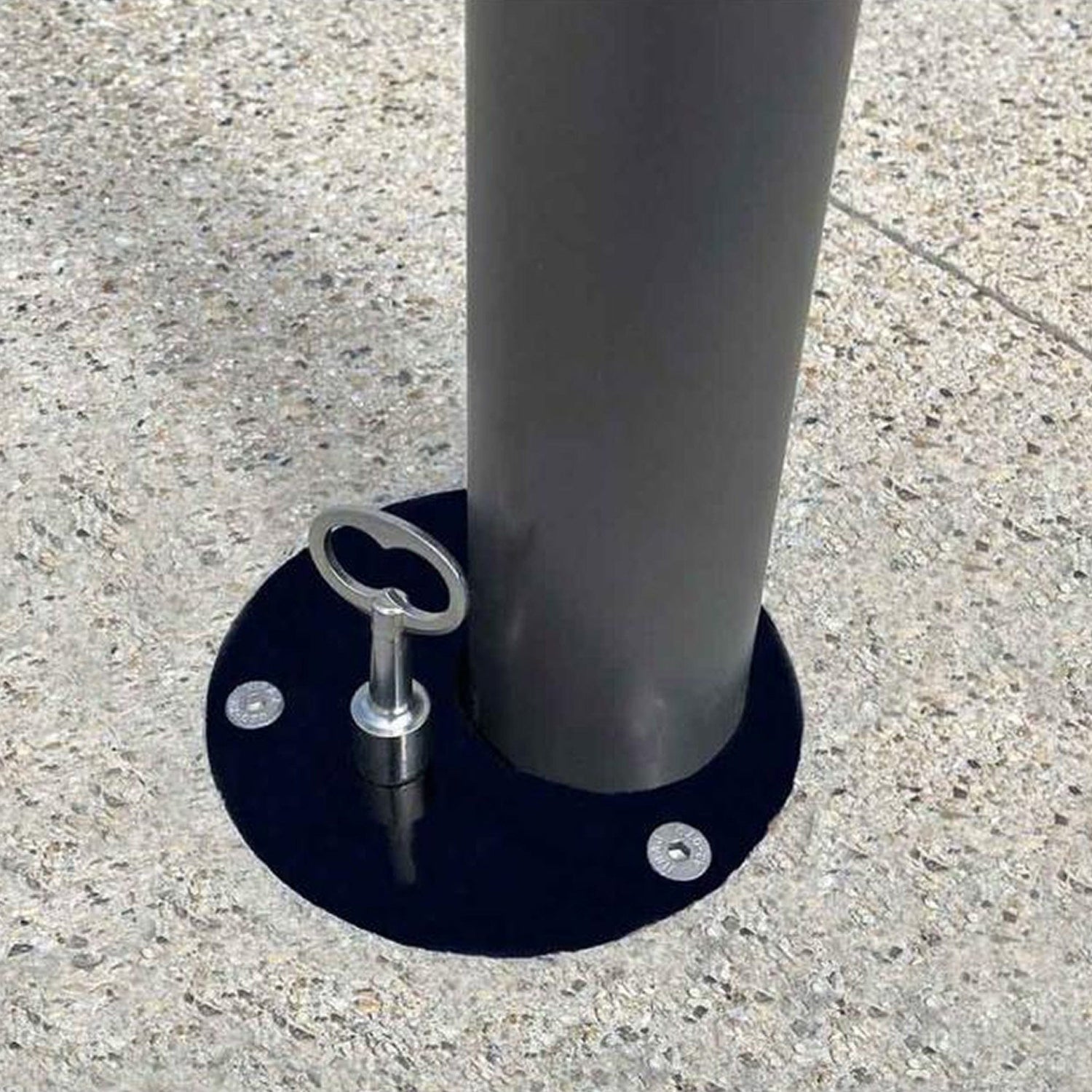

The socket locks and unlocks with an 11mm triangle key, so only authorised users can lift the bollard out.
Drains naturally
Sub-surface gravel and a sand/gravel reservoir stop water pooling around the socket.
Fully galvanised
100% galvanised to BS EN ISO 1461 (2009) for complete corrosion protection.
Constant height, flush fit
Approx. 180mm of the bollard sits inside the socket for a constant above-ground height, and the static boss sits flush with the ground.
Overview
Lockable Bollard Socket System - Overview

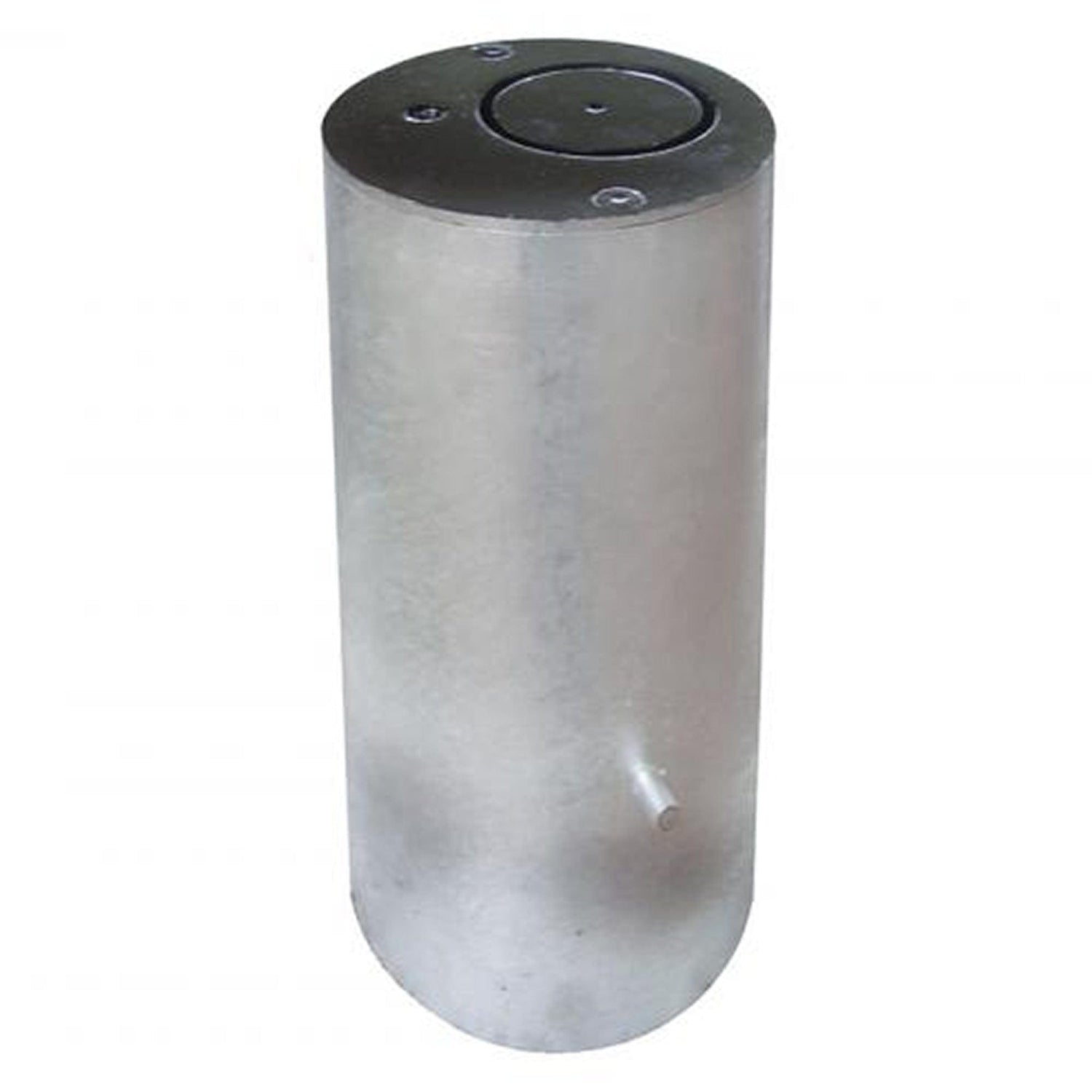

The Lockable Bollard Socket System is a galvanised steel ground socket that lets a bollard be removed and locked in place, with security controlled by an 11mm triangle key. It keeps the bollard stable, drains naturally through sub-surface gravel, and gives a constant above-ground height once fitted. Available in 76mm, 90mm, 102mm and 114mm diameters.
180mm
Bollard insertion depth
76mm
Smallest diameter
114mm
Largest diameter
11mm
Triangle key size
| Dimensions | |
|---|---|
| Bollard insertion depth | Approx. 180mm |
| Diameters available | 76mm, 90mm, 102mm, 114mm |
| Weight (76mm) | 9kg |
| Weight (90mm) | 15kg |
| Weight (102mm / 114mm) | 16kg |
| Details | |
|---|---|
| Material | Mild galvanised steel to BS EN ISO 1461 (2009) |
| Locking | 11mm triangle key |
| Drainage | Natural drainage through sub-surface gravel, with a sand/gravel reservoir |
| Lock protection | Black lacquered flap |
| Compatibility | Dome Top Steel Bollard (sold separately) |
Frequently asked questions
How does the bollard get removed?
How does the bollard get removed?
The socket unlocks with an 11mm triangle key, allowing the bollard to be lifted out when access is needed.
What diameters are available?
What diameters are available?
76mm, 90mm, 102mm and 114mm, to suit different bollard sizes.
How much of the bollard sits below ground?
How much of the bollard sits below ground?
Approximately 180mm of the bollard sits inside the socket, which keeps a constant height above ground.
Will the socket fill with water?
Will the socket fill with water?
No. It drains naturally through sub-surface gravel, and a reservoir allows for the accumulation of sand and gravel.
Is the lock protected from the weather?
Is the lock protected from the weather?
Yes. It sits behind a black lacquered flap.
Is it corrosion resistant?
Is it corrosion resistant?
Yes. The socket is 100% galvanised to BS EN ISO 1461 (2009) for complete corrosion protection.
Which bollard does it fit?
Which bollard does it fit?
It is compatible with our Dome Top Steel Bollard, sold separately.
