Street Solutions UK · SKU:
003012
Manta Barrier End Unit
Octagonal end unit for Manta Steel Road Barrier runs. Impact-absorbing, crash tested to BS EN1317:2010 (W7) with Manta Barrier units. Red or white.
£124.99
each, ex VAT
£149.99
inc VAT
Ships in 5 to 10 working days
Manta Barrier End Unit - Male / Red is backordered and will ship as soon as it is back in stock.
Buy more, pay less
Per unit, ex VAT. Applied automatically.
Ships in
5 to 10 working days
Formal quote back in 3 hours. No account needed.
Quote in 3 hours
No account needed
- Made in the UK
- Next Day Delivery Available
- Pay in 30 days with a Trade Account. No fees.
- UK stock. Stock and lead time are shown above.
- Seen it cheaper? We beat any genuine quote. 0161 706 0479
Frequently purchased with
Tick to add
Complete the kit
0 add-ons selected · £0.00 ex VAT
You may also like
See all crash barriers ›Other crowd control barriers in the range
Manta Barrier CornerCrowd Control Barriers
£224.99 ex VAT
£269.99 inc VAT
Manta Gate Adaption PoleCrowd Control Barriers
£7.49 ex VAT
£8.99 inc VAT
Manta Connection PinsCrowd Control Barriers
£9.16 ex VAT
£10.99 inc VAT
You may be looking for
Manta Barrier End Unit
Regular priceFrom
£149.99
Unit price
Unavailable
Street Solutions UK · SKU:
003012
£124.99
each, ex VAT
£149.99
inc VAT
Ships in 5 to 10 working days
Manta Barrier End Unit - Male / Red is backordered and will ship as soon as it is back in stock.
Why it works
A Clean, Tested Finish
Impact absorbing
Protects the barrier connection point if a vehicle makes contact.
Recycled steel
Made from recycled galvanised steel, powder coated red or white.
Clean connection
Finishes off male or female Manta Barrier connections for a snag-free run end.
Crash tested
Rated W7 to BS EN1317:2010 when fitted with Manta Barrier units.
Overview
Manta Barrier End Unit - Overview

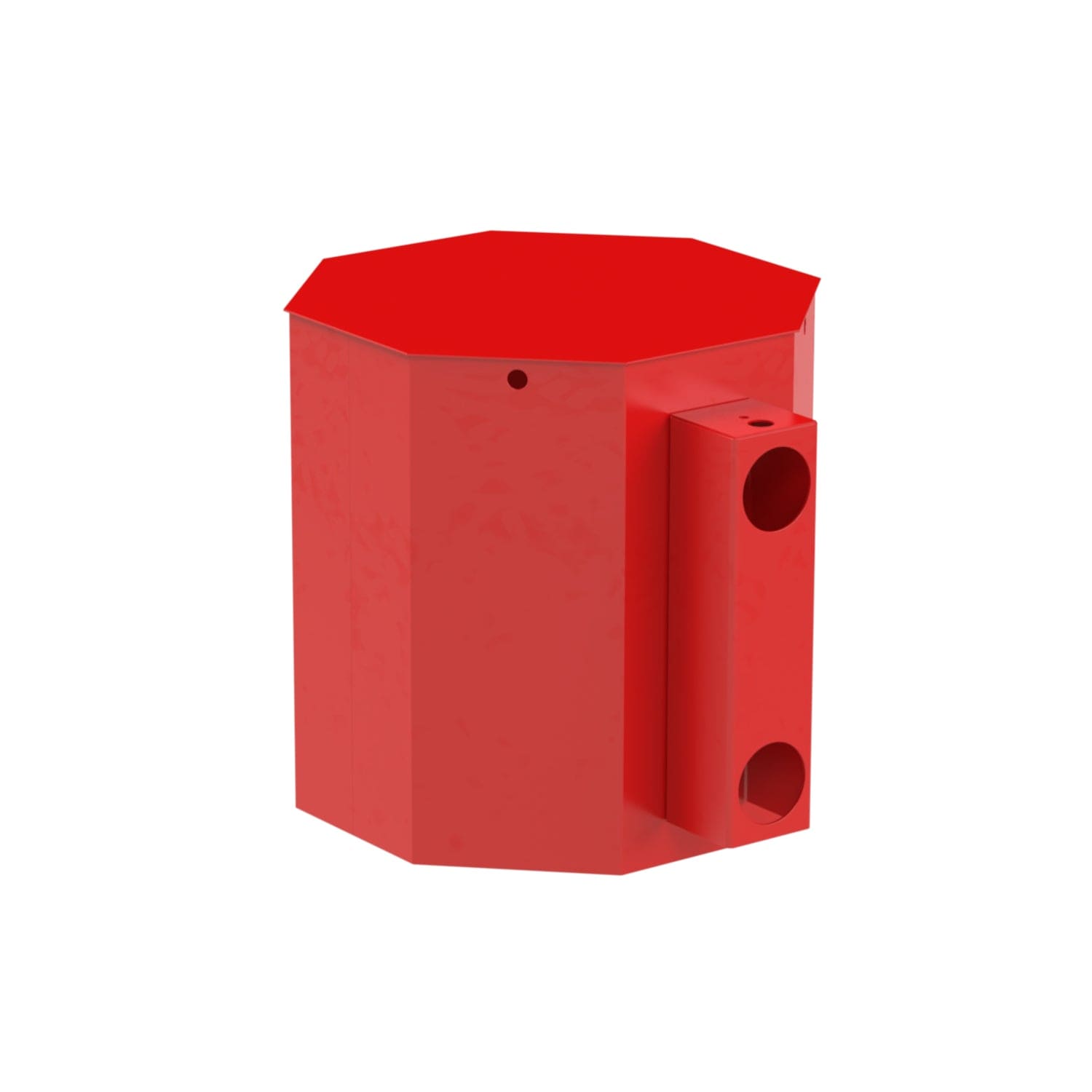

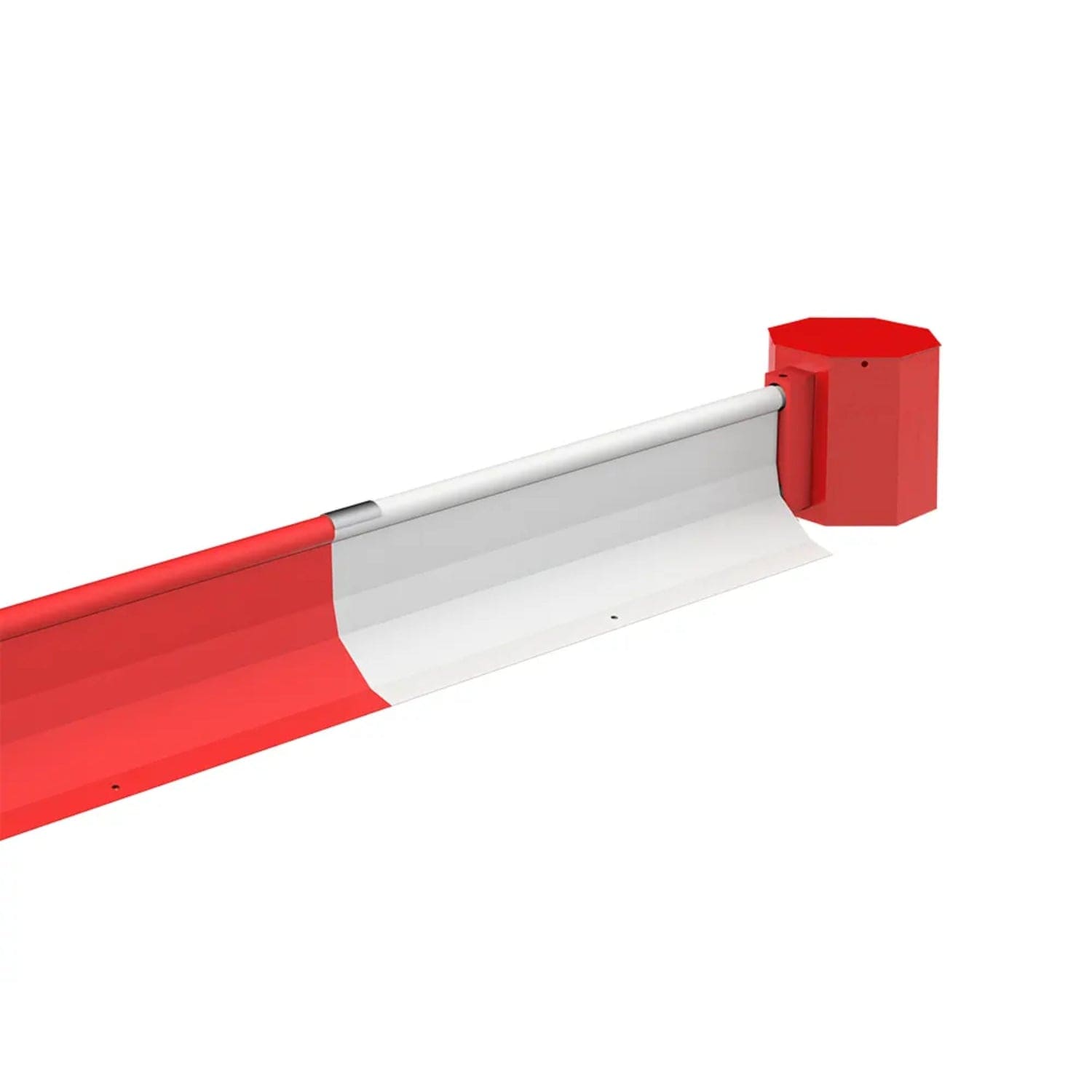

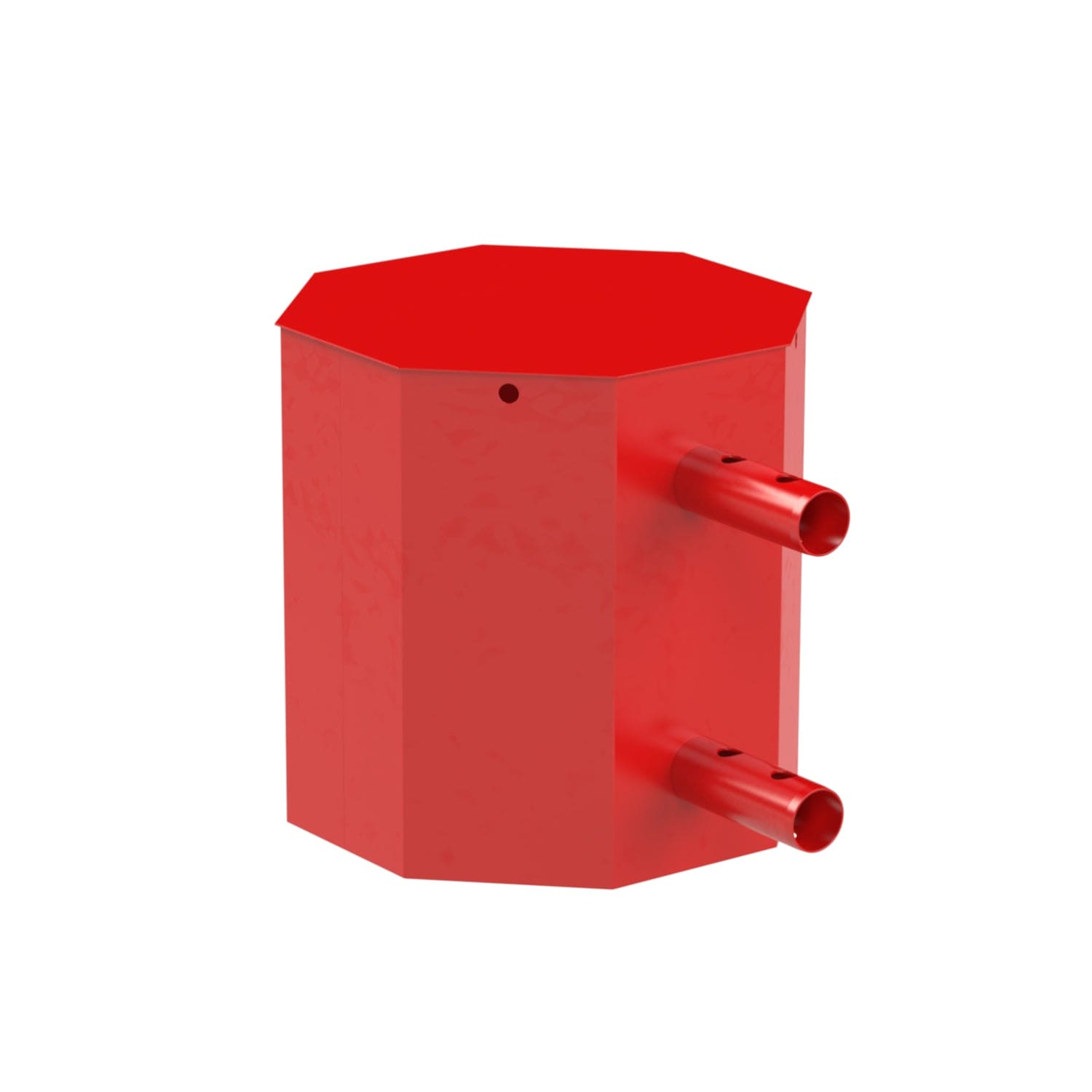

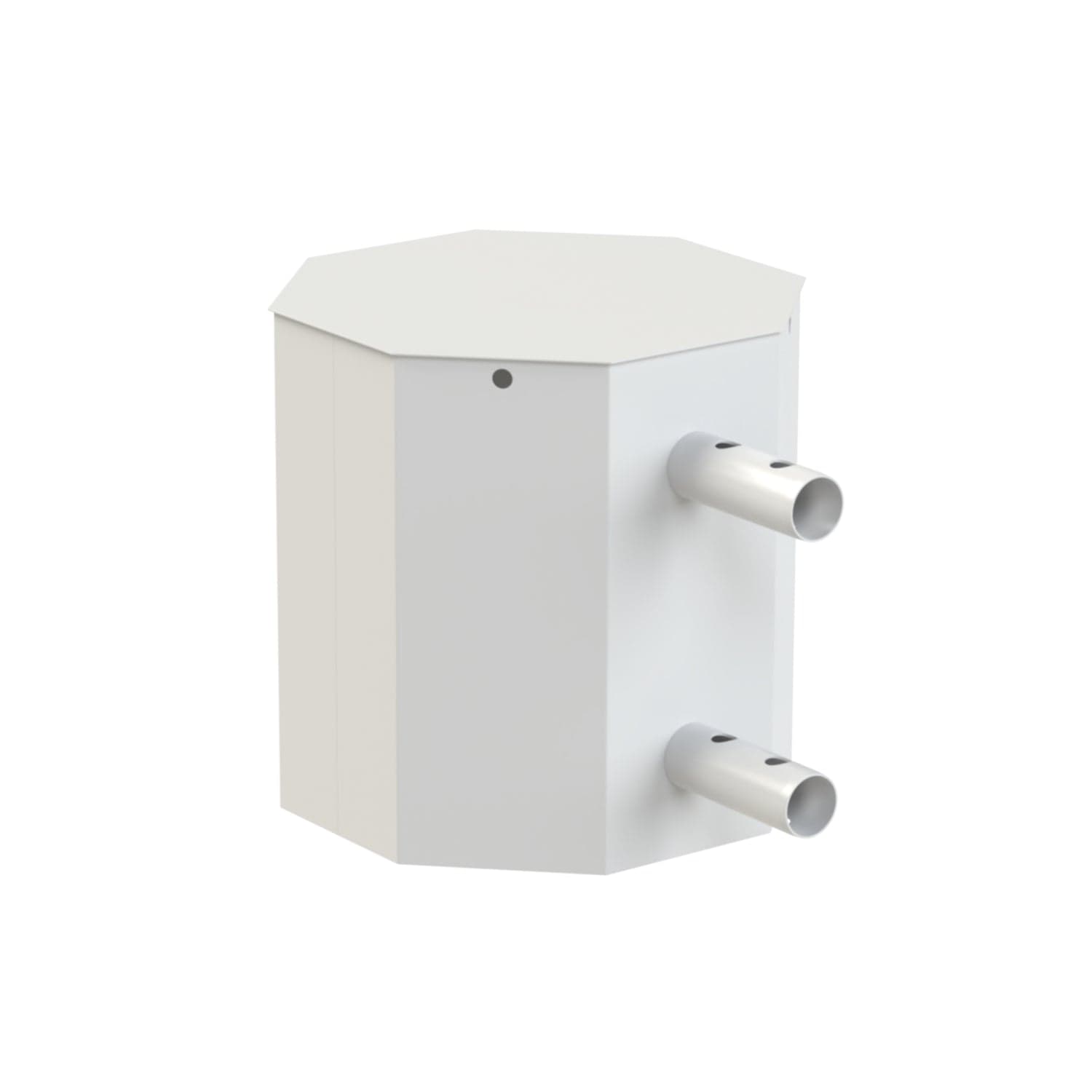

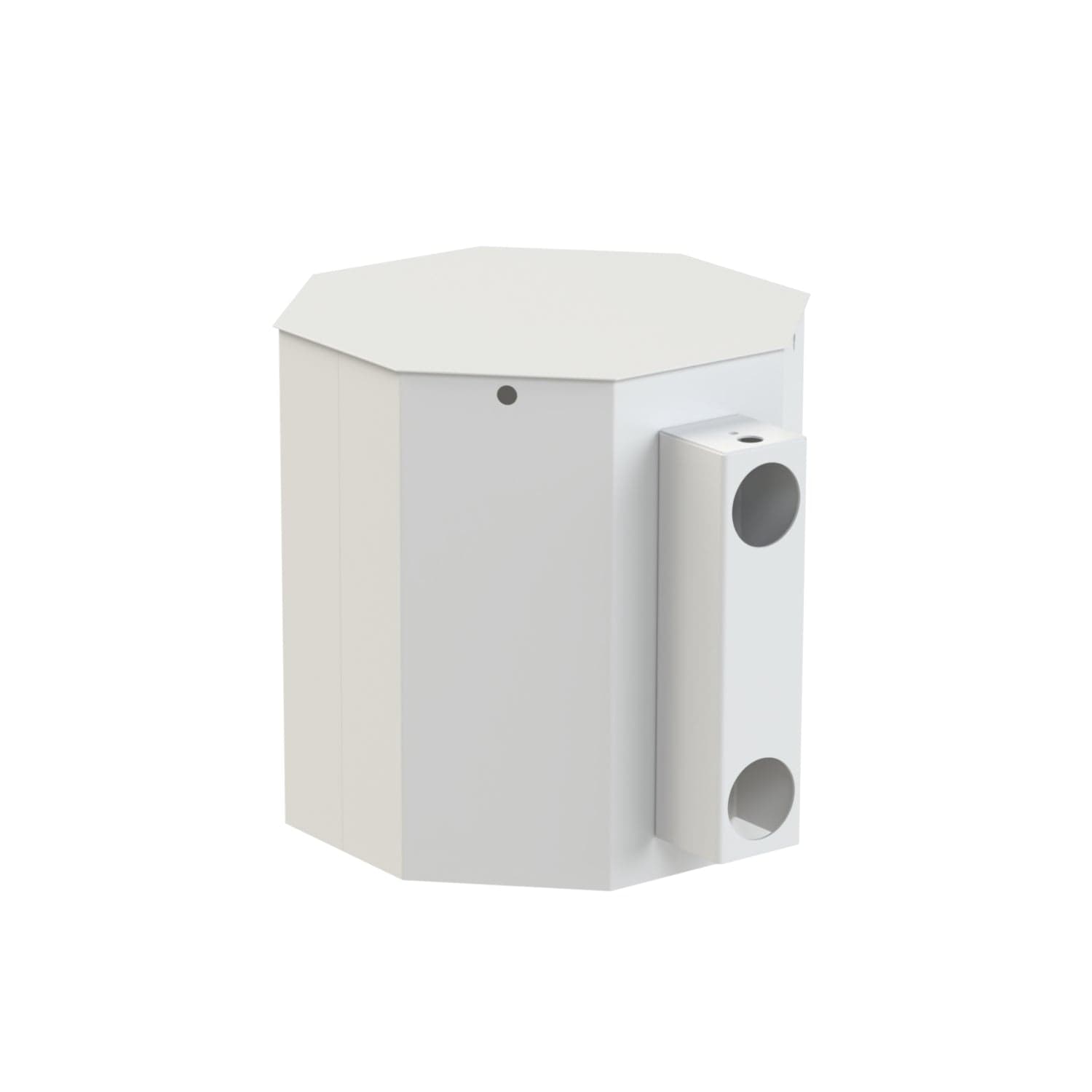

The Manta Barrier End Unit finishes off a Manta Steel Road Barrier run, fitting onto the male or female connection at the end of a section. The octagonal steel body reduces movement during transport and storage, and absorbs impact to protect the connection point.
660mm
Length
500mm
Height
17-19kg
Weight (Male/Female)
W7BS EN1317:2010
Crash test rating
| Dimensions | |
|---|---|
| Length | 660mm |
| Width | 490mm (Male) / 580mm (Female) |
| Height | 500mm |
| Details | |
|---|---|
| Weight | 17kg (Male) / 19kg (Female) |
| Material | Recycled galvanised steel |
| Colour | Powder-coated red or white |
| Testing | Class A wind tunnel tested |
| Crash test | BS EN1317:2010, W7 rating, when fitted with Manta Barrier units |
| Connection | Male or female, fits Manta Barrier sections |
Frequently asked questions
What's the difference between the male and female end unit?
What's the difference between the male and female end unit?
They fit the corresponding male or female connection on a Manta Barrier section, so you choose the version that matches the open end of your run. Male units are 490mm wide, female units are 580mm wide.
What colours are available?
What colours are available?
Powder-coated red or white, in both male and female connections, so four SKUs in total.
Is it crash tested?
Is it crash tested?
When fitted with Manta Barrier units it is crash tested to BS EN1317:2010, W7 rating. It also carries a Class A wind tunnel test certification on its own.
What is it made from?
What is it made from?
Recycled galvanised steel.
Why is it octagonal rather than round?
Why is it octagonal rather than round?
The octagonal shape reduces movement during transport and storage compared with a round unit, and removes sharp edges from the barrier end.
Can I add fencing to it?
Can I add fencing to it?

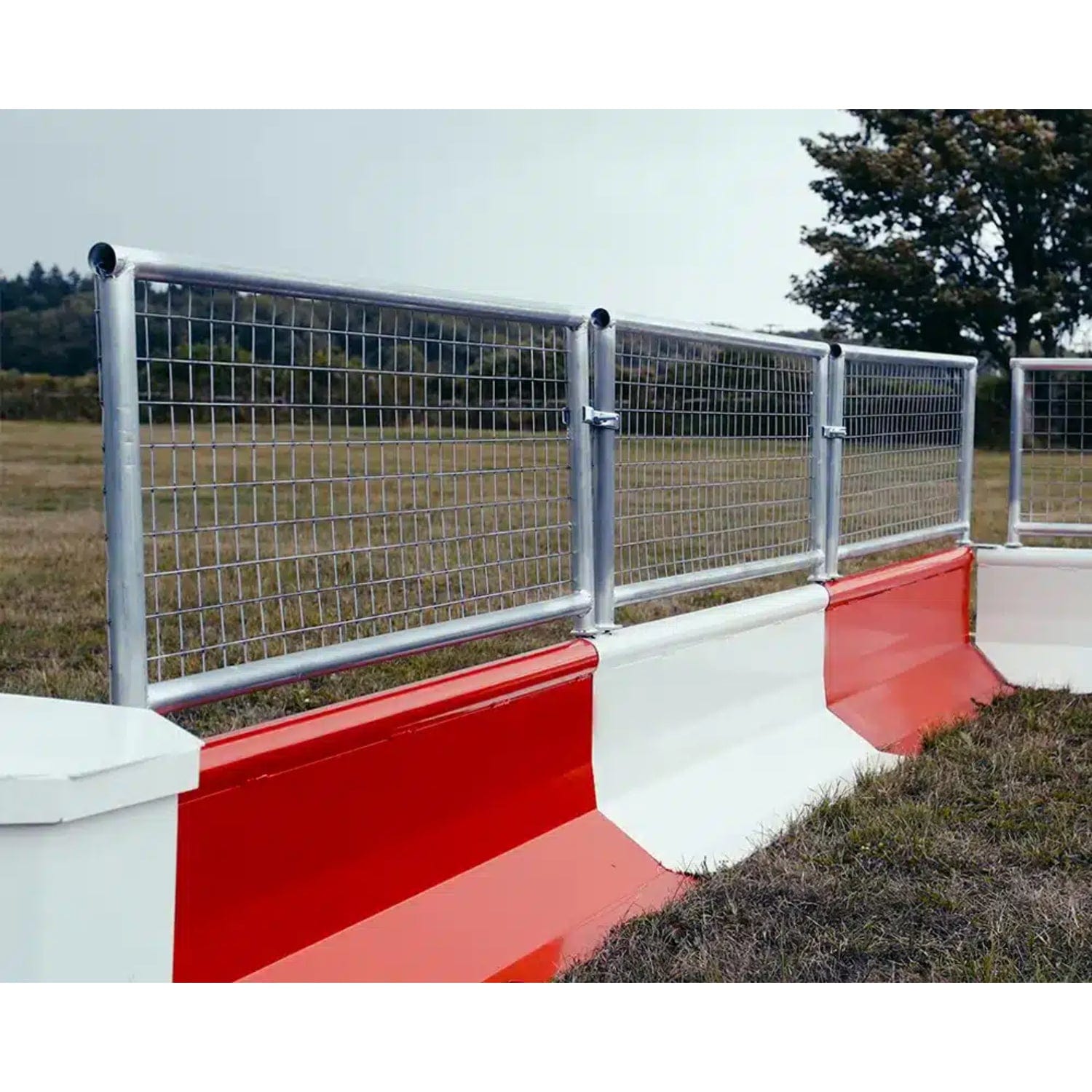

Yes, the end unit is compatible with the Manta mesh fence and pedestrian rail add-ons used across the barrier system.
How much does it weigh?
How much does it weigh?
17kg for the male unit, 19kg for the female unit.
