RB22 50MPH Crash Tested Safety Barrier - BSEN1317

TRL 50mph crash-tested water-filled safety barrier, BS EN 1317. UV-stabilised polyethylene, MIRA wind tested, 600kg filled. Red, white or split colour.

£520.83 each, ex VAT

£624.99 inc VAT

Ships in 2 to 5 working days

Colour: Red

Ships in 2 to 5 working days

Formal quote back in 3 hours. No account needed.

Quote in 3 hours No account needed

Made in the UK
Next Day Delivery Available

Pay in 30 days with a Trade Account. No fees.
UK stock. Stock and lead time are shown above.
Seen it cheaper? We beat any genuine quote. 0161 706 0479

Frequently purchased with

Complete the kit

Tick to add

RB22 Safety Barrier End Stop - With Hinge PinBarrier Accessories 1 £158.33 £158.33 each

RB22 Safety Barrier Angle Piece - With Hinge PinBarrier Accessories 1 £158.33 £158.33 each

RB22 Safety Barrier Connection PinBarrier Accessories 1 £49.99 £49.99 each

RB22 Safety Barrier Hoarding PanelBarrier Accessories 1 £208.33 £208.33 each

0 add-ons selected · £0.00 ex VAT

Built for crash-rated perimeter protection

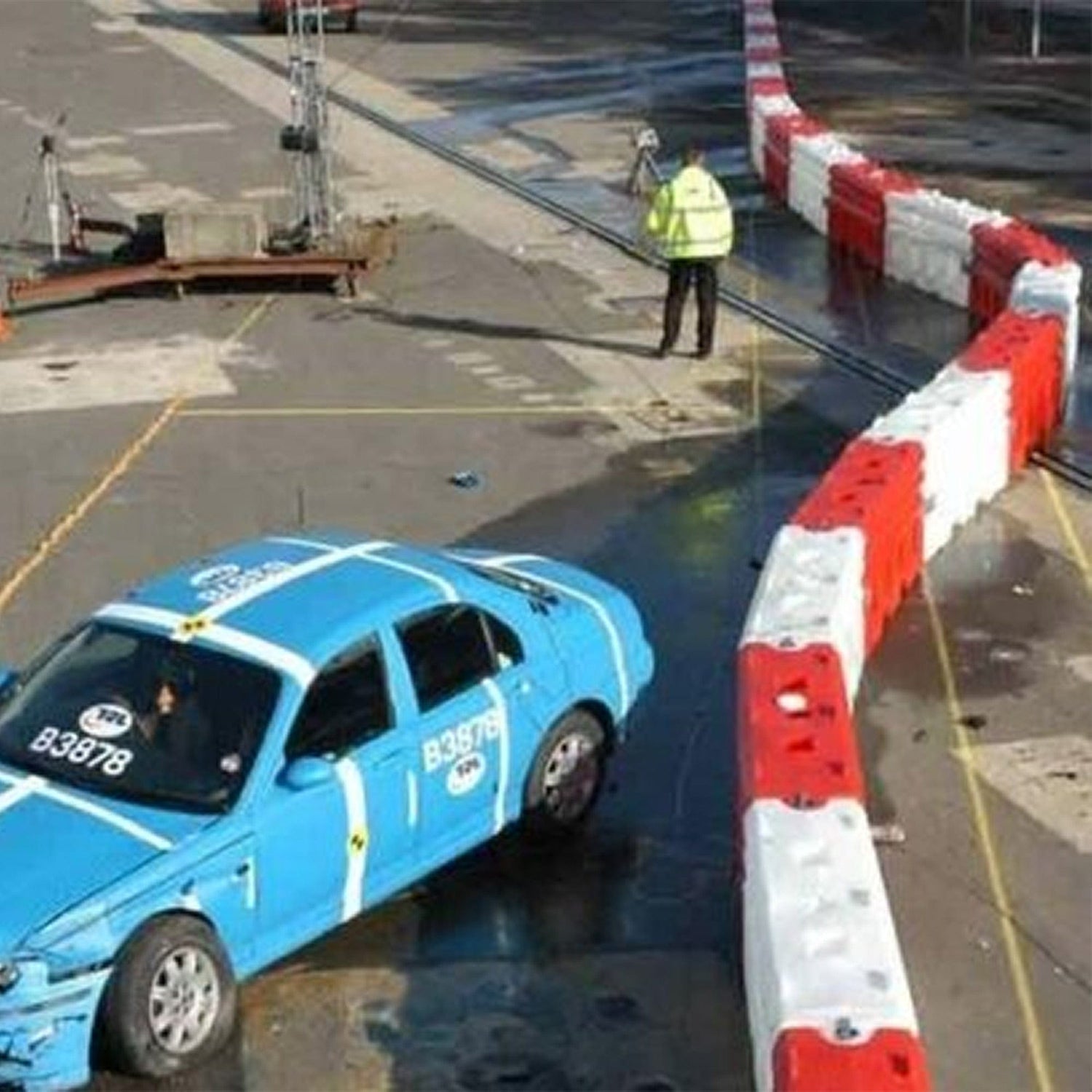

TRL crash tested to 50mph

Tested to BS EN 1317 and TRL crash-test standards for high-risk vehicle and pedestrian environments.

Water-filled stability

Each 2m section reaches 600kg once filled, holding position without groundworks or fixings.

Hinge-pin connection

Panels connect with a hinge pin and steel side joining plate for a stable, continuous run.

MIRA wind speed tested

Rated for exposed and open sites where wind loading is a factor.

UV-stabilised polyethylene

Resists fading and cracking in continuous outdoor use.

Overview

RB22 50mph Crash-Tested Safety Barrier - Overview

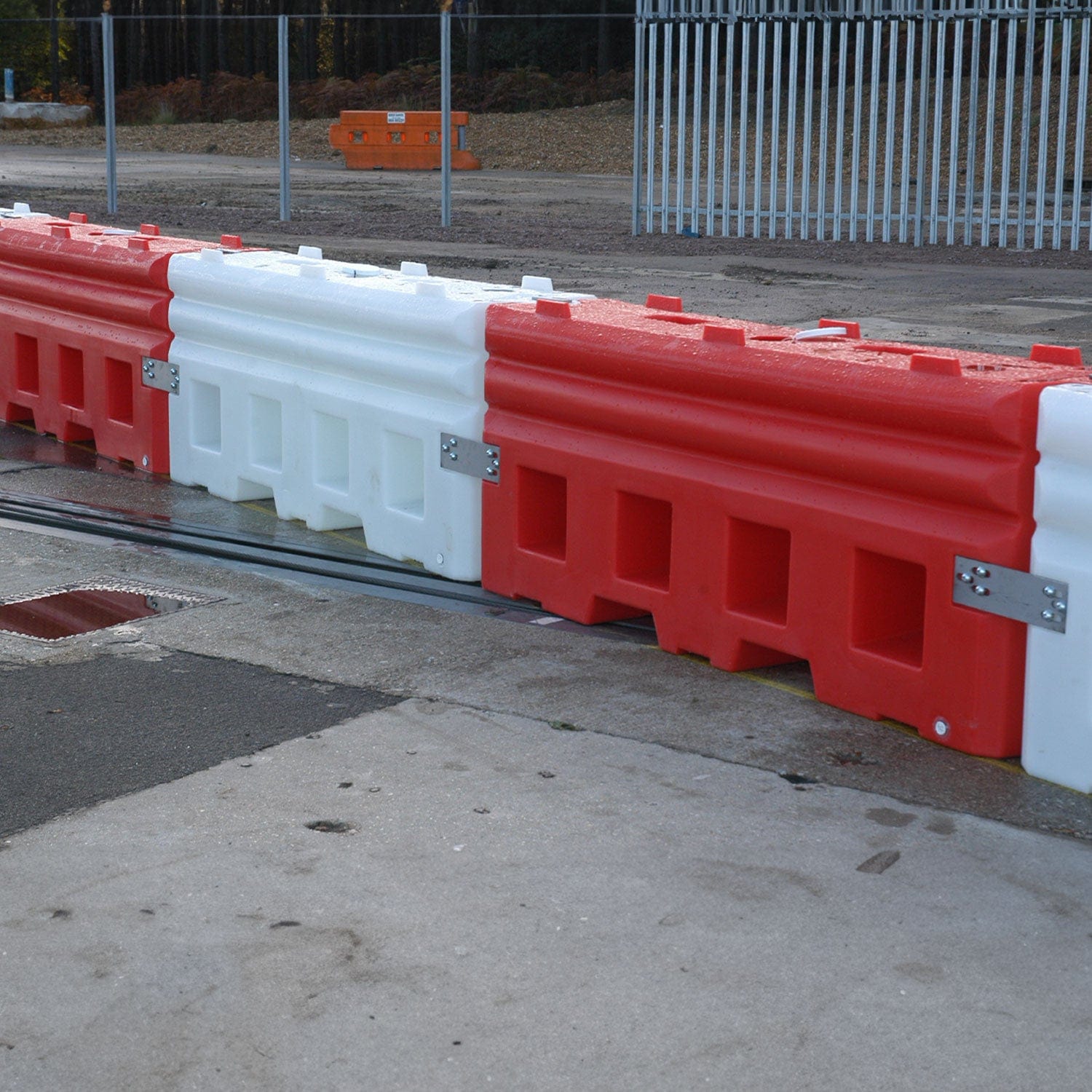

The RB22 is a water-filled interlocking safety barrier for highways, construction and event sites. Panels connect with a hinge pin and steel side joining plate, and each 2m section fills with water for on-site stability.

2000mm

Length

800mm

Height

50mph

TRL crash tested

600kg

Filled weight

Dimensions
Height	800mm
Length	2000mm
Width	500mm
Weight (empty)	60kg
Weight (filled)	600kg

Details
Material	UV-stabilised polyethylene

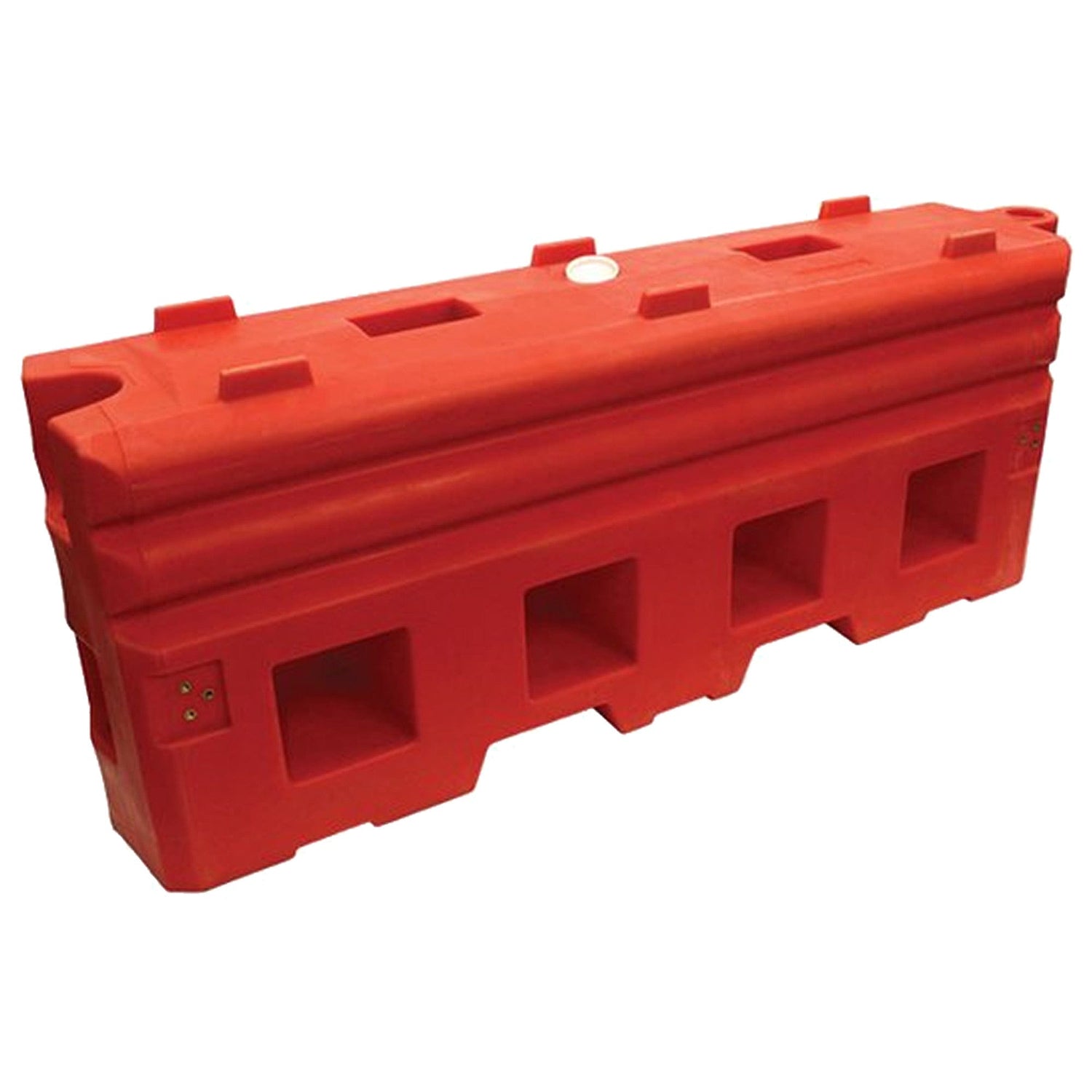

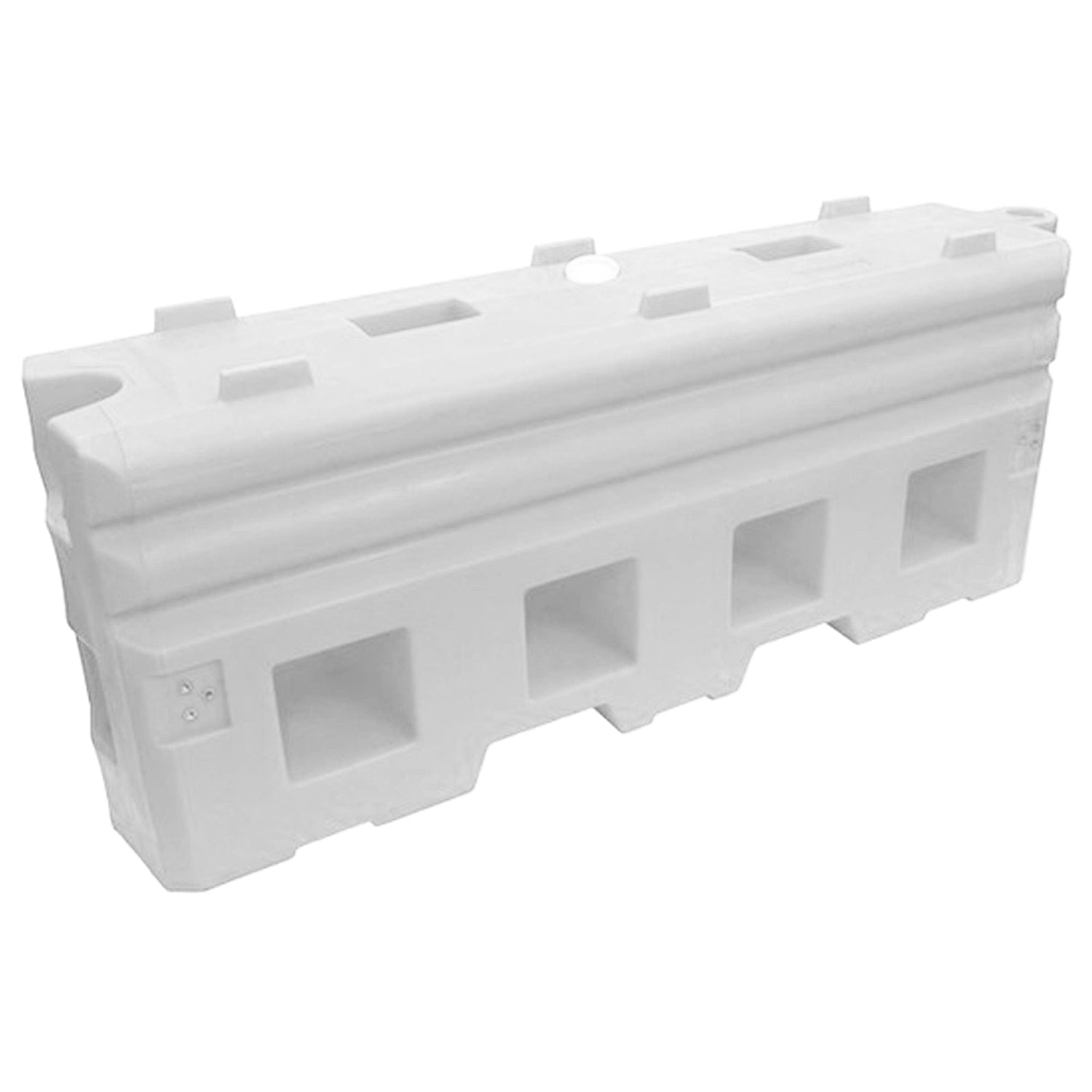

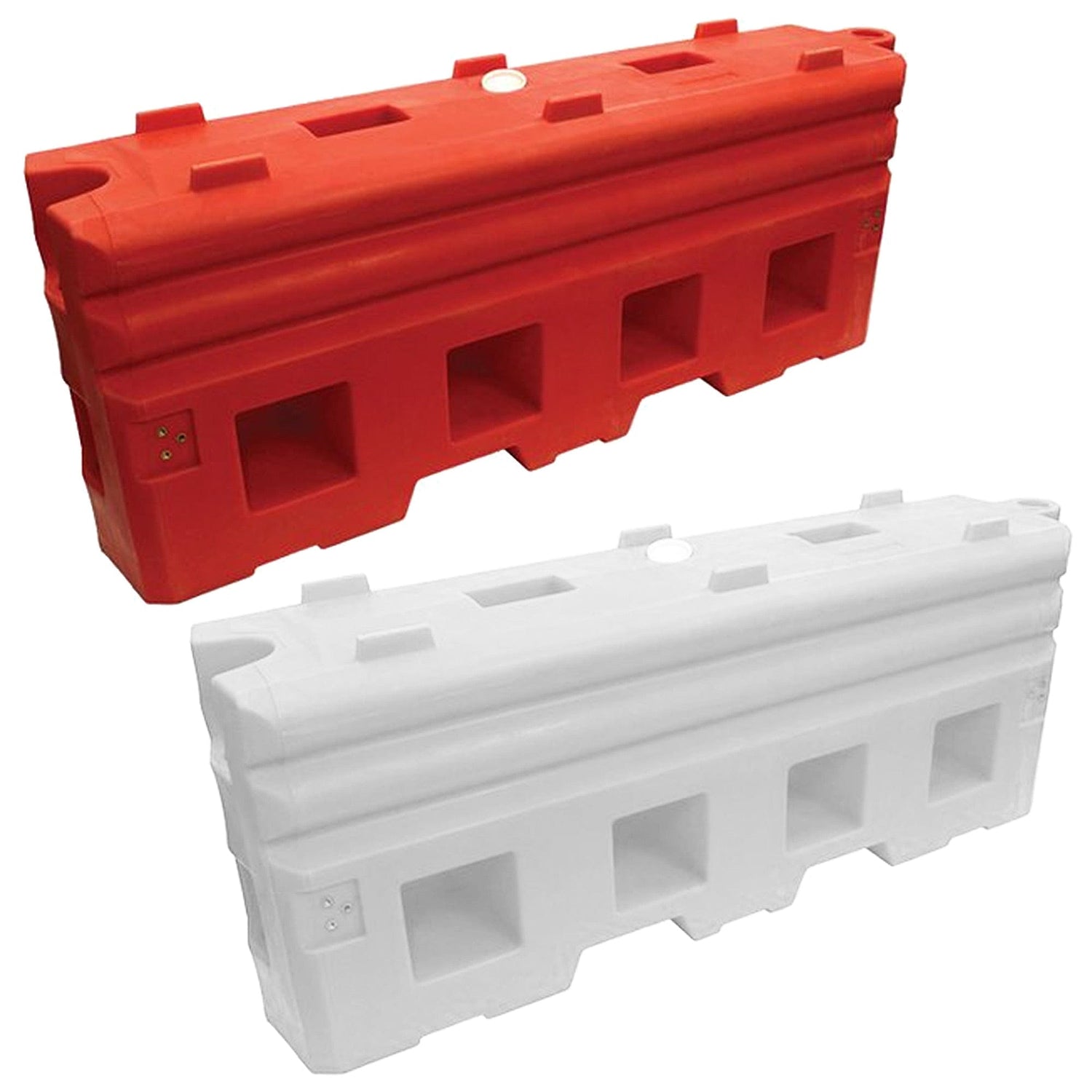

Colour	Red, white, or red/white split panel
Crash rating	TRL tested to 50mph, BS EN 1317
Wind rating	MIRA wind speed tested
Fitting	Hinge-pin connection with steel side joining plate
Ballast	Water filled
Handling	Base slots for forklift or manual lifting

Frequently asked questions

What standard is the RB22 crash tested to?

It is TRL tested to 50mph and meets BS EN 1317, the standard for vehicle restraint systems.

How heavy is the barrier once filled with water?

Each 2m section weighs around 60kg empty and up to 600kg once filled with water, giving it the mass to hold a line without fixings.

How do the barriers connect to each other?

Adjacent units connect with a hinge pin and a steel side joining plate, so a run can be built up section by section.

Can I build an angled or closed-off run?

Yes, the RB22 range includes angle pieces for turns up to 90 degrees and end stops for finishing an open run, both sold separately.

What colour options are available?

Solid red, solid white, or a red/white split panel for building an alternating run without ordering separate colours.

Can the barrier take mesh or hoarding panels?

Yes, RB22 mesh panels, mesh extension panels and hoarding panels fit the same connection system for added height or screening.

Are custom colours available?

Yes, subject to a minimum order quantity - contact us for details.
