Autopa · SKU:
049045
Model SR (V) Galvanised Cycle Holder
Model SR (V) galvanised cycle holder for single-bike parking. Ragged or flanged fixing, black polypropylene cap included. UK made.
£35.24
each, ex VAT
£42.29
inc VAT
Ships in 2 to 3 working days
Model SR (V) Galvanised Cycle Holder - Concrete In (ragged) is backordered and will ship as soon as it is back in stock.
Buy more, pay less
Per unit, ex VAT. Applied automatically.
Ships in
2 to 3 working days
Formal quote back in 3 hours. No account needed.
We can fit this for you
This product is covered by our installation service. Tell us about the site and we will quote for supply and fitting.
Quote in 3 hours
No account needed
- Made in the UK
- Next Day Delivery Available
- Pay in 30 days with a Trade Account. No fees.
- UK stock. Stock and lead time are shown above.
- Seen it cheaper? We beat any genuine quote. 0161 706 0479
You may also like
See all bike & scooter parking ›Other cycle shelters in the range
Model SU (V) Galvanised Cycle HolderCycle Shelters
£74.08 ex VAT
£88.89 inc VAT
£1,071.99 ex VAT
£1,286.39 inc VAT
£1,282.08 ex VAT
£1,538.49 inc VAT
You may be looking for
Model SR (V) Galvanised Cycle Holder
Regular priceFrom
£42.29
Unit price
Unavailable
Model SR (V) Galvanised Cycle Holder - Concrete In (ragged) is backordered and will ship as soon as it is back in stock.
Why it works
Simple, durable single-bike parking
Two fixing options
Ragged for casting into concrete or flanged for bolting to an existing surface.
Galvanised steel
Mild steel bar and tube construction stands up to outdoor use without repainting.
Compact footprint
A single-bike holder that space-plans efficiently at 610mm spacing for larger parking runs.
UK manufactured
Made in the UK, with a black polypropylene cap included as standard.
Overview
Model SR (V) Galvanised Cycle Holder - Overview

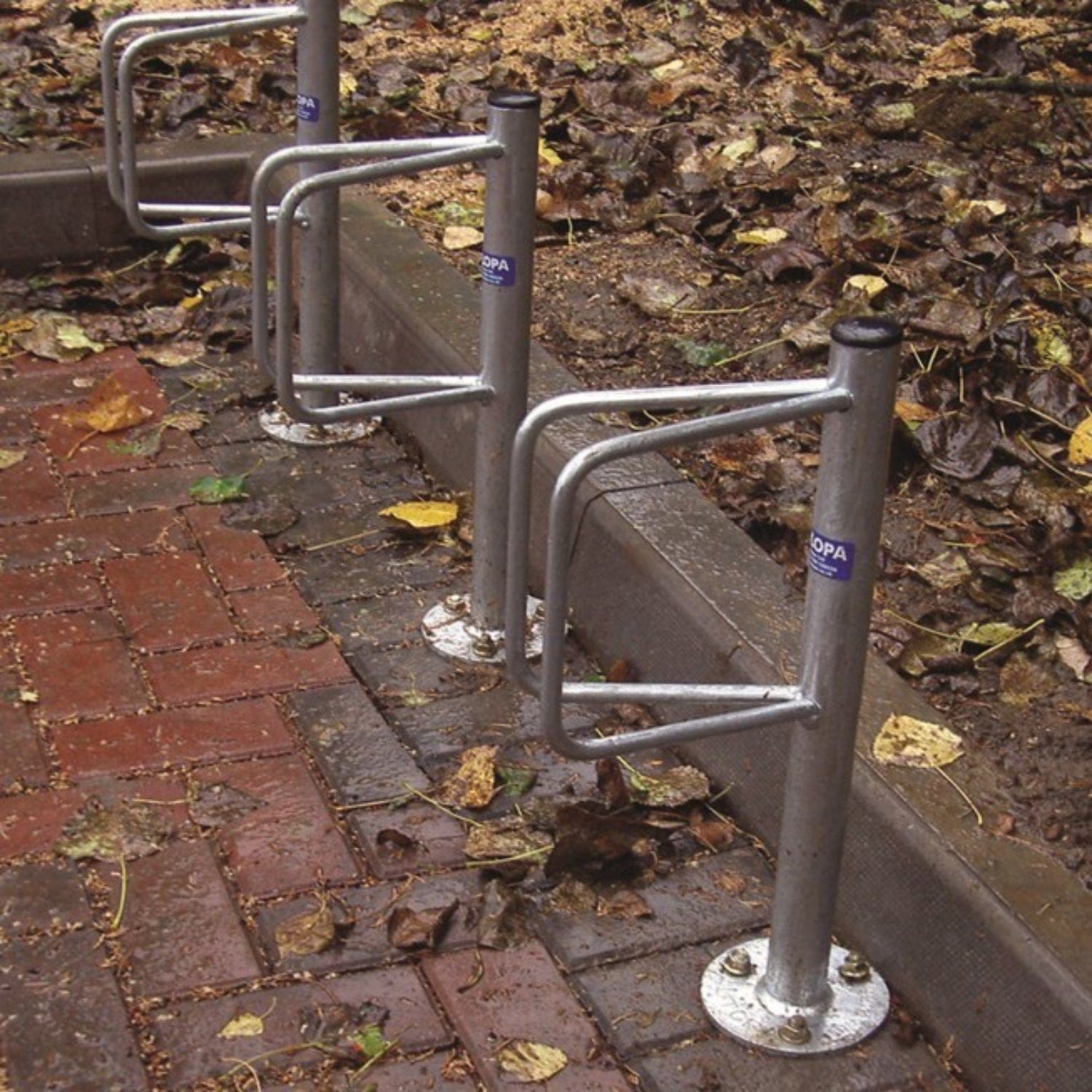

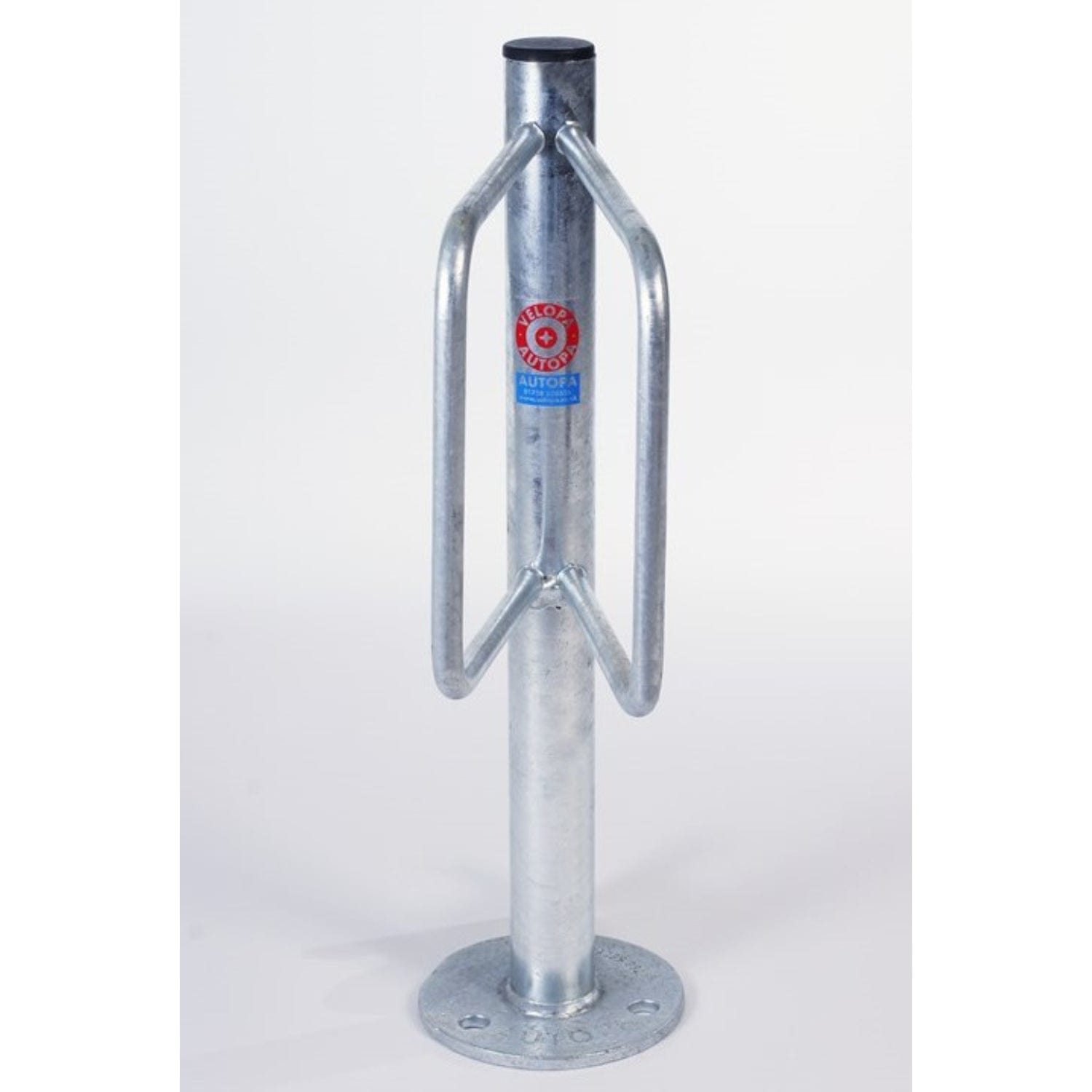

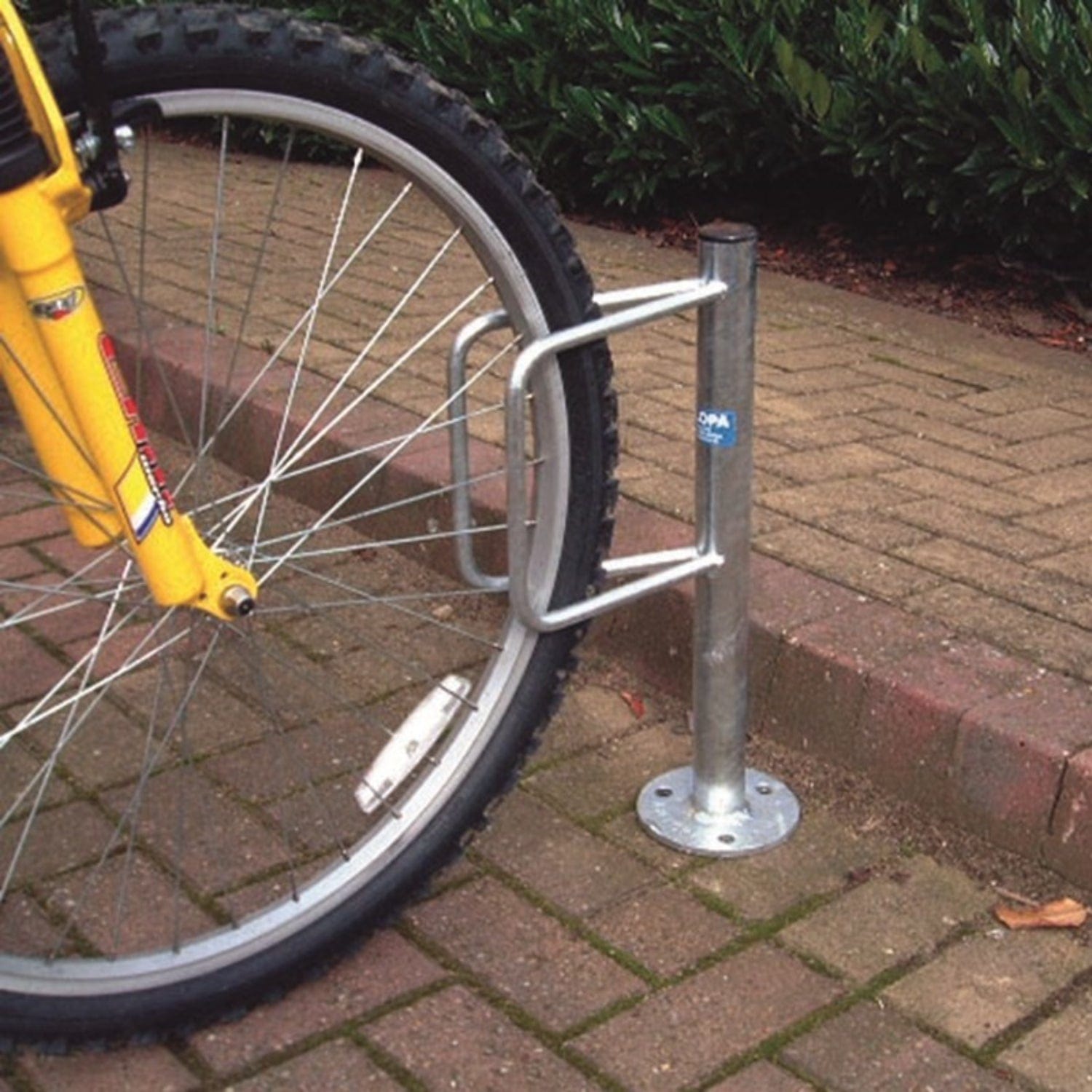

The Model SR (V) is a simple, freestanding cycle holder for a single bicycle, supporting the tyre in a galvanised steel loop. Available ragged for casting into concrete or flanged for bolting down, it suits low-cost, high-volume cycle parking runs.
484mm
Height
230mm
Depth
12mm
Bar diameter
610mm
Min. spacing between holders
| Dimensions | |
|---|---|
| Height | 484mm |
| Width | 90mm |
| Depth | 230mm |
| Bar diameter | 12mm |
| Flange plate (flanged version) | 133mm diameter x 5mm |
| Below ground (ragged version) | 203mm |
| Details | |
|---|---|
| Fixing | Bolt down, 3 x 12mm bolts per stand |
| Included | Black polypropylene cap |
| Material | Galvanised steel |
| Origin | UK manufactured |
Frequently asked questions
How many bikes does each holder take?
How many bikes does each holder take?
One. It is a single-bike holder that supports the tyre in a galvanised steel loop, so you fit as many as you need in a row.
What is the difference between the ragged and flanged versions?
What is the difference between the ragged and flanged versions?
The ragged version is set directly into wet concrete, while the flanged version bolts down to an existing hard surface using the round flange plate.
How far apart should I space them?
How far apart should I space them?
At least 610mm between holders, so each bicycle has enough room to park and be removed easily.
How is the flanged version fixed down?
How is the flanged version fixed down?
Each stand bolts down with 3 x 12mm bolts through the round flange plate.
What is it made from?
What is it made from?
Galvanised mild steel bar and tube, finished with a black polypropylene cap on top.
Can it be cast into new concrete?
Can it be cast into new concrete?
Yes, the ragged version is designed to be cast into concrete, with 203mm below ground for a secure fixing.
Does it lock the bike?
Does it lock the bike?
No. It supports and steadies the bicycle by the tyre - riders need their own lock to secure the frame or wheel.
