Mexco | SKU:
137056
Mexco GPX10-8 GP Concrete 8mm Diamond Blade
£4.99
Ex. VAT
£5.99
Inc. VAT
Why buy from us
- Pay in 30 days with a Trade Account. No fees.
- Trade and bulk pricing available on request
- UK stock, dispatched fast
Mexco GPX10-8 GP Concrete 8mm Diamond Blade - 115mm / 22.23mm is backordered and will ship as soon as it is back in stock.
Ships in
1 – 3 working days
Quote in 3 hours
No account needed
- Made in the UK
- Pay in 30 days with Klarna. No fee. Learn more
- Next Day Delivery Available
Mexco GPX10-8 GP Concrete 8mm Diamond Blade
Regular priceFrom
£5.99
Unit price
Unavailable
Mexco GPX10-8 GP Concrete 8mm Diamond Blade - 115mm / 22.23mm is backordered and will ship as soon as it is back in stock.
Why it works
General purpose cutting, four sizes covered
Manufactured to EN 13236
Meets the EN 13236 standard for diamond cutting tools, marked on the blade and packaging.
High diamond concentration
A high diamond concentration in the X10-grade segments gives efficient, consistent cutting on everyday site materials.

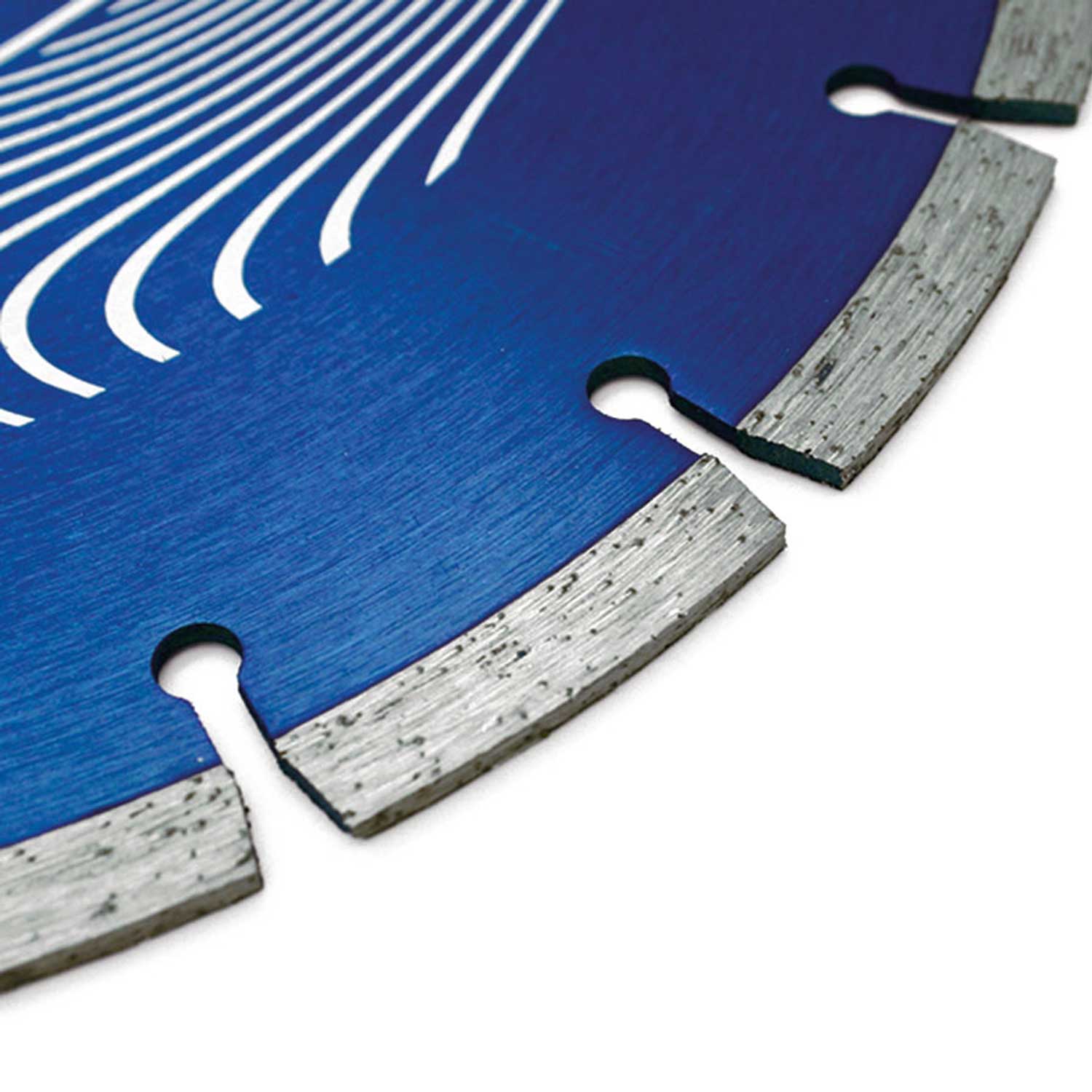

8mm segmented rim
The 8mm segmented rim is sintered for durability and cutting stability.
Wet or dry cutting
Sintered segment construction works with wet or dry cutting methods.
Narrow keyhole gullet
The gullet design supports airflow and debris clearance while cutting.
Overview
Mexco GPX10-8 GP Concrete Diamond Blade - Overview

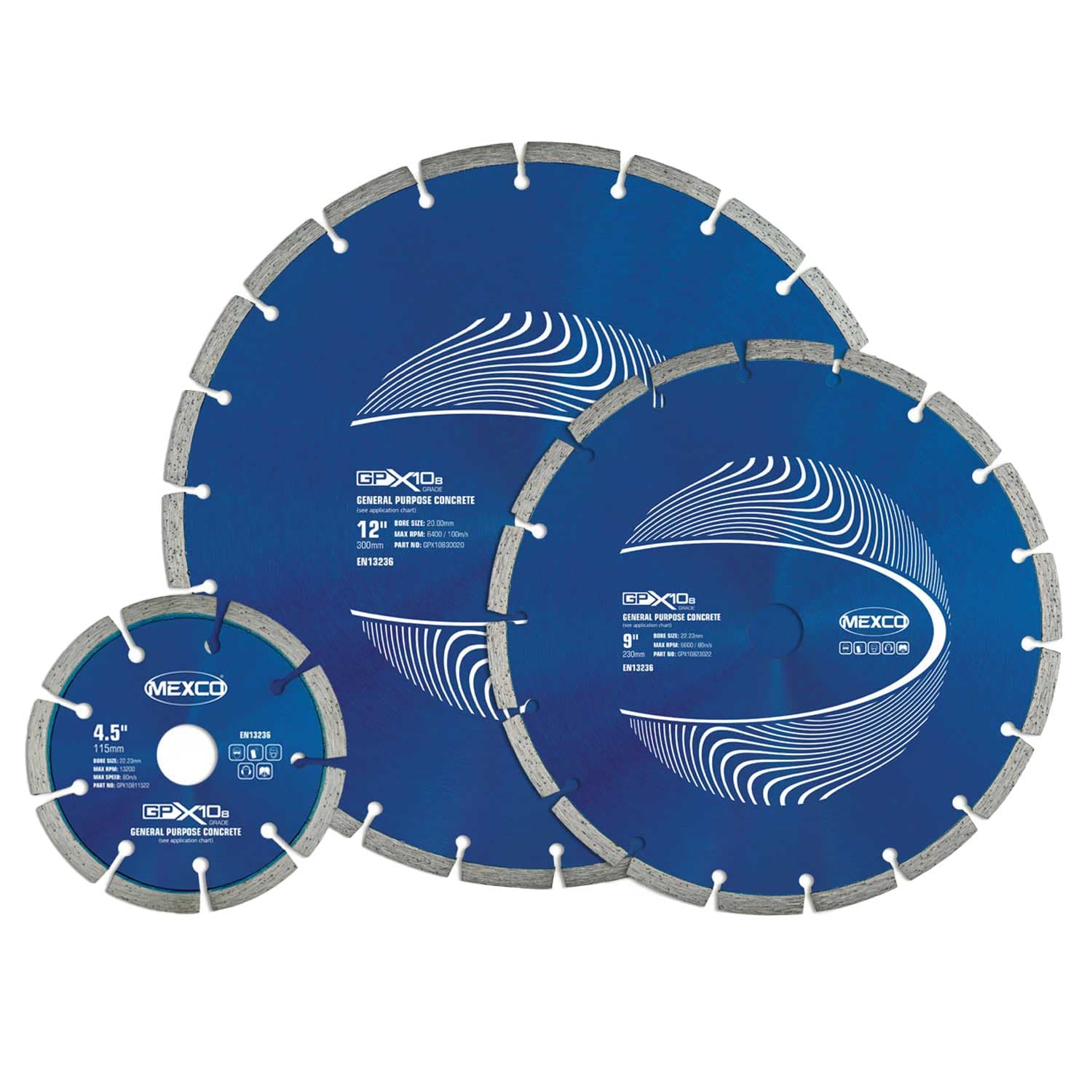

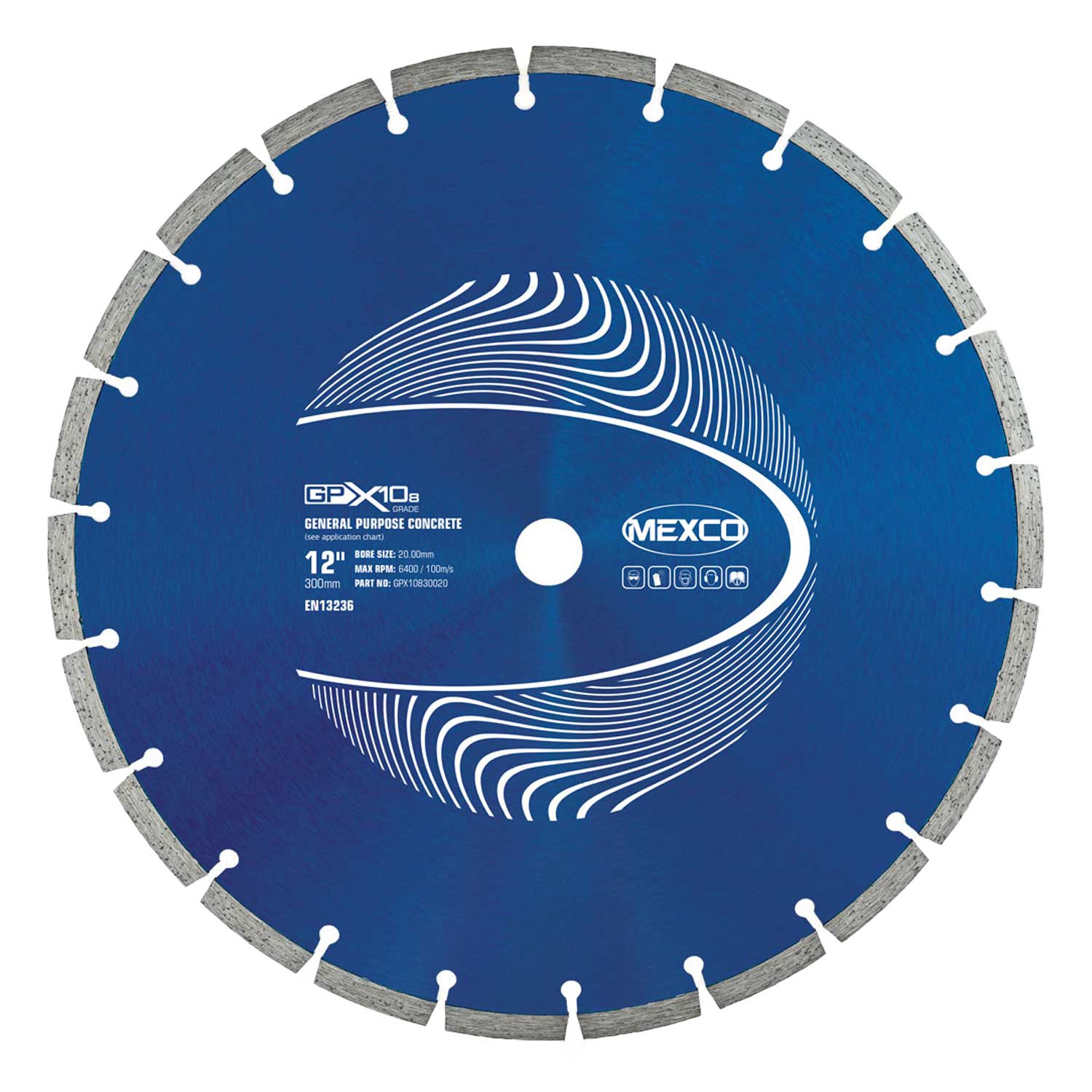

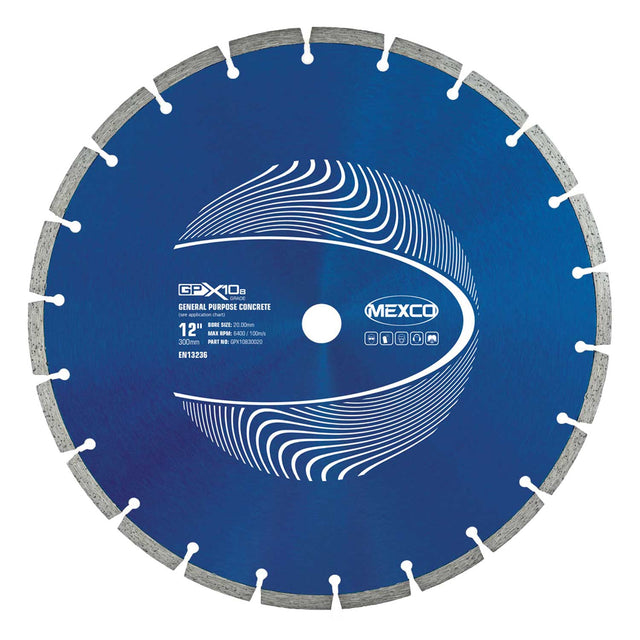

The Mexco GPX10-8 GP Concrete Diamond Blade is a cost-effective general purpose blade for cutting non-abrasive building materials on site. Sintered X10-grade segments give a high diamond concentration for efficient cutting, and the 8mm segmented rim with narrow keyhole gullets keeps airflow and cutting stability consistent whether you are working wet or dry. Available in four sizes from 115mm to 300mm diameter.
8mm
Segment height
4sizes
Diameters available (115-300mm)
X10grade
Diamond segment grade
| Dimensions | |
|---|---|
| Sizes | 115mm, 125mm, 230mm and 300mm diameter |
| Bore | 22.23mm (115mm, 125mm, 230mm) / 20.00mm (300mm) |
| Segment height | 8mm |
| Details | |
|---|---|
| Brand | Mexco |
| Grade | X10 |
| Segment attachment | Sintered |
| Segment type | Segmented |
| Gullet type | Narrow keyhole |
| Wet/dry | Wet and dry |
| Recommended tools | Angle grinder, bench saw, disc cutter |
| Standard | EN 13236 |
| Undercutting protection | No |
| Ventilation | No |
Frequently asked questions
What's the difference between the GPX10-8 and other Mexco GPX10 blades?
What's the difference between the GPX10-8 and other Mexco GPX10 blades?
The GPX10-8 has an 8mm segment height, shallower than the 10mm GPX10 grade, while keeping the same X10 sintered segment construction. It's available in four sizes: 115mm, 125mm, 230mm and 300mm.
What sizes and bores does it come in?
What sizes and bores does it come in?
Four sizes: 115mm, 125mm and 230mm diameter with a 22.23mm bore, and 300mm diameter with a 20.00mm bore.
Can I use this blade on brick as well as concrete?
Can I use this blade on brick as well as concrete?
Yes, but with reduced blade life. It's built for non-abrasive materials like reinforced concrete, limestone, kerbs and paviours - facing brick and hard sandstone will cut, but expect faster wear and possible glazing.
Does it have undercutting protection or ventilation slots?
Does it have undercutting protection or ventilation slots?
No. This is a straightforward general purpose blade without undercutting protection or ventilation - those features sit on Mexco's specialist ranges.
What tools does it fit?
What tools does it fit?
Angle grinders, bench saws and disc cutters.
Is it rated for wet and dry cutting?
Is it rated for wet and dry cutting?
Yes, the sintered segments are suitable for both wet and dry cutting.
What standard is the blade made to?
What standard is the blade made to?
EN 13236, the European standard for diamond cutting tools, marked on the blade and its packaging.
