Mexco | SKU:
137060
Mexco GPX10 GP Concrete 10mm Diamond Blade
£4.99
Ex. VAT
£5.99
Inc. VAT
Why buy from us
- Pay in 30 days with a Trade Account. No fees.
- Trade and bulk pricing available on request
- UK stock, dispatched fast
Mexco GPX10 GP Concrete 10mm Diamond Blade - 105mm / 16.00mm is backordered and will ship as soon as it is back in stock.
Ships in
1 – 3 working days
Quote in 3 hours
No account needed
- Made in the UK
- Pay in 30 days with Klarna. No fee. Learn more
- Next Day Delivery Available
Mexco GPX10 GP Concrete 10mm Diamond Blade
Regular priceFrom
£5.99
Unit price
Unavailable
Mexco GPX10 GP Concrete 10mm Diamond Blade - 105mm / 16.00mm is backordered and will ship as soon as it is back in stock.
Why it works
General purpose cutting, done reliably
Manufactured to EN 13236
Meets the EN 13236 standard for diamond cutting tools, marked on the blade.
High diamond concentration
A high diamond concentration gives strong, consistent cutting performance on everyday site materials.

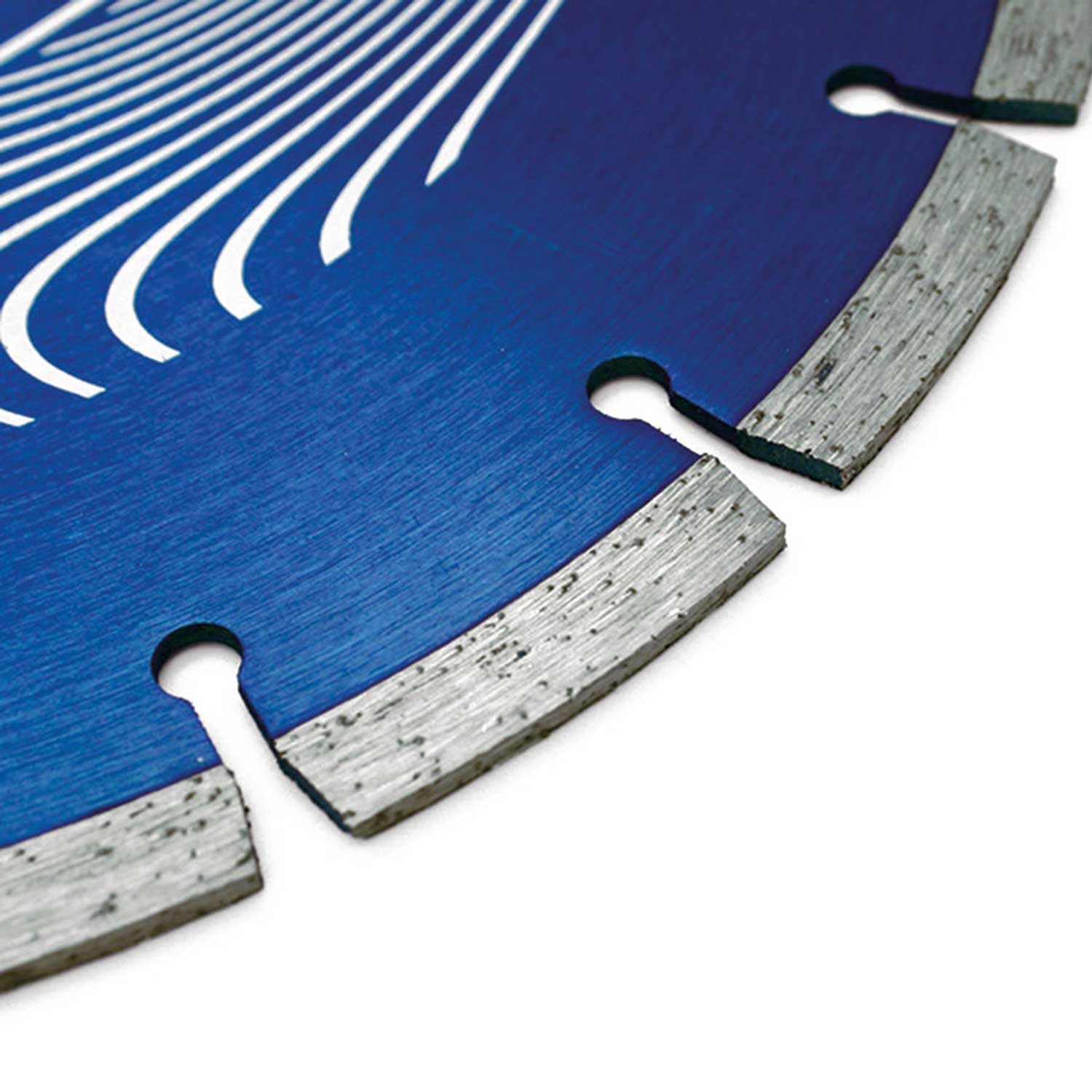

10mm segmented rim
The 10mm segmented rim is built for long life and cutting stability.
Wet or dry cutting
Sintered segment construction works with wet or dry cutting methods.
Narrow keyhole gullet
The gullet design supports efficient debris removal while cutting.
Overview
Mexco GPX10 GP Concrete Diamond Blade - Overview

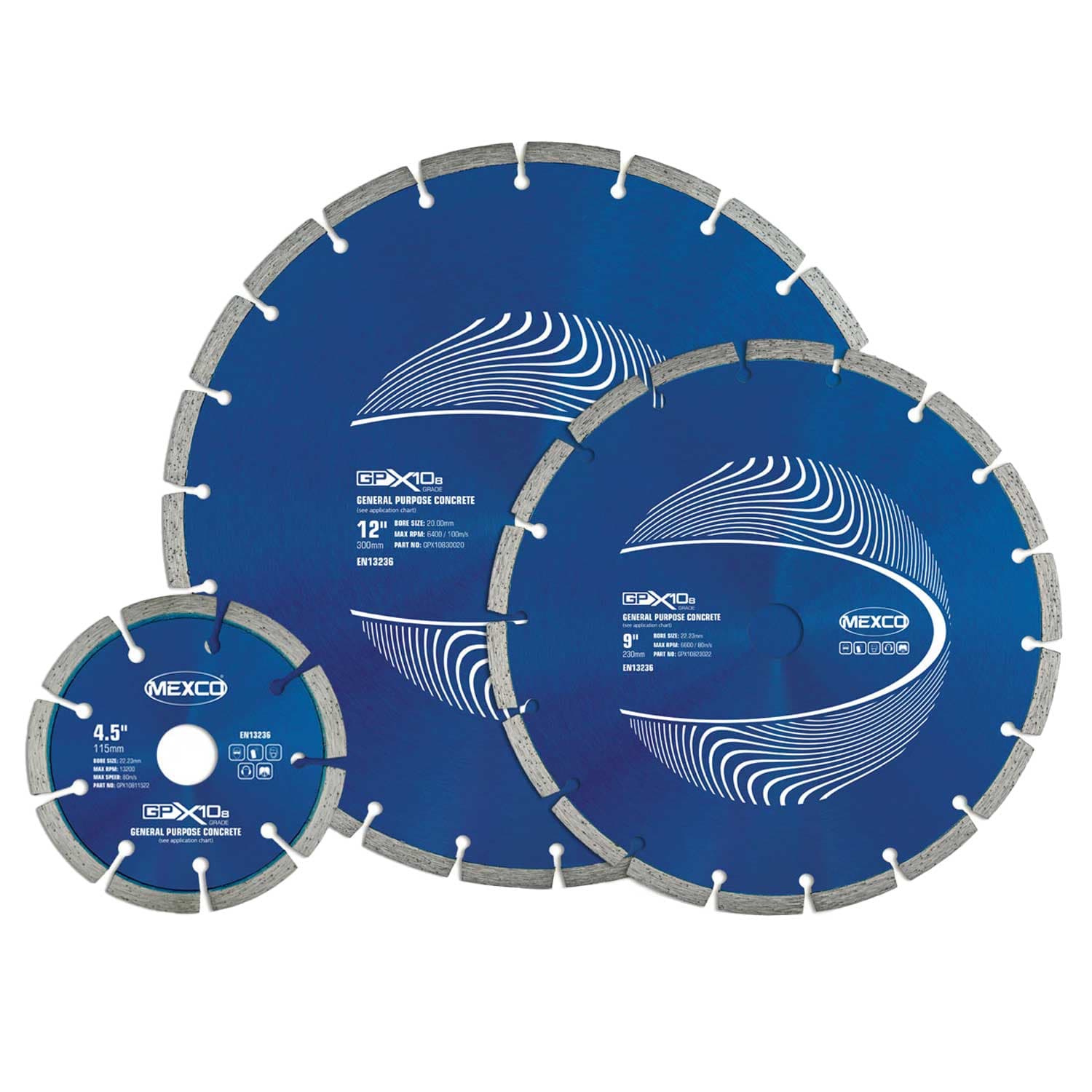

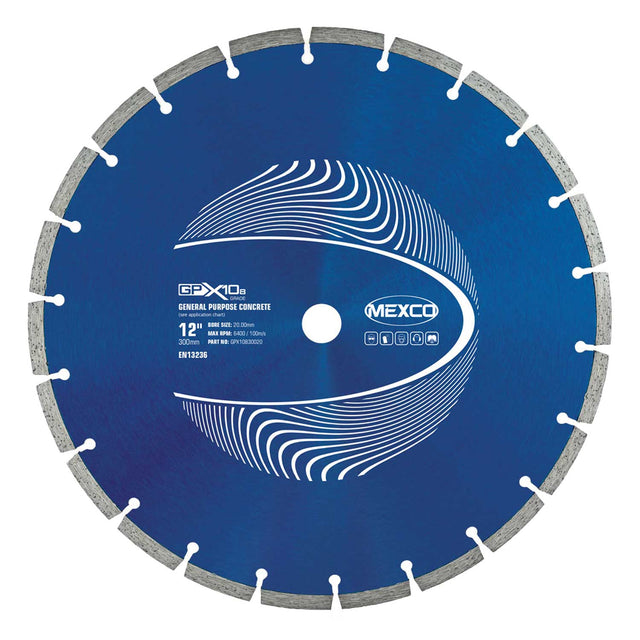

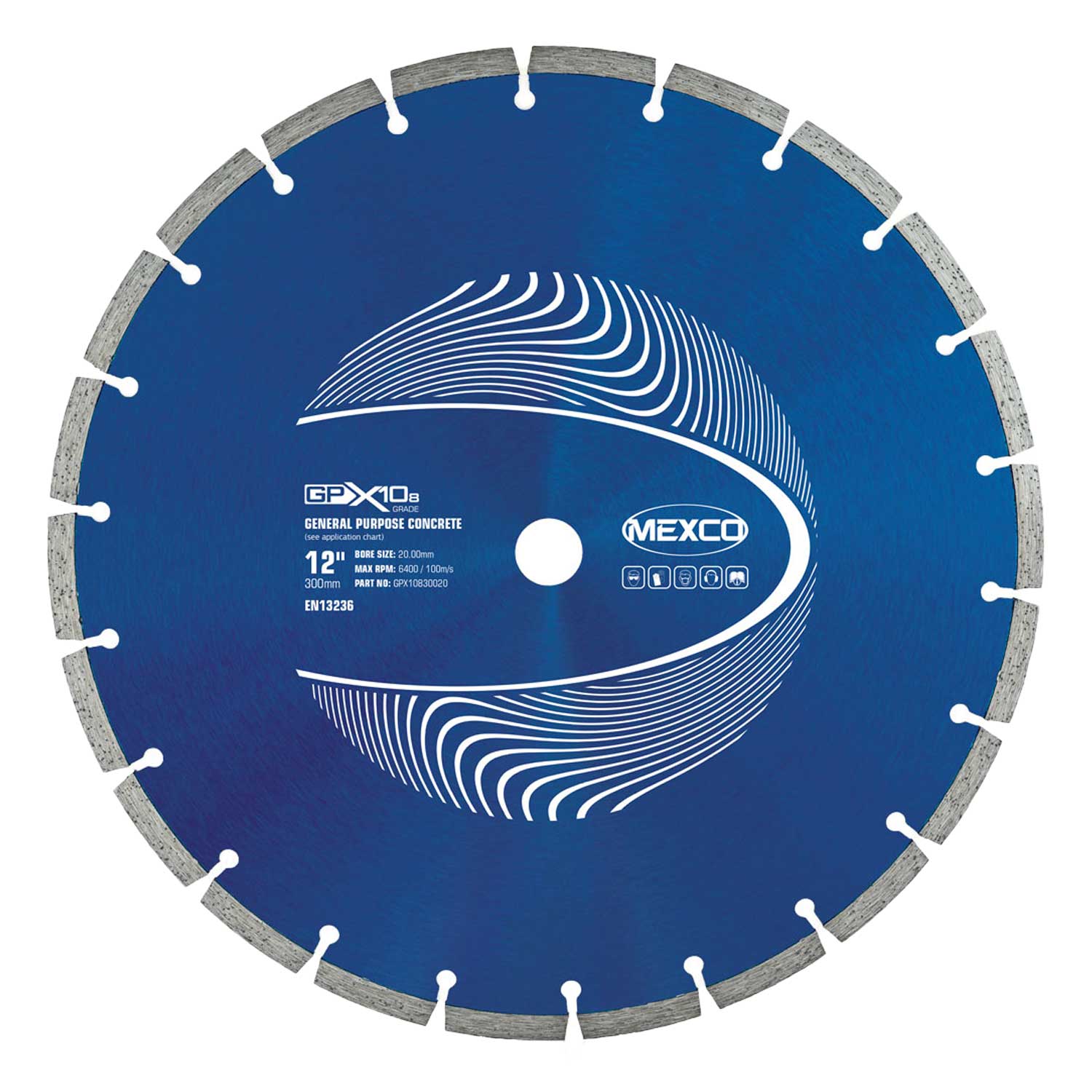

The Mexco GPX10 GP Concrete 10mm Diamond Blade is a general purpose blade for everyday non-abrasive site materials, from reinforced concrete and hard limestone to kerbs, slabs and paviours. Sintered, high diamond concentration segments and a 10mm segmented rim give strong, consistent cutting performance. Manufactured to EN 13236, and available in 10 sizes from 105mm to 350mm diameter.
10mm
Segment height
10Sizes
105mm to 350mm range
16-25.4mm
Bore range
| Dimensions | |
|---|---|
| Sizes | 105mm to 350mm (10 sizes) |
| Bore | 16.00mm, 20.00mm, 22.23mm or 25.40mm depending on size |
| Segment height | 10mm |
| Details | |
|---|---|
| Brand | Mexco |
| Grade | X10 |
| Segment attachment | Sintered |
| Segment type | Segmented |
| Gullet type | Narrow keyhole |
| Wet/dry | Wet and dry |
| Recommended tools | Angle grinder, bench saw, disc cutter, floor saw |
| Standard | EN 13236 |
| Undercutting protection | No |
| Ventilation | No |
Frequently asked questions
What is the GPX10 designed for?
What is the GPX10 designed for?
General purpose cutting of everyday, non-abrasive site materials - reinforced concrete, hard limestone, concrete kerbs, slabs and paviours. It will also cut facing brick or hard sandstone, though with reduced blade life.
What sizes does it come in?
What sizes does it come in?
Ten sizes, from 105mm up to 350mm diameter, with a bore of 16.00mm, 20.00mm, 22.23mm or 25.40mm depending on size.
Does this blade have undercutting protection or ventilation?
Does this blade have undercutting protection or ventilation?
No, this blade doesn't include undercutting protection or ventilation slots - it's built for straightforward general purpose cutting rather than specialist applications.
How are the segments attached?
How are the segments attached?
The segments are sintered onto the blade core, rather than laser-welded, which suits this general purpose grade.
What standard is it manufactured to?
What standard is it manufactured to?
EN 13236, the standard for diamond cutting tools, marked on the blade itself.
Can it be used with an angle grinder?
Can it be used with an angle grinder?
Yes, it also fits bench saws, disc cutters and floor saws.
Is it suitable for both wet and dry cutting?
Is it suitable for both wet and dry cutting?
Yes, the GPX10 is suitable for both wet and dry cutting.
