Mexco | SKU:
137070

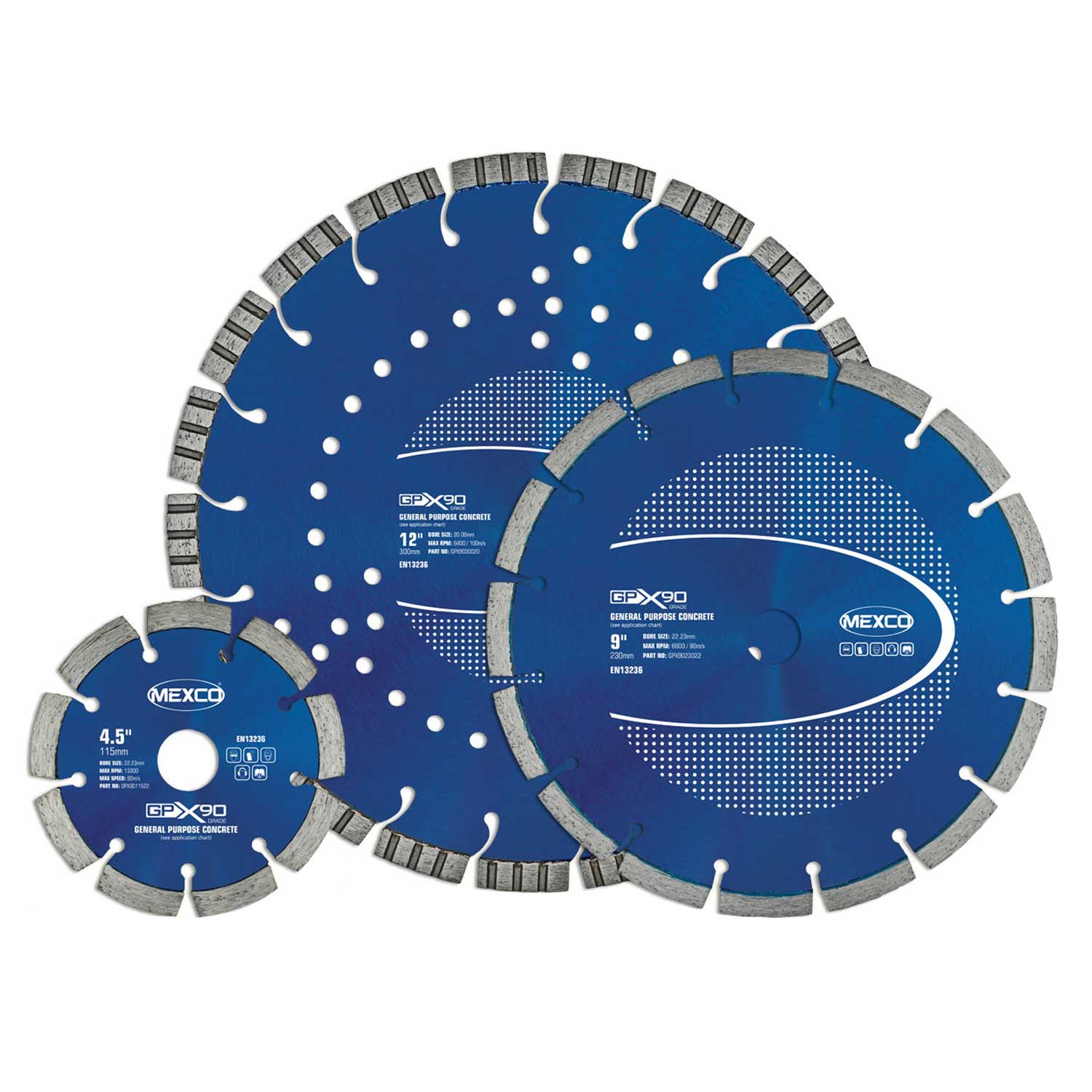

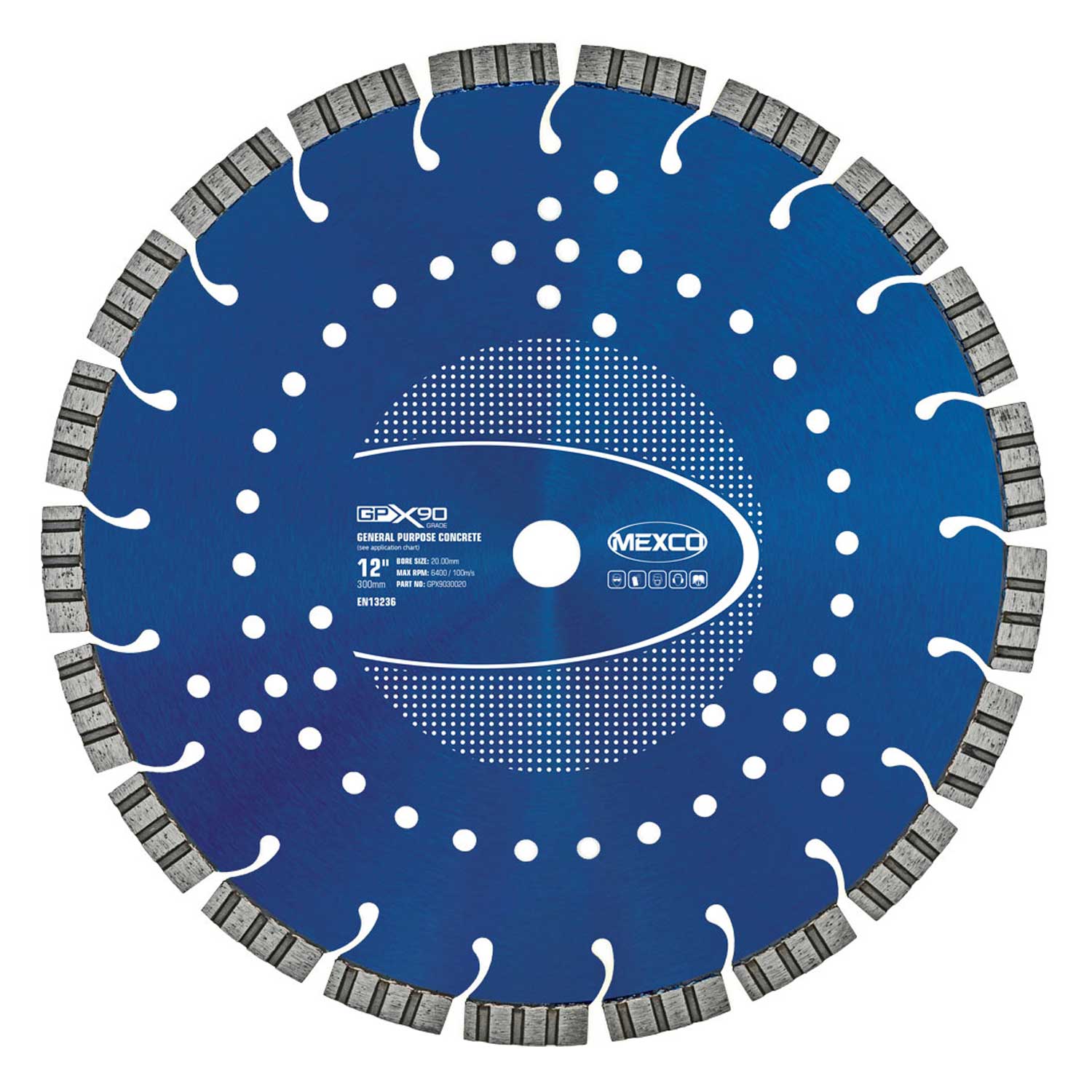

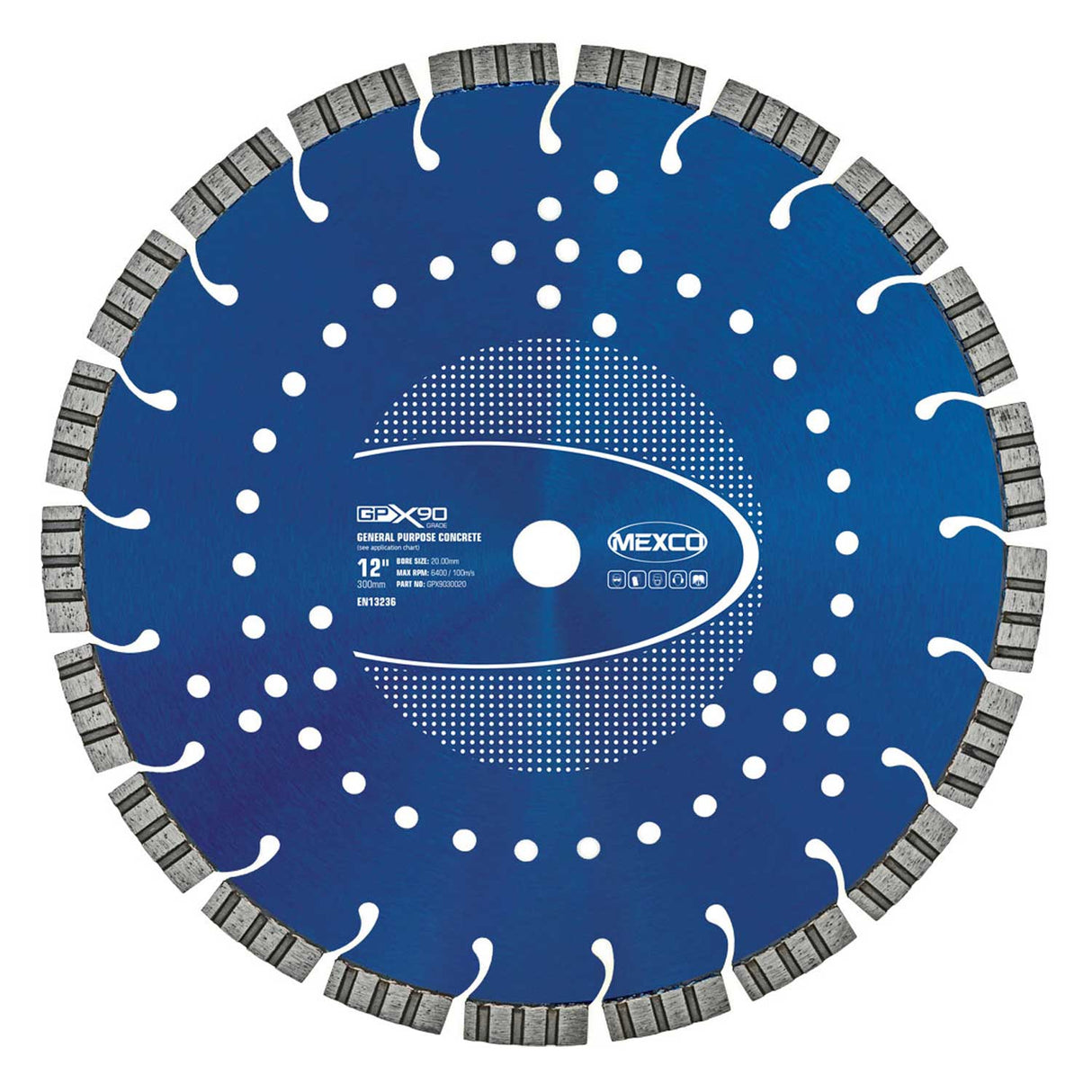

Mexco GPX90 GP Concrete 10mm Diamond Blade
£20.83
Ex. VAT
£24.99
Inc. VAT
Why buy from us
- Pay in 30 days with a Trade Account. No fees.
- Trade and bulk pricing available on request
- UK stock, dispatched fast
Mexco GPX90 GP Concrete 10mm Diamond Blade - 115mm / 22.23mm is backordered and will ship as soon as it is back in stock.
Ships in
1 – 3 working days
Quote in 3 hours
No account needed
- Made in the UK
- Pay in 30 days with Klarna. No fee. Learn more
- Next Day Delivery Available
Mexco GPX90 GP Concrete 10mm Diamond Blade
Regular priceFrom
£24.99
Unit price
Unavailable
Mexco GPX90 GP Concrete 10mm Diamond Blade - 115mm / 22.23mm is backordered and will ship as soon as it is back in stock.
Why it works
Built for everyday concrete and masonry cutting
Fits standard tools
Runs on angle grinders, bench saws, disc cutters and floor saws, wet or dry.

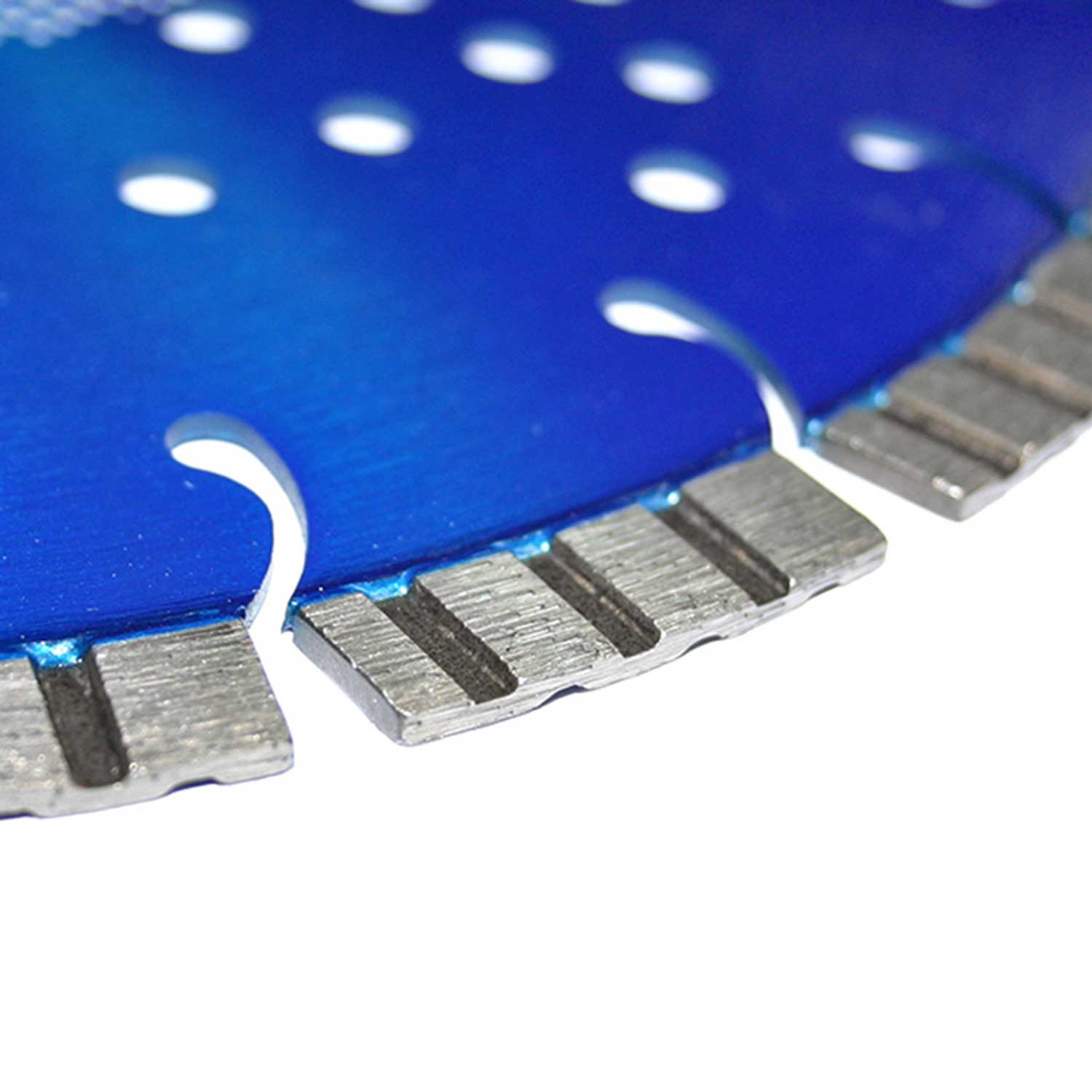

Laser-welded segments
Segments are laser-welded on for a strong bond and longer working life.
Wet or dry cutting
No dedicated water feed needed - cut dry on site or wet where dust control calls for it.
X90-grade construction
A step up from a standard general-purpose blade, built for steadier cutting under load.
Tear-drop gullets
Wide gullets clear debris fast, keeping the cut line clear and cutting speed up.
Overview
Mexco GPX90 GP Concrete 10mm Diamond Blade - Overview
The GPX90 is Mexco's X90-grade general-purpose diamond blade, built for reinforced concrete, hard limestone and concrete paviours. Laser-welded segments and a tear-drop gullet give it longer life and steady cutting for contractors working across varied site materials.
115mm
Smallest diameter
600mm
Largest diameter
10mm
Segment height
12sizes
Size range available
| Dimensions | |
|---|---|
| Diameter range | 115mm to 600mm |
| Segment height | 10mm (12mm on the 300mm blade) |
| Bore sizes | 20mm, 22.23mm or 25.4mm depending on diameter |
| Details | |
|---|---|
| Grade | X90 |
| Gullet type | Tear-drop |
| Segment attachment | Laser-welded |
| Segment type | Segmented |
| Cutting | Wet or dry |
| Undercutting protection | No |
| Ventilation | Yes |
| Recommended tools | Angle grinder, bench saw, disc cutter, floor saw |
| Standard | EN13236 |
Frequently asked questions
What is the GPX90 best suited to cutting?
What is the GPX90 best suited to cutting?
It is built for reinforced concrete, hard limestone, limestone aggregate concrete and concrete paviours. It will also cut sandstone and facing brick, though blade life is reduced and there is some risk of glazing on those materials.
Does the bore size change between diameters?
Does the bore size change between diameters?
Yes. 115mm to 230mm blades use a 22.23mm bore, 300mm and 400mm blades are available with a 20mm bore, and 350mm to 600mm blades are available with a 25.4mm bore. Check your machine's arbor before ordering.
Can I cut wet and dry with the same blade?
Can I cut wet and dry with the same blade?
Yes, the GPX90 is rated for wet or dry cutting, so you can switch between the two without changing blades.
How is the GPX90 different from Mexco's standard general-purpose blade?
How is the GPX90 different from Mexco's standard general-purpose blade?
It is built to X90 grade, a step up from the standard GPX10, giving steadier cutting and longer segment life under the same general-purpose use.
How are the segments fixed to the core?
How are the segments fixed to the core?
The segments are laser-welded on, which gives a stronger bond than silver-brazing and holds up better under continuous use.
What standard is the blade made to?
What standard is the blade made to?
EN13236, the European standard for diamond cutting discs, as marked on the blade.
Which tools will it fit?
Which tools will it fit?
Angle grinders, bench saws, disc cutters and floor saws, matched to the bore size of the diameter you choose.
