Mexco | SKU:
137203

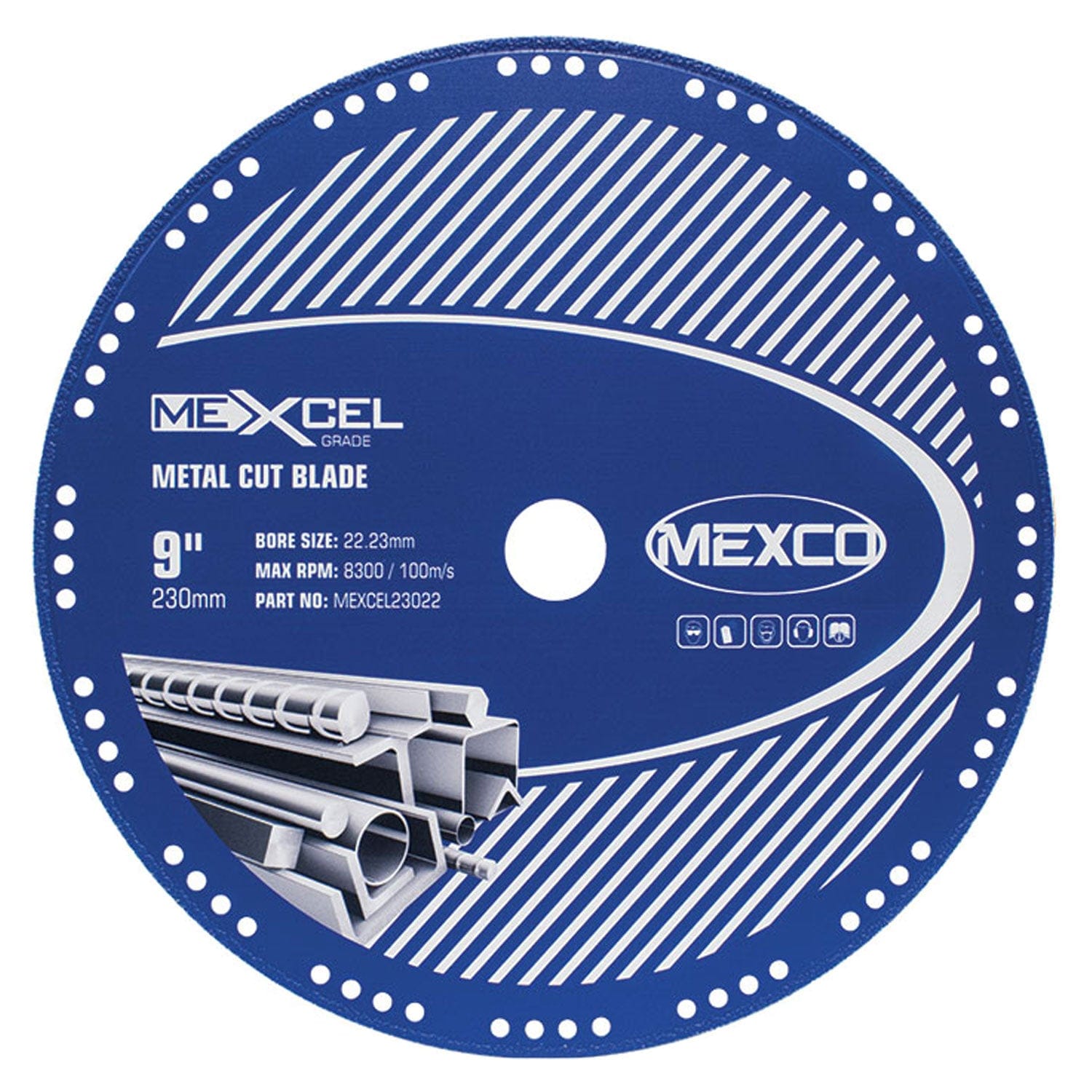

Mexco MEXCEL Metal Cut Diamond Blade
£26.24
Ex. VAT
£31.49
Inc. VAT
Why buy from us
- Pay in 30 days with a Trade Account. No fees.
- Trade and bulk pricing available on request
- UK stock, dispatched fast
Mexco MEXCEL Metal Cut Diamond Blade - 115mm | 1.5mm | 22.23mm is backordered and will ship as soon as it is back in stock.
Ships in
1 – 3 working days
Quote in 3 hours
No account needed
- Made in the UK
- Pay in 30 days with Klarna. No fee. Learn more
- Next Day Delivery Available
Mexco MEXCEL Metal Cut Diamond Blade
Regular priceFrom
£31.49
Unit price
Unavailable
Mexco MEXCEL Metal Cut Diamond Blade - 115mm | 1.5mm | 22.23mm is backordered and will ship as soon as it is back in stock.
Why it works
Built to outlast abrasive cutting wheels

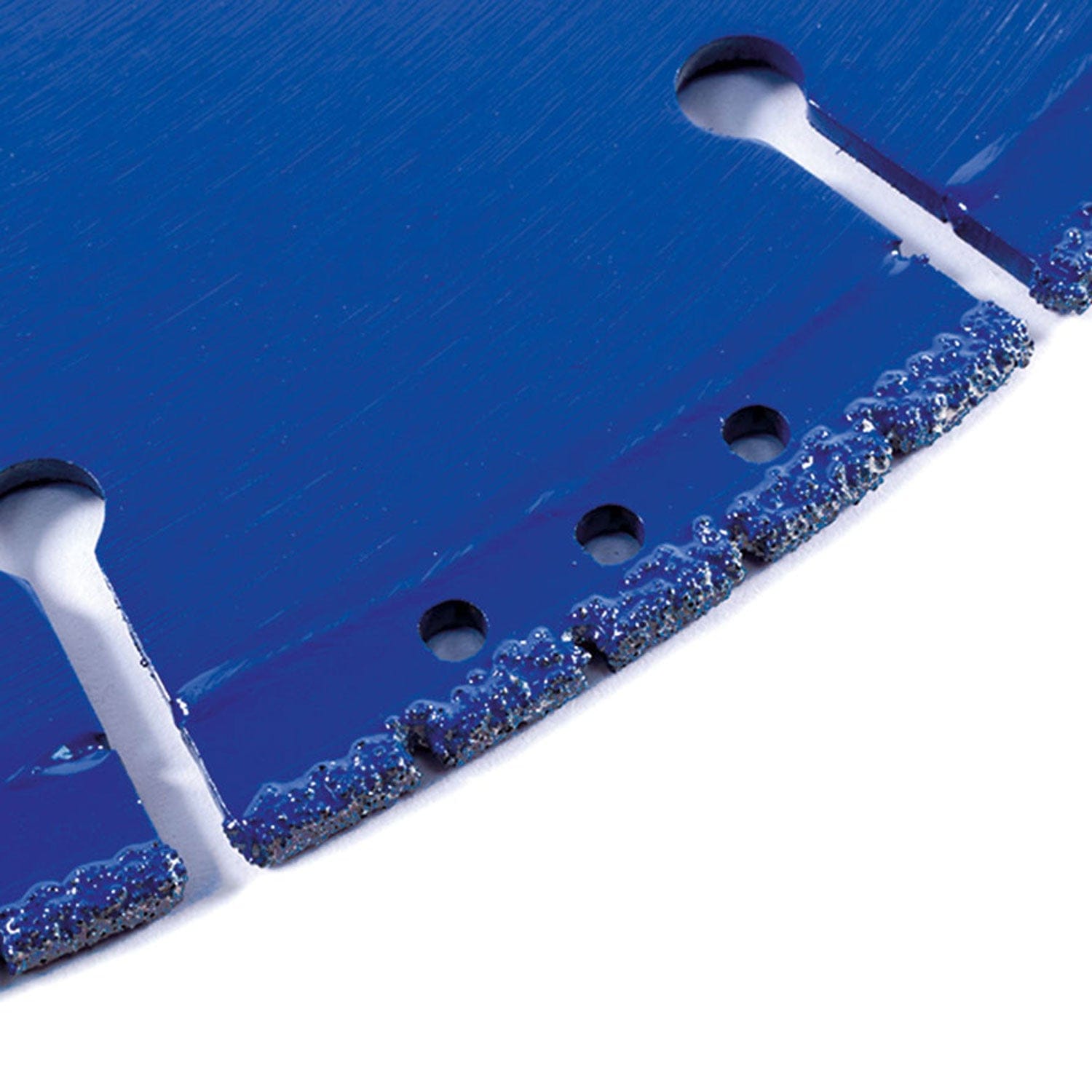

Vacuum-brazed edge
Diamond segments are vacuum brazed on for a durable, long-lasting cutting surface.
Doesn't wear down in size
The continuous rim keeps a consistent diameter, so it needs replacing far less often than an abrasive wheel.
Outlasts abrasive wheels
Typically lasts around 40 times longer than a standard abrasive cutting wheel.
Fits standard tools
Runs on angle grinders, cut-off saws and disc cutters.
Fewer sparks
Produces fewer sparks than an abrasive wheel, for a safer, more comfortable cut.
Overview
Mexco MEXCEL Metal Cut Diamond Blade - Overview
The MEXCEL is Mexco's vacuum-brazed diamond blade for cutting steel, cast iron and ductile iron, and for weld removal. The continuous rim segment holds a consistent cutting depth over a long working life, giving fabrication and construction teams a durable alternative to abrasive cutting wheels.
115mm
Smallest diameter
350mm
Largest diameter
5sizes
Size range available
40x
Typical life vs an abrasive wheel
| Dimensions | |
|---|---|
| Diameter range | 115mm to 350mm |
| Segment width | 1.5mm to 3.1mm depending on diameter |
| Bore sizes | 20mm, 22.23mm or 25.4mm depending on diameter |
| Details | |
|---|---|
| Grade | XCEL |
| Cutting | Dry |
| Segment attachment | Vacuum brazed |
| Segment type | Continuous rim |
| Ventilation | Yes |
| Recommended tools | Angle grinder, cut-off saw, disc cutter |
| Not recommended for | Aluminium |
Frequently asked questions
What metals can the MEXCEL cut?
What metals can the MEXCEL cut?
High and low carbon steel, hard facing alloys, ductile iron, cast iron, steel section, bar and tube, and it is also suited to weld removal.
Can it cut aluminium?
Can it cut aluminium?
No, the MEXCEL is not recommended for aluminium. It is designed for ferrous metals and cast or ductile iron.
Does it need water to cut?
Does it need water to cut?
No, it is a dry-cutting blade only - there is no need for a water feed.
How long does it last compared to an abrasive wheel?
How long does it last compared to an abrasive wheel?
It typically outlasts a standard abrasive cutting wheel by around 40 times, so it works out cheaper over the life of the blade despite the higher upfront cost.
Why does the blade have a perforated core?
Why does the blade have a perforated core?
The perforations reduce heat build-up and speed up cooling, which matters for repeated cuts in a fabrication setting.
Does the bore size change between diameters?
Does the bore size change between diameters?
Yes. 115mm to 230mm blades use a 22.23mm bore, the 300mm blade uses a 20mm bore, and the 350mm blade uses a 25.4mm bore.
Which tools does it fit?
Which tools does it fit?
Angle grinders, cut-off saws and disc cutters, matched to the bore size of the diameter you choose.
