Mexco | SKU:
137168

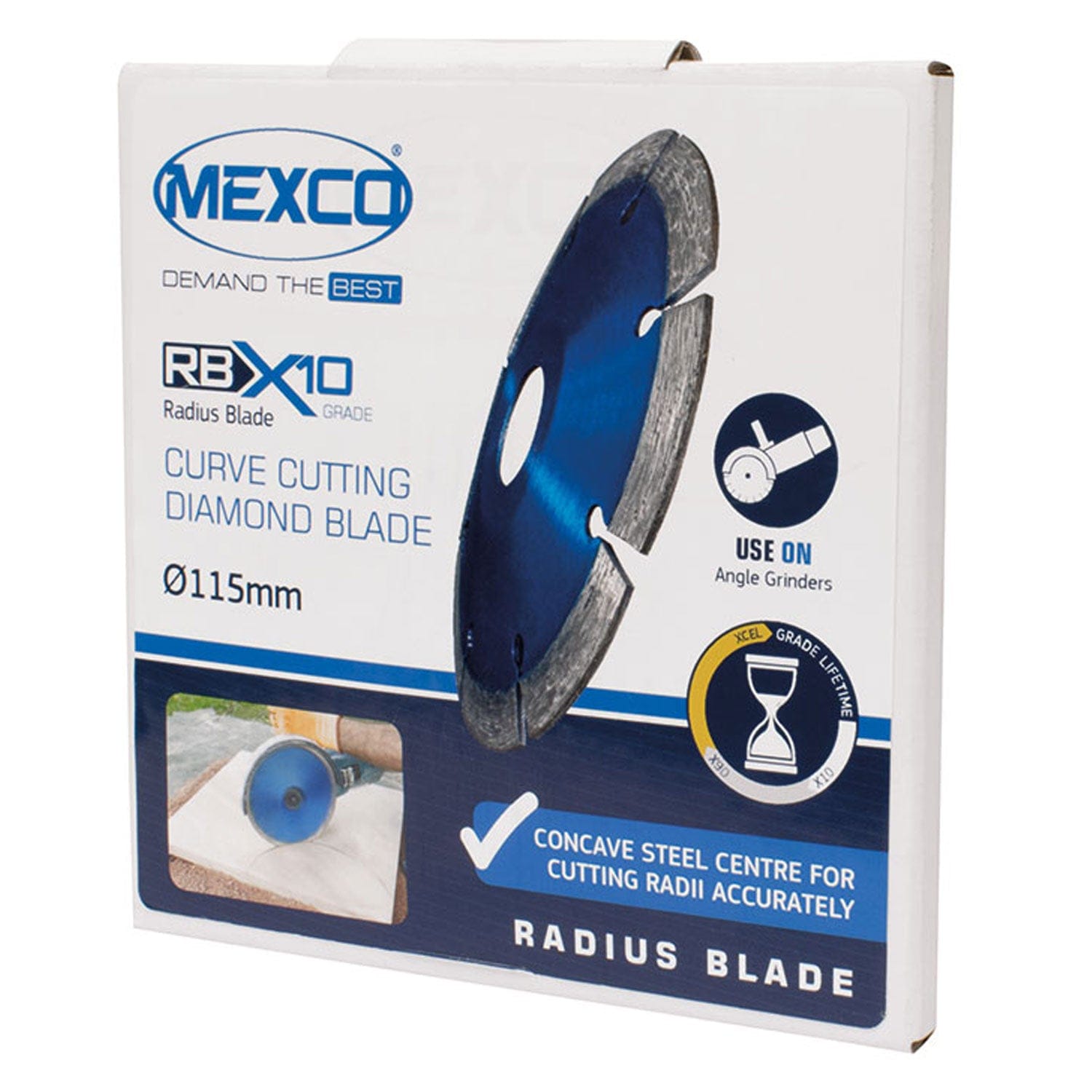

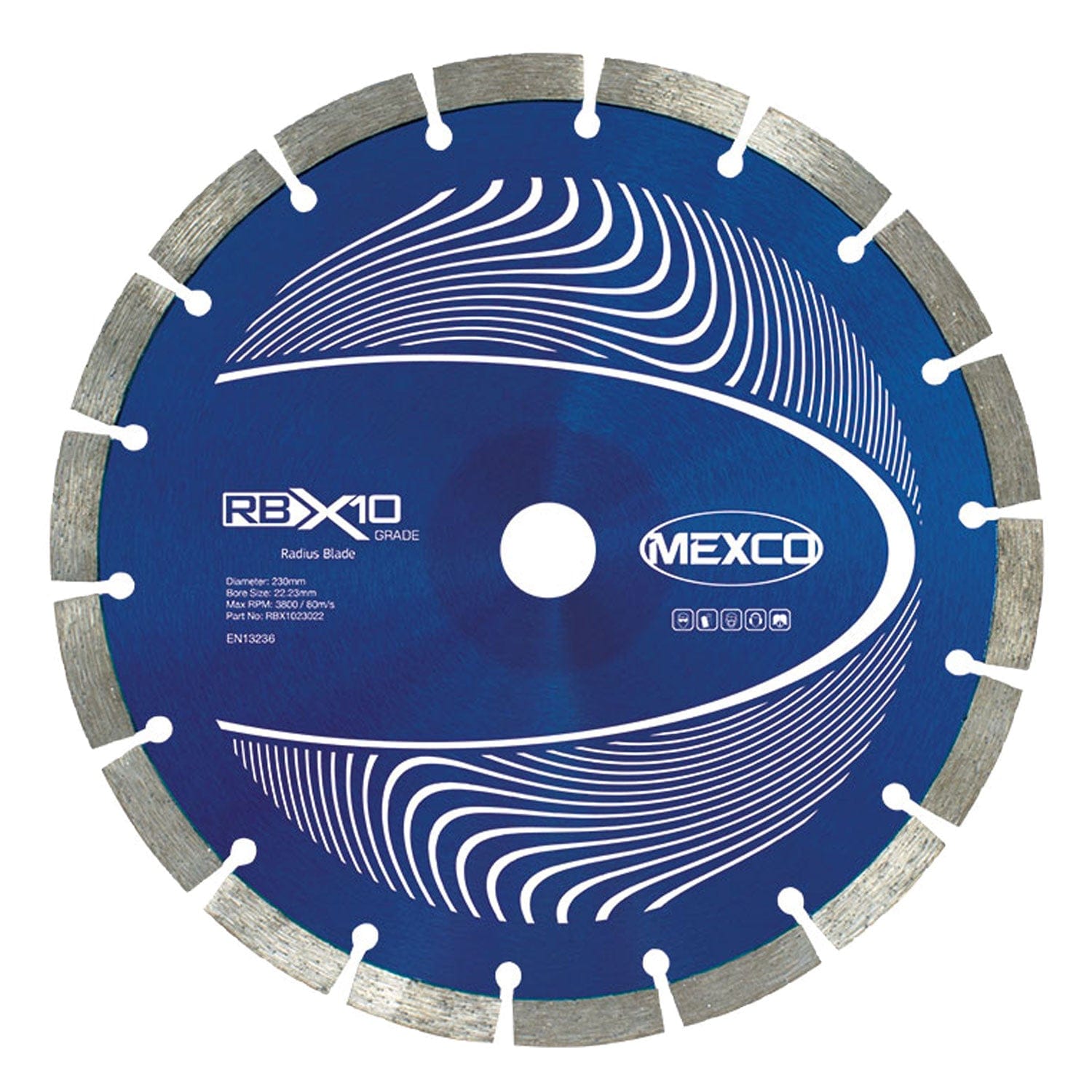

Mexco RBX10 Radius / Curve Cutting Diamond Blade
£20.83
Ex. VAT
£24.99
Inc. VAT
Why buy from us
- Pay in 30 days with a Trade Account. No fees.
- Trade and bulk pricing available on request
- UK stock, dispatched fast
Mexco RBX10 Radius / Curve Cutting Diamond Blade - 115mm | 22.23mm is backordered and will ship as soon as it is back in stock.
Ships in
1 – 3 working days
Quote in 3 hours
No account needed
- Made in the UK
- Pay in 30 days with Klarna. No fee. Learn more
- Next Day Delivery Available
Mexco RBX10 Radius / Curve Cutting Diamond Blade
Regular priceFrom
£24.99
Unit price
Unavailable
Mexco RBX10 Radius / Curve Cutting Diamond Blade - 115mm | 22.23mm is backordered and will ship as soon as it is back in stock.
Why it works
Built for accurate curves, not just straight cuts

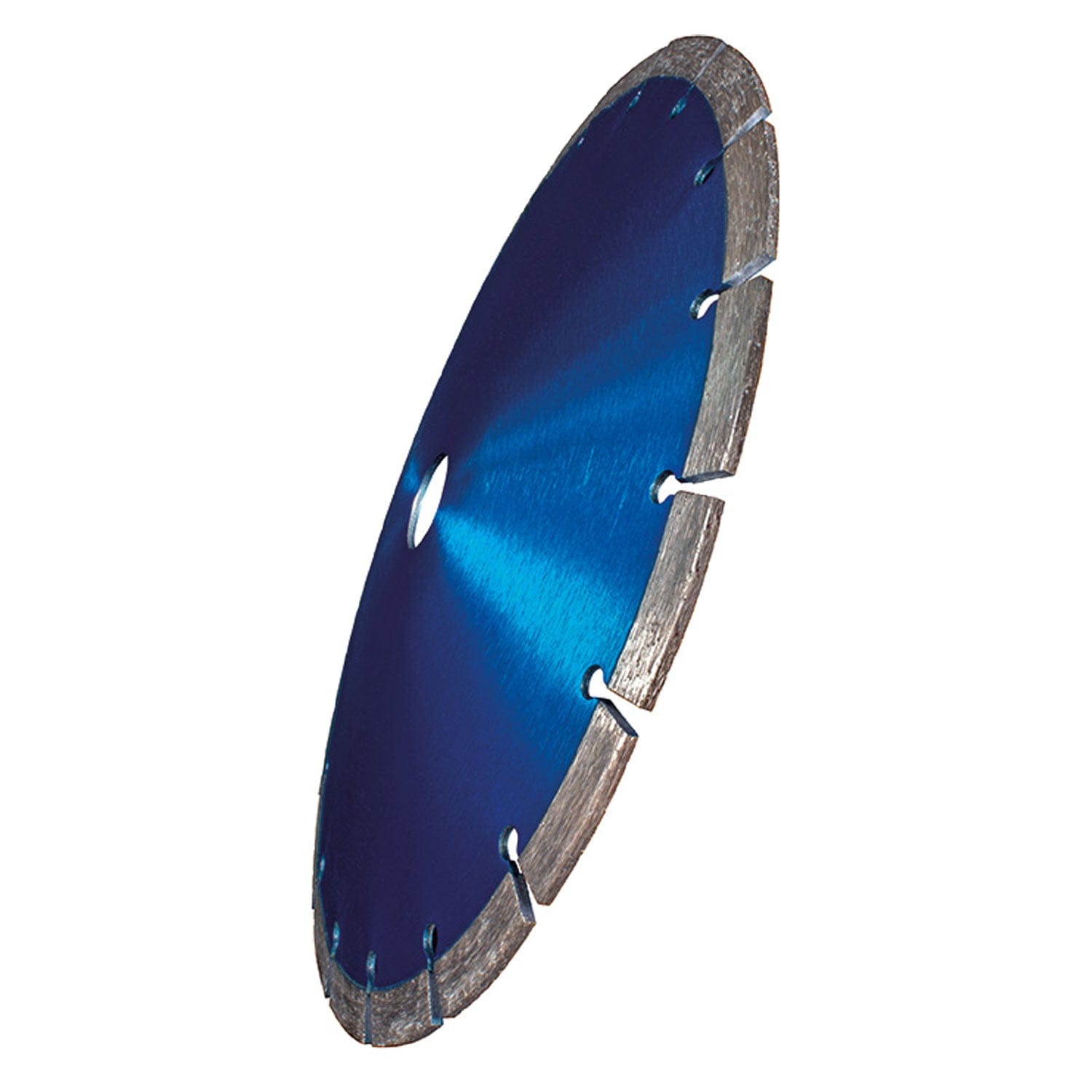

Concave centre for radius cuts
A dished steel centre lets the blade tilt so you can follow a curve or radius accurately by hand.
X10-grade segments
Sintered segments give a clean finish on concrete, stone and paving.
Wet or dry cutting
Runs wet or dry to suit site conditions.
Keyhole gullets
Wide gullets clear debris while cutting, so the cut line stays visible.
Built to EN13236
Manufactured to the European standard for diamond cutting discs.
Overview
Mexco RBX10 Radius / Curve Cutting Diamond Blade - Overview

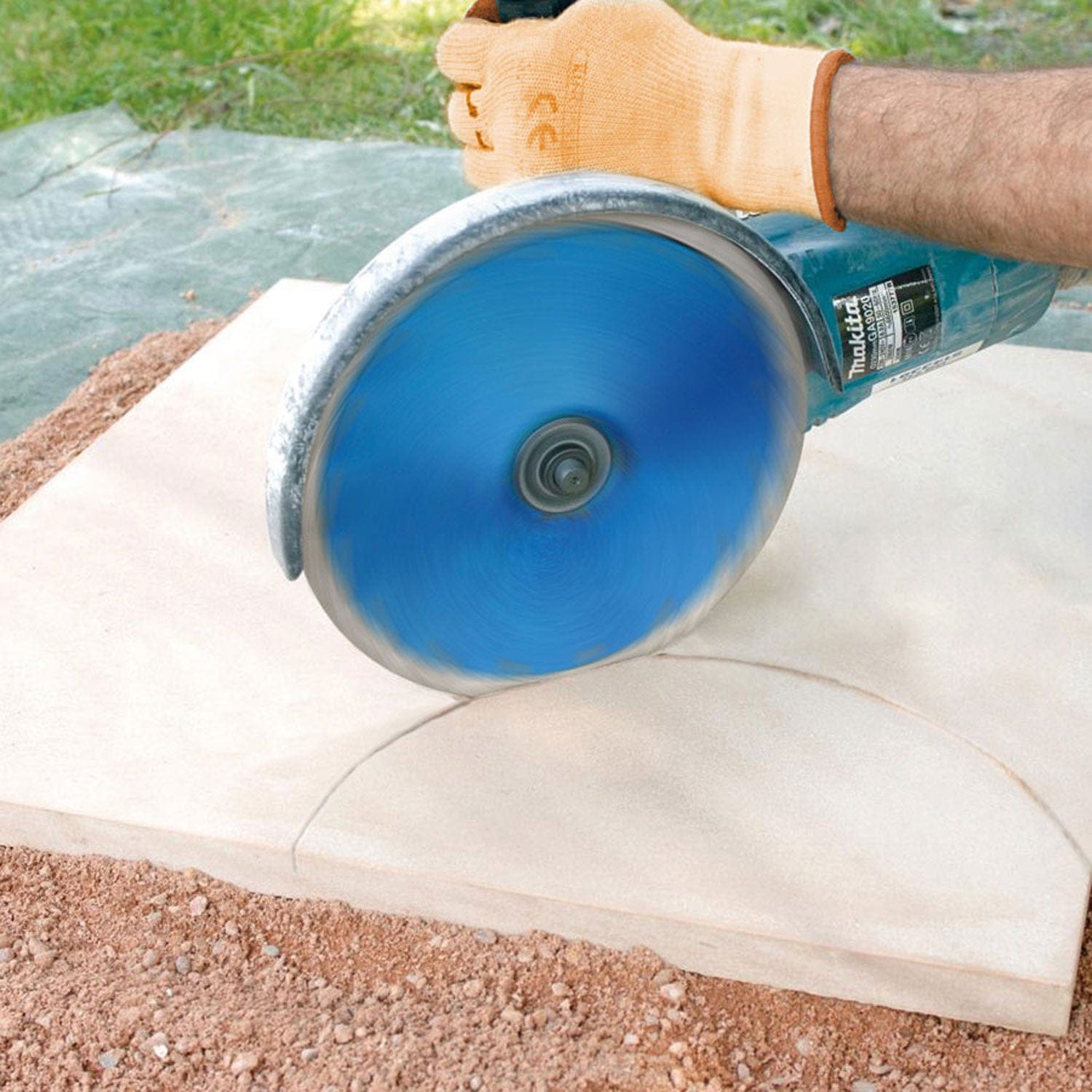

The RBX10 is Mexco's specialist blade for cutting curves, radii and angled decorative details in concrete, natural stone and paving. A concave steel centre lets the blade tilt to follow a radius accurately, giving landscapers and paving contractors a clean way to shape slabs and blocks by hand.
115mm
Smallest diameter
230mm
Largest diameter
10mm
Segment height
2sizes
4.5in and 9in
| Dimensions | |
|---|---|
| Diameter range | 115mm to 230mm |
| Segment height | 10mm |
| Bore size | 22.23mm |
| Details | |
|---|---|
| Grade | X10 |
| Cutting | Wet or dry |
| Gullet type | Keyhole |
| Segment attachment | Sintered |
| Segment type | Segmented |
| Undercutting protection | No |
| Ventilation | No |
| Standard | EN13236 |
Frequently asked questions
How does the RBX10 cut curves rather than just straight lines?
How does the RBX10 cut curves rather than just straight lines?
The blade has a concave steel centre, so it can tilt as you guide it, letting you follow a radius or curve by hand rather than cutting only in a straight line.
What materials is it designed for?
What materials is it designed for?
Concrete, natural stone, concrete slabs and paving blocks - it is built for landscaping and paving work rather than general demolition cutting.
What sizes are available and which grinder do I need?
What sizes are available and which grinder do I need?
115mm (4.5 inch) and 230mm (9 inch), both with a 22.23mm bore, for use on standard angle grinders.
Can I use it wet or dry?
Can I use it wet or dry?
Yes, the RBX10 is rated for wet or dry cutting.
Does it have ventilation holes like other Mexco blades?
Does it have ventilation holes like other Mexco blades?
No, the RBX10 does not have ventilation holes - the segmented rim and keyhole gullets handle debris clearance instead.
What standard is it manufactured to?
What standard is it manufactured to?
EN13236, the European standard for diamond cutting discs, as marked on the blade.
Is this a general-purpose blade?
Is this a general-purpose blade?
No, it is a specialist radius blade for decorative curves and shaped cuts. For straight general-purpose cutting, the GPX90 or GPX10 range is a better fit.
