Mexco · SKU:
137007

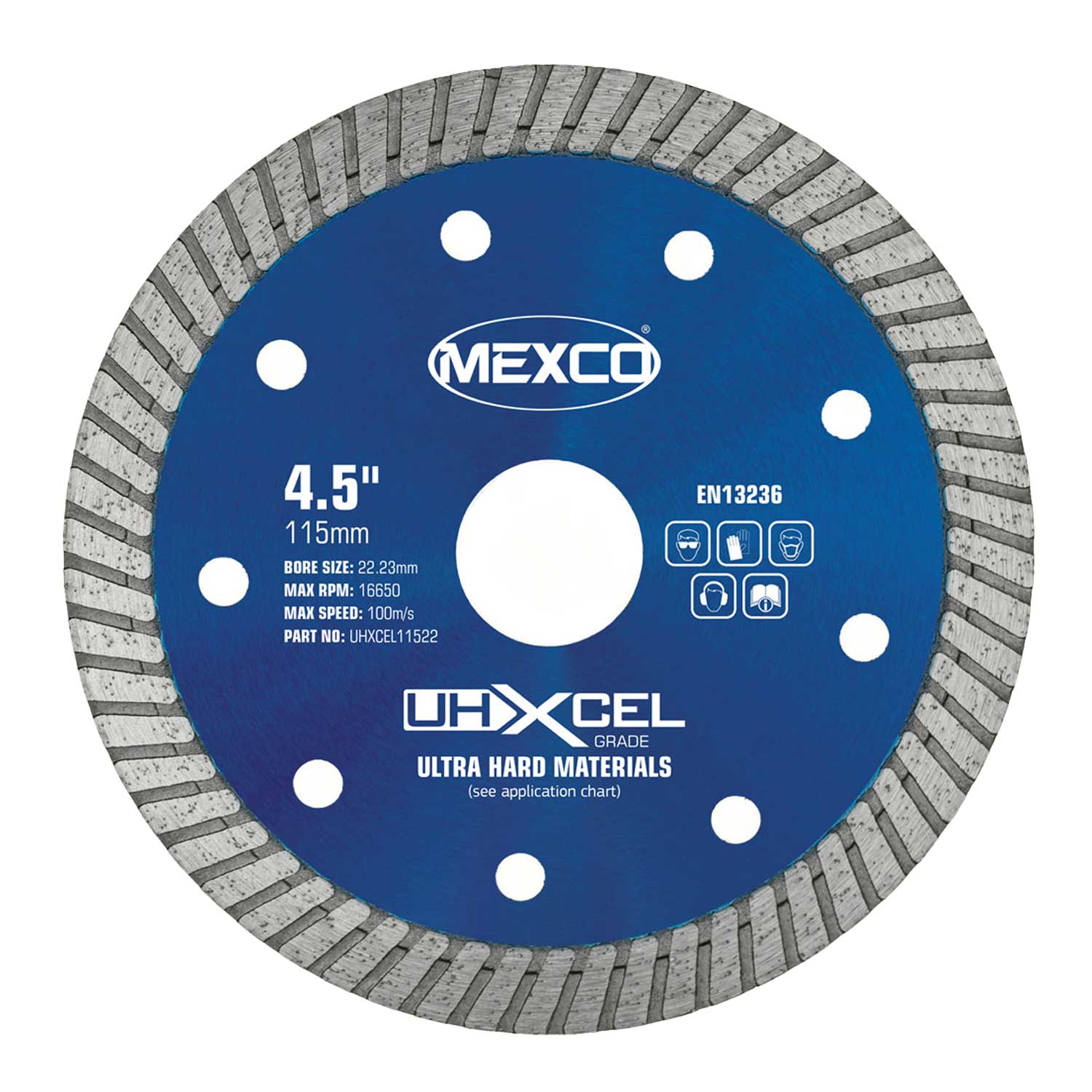

Mexco UHXCEL Ultra Hard Materials Diamond Blade
Diamond blade for porcelain, granite, marble and clay roof tiles. Ultra-thin turbo rim, minimal chipping, ventilated.
£19.16
each, ex VAT
£22.99
inc VAT
Ships in 1 to 3 working days
Mexco UHXCEL Ultra Hard Materials Diamond Blade - 115mm / 22.23mm is backordered and will ship as soon as it is back in stock.
Buy more, pay less
Per unit, ex VAT. Applied automatically.
Ships in
1 to 3 working days
Formal quote back in 3 hours. No account needed.
Quote in 3 hours
No account needed
- Made in the UK
- Next Day Delivery Available
- Pay in 30 days with a Trade Account. No fees.
- UK stock. Stock and lead time are shown above.
- Seen it cheaper? We beat any genuine quote. 0161 706 0479
You may also like
See all hard materials diamond blades ›Other diamond blades in the range
Mexco TDXCEL Diamond Blade and Tile Drill KitDiamond Blades
£117.91 ex VAT
£141.49 inc VAT
Mexco PWXCEL Bullnose Profile WheelDiamond Blades
£59.99 ex VAT
£71.99 inc VAT
Mexco WDXCEL Wood Cut BladeDiamond Blades
£15.41 ex VAT
£18.49 inc VAT
You may be looking for
Mexco UHXCEL Ultra Hard Materials Diamond Blade
Regular priceFrom
£22.99
Unit price
Unavailable
Mexco UHXCEL Ultra Hard Materials Diamond Blade - 115mm / 22.23mm is backordered and will ship as soon as it is back in stock.
Why it works
Fast, clean cuts in ultra-hard materials
Fits standard tools
Runs in an angle grinder or tile saw across all 13 available sizes.
Wet or dry cutting
Use dry for speed, or wet above 150mm diameter for extended blade life.
Built for hard materials

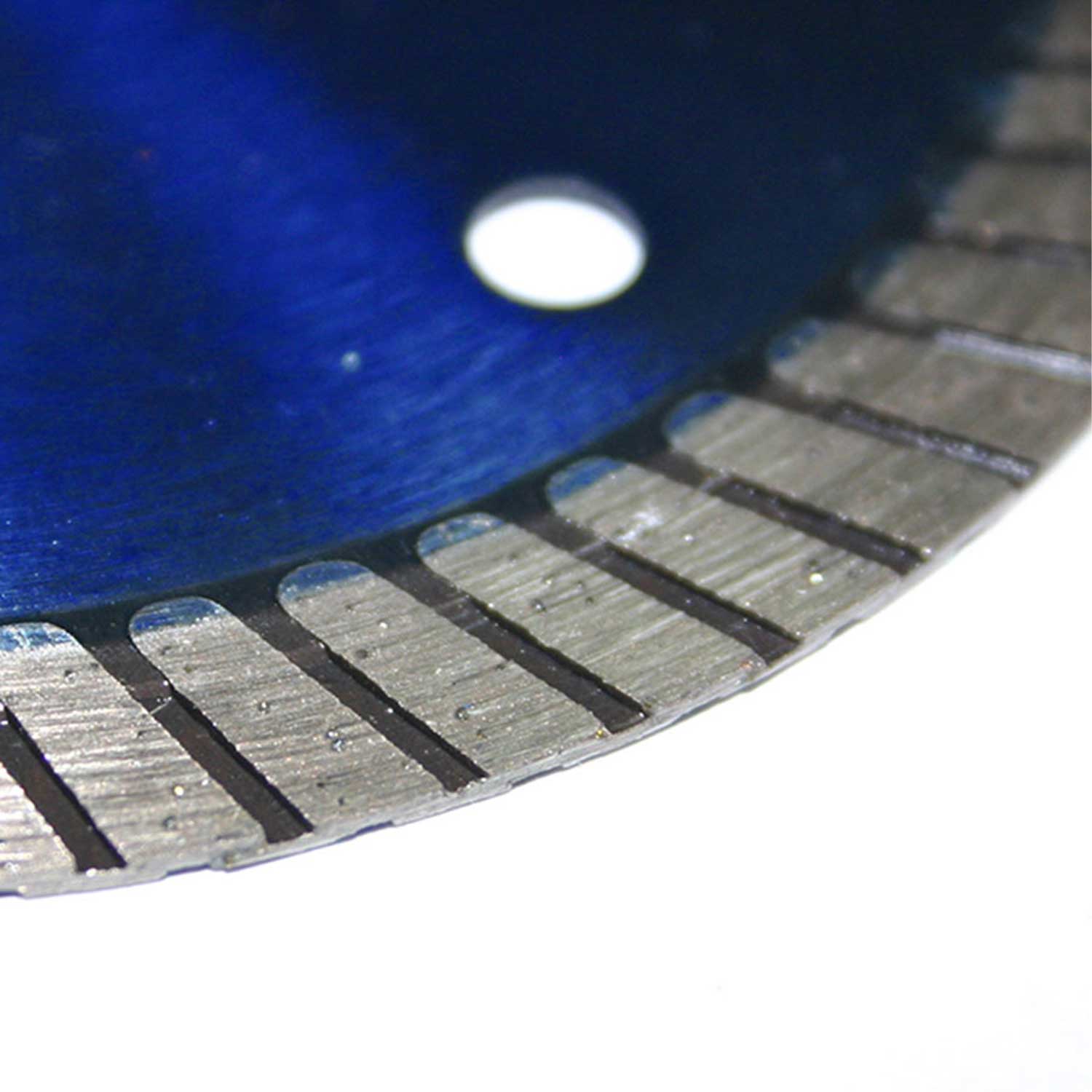

Sintered continuous turbo rim engineered for porcelain, granite, marble and other ultra-hard materials.
Minimal chipping
The ultra-thin castellated turbo rim gives a fast, clean cut with a tidy finish.
Trade-grade durability
Sintered segment construction built for daily trade and site use.
Overview
Mexco UHXCEL Ultra Hard Materials Diamond Blade - Overview
The Mexco UHXCEL Ultra Hard Materials Diamond Blade is built for cutting dense, hard-to-machine materials such as porcelain, ceramics, granite, marble, clay roof tiles and engineering brick. It is designed for tile fitters, roofers, stonemasons and contractors who need a fast, clean cut with minimal chipping.
115-400mm
Size range
10mm
Segment height
20mm
Max cutting depth
| Dimensions | |
|---|---|
| Size range | 115mm to 400mm (13 sizes) |
| Bore sizes | 20.00mm, 22.23mm, 25.40mm |
| Segment height | 10mm |
| Max cutting depth | 20mm |
| Details | |
|---|---|
| Grade | XCEL |
| Segment type | Continuous castellated turbo rim |
| Segment attachment | Sintered |
| Dry / wet | Dry, or wet above 150mm diameter |
| Undercutting protection | No |
| Ventilation | Yes |
| Standard | EN 13236 |
| Recommended tool | Angle grinder or tile saw |
Frequently asked questions
Can this blade be used dry?
Can this blade be used dry?
Yes. It can be run dry, though wet cutting is recommended once you go above 150mm diameter, for a longer blade life.
What sizes are available?
What sizes are available?
13 sizes, from 115mm to 400mm diameter, in 20.00mm, 22.23mm and 25.40mm bore fittings.
What is the maximum cutting depth?
What is the maximum cutting depth?
20mm.
Does it have undercutting protection?
Does it have undercutting protection?
No, this blade does not have undercutting protection.
What is the segment made from and how is it attached?
What is the segment made from and how is it attached?
A continuous castellated turbo rim, sintered onto the blade core.
What materials is it designed to cut?
What materials is it designed to cut?
Porcelain and ceramic tiles, granite and hard marble, clay roof tiles and paviours, quarry tiles, ductile iron, hard slate and Class A engineering brick.
What tools does it fit?
What tools does it fit?
An angle grinder or a tile saw.
