Mexco UHXCEL+ Ultra Hard Plus Diamond Blade
£45.83
Ex. VAT
£54.99
Inc. VAT
Why buy from us
- Pay in 30 days with a Trade Account. No fees.
- Trade and bulk pricing available on request
- UK stock, dispatched fast
Mexco UHXCEL+ Ultra Hard Plus Diamond Blade - 115mm / 22.23mm is backordered and will ship as soon as it is back in stock.
Ships in
1 – 3 working days
Quote in 3 hours
No account needed
- Made in the UK
- Pay in 30 days with Klarna. No fee. Learn more
- Next Day Delivery Available
Mexco UHXCEL+ Ultra Hard Plus Diamond Blade
Regular priceFrom
£54.99
Unit price
Unavailable
Mexco UHXCEL+ Ultra Hard Plus Diamond Blade - 115mm / 22.23mm is backordered and will ship as soon as it is back in stock.
Why it works
Fast, chip-free cuts in ultra-hard materials
Fits standard tools
Runs in an angle grinder, bench saw or tile saw across all 8 available sizes.
Built for ultra-hard materials
Sintered continuous rim engineered for porcelain, ceramics, granite and marble.
Chip-free finish

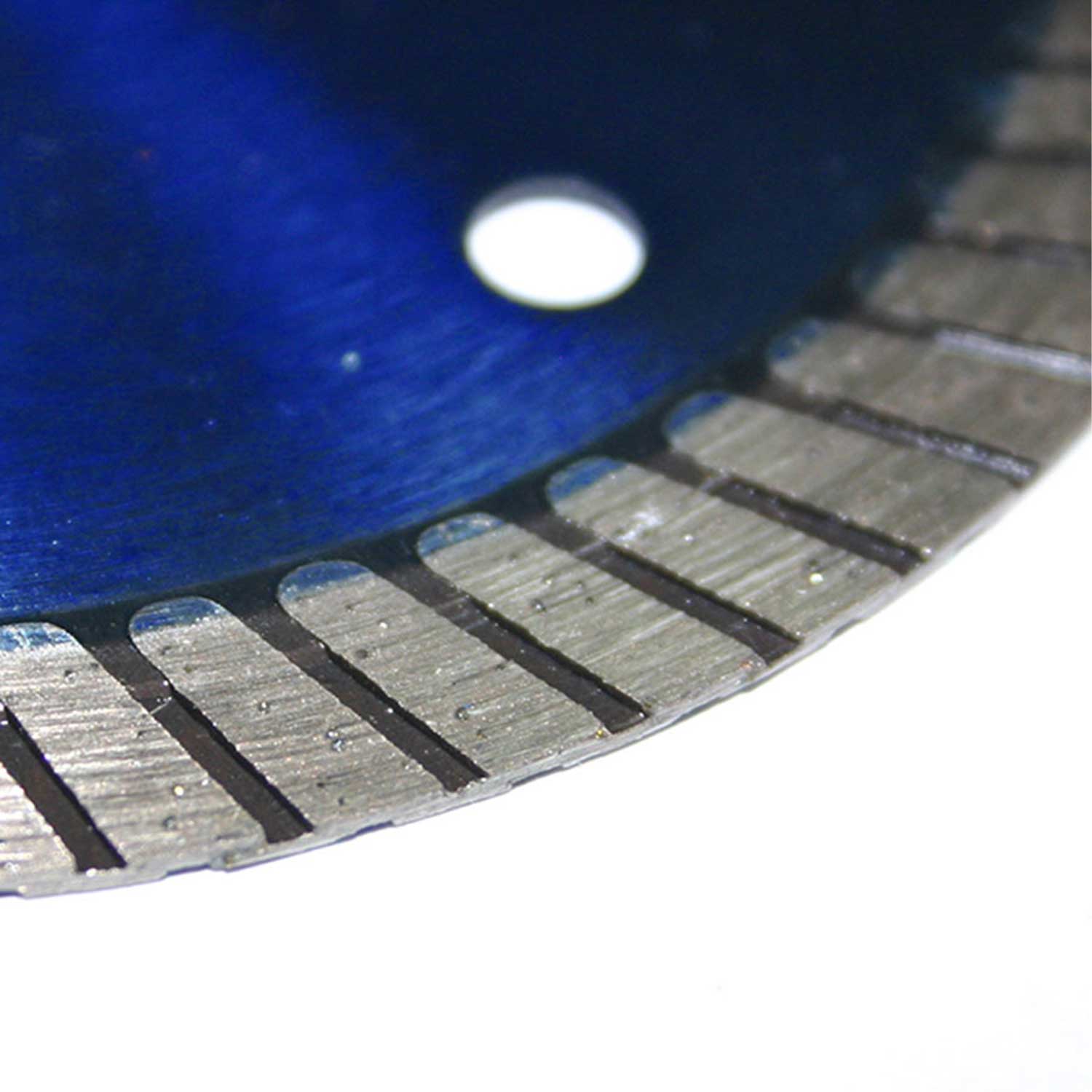

The ultra-thin turbo rim gives a fast, super-clean cut with minimal chipping.
Wet or dry cutting
Use dry for convenience, or wet above 125mm diameter to extend blade life.
Trade-grade durability
Sintered segment construction built for daily trade and site use.
Overview
Mexco UHXCEL+ Ultra Hard Plus Diamond Blade - Overview

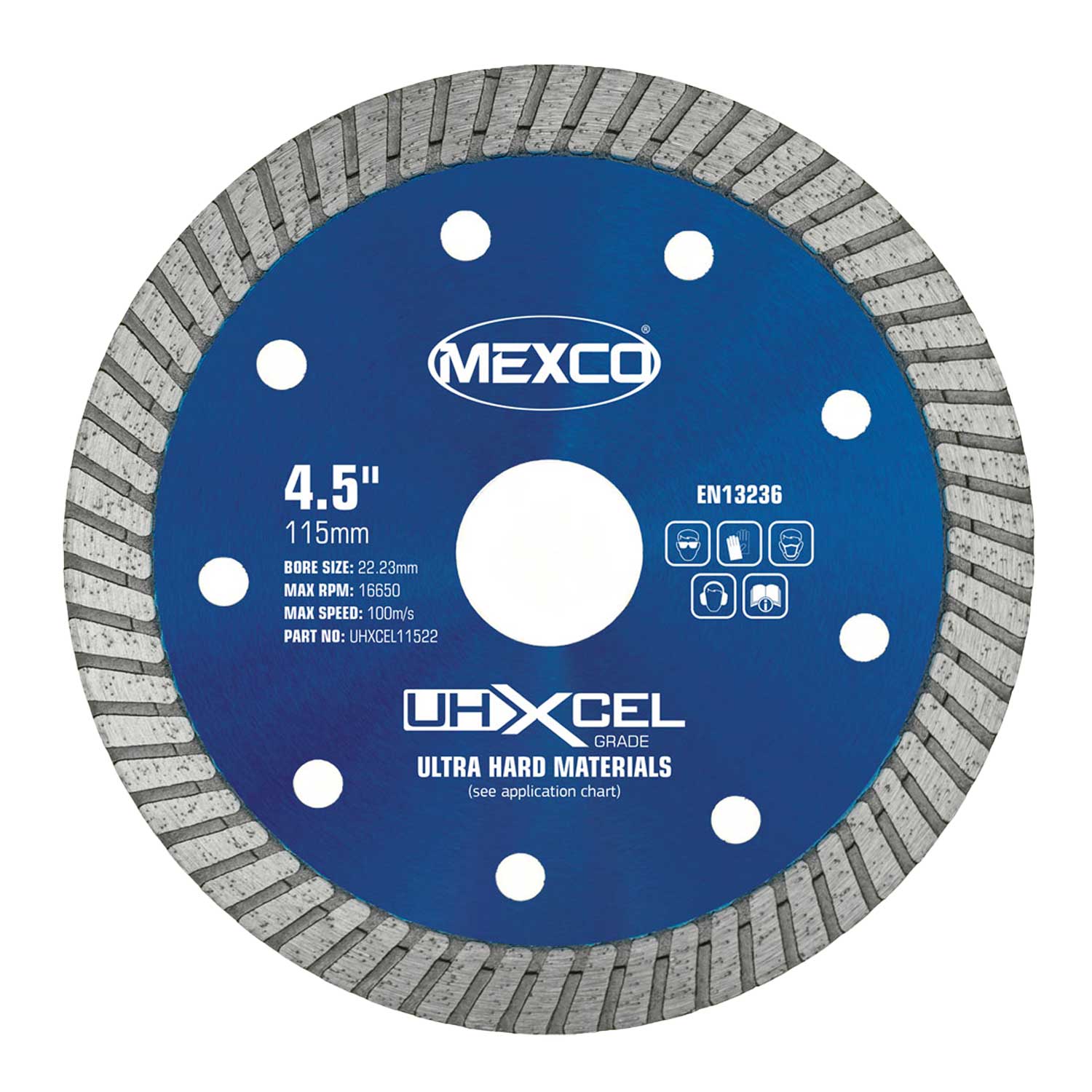

The Mexco UHXCEL+ Ultra Hard Plus Diamond Blade is built for cutting porcelain, ceramics, granite, marble and other ultra-hard materials. It suits tile fitters, roofers, stonemasons and contractors who need a fast, chip-free cut.
115-350mm
Size range
10mm
Segment height
8sizes
Available options
| Dimensions | |
|---|---|
| Size range | 115mm to 350mm (8 variants, 7 diameters) |
| Bore sizes | 22.23mm (115-230mm), 25.40mm (230-350mm) |
| Segment height | 10mm |
| Details | |
|---|---|
| Grade | XCEL |
| Segment type | Continuous turbo rim |
| Segment attachment | Sintered |
| Gullet type | N/A |
| Dry / wet | Dry, or wet above 125mm diameter |
| Undercutting protection | No |
| Ventilation | Yes |
Frequently asked questions
What materials will the UHXCEL+ cut?
What materials will the UHXCEL+ cut?
Porcelain and ceramic tiles, granite and hard marble, clay roof tiles and paviours, quarry tiles, ductile iron, Class A engineering brick, hard and medium facing brick, hard slate and non-abrasive Indian sandstone.
Do I need to cut wet, or can I cut dry?
Do I need to cut wet, or can I cut dry?
You can run it dry. Above 125mm diameter, wet cutting is recommended to keep the blade cooler and extend its working life.
What sizes does the UHXCEL+ come in?
What sizes does the UHXCEL+ come in?

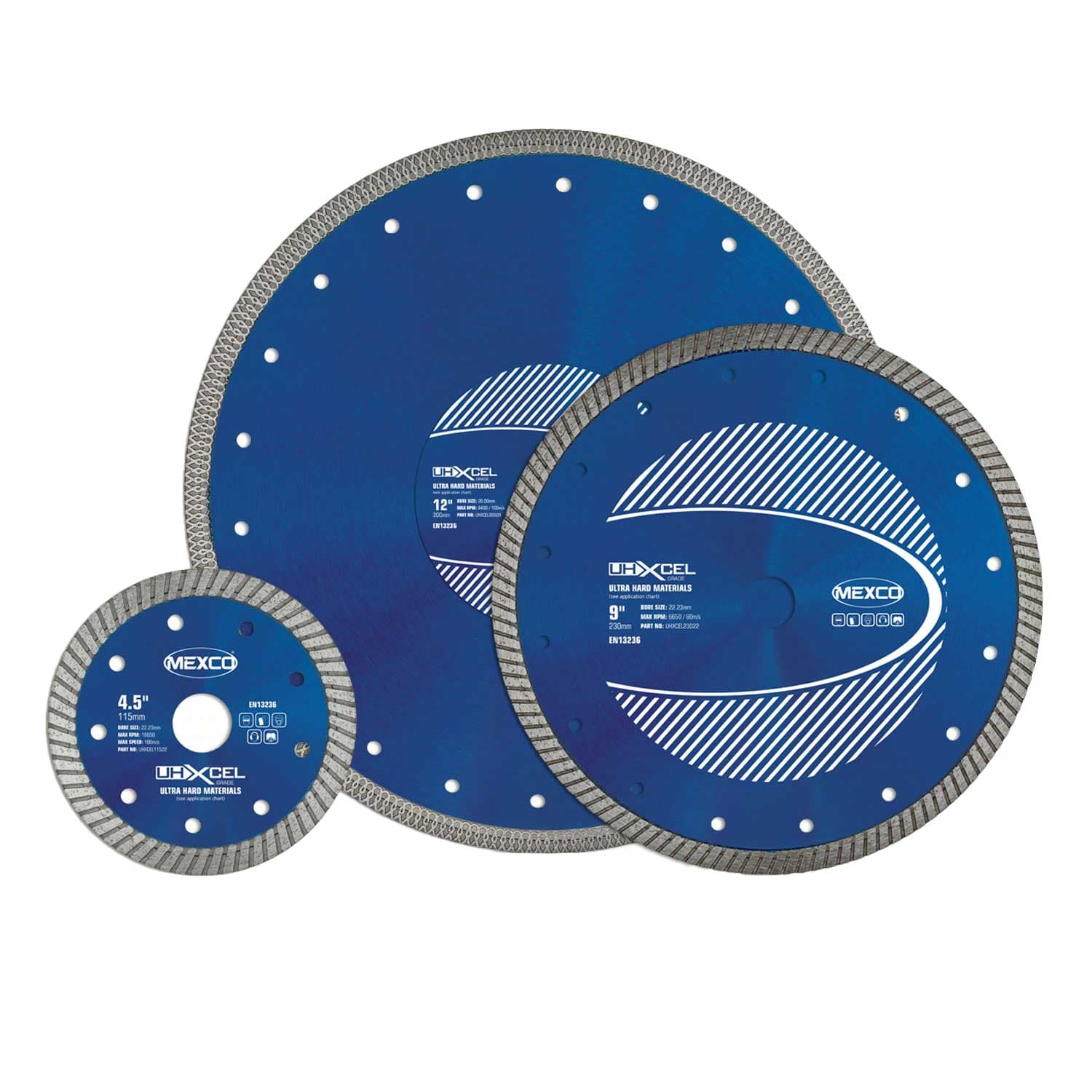

Eight variants across seven diameters, from 115mm to 350mm. Sizes from 115mm to 230mm use a 22.23mm bore, and 230mm to 350mm sizes are also available with a 25.40mm bore.
Does the blade have undercutting protection?
Does the blade have undercutting protection?
No, this blade does not have undercutting protection built in.
How is the segment built?
How is the segment built?
A sintered, continuous turbo rim, chosen for a fast, chip-free cut on ultra-hard materials.
Is the blade ventilated to manage heat?
Is the blade ventilated to manage heat?
Yes, it has a ventilated design that helps reduce heat build-up during cutting.
What tools does it fit?
What tools does it fit?
An angle grinder, bench saw or tile saw, depending on the diameter you choose.
