Eclipse Lite - Economical Profiled Rigid Mesh Panel System
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
⊛ Affordable and versatile boundary solution
⊛ Features profiled panels with protruding spikes for anti-climb security
⊛ Enclosed fixings and matching clips for secure installation
⊛ Customisable with barbed or razor wire topping (cranked or straight)
⊛ Base-plated option available for flexible installation
| Dimensions | |
|---|---|
| Panel Width | 3000mm |
| Panel Height | 1230mm / 1730mm / 1930mm / 2330mm |
| Wire Diameter | 4mm |
| Mesh Size | 200mm x 50mm |
| Post | 60mm x 60mm |
| Top Edge Protection | 30mm |
| Post Centres | 3010mm |
| Details | |
| Installation | 40mm above ground |
| Fixings | 47mm x 35mm steel clips |
| Foundations | Set posts in holes minimum 300mm square or 400mm diameter round x 800mm deep - Base plated option also available (please contact us) |
| Warranty | 15 years against manufacturing defects |
| Certifications | |
| Conforms | BS1722-14:2017 |
| BS EN ISO 141:2009 | |
| BS EN 13438:2013 | |
| Material | |
| Panels | Powder-coated galvanised steel |
| Posts | SHS or RHS galvanised & polyester powder-coated to match |
| Colour | Black / Green as standard - custom RALs available upon request |
The Eclipse Lite Fencing Solution offers an affordable and versatile boundary solution that combines both functionality and modern design
This fence is specifically engineered to provide enhanced security, making it an ideal choice for protecting your property
The system features profiled panels with protruding spikes, creating a strong anti-climb barrier that effectively deters vandals and intruders
This fencing system is designed to be cost-effective without sacrificing durability
The panels are not only aesthetically appealing but also robust, providing a secure perimeter

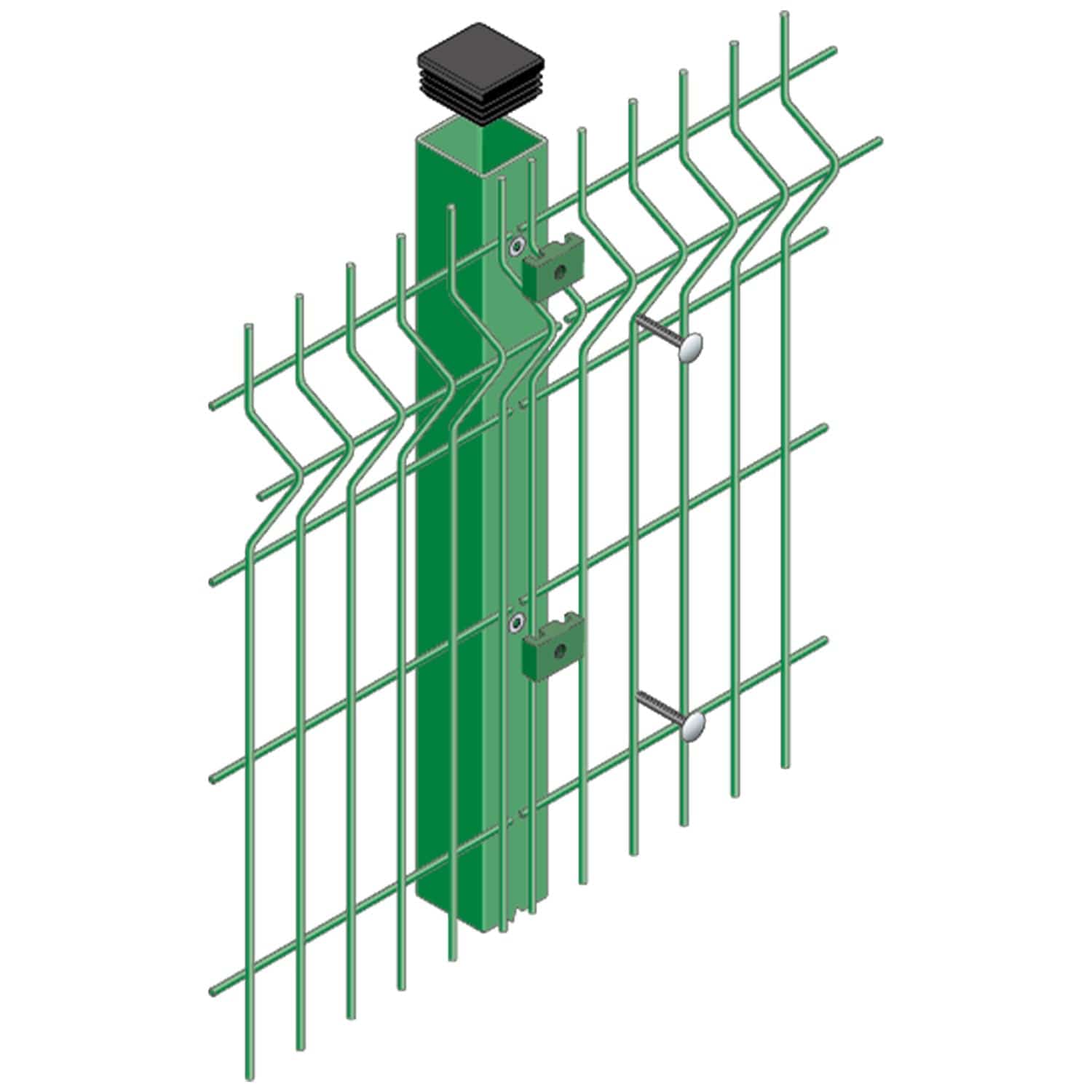

The enclosed fixings and matching clips ensure a seamless and secure installation, enhancing the overall integrity of the fence
For added security, Eclipse Lite can be customised with topping options such as barbed or razor wire, available in both cranked and straight configurations, depending on your specific security needs
When it comes to installation, the foundation requires posts to be set in holes with a minimum size of 300mm square or 400mm diameter round, and a depth of 800mm
A base-plated option is also available for more flexible installation - it's important to note that the contractor or client is responsible for ensuring the foundation size is appropriate for the ground conditions and the height of the fence
