Warehouse Corner Protection Barrier - 76mm Diameter
Fixed 76mm steel corner barrier, 500mm or 800mm high. Galvanised or yellow/black reflective finish, bolt-down or concrete-in fixing options.
£189.33
each, ex VAT
£227.19
inc VAT
Ships in 2 to 3 working days
Warehouse Corner Protection Barrier - 76mm Diameter - 500mm / Galvanised / Concrete In (ragged) is backordered and will ship as soon as it is back in stock.
Buy more, pay less
Per unit, ex VAT. Applied automatically.
Ships in
2 to 3 working days
Formal quote back in 3 hours. No account needed.
Quote in 3 hours
No account needed
- Made in the UK
- Pay in 30 days with Klarna. No fee. Learn more
- Next Day Delivery Available
- Pay in 30 days with a Trade Account. No fees.
- UK stock. Stock and lead time are shown above.
- Seen it cheaper? We beat any genuine quote. 0161 706 0479
Frequently purchased with
Tick to add
Complete the kit
High Visibility Black & Yellow Crash Protection Bollard - 1200mm Above GroundImpact Protection Bollards
1
£104.41
£104.41 each
0 add-ons selected · £0.00 ex VAT
You may also like
See all wall & racking impact protectors ›Other corner protection barriers in the range
Warehouse Corner Protection Barrier CPH2 - 60mm DiameterCorner Protection Barriers
£106.66 ex VAT
£127.99 inc VAT
You may be looking for
Warehouse Corner Protection Barrier - 76mm Diameter
Regular priceFrom
£225.69
Unit price
Unavailable
Warehouse Corner Protection Barrier - 76mm Diameter - 500mm / Galvanised / Concrete In (ragged) is backordered and will ship as soon as it is back in stock.
Why it works
Heavy-duty protection, fixed your way
Heavier-gauge protection
76mm tube gives a stronger barrier than SSUK's 60mm corner guard, for higher-traffic corners.
High-visibility option

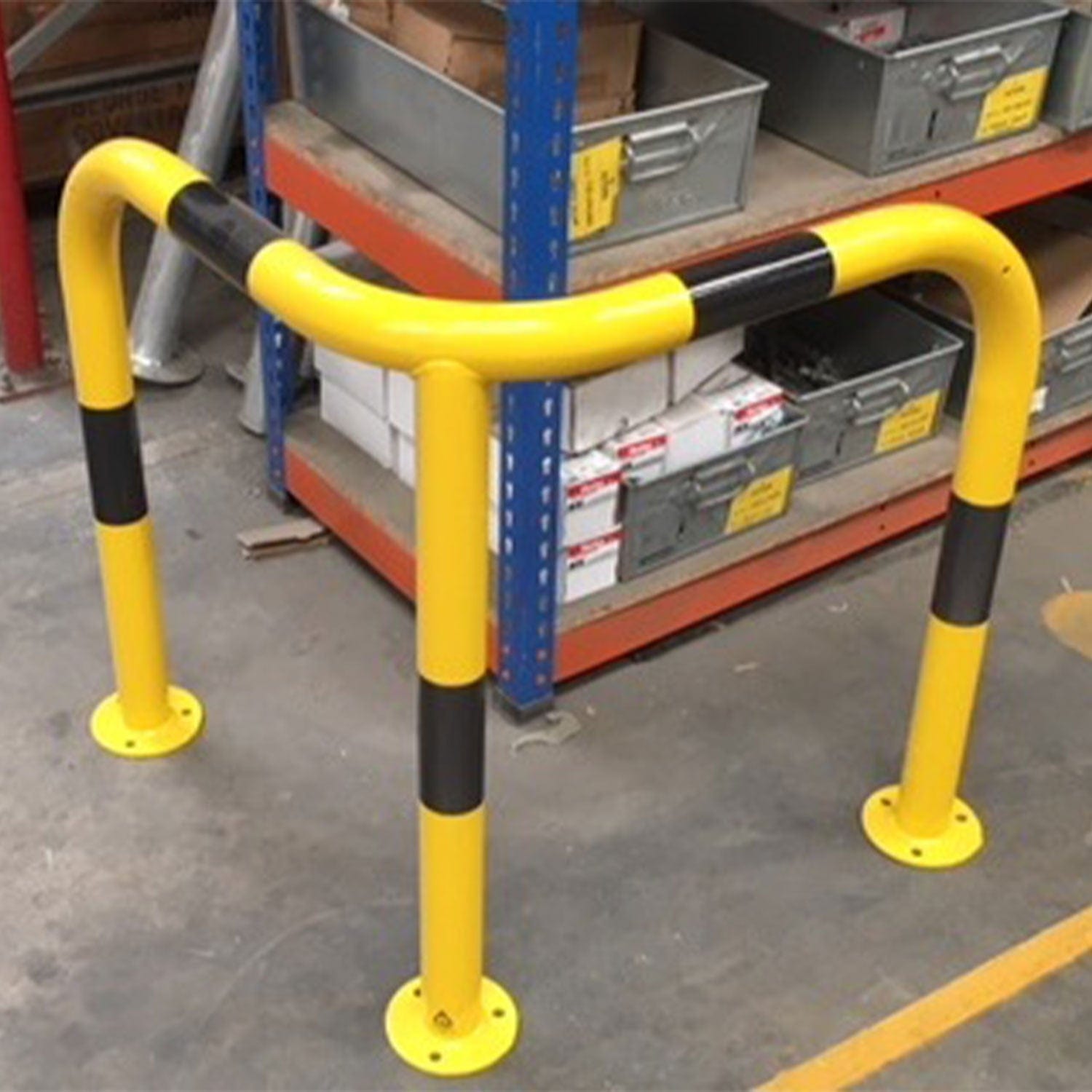

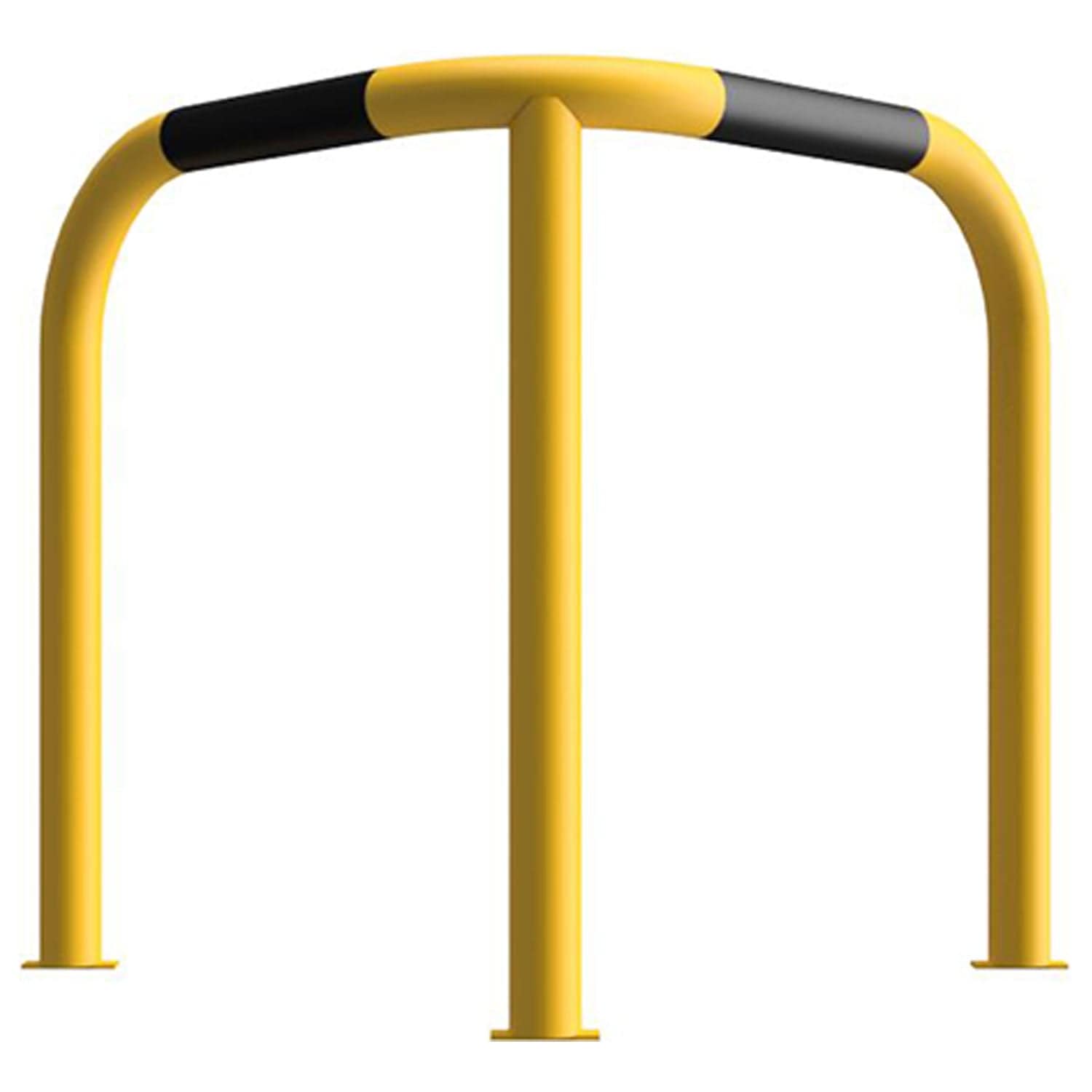

Galvanised and powder-coated yellow finish with black reflective bands keeps the corner visible to forklifts and vehicles.
Fix your way
Choose concrete-in legs or bolt-down flanged feet, with the anchor bolts included if you need them.
Made in the UK
Manufactured in the UK from mild steel, with custom colours available on request.
Recyclable steel
Built from mild steel that can be recycled at the end of its working life.
Overview
Warehouse Corner Protection Barrier - 76mm Diameter - Overview

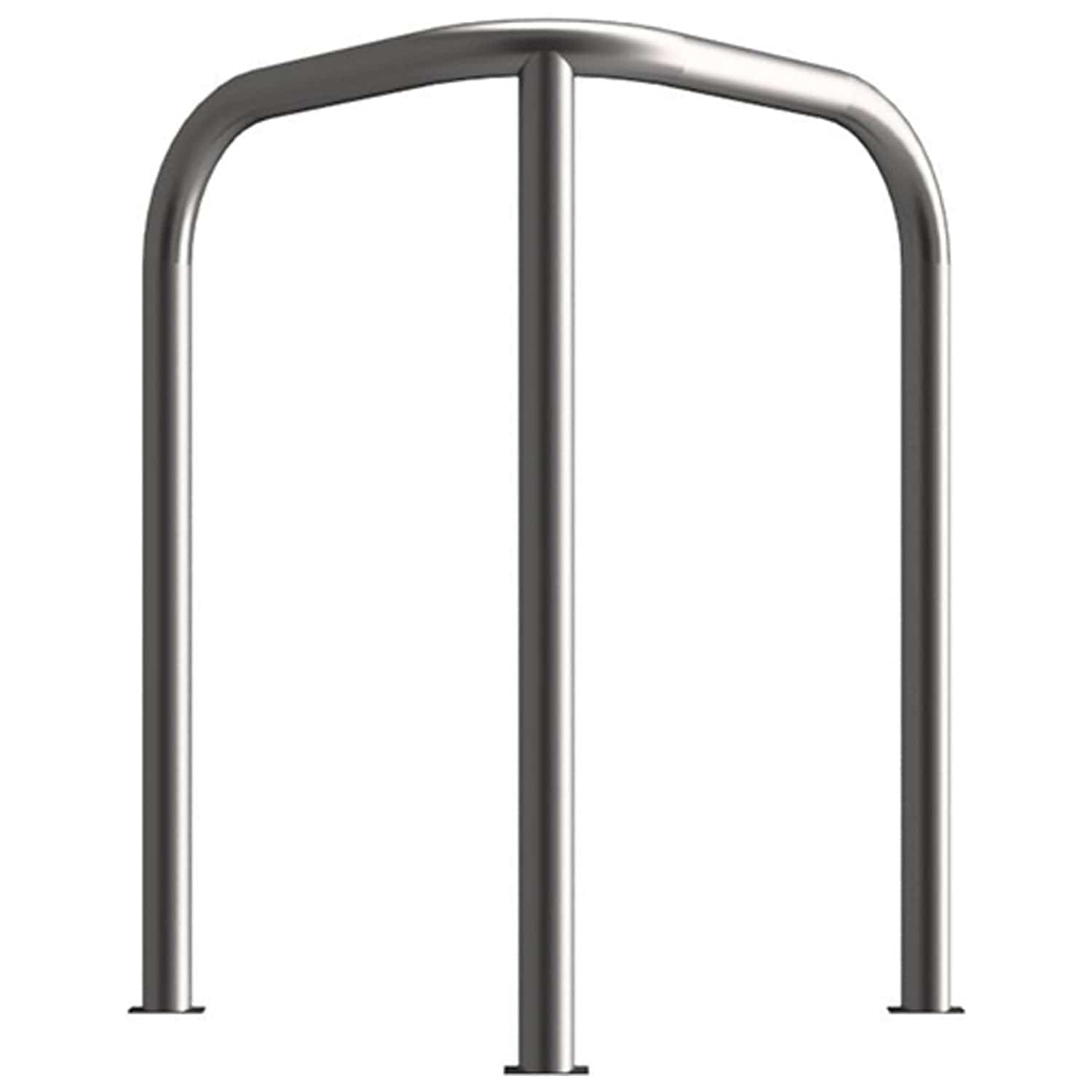

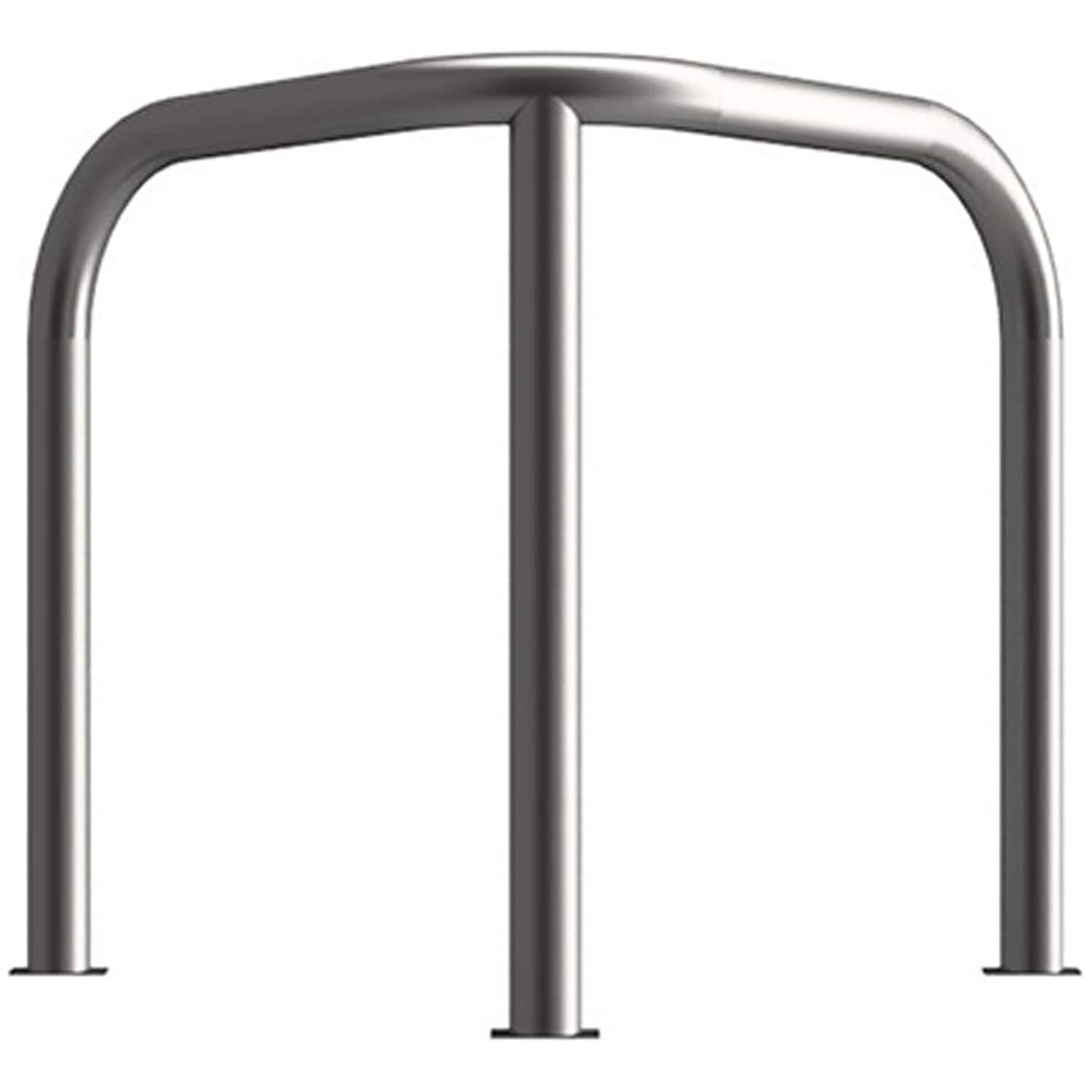

The Warehouse Corner Protection Barrier is a fixed steel hoop guard for protecting corners, racking uprights and machinery in busy industrial buildings. Made from 76mm mild steel tube and galvanised for corrosion resistance, it suits warehouse and distribution operators who need a permanent, heavier-gauge corner guard.
76mm
Tube diameter
500-800mm
Height above ground
700mm
Footprint (W x D)
9M12 bolts
Included in bolt-down kit
| Dimensions | |
|---|---|
| Tube diameter | 76mm |
| Height above ground | 500mm or 800mm |
| Width | 700mm |
| Depth | 700mm |
| Details | |
|---|---|
| Material | Mild steel |

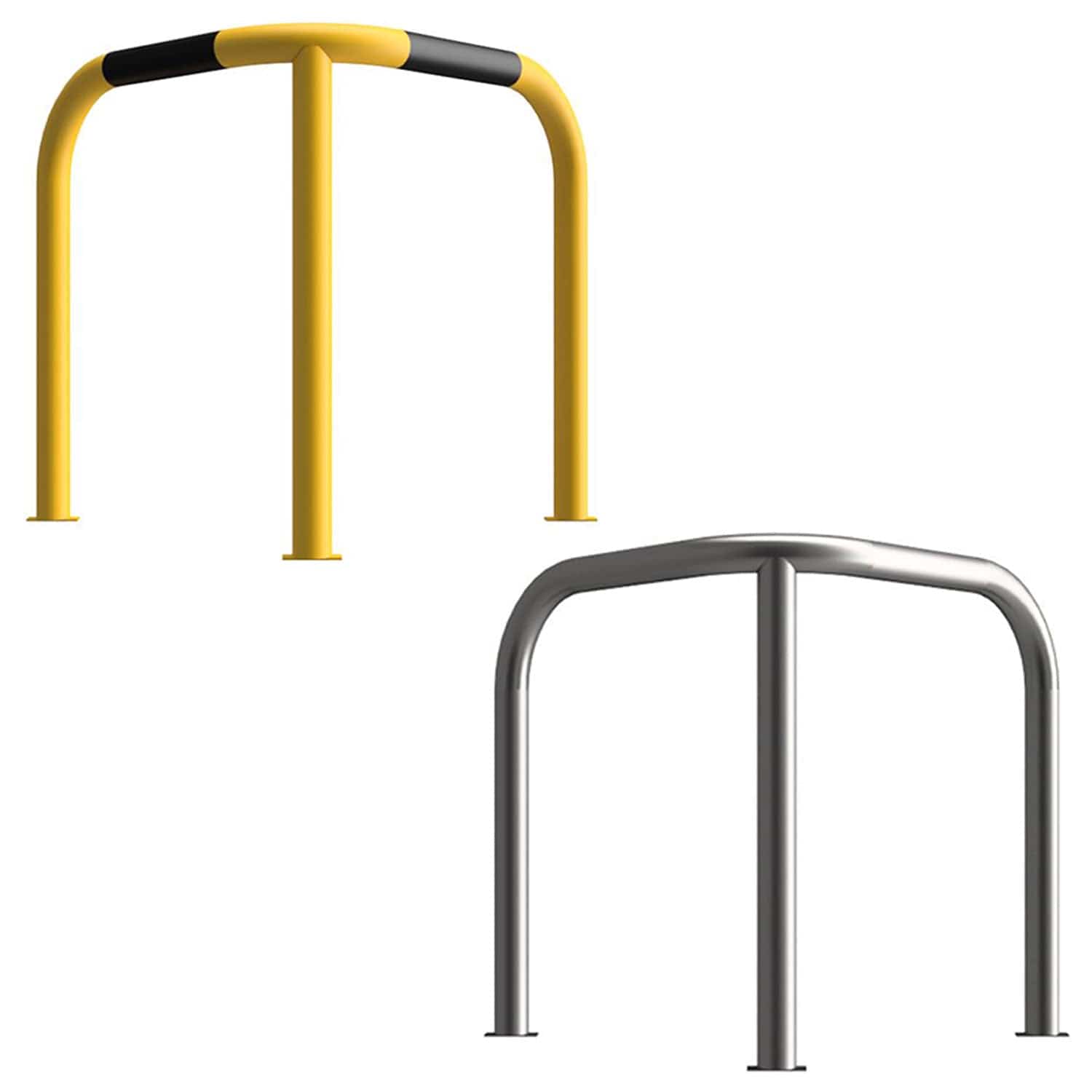

| Finish | Galvanised, or galvanised and powder-coated yellow with black reflective bands |
| Reflective bands (500mm) | Two 150mm wide bands on the horizontal arms |
| Reflective bands (800mm) | Five bands - two on the horizontal arms, one on each leg |
| Fixing options | Concrete-in (ragged) or bolt-down (flanged), with or without bolts |
| Bolt-down bolts | 9 x M12 expanding anchor bolts (3 per leg) |
| Origin | Made in the UK |
Frequently asked questions
What's the difference between the 500mm and 800mm barrier?
What's the difference between the 500mm and 800mm barrier?
The 500mm model carries two 150mm reflective bands on its horizontal arms and suits lower-level knocks from pallet trucks. The 800mm model adds reflective bands down each leg as well, for taller vehicles like forklifts.
Do I need to buy the anchor bolts separately?
Do I need to buy the anchor bolts separately?
Not necessarily - the bolt-down (flanged) option is available with or without the nine M12 expanding anchor bolts, so you can order them included or supply your own.
How is the concrete-in version fixed?
How is the concrete-in version fixed?
The ragged-leg version is set directly into a concrete foundation of around 300mm cubed per leg, rather than bolted to an existing surface - check your ground conditions before choosing this option.
How much space does the barrier take up?
How much space does the barrier take up?
Each barrier has a 700mm by 700mm footprint at the base, so allow that clearance around the corner or upright you're protecting.
How does the 76mm version compare to your 60mm corner barrier?
How does the 76mm version compare to your 60mm corner barrier?
The 76mm tube is the heavier-gauge option, better suited to busier aisles and higher-impact areas than the 60mm version.
Can I get it in a colour other than galvanised or yellow/black?
Can I get it in a colour other than galvanised or yellow/black?
Custom colours may be available on request - contact us to discuss.
Will this protect racking as well as building corners?
Will this protect racking as well as building corners?

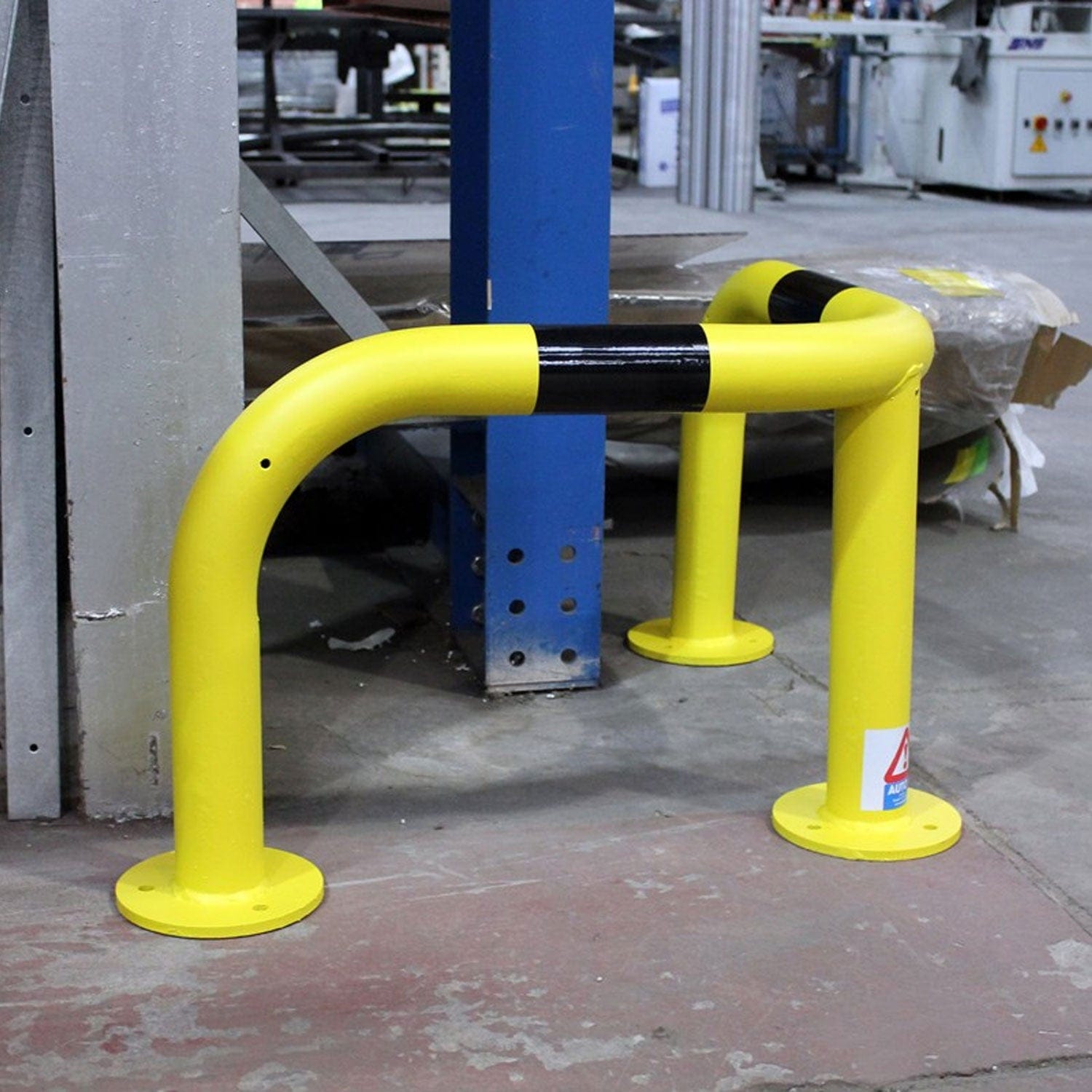

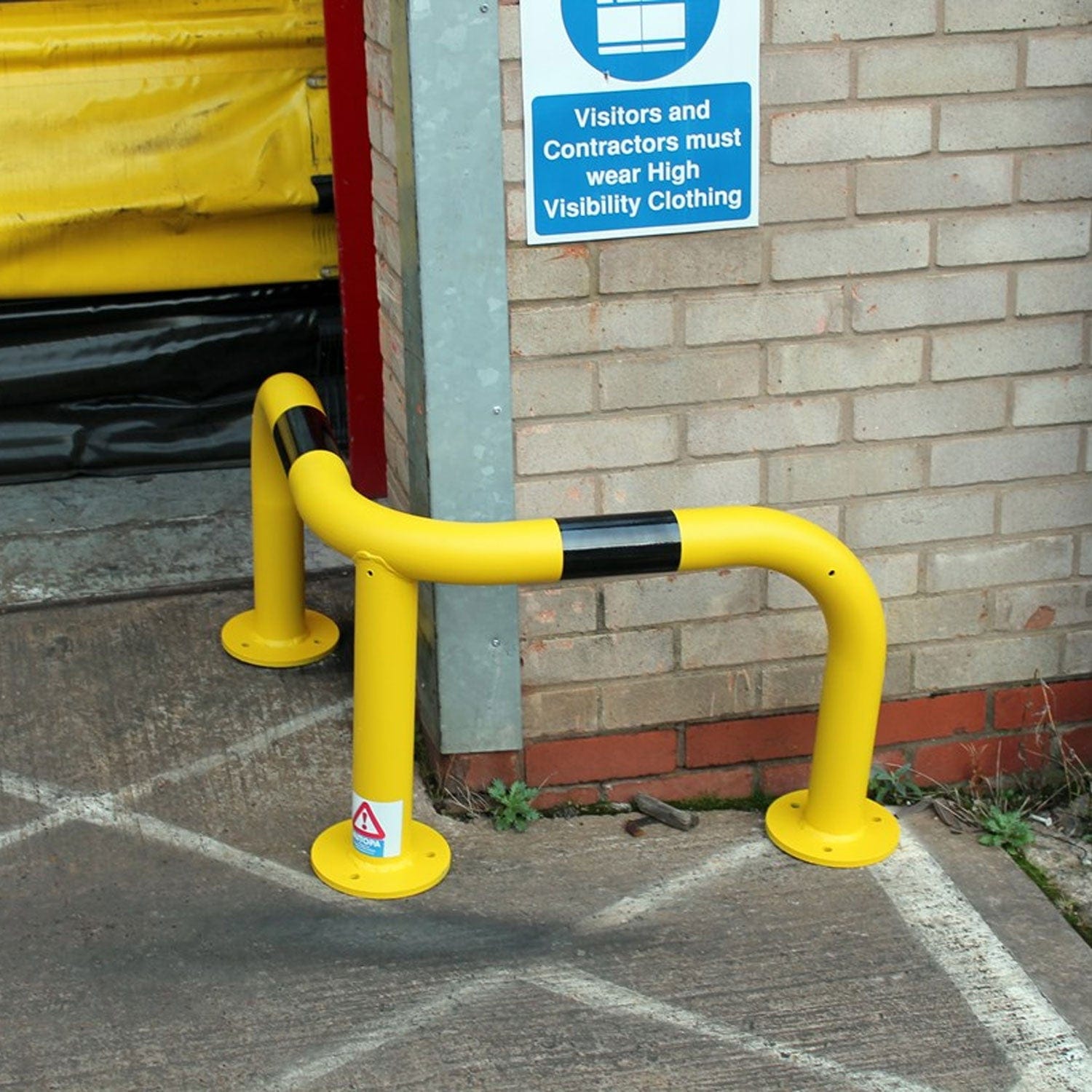

Yes - as well as building and loading bay corners, it is commonly used to guard racking uprights, columns, shelving and machinery from stock-handling equipment.
