2M Vision Pedestrian Barrier
£41.66
Ex. VAT
£49.99
Inc. VAT
Why buy from us
- Pay in 30 days with a Trade Account. No fees.
- Trade and bulk pricing available on request
- UK stock, dispatched fast
2M Vision Pedestrian Barrier - Standard is backordered and will ship as soon as it is back in stock.
Ships in
5 – 7 working days
Quote in 3 hours
No account needed
- Made in the UK
- Pay in 30 days with Klarna. No fee. Learn more
- Next Day Delivery Available
2M Vision Pedestrian Barrier - Standard is backordered and will ship as soon as it is back in stock.
Why it works
Fast to connect, road-legal spec
Quick Q-Clip connection
Barriers link with a Q-Clip and hook and eye fitting, joining to other Vision barriers and to Master and Gate barriers in the range.
Chapter 8 and BS EN 8442 compliant
Meets BS EN 8442 wind stability, BS EN 12899-1 reflectivity, Chapter 8 of the Traffic Signs Manual and the TSRGD for public highways and street works.
360-degree reflective sleeves
Reflective sleeves on both vertical spindles keep the barrier visible to drivers and pedestrians in low light.
Built-in sign facility
A 600mm x 450mm panel lets you slot in warning or custom signage without extra fixings.
Made by Melba Swintex
Manufactured by Melba Swintex in virgin HDPE, with embossing available for company identification.
Overview
2M Vision Pedestrian Barrier - Overview

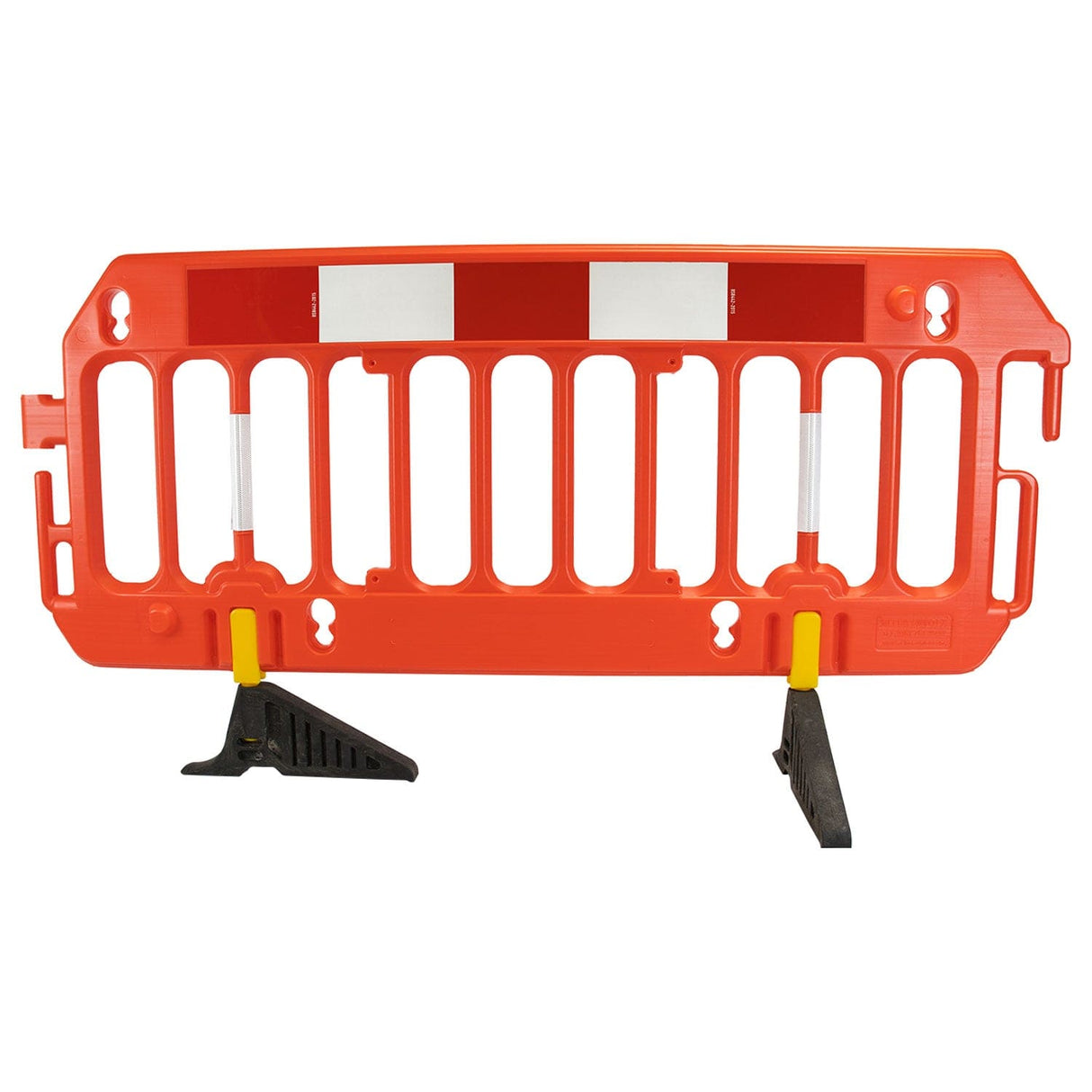

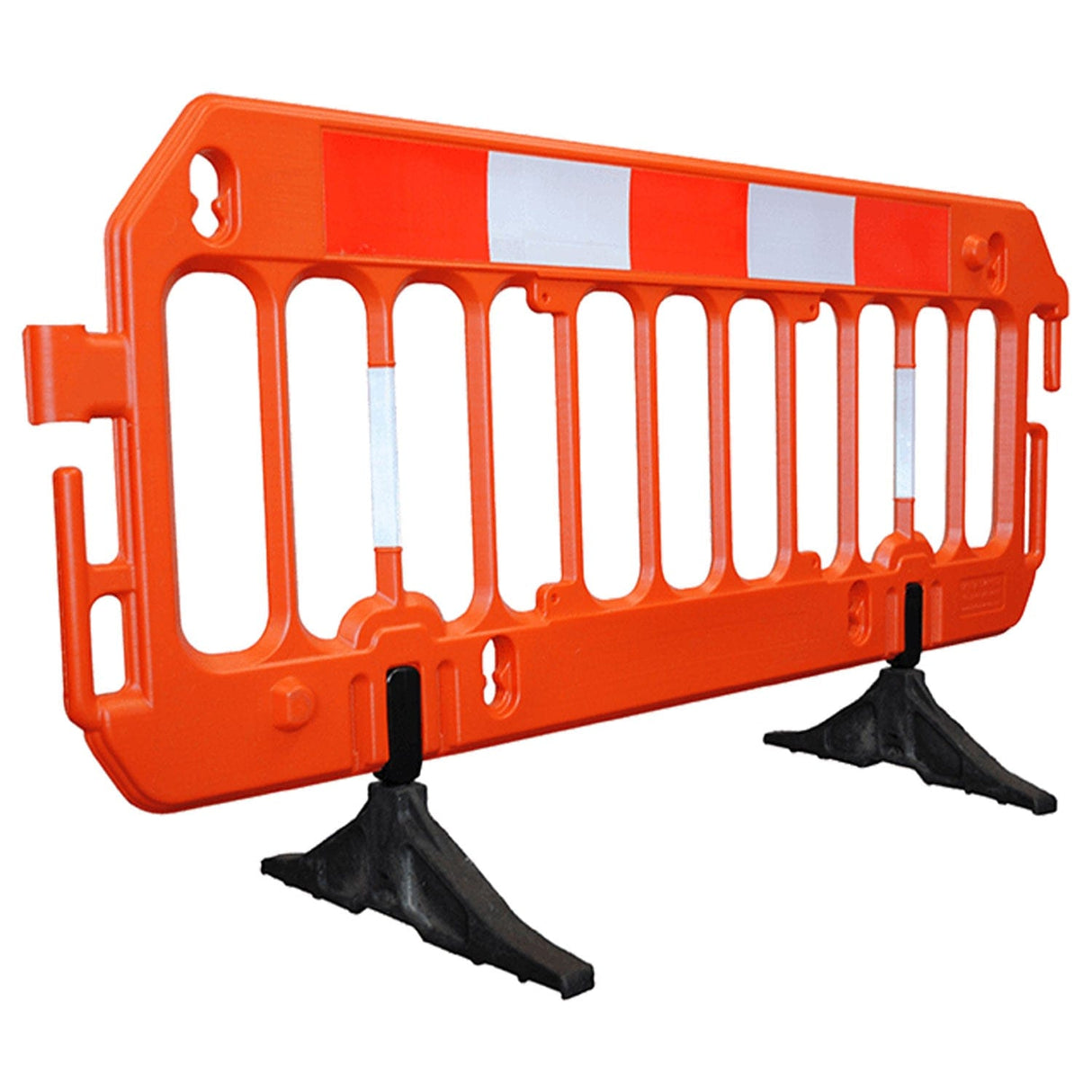

The 2M Vision Pedestrian Barrier is a BS EN 8442 and Chapter 8 compliant HDPE barrier from Melba Swintex, built for roadworks, construction sites and events. Q-Clip and hook and eye connections link it to other Vision barriers and to Master and Gate barriers in the range, while reflective sleeves on both spindles keep it visible in low light.
2000mm
Panel width
1000mm
Panel height
10.5kg
From, Anti-Trip foot
600x450mm
Sign facility
| Dimensions | |
|---|---|
| Panel height | 1000mm |
| Panel width | 2000mm |
| Panel depth | 50mm |
| Weight (Standard foot) | 11.2kg |
| Weight (Anti-Trip foot) | 10.5kg |
| Details | |
|---|---|
| Material | Virgin HDPE |
| Colour | Orange as standard, custom colours to order |
| Sign facility | 600mm x 450mm |
| Connection | Q-Clip and hook and eye, compatible with Master and Gate barriers |
| Per pallet | 40 barriers (double pallet) |
| Compliance | BS EN 8442 (wind), BS EN 12899-1, Chapter 8, TSRGD |
Frequently asked questions
What is the difference between the Standard and Anti-Trip feet?
What is the difference between the Standard and Anti-Trip feet?
The Standard foot weighs 11.2kg and rotates a full 360 degrees for flat stacking. The Anti-Trip foot weighs 10.5kg and uses an asymmetrical design to reduce trip risk in busy pedestrian areas.
Does this barrier meet Chapter 8?
Does this barrier meet Chapter 8?
Yes. It meets BS EN 8442 for wind stability, BS EN 12899-1 for reflectivity, Chapter 8 of the Traffic Signs Manual and the TSRGD, so it can be used on public highways and street works.
How do the barriers connect to each other?
How do the barriers connect to each other?
Each barrier links with a Q-Clip and a hook and eye fitting, and is also compatible with Master and Gate barriers in the range for longer or gated runs.
Can I fit a warning sign to the barrier?
Can I fit a warning sign to the barrier?
Yes. A 600mm x 450mm sign facility is built into the panel, so a warning or custom sign slots straight in without extra fixings.
Is it available in colours other than orange?
Is it available in colours other than orange?
It is supplied in orange as standard, with custom colours available to order.
Can I add my company name or logo?
Can I add my company name or logo?
Yes. Embossing is available from 40 units with tooling charges, and laser-printed embossing from 10 units for company names.
What is the barrier made from?
What is the barrier made from?
Virgin HDPE, moulded for Melba Swintex, so it stays lightweight while meeting Chapter 8 reflective requirements.
