Melba Swintex · SKU:
015065
Diverted Traffic Reversible 1050 x 450mm 2703 Q-Sign
Diverted Traffic sign with a reversible arrow - 1050 x 450mm Q-Sign to diagram 2703. Chapter 8 ready recycled polypropylene A-frame at 6.3kg. In stock.
£33.33
each, ex VAT
£39.99
inc VAT
In stock, ready to go
Diverted Traffic Reversible 1050 x 450mm 2703 Q-Sign is backordered and will ship as soon as it is back in stock.
Buy more, pay less
Per unit, ex VAT. Applied automatically.
In stock
ready to go
Formal quote back in 3 hours. No account needed.
Quote in 3 hours
No account needed
- Made in the UK
- Next Day Delivery Available
- Pay in 30 days with a Trade Account. No fees.
- UK stock. Stock and lead time are shown above.
- Seen it cheaper? We beat any genuine quote. 0161 706 0479
Frequently purchased with
Tick to add
Complete the kit
0 add-ons selected · £0.00 ex VAT
You may also like
See all plastic temporary q-signs 1050 x 450mm ›Other sign in the range
£29.16 ex VAT
£34.99 inc VAT
£29.16 ex VAT
£34.99 inc VAT
£29.16 ex VAT
£34.99 inc VAT
You may be looking for
Diverted Traffic Reversible 1050 x 450mm 2703 Q-Sign
Regular price
£39.99
Unit price
Unavailable
Diverted Traffic Reversible 1050 x 450mm 2703 Q-Sign is backordered and will ship as soon as it is back in stock.
Why it works
The sign that carries the route
Points the way through
The reversible arrow steers diverted traffic left or right at each turn.
Compliant to diagram 2703
Conforms to BS 8442:2015 for Chapter 8 and Red Book 2013 schemes.
Easy one-person lift

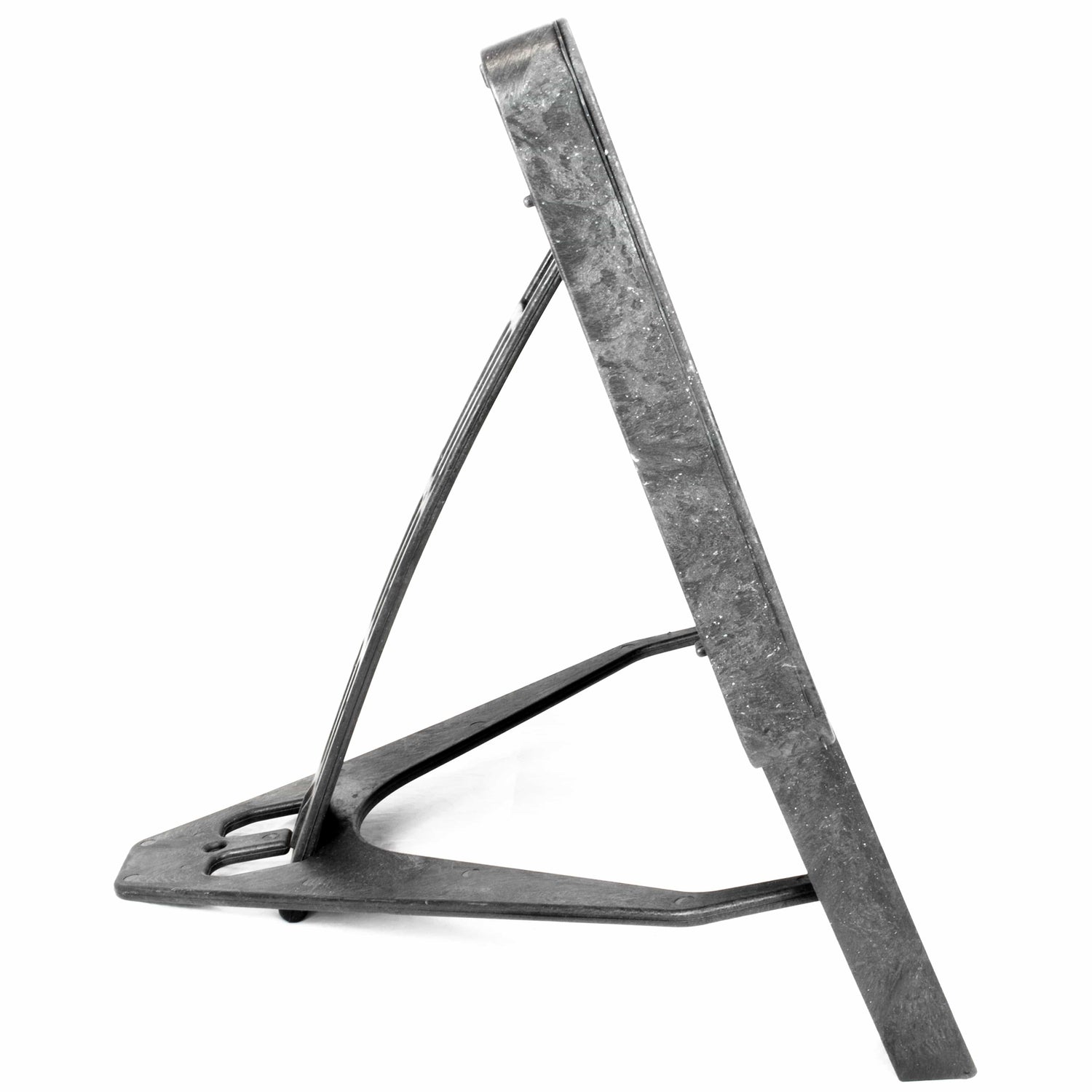

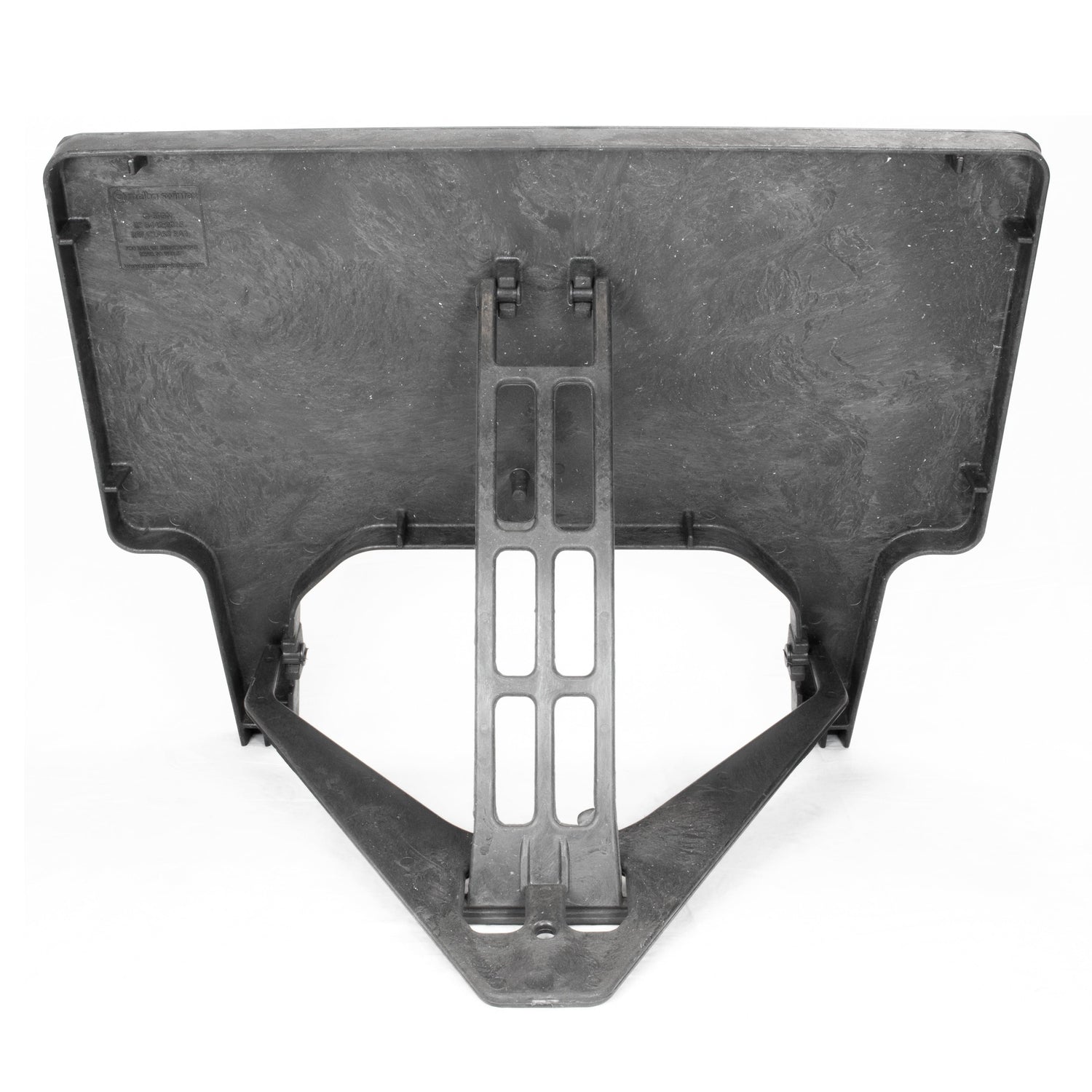

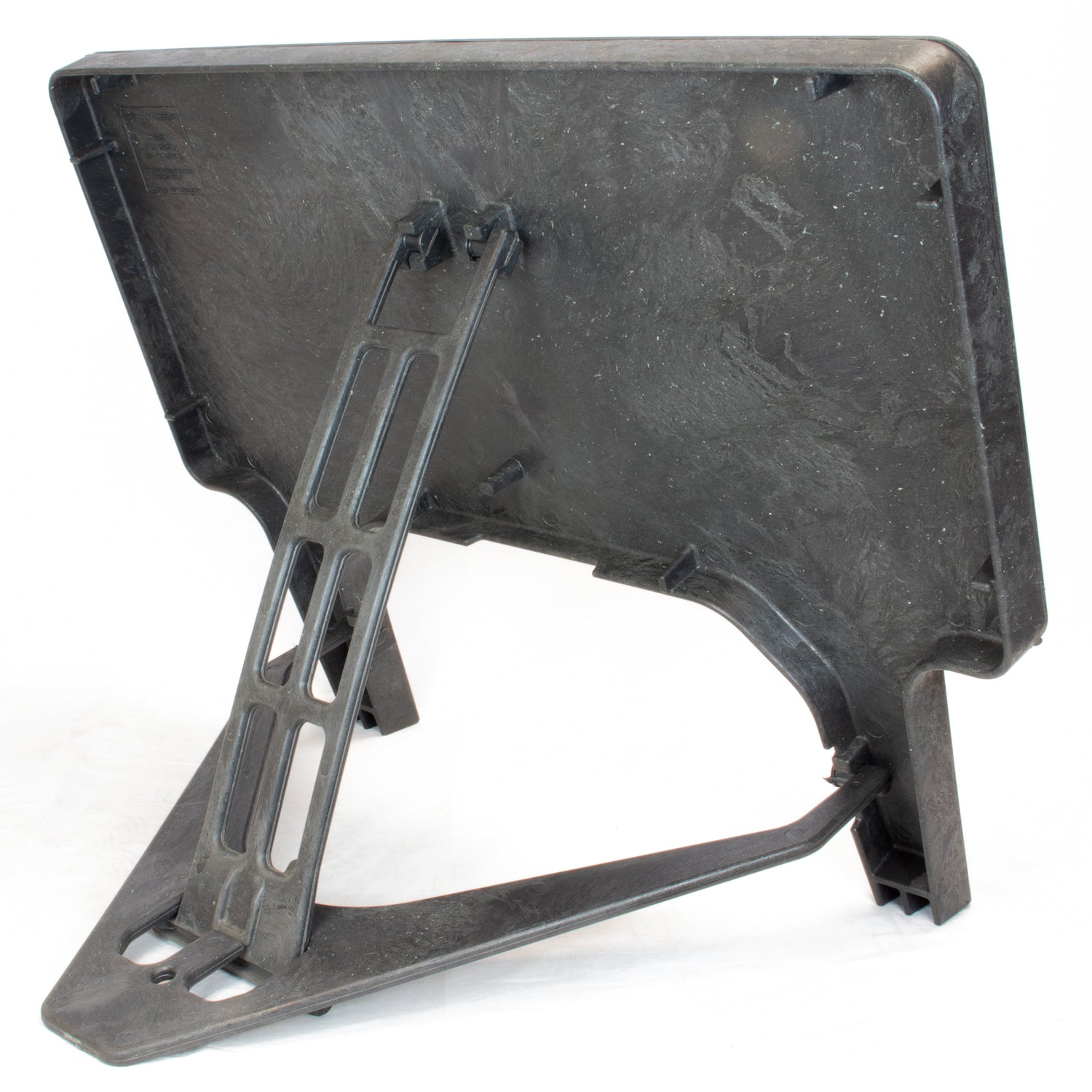

6.3kg with a built-in retractable stand and no sharp edges.
No rust, no scrap value
Fully recycled polypropylene with no metal parts to corrode or steal.
Wind-tested stability
Passes wind testing with the appropriate ballast weightings.
Overview
Diverted Traffic Reversible 1050 x 450mm 2703 Q-Sign - Overview

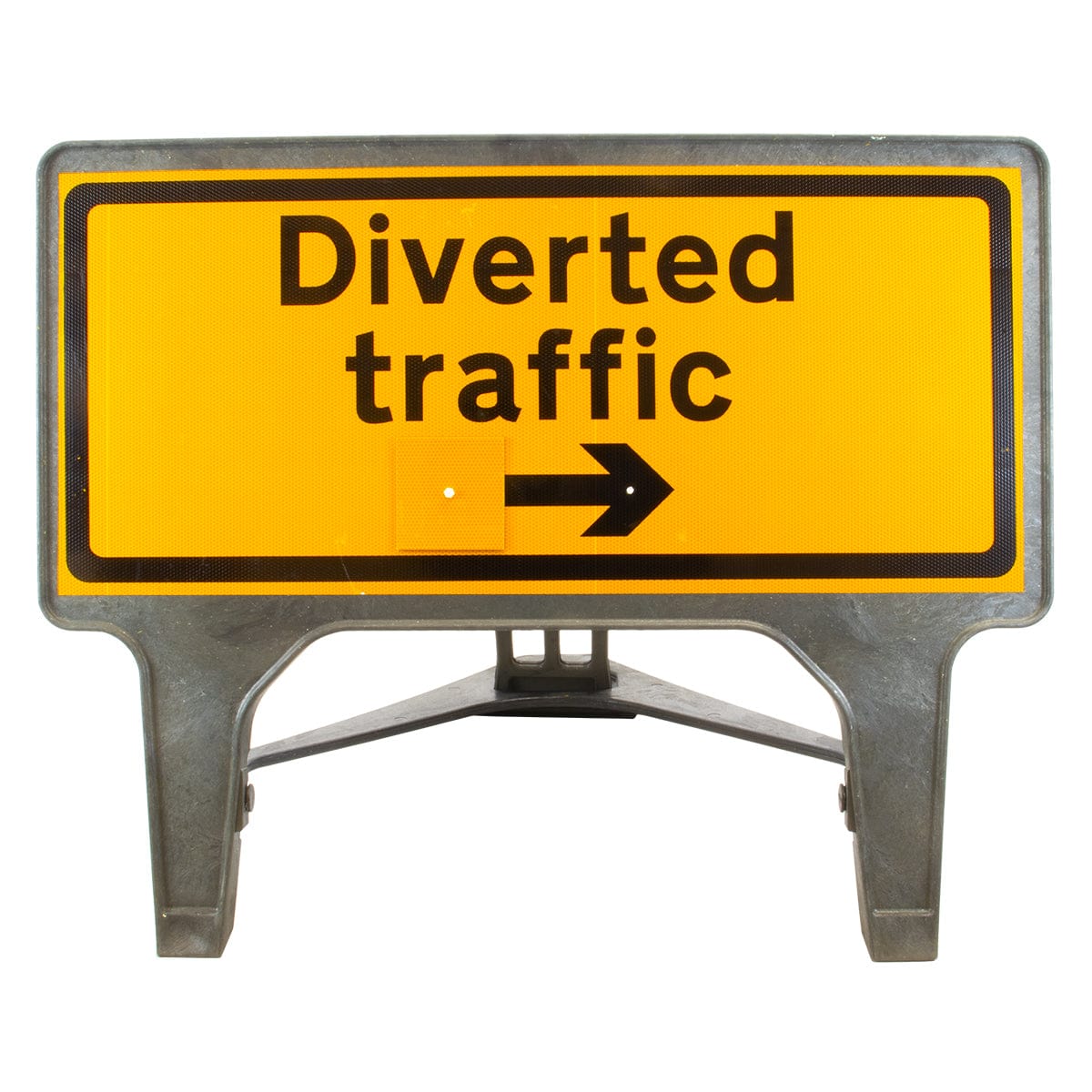

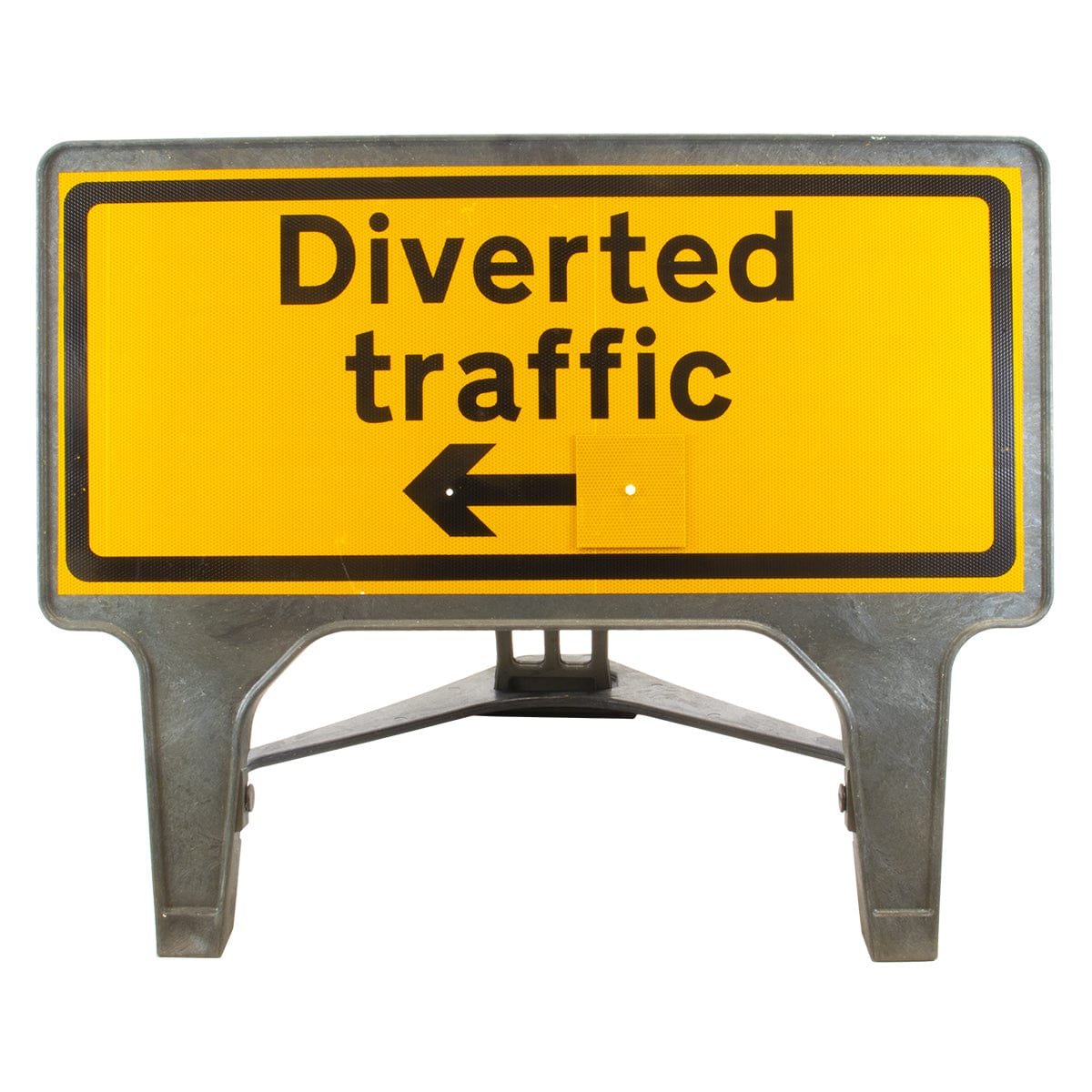

The workhorse sign of a diversion route. The Diverted Traffic legend to diagram 2703 carries a reversible arrow, so the same sign points traffic left at one junction and right at the next. At 6.3kg on the Melba Swintex recycled polypropylene A-frame, it is the sort of sign one operative places all day without slowing down.
1050 x 450mm
Sign face
750mm
Total height
6.3kg
Weight
30units
Per pallet
| Dimensions | |
|---|---|
| Sign face | 1050 x 450mm |
| Total height | 750mm |
| Total width | 1070mm |
| Depth (folded) | 60mm |
| Depth (set up) | 750mm |
| Weight | 6.3kg |
| Details | |
|---|---|
| Legend | Diverted Traffic, reversible arrow |
| Diagram | 2703 |
| Frame material | Fully recycled polypropylene |
| Frame colour | Black |
| Customisation | Bespoke vinyl faces available for other legends |
| Compliance | BS 8442:2015, Chapter 8, Red Book 2013, TSRGD |
| Units per pallet | 30 |
Frequently asked questions
What does the Diverted Traffic sign actually mark?
What does the Diverted Traffic sign actually mark?
It marks the diverted route itself. Once drivers pass the diversion warning, these signs sit at each decision point so nobody has to guess which way the route goes.
Can the arrow point in either direction?
Can the arrow point in either direction?
Yes - the diagram 2703 face is reversible, so the arrow can be set to point left or right when the sign is placed. One sign covers turns in both directions.
What size is this sign when set up and when packed?
What size is this sign when set up and when packed?
Set up it stands 750mm tall and 1070mm wide with a 1050 x 450mm sign face. Folded it is just 60mm deep, and the signs stack 30 to a pallet.
What stops it blowing over?
What stops it blowing over?
The Q-Sign passes wind testing with the appropriate ballast weightings. Add ready filled sand bags or a sign ballast weight on exposed roads - we supply both.
Which regulations does it satisfy?
Which regulations does it satisfy?
It conforms to BS 8442:2015 and is built for Chapter 8 and Red Book 2013 schemes under the Traffic Signs Regulations and General Directions.
Is it manageable for one operative?
Is it manageable for one operative?
Comfortably. At 6.3kg with a built-in retractable stand and no sharp edges, one person can carry and place a run of them without help.
Can I have different wording on the same frame?
Can I have different wording on the same frame?
Yes - bespoke vinyl sign faces are available for the 1050 x 450mm frame. Tell us the legend you need and we will quote for it.
