Melba Swintex · SKU:
015062

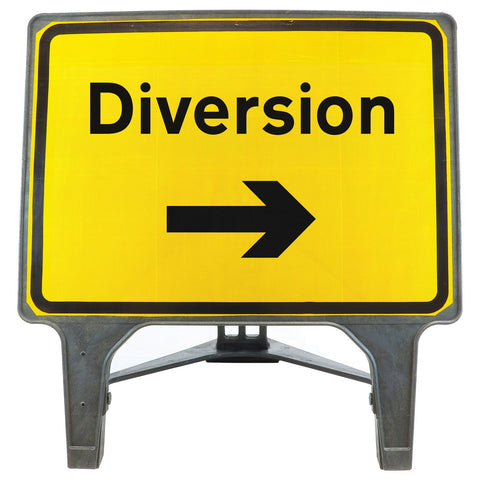

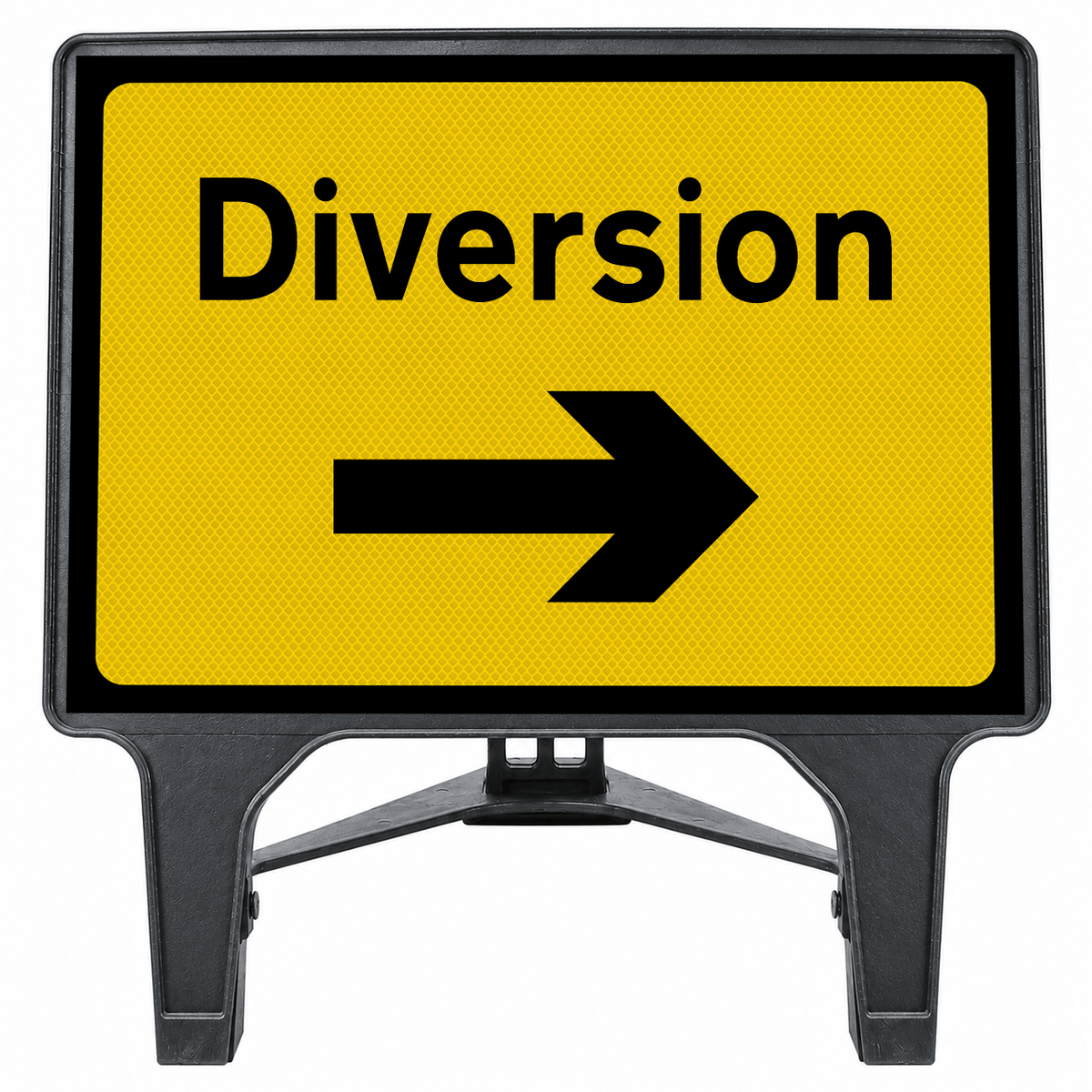

Diversion Right 1050x750mm 2702a Q-Sign
Diversion Right 2702a Q-Sign with a 1050x750mm face sends diverted traffic right. BS 8442:2015 and Chapter 8 compliant recycled A-frame, in stock at SSUK.
£33.33
each, ex VAT
£39.99
inc VAT
In stock, ready to go
Diversion Right 1050x750mm 2702a Q-Sign is backordered and will ship as soon as it is back in stock.
Buy more, pay less
Per unit, ex VAT. Applied automatically.
In stock
ready to go
Formal quote back in 3 hours. No account needed.
Quote in 3 hours
No account needed
- Made in the UK
- Next Day Delivery Available
- Pay in 30 days with a Trade Account. No fees.
- UK stock. Stock and lead time are shown above.
- Seen it cheaper? We beat any genuine quote. 0161 706 0479
Frequently purchased with
Tick to add
Complete the kit
0 add-ons selected · £0.00 ex VAT
You may also like
See all plastic temporary q-signs 1050 x 750mm ›Other sign in the range
£29.16 ex VAT
£34.99 inc VAT
£29.16 ex VAT
£34.99 inc VAT
£29.16 ex VAT
£34.99 inc VAT
You may be looking for
Diversion Right 1050x750mm 2702a Q-Sign
Regular price
£39.99
Unit price
Unavailable
Diversion Right 1050x750mm 2702a Q-Sign is backordered and will ship as soon as it is back in stock.
Why it works
What makes the Q-Sign frame last
Reads clearly at the decision point
Diversion and a right arrow to diagram 2702a leave drivers in no doubt where the route goes.
Compliant on scheme drawings
Conforms to BS 8442:2015, Chapter 8 and the Red Book 2013.
Recycled and metal-free
Fully recycled polypropylene with nothing to rust and no scrap value to attract theft.
One person, no tools
9.8kg lift with a built-in retractable stand and no sharp edges.
Happy left out on site
Wind-tested with the appropriate ballast weightings and non-conductive to lightning.
Overview
Diversion Right 1050x750mm 2702a Q-Sign - Overview

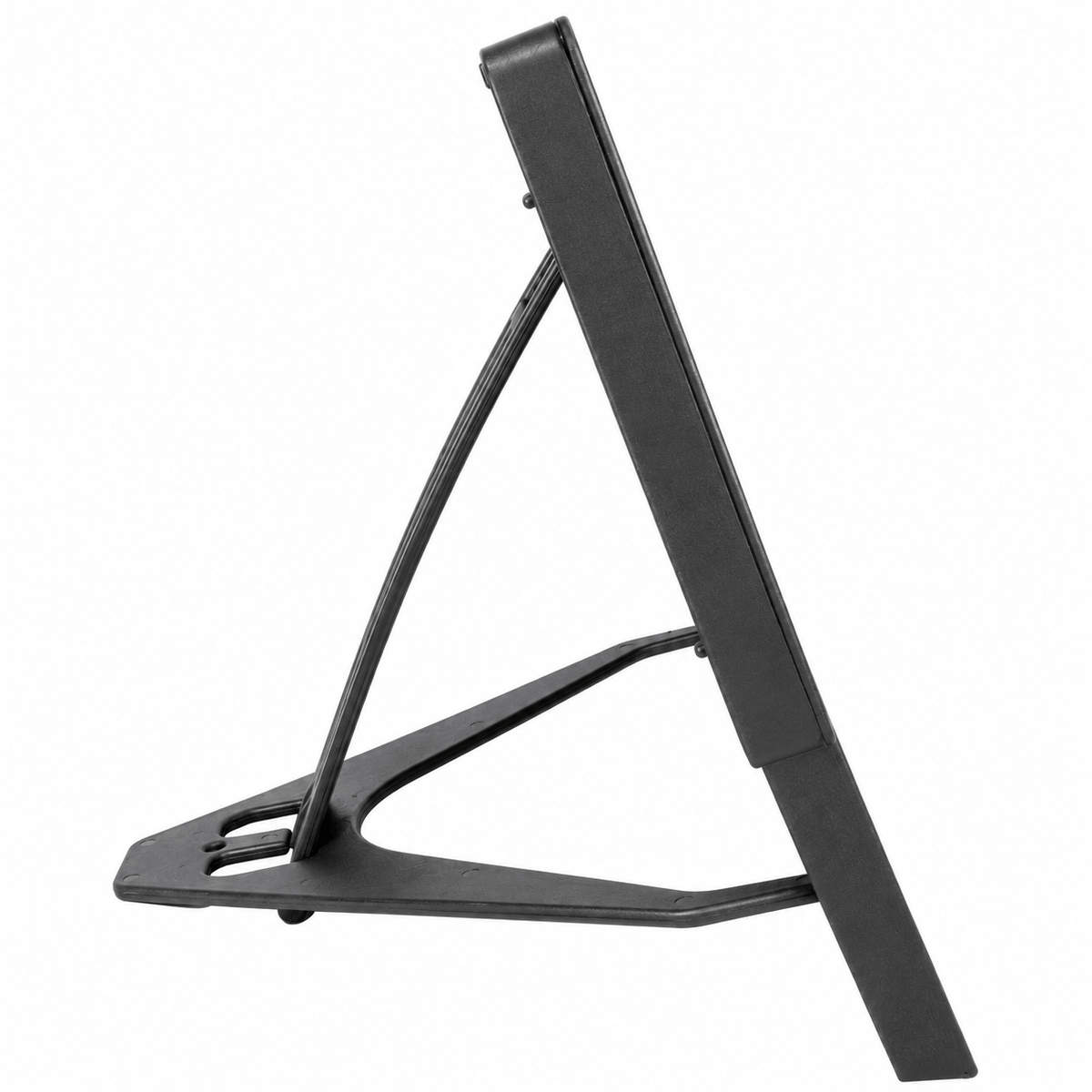

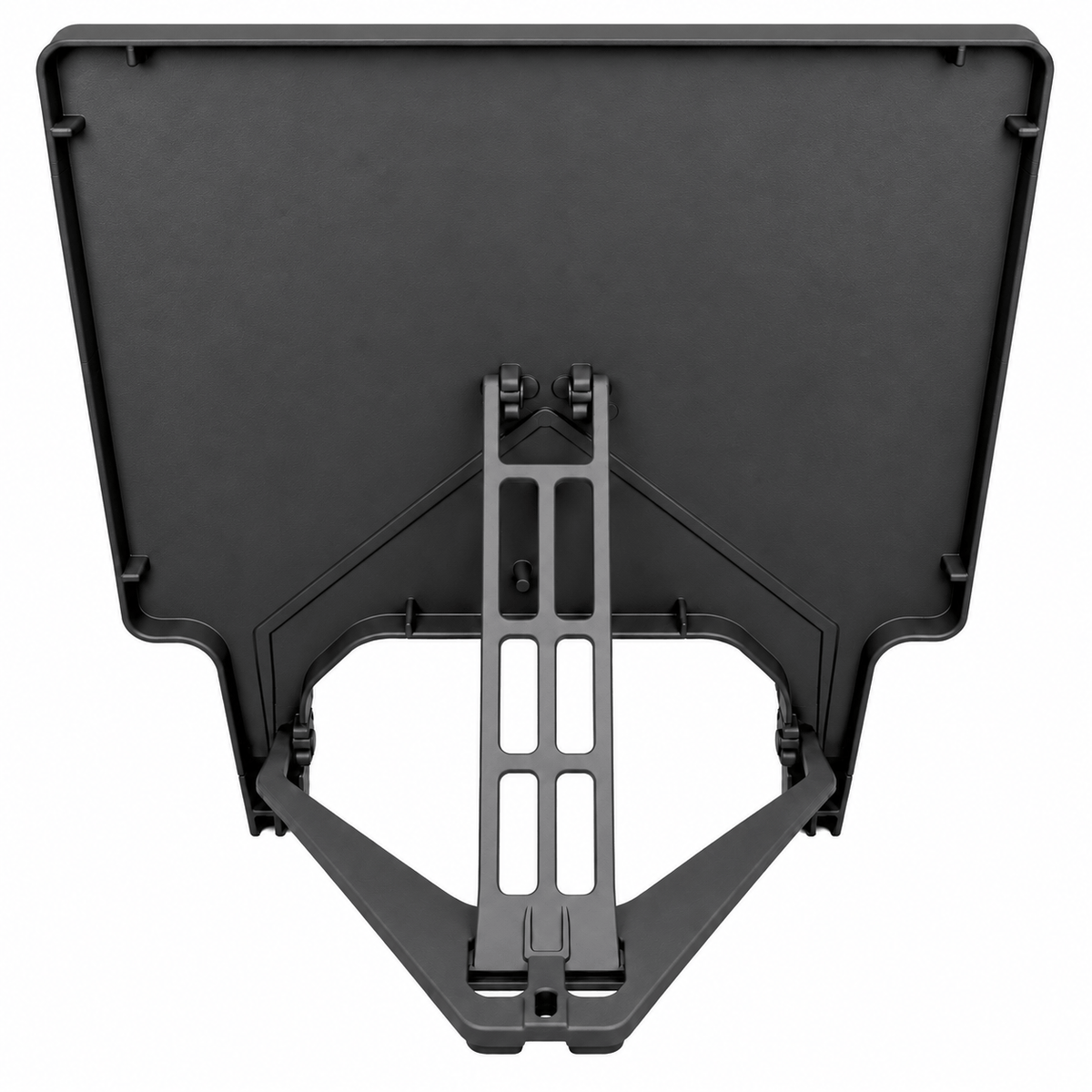

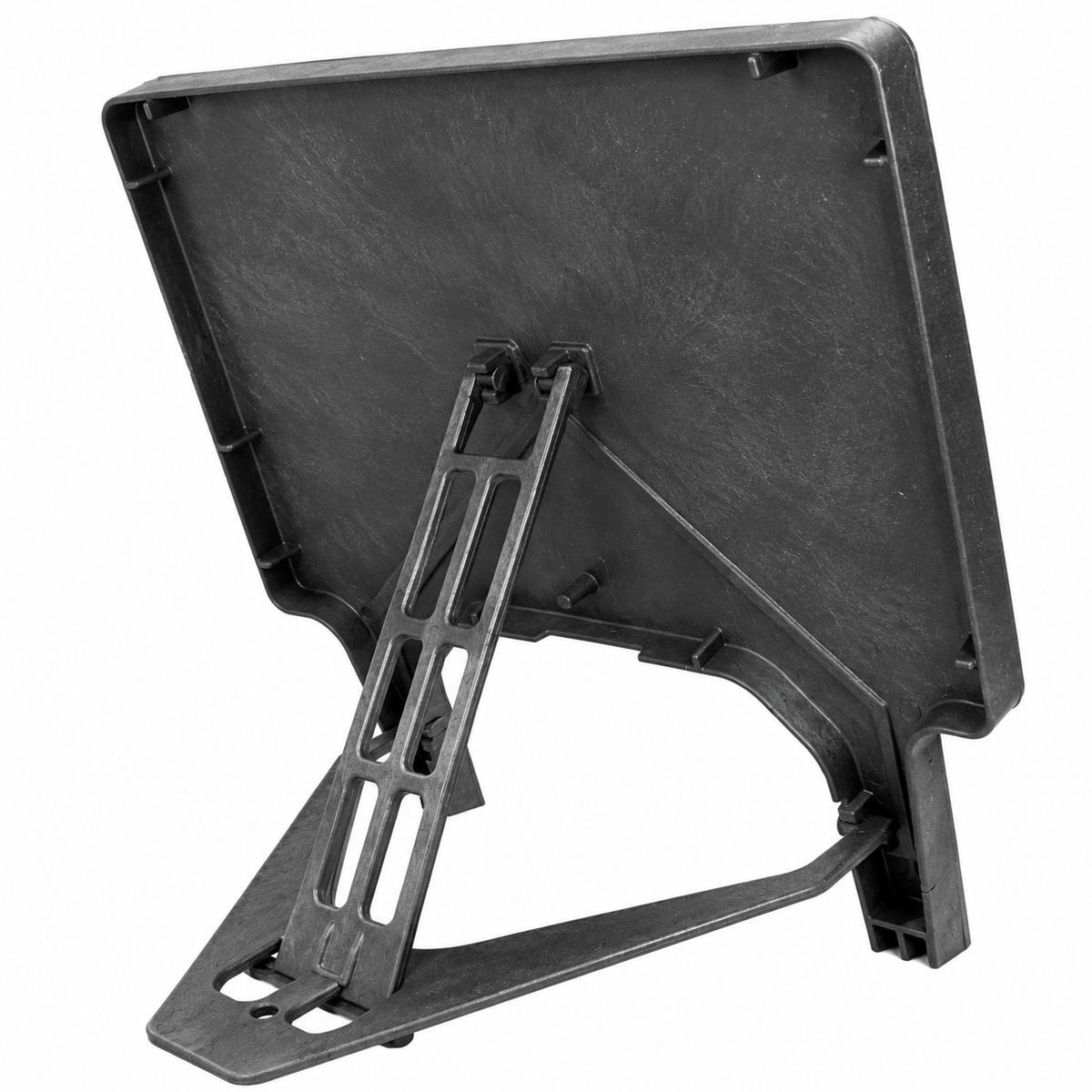

The diagram 2702a sign that commits drivers to the right turn on a diversion. A 1050 x 750mm printed face on the recycled polypropylene Q-Sign A-frame - 9.8kg, free-standing on its retractable stand, with no metal to rust or steal.
1050 x 750mm
Sign face
1080mm
Total height
9.8kg
Weight
30units
Per pallet
| Dimensions | |
|---|---|
| Sign face | 1050 x 750mm |
| Total height | 1080mm |
| Total width | 1070mm |
| Depth (folded) | 60mm |
| Depth (set up) | 750mm |
| Weight | 9.8kg |
| Details | |
|---|---|
| Legend | Diversion with right arrow |
| Diagram | 2702a |
| Frame material | Fully recycled polypropylene |
| Frame colour | Black |
| Customisation | Bespoke vinyl faces available for other legends |
| Compliance | BS 8442:2015, Chapter 8, Red Book 2013, TSRGD |
| Units per pallet | 30 |
Frequently asked questions
Do I need other signs to go with this one?
Do I need other signs to go with this one?
Usually, yes. A diversion route is signed at each decision point, so most schemes pair this right-arrow sign with forward and left versions on the same Q-Sign frame, with identical ballast and handling.
How do I stop it blowing over?
How do I stop it blowing over?
The Q-Sign range is wind-tested with ballast weightings. Add ready-filled sand bags or a sign ballast weight to the frame in exposed locations - we supply both.
Can one operative set it up?
Can one operative set it up?
Yes. At 9.8kg it is a single-person lift, the retractable stand is built in and there are no sharp edges - unfold, stand, ballast, done.
How do these store and transport?
How do these store and transport?
The frame folds flat to 60mm deep and the signs stack, so 30 fit on a single pallet for moving between jobs or storing in the yard.
Is it safe to leave out overnight?
Is it safe to leave out overnight?
Yes. The sign is 100% polypropylene with no metal parts, so it does not rust, is non-conductive to lightning and has no scrap value to attract thieves.
What if my scheme needs different wording?
What if my scheme needs different wording?
The same 1050 x 750mm frame takes bespoke vinyl faces. Send us the diagram number or the wording you need and we will quote a printed face for it.
Which standards does it meet?
Which standards does it meet?
It conforms to BS 8442:2015, Chapter 8 of the Traffic Signs Manual and the Red Book 2013, and the face is to TSRGD diagram 2702a - suitable for UK road works when set up to the code of practice.
