Keep Right 750mm Q-Sign, diagram 610, for temporary traffic management
The Keep Right 750mm Q-Sign is a self-standing plastic road sign carrying the diagram 610 keep-right instruction on a 750mm circular face. Made in the UK by Melba Swintex from fully recycled polypropylene, it is metal-free so it never rusts, is non-conductive and holds no scrap value. The A-frame folds flat, stacks for transport and sets up by one person at 6.8kg, and it is Chapter 8 compliant for use on UK highways and street works.
Key features
-

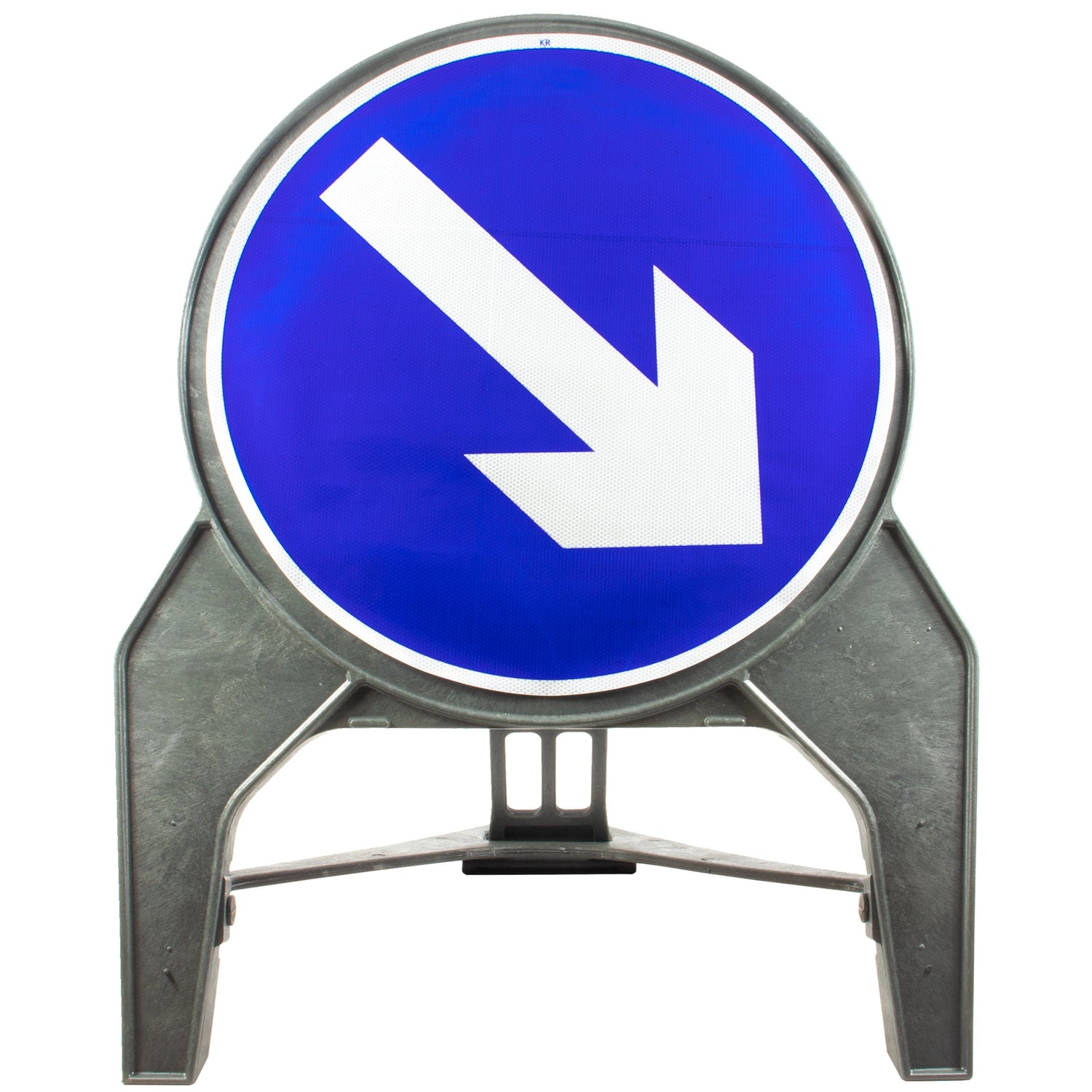

Diagram 610 keep-right face - a clear 750mm circular sign face for directing traffic.
-
Fully recycled polypropylene - metal-free, so it will not rust, is non-conductive and holds no scrap value.
-
Chapter 8 compliant - meets BS 8442:2015 and Chapter 8 of the Traffic Signs Manual for UK roadworks.
-

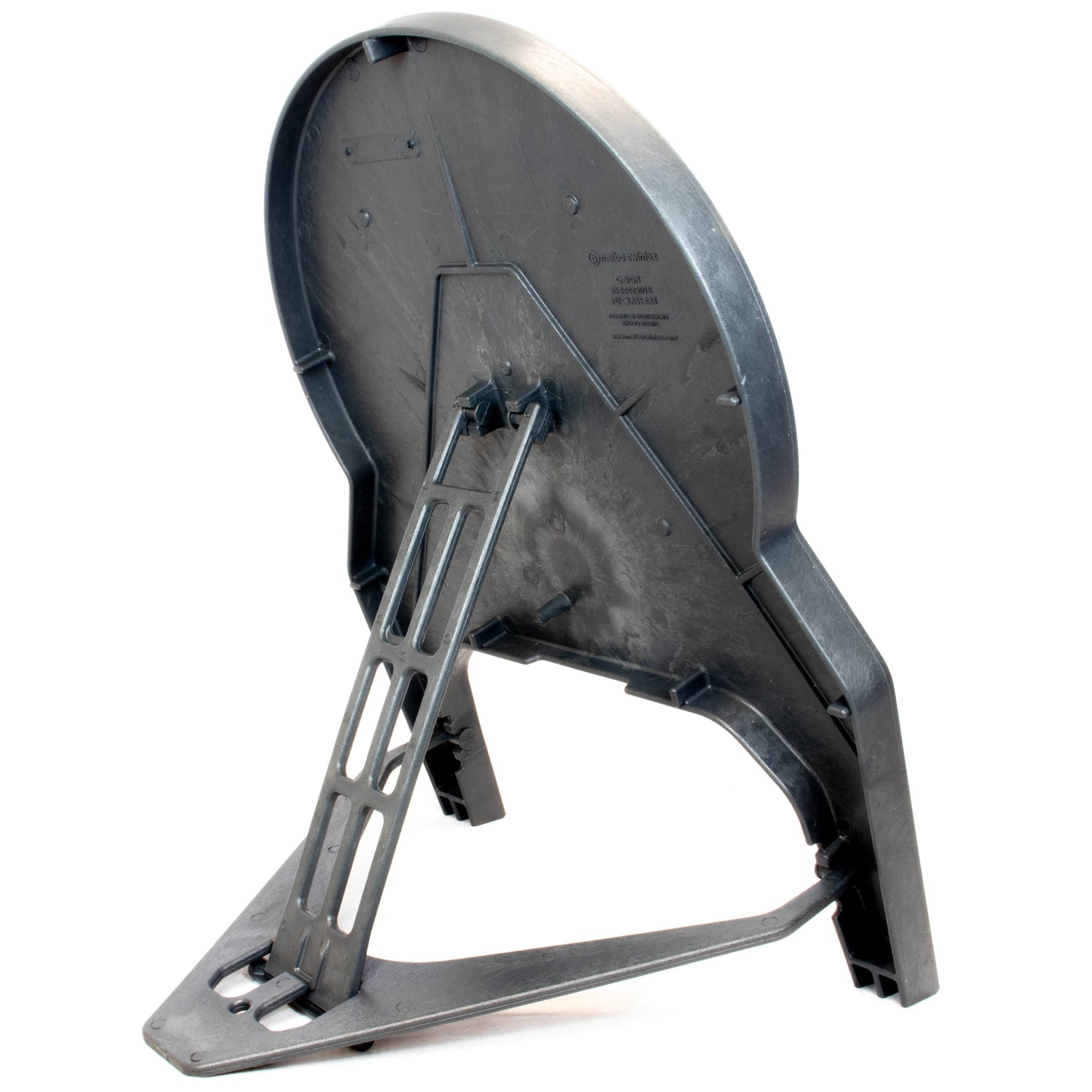

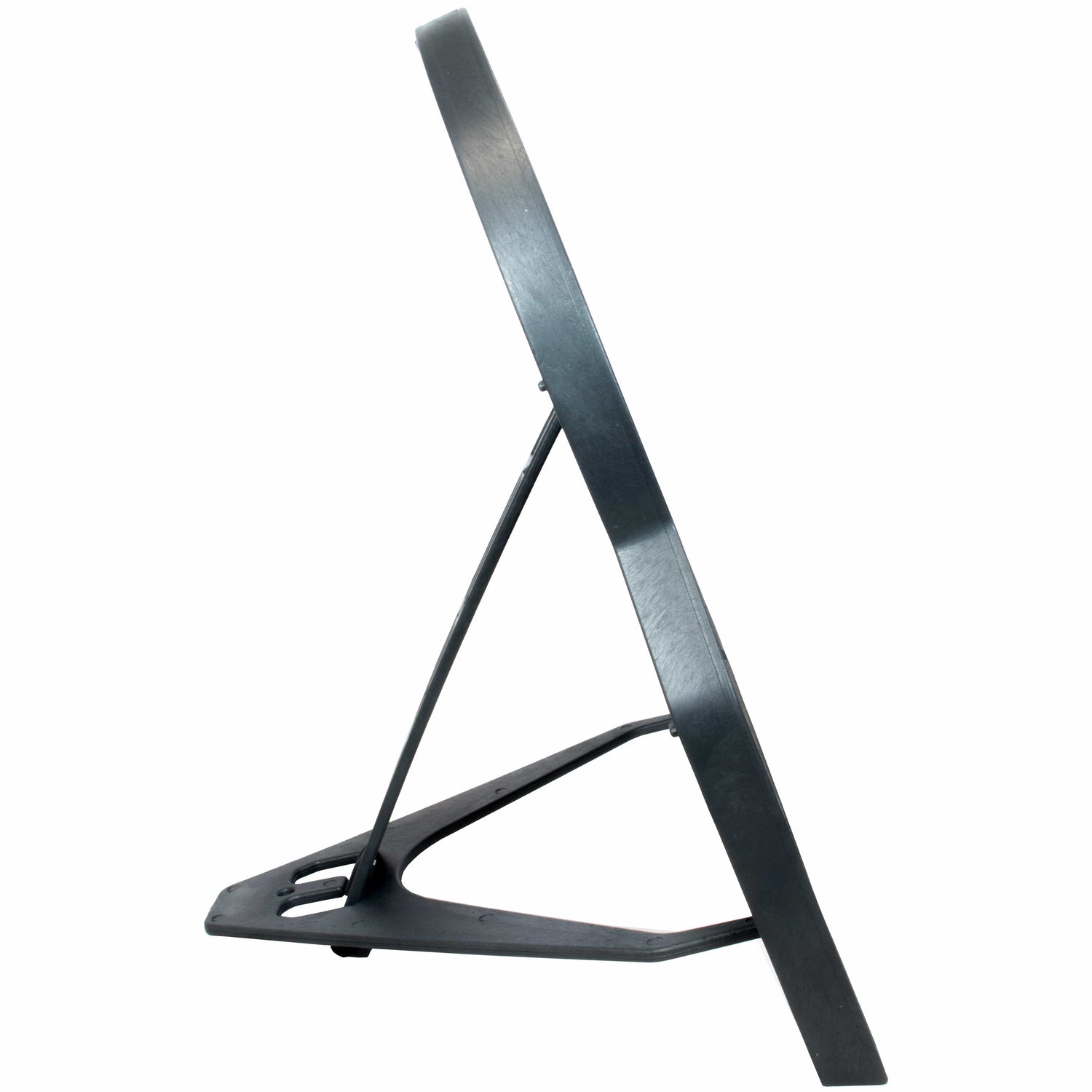

Single-person setup - 6.8kg with a self-standing A-frame and retractable stand.
-
Folds flat and stacks - packs down for storage and palletised transport, 30 per pallet.
-
Bespoke faces to order - custom vinyl sign faces available.
Where it is used
- Highways and road works
- Utility and street works
- Construction sites and site entrances
- Events and temporary traffic routing
- Car parks and private roads
Stability and ballast
Like all temporary A-frame signs, the Q-Sign should be ballasted in windy conditions. It has been wind tested and passes with the correct ballast weighting. Melba ballast weights or ready-filled sand bags can be added to keep it upright.
Specification
| Specification |
Detail |
| Sign face |
750mm circular |
| Diagram |
610 (Keep Right) |
| Folded depth |
60mm |
| Footprint (set up) |
750mm |
| Weight |
6.8kg |
| Material |
Fully recycled polypropylene |
| Colour |
Black frame |
| Units per pallet |
30 |
| Compliance |
BS 8442:2015, Chapter 8, The Red Book 2013, TSRGD |
Customisation
Bespoke vinyl sign faces are available to order, so the frame can carry a different diagram or message. Ask about trade-account pricing for framework and bulk orders.
