Autopa | SKU:
062619
Tatham Open Sided Cycle Shelter 2m - 5m with Galvanised Roof Extension Bays
£1,085.41
Ex. VAT
£1,302.49
Inc. VAT
Why buy from us
- Pay in 30 days with a Trade Account. No fees.
- Trade and bulk pricing available on request
- UK stock, dispatched fast
Tatham Open Sided Cycle Shelter 2m - 5m with Galvanised Roof Extension Bays - 2m x 2m Extension Bay / Bolt Down (flanged) excluding Bolts is backordered and will ship as soon as it is back in stock.
Ships in
3 – 5 working days
Quote in 3 hours
No account needed
- Made in the UK
- Pay in 30 days with Klarna. No fee. Learn more
- Next Day Delivery Available
Tatham Open Sided Cycle Shelter 2m - 5m with Galvanised Roof Extens...
Regular priceFrom
£1,302.49
Unit price
Unavailable
Tatham Open Sided Cycle Shelter 2m - 5m with Galvanised Roof Extension Bays - 2m x 2m Extension Bay / Bolt Down (flanged) excluding Bolts is backordered and will ship as soon as it is back in stock.
Why it works
Extend your shelter, bay by bay
Bolts straight onto the existing run
Fixes to the main Tatham shelter with a bolt-down flange plate, 8 bolts per plate.
Galvanised to BS EN ISO 1461
Galvanised mild steel frame and roof give lasting corrosion resistance outdoors.
Matches the main shelter exactly
Curved galvanised steel roof panels match the existing unit for a continuous, uniform run.
Made in the UK
Manufactured in the UK, built to extend the Tatham shelter range.
Overview
Tatham Cycle Shelter Extension Bay - Overview

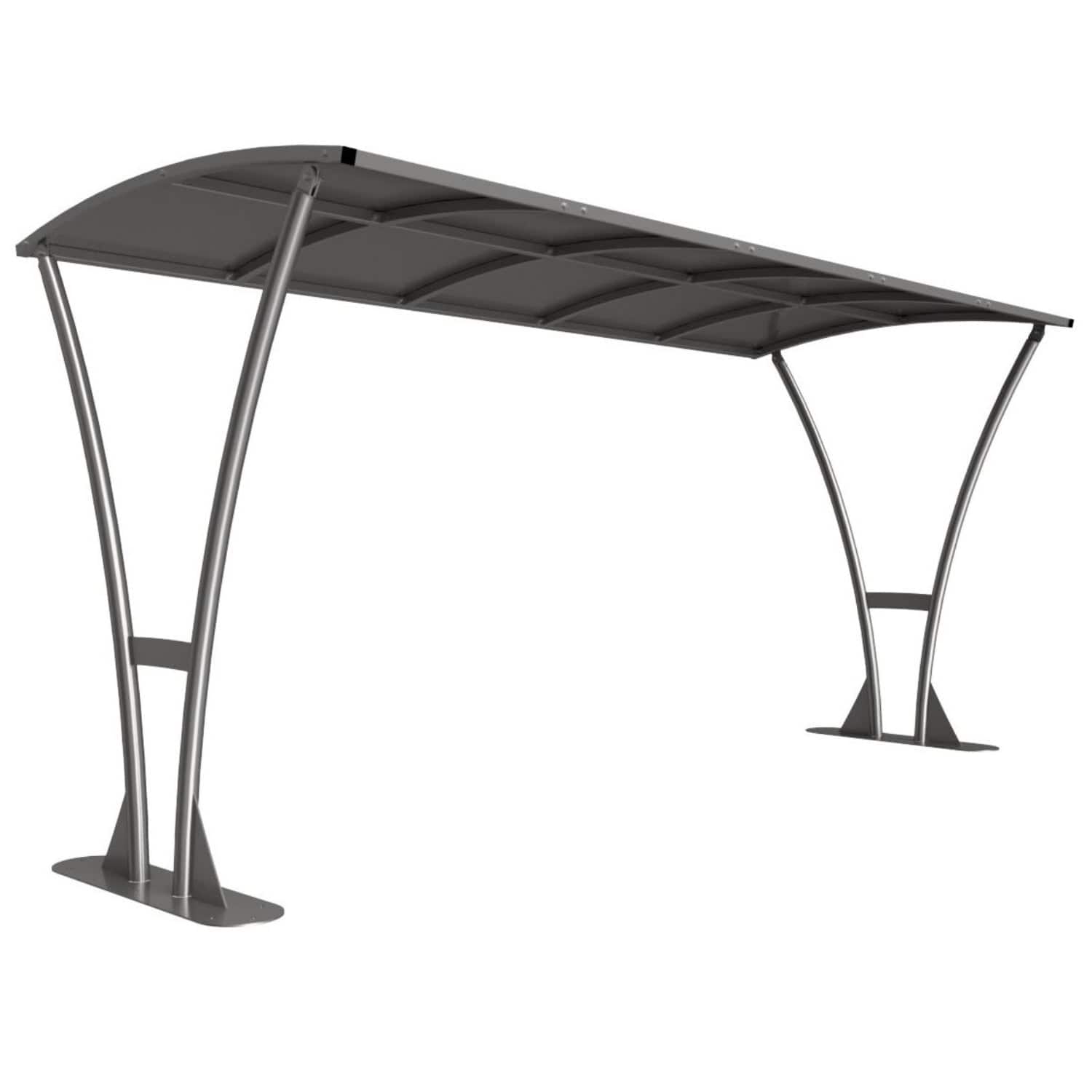

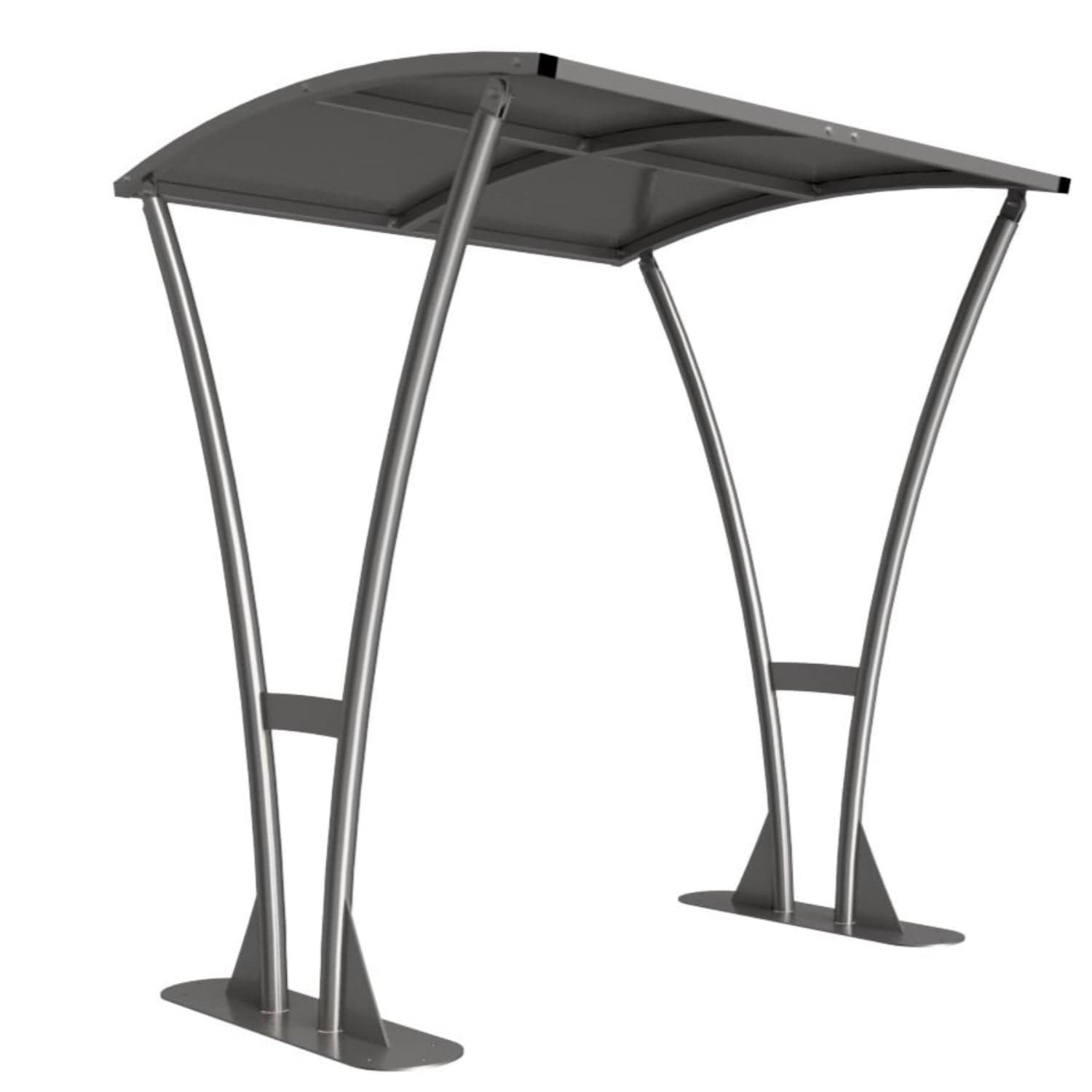

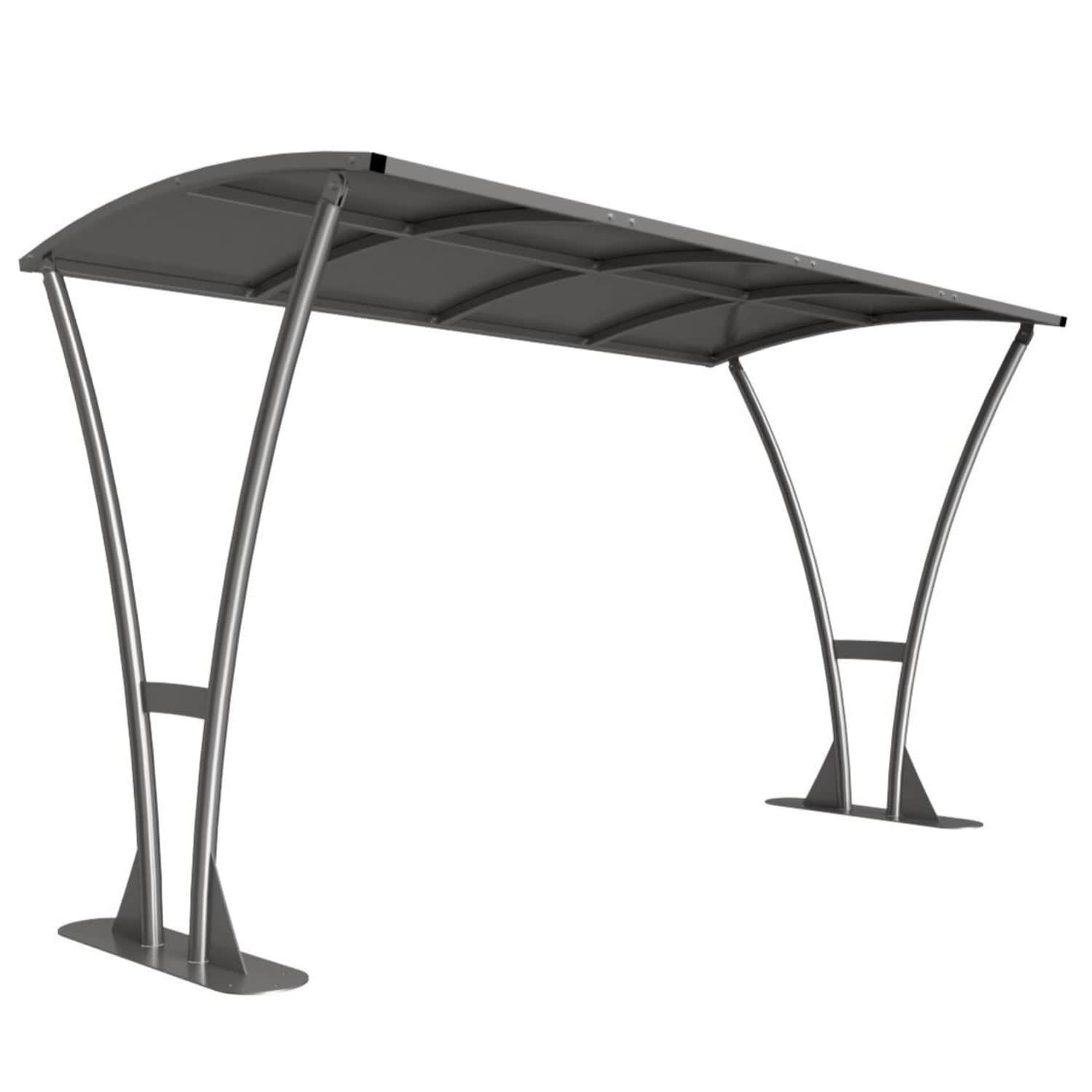

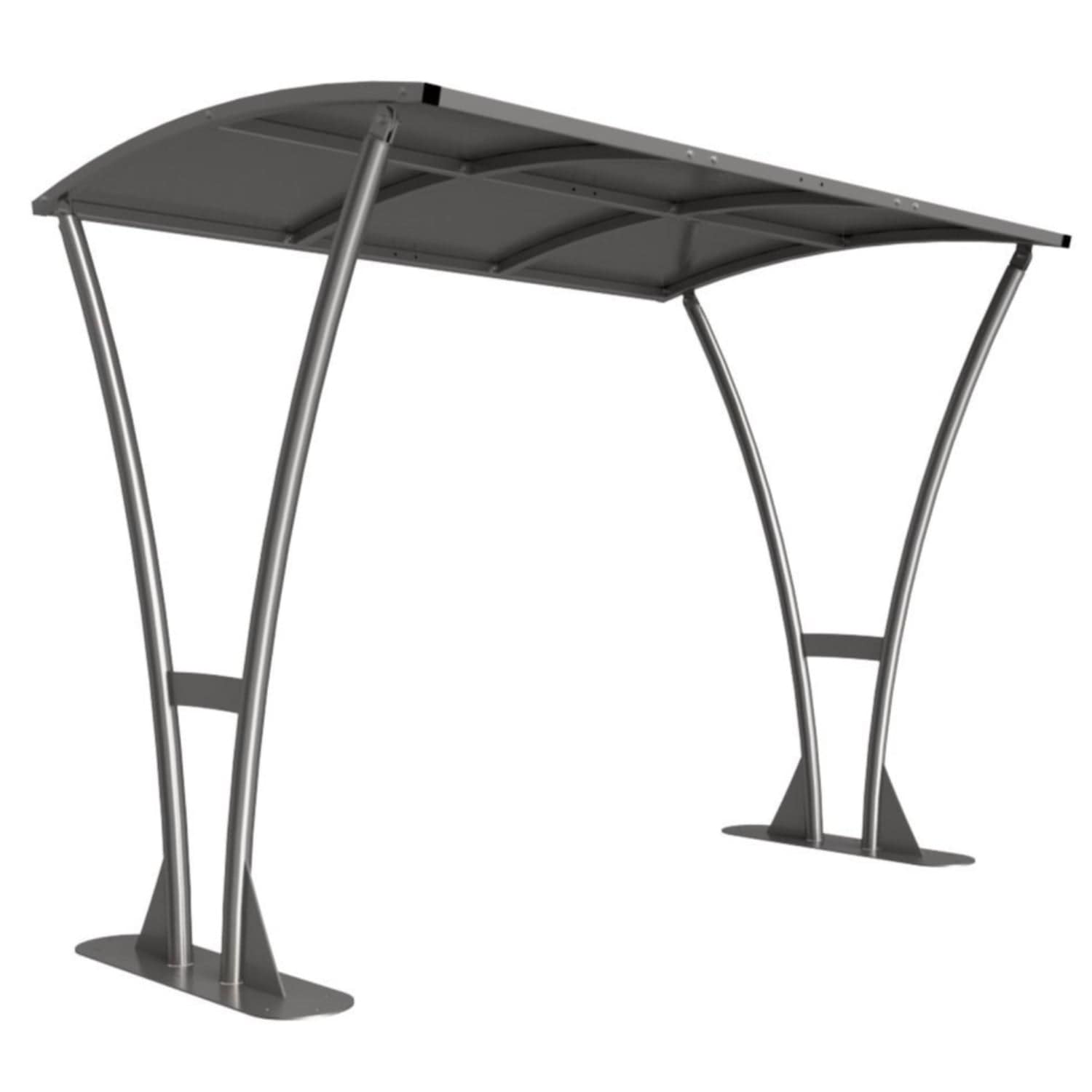

This extension bay lengthens an existing Tatham Open Sided Cycle Shelter with Galvanised Roof, matching its galvanised mild steel frame and curved galvanised roof panels exactly. It is supplied in 2m to 5m lengths to add further covered cycle parking to a run already in place.
2-5m
Length options
2480mm
Height, overall
2074mm
Width, overall
8bolts
Per flange plate
| Dimensions | |
|---|---|
| Height (clearance) | 2311mm |
| Height (overall) | 2480mm |
| Width (overall) | 2074mm |
| Length options | 2m / 3m / 4m / 5m |
| Flange plate | 1224mm x 300mm x 8mm |
| Details | |
|---|---|
| Cycle capacity | 5 / 8 / 10 / 12 (by length) |
| Fixing | Bolt down, 8 bolts per flange plate (bolts excluded) |
| Frame material | Galvanised mild steel, BS EN ISO 1461 |
| Roof material | 1mm galvanised steel panels |
| Origin | Made in the UK |
Frequently asked questions
Does this bay fit any Tatham Galvanised Roof shelter, whatever length I already have?
Does this bay fit any Tatham Galvanised Roof shelter, whatever length I already have?
Yes. Bays bolt on end to end, so this extension fits an existing Tatham Open Sided Cycle Shelter with Galvanised Roof of any length, from a 2m unit up to a 5m unit.
Will the roof and frame match my existing shelter?
Will the roof and frame match my existing shelter?
Yes. The bay uses the same galvanised mild steel frame and curved galvanised steel roof panels as the main unit, both galvanised to BS EN ISO 1461.
How does the bay arrive - built or in parts?
How does the bay arrive - built or in parts?
It ships flat-packed, the same as the main shelter, for straightforward on-site assembly rather than as a single pre-built unit.
Do I need to buy fixing bolts separately?
Do I need to buy fixing bolts separately?
Yes. The bay is supplied with bolt-down flange plates as standard, 8 bolts per plate, but the bolts themselves are not included.
Can the extension bay be a different length to my main shelter?
Can the extension bay be a different length to my main shelter?
Yes. Bay lengths run from 2m to 5m independently of the main unit's length, so you can extend by whatever length suits the space you have.
Can I use this bay as a stand-alone shelter?
Can I use this bay as a stand-alone shelter?
No. This SKU is the extension bay only, designed to bolt onto an existing Tatham Open Sided Cycle Shelter with Galvanised Roof. If you do not already have the main unit, order that separately first.
