Street Solutions UK · SKU:
076104

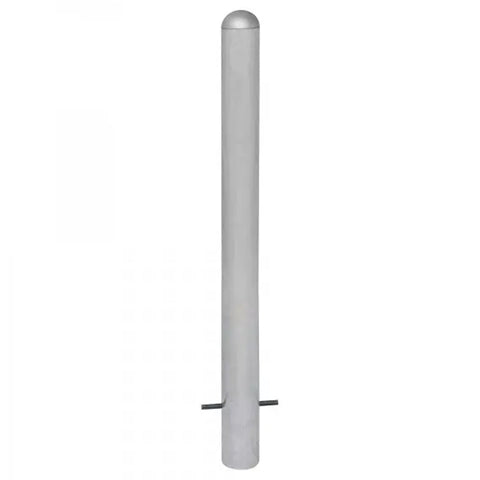

EV Charging Point Protection Bollards - Sub-Surface Fix
Galvanised steel bollard that shields EV charging points from vehicle impact. 108mm diameter, root fixed 400mm below ground. Four reflective band colours.
£126.74
each, ex VAT
£152.09
inc VAT
Ships in 10 to 15 working days
EV Charging Point Protection Bollards - Sub-Surface Fix - No Reflective Band is backordered and will ship as soon as it is back in stock.
Buy more, pay less
Per unit, ex VAT. Applied automatically.
Ships in
10 to 15 working days
Formal quote back in 3 hours. No account needed.
Quote in 3 hours
No account needed
- Made in the UK
- Next Day Delivery Available
- Pay in 30 days with a Trade Account. No fees.
- UK stock. Stock and lead time are shown above.
- Seen it cheaper? We beat any genuine quote. 0161 706 0479
Frequently purchased with
Tick to add
Complete the kit
0 add-ons selected · £0.00 ex VAT
You may also like
See all ev bollards ›Other bollards in the range
£126.74 ex VAT
£152.09 inc VAT
£86.16 ex VAT
£103.39 inc VAT
£89.99 ex VAT
£107.99 inc VAT
You may be looking for
EV Charging Point Protection Bollards - Sub-Surface Fix
Regular priceFrom
£152.09
Unit price
Unavailable
Street Solutions UK · SKU:
076104
£126.74
each, ex VAT
£152.09
inc VAT
Ships in 10 to 15 working days
EV Charging Point Protection Bollards - Sub-Surface Fix - No Reflective Band is backordered and will ship as soon as it is back in stock.
Why it works
Steel protection that stays seen
Protects the charger
Puts a galvanised steel post between vehicles and the charging unit, taking the knock instead of the equipment.
Visible day and night
Retro-reflective bands pick up headlights so drivers see the bollard before they see the charger.
Weatherproof finish
Hot dip galvanising coats the steel in zinc, so the post stands up to rain and road salt without rusting.
Root fixed install
The 400mm below-ground section is concreted in for a firm, permanent fixing that cannot be unbolted.
Colour matched bands
Choose white, blue, green or red bands to match the charging point branding, or a plain post with no band.
Overview
EV Charging Point Protection Bollards - Sub-Surface Fix - Overview
These sub-surface fix bollards protect EV charging points from vehicle damage in car parks, forecourts and depots. Each post is hot dipped galvanised steel with a 2mm wall, root fixed 400mm below ground, with retro-reflective band options in white, blue, green or red to match the charging point.
1200mm
Overall height
800mm
Above ground
108mm
Diameter
8kg
Weight
| Dimensions | |
|---|---|
| Overall height | 1200mm |
| Height above ground | 800mm |
| Height below ground | 400mm |
| Diameter | 108mm |
| Material thickness | 2mm |
| Weight | 8kg |
| Details | |
|---|---|
| Material | Hot dipped galvanised steel |
| Body colour | Zinc |
| Reflective band | White, blue, green or red - or no band |
| Fixing | Sub-surface (root fixed) |
Frequently asked questions
What is the difference between sub-surface and surface fix?
What is the difference between sub-surface and surface fix?
This version is root fixed - the bottom 400mm of the post is set into the ground in concrete, leaving 800mm above ground. The surface fix version bolts to existing concrete instead and is listed separately.
How deep do the bollards need to be set?
How deep do the bollards need to be set?
400mm. The overall post is 1200mm, so once the root section is concreted in you are left with 800mm standing above ground.
Which reflective band colours can I choose?
Which reflective band colours can I choose?
White, blue, green or red, or a plain bollard with no band. Most sites match the band to the colour of the charging point so the pair read as one installation.
Will they rust outdoors?
Will they rust outdoors?
The posts are hot dipped galvanised steel, so the surface is coated in zinc and suited to permanent outdoor use.
How heavy is each bollard?
How heavy is each bollard?
8kg, so one person can carry and position a post while the concrete is prepared.
What is the lead time?
What is the lead time?
These bollards are supplied on a 10-15 working day lead time. If you need a specific date for an installation, get in touch before ordering and we will confirm.
Can I get a different body colour?
Can I get a different body colour?
The standard post is zinc coloured from the galvanising. If you need a painted finish, we also sell a powder coated version of these EV charging point bollards.
