Street Solutions UK | SKU:
158041
Through Bolt Anchors 12mm x 120mm
£2.49
Ex. VAT
£2.99
Inc. VAT
Why buy from us
- Pay in 30 days with a Trade Account. No fees.
- Trade and bulk pricing available on request
- UK stock, dispatched fast
Through Bolt Anchors 12mm x 120mm is backordered and will ship as soon as it is back in stock.
Ships in
1 – 2 working days
Quote in 3 hours
No account needed
- Made in the UK
- Pay in 30 days with Klarna. No fee. Learn more
- Next Day Delivery Available
Through Bolt Anchors 12mm x 120mm
Regular price
£2.99
Unit price
Unavailable
Through Bolt Anchors 12mm x 120mm is backordered and will ship as soon as it is back in stock.
Why it works
A secure fixing for concrete and masonry
Straightforward fitting
Tightening the nut expands the sleeve against the drilled hole for a secure fixing.
Load-bearing hold
The expanding sleeve grips solid concrete and masonry for a secure fixing point.
Complete fixing supplied
Comes with a washer and hex nut ready to fit, no separate parts to source.
Corrosion-resistant finish
The zinc-plated steel bolt is suited to outdoor fixing work.
Overview
Through Bolt Anchors 12mm x 120mm - Overview

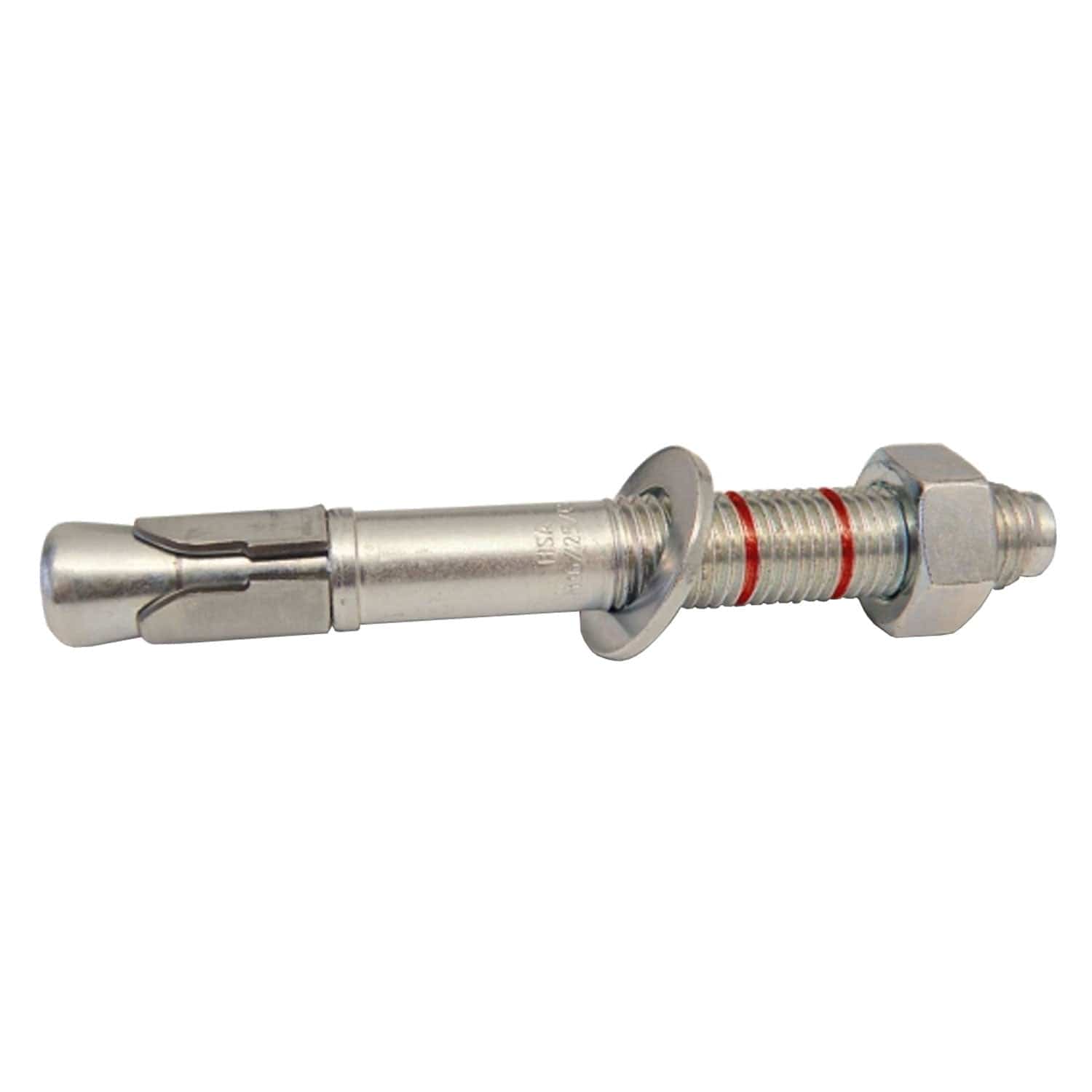

This is a 12mm x 120mm through bolt anchor for fixing into solid concrete and masonry. It suits traffic management and street furniture installers who need a secure, load-bearing fixing for barriers, bollards and signposts.
12mm
Bolt diameter
120mm
Bolt length
0.3kg
Weight
| Dimensions | |
|---|---|
| Diameter | 12mm |
| Length | 120mm |
| Weight | 0.3kg |
| Details | |
|---|---|
| Finish | Zinc-plated steel |
| Fixing surface | Concrete and solid masonry |
| Supplied with | Washer and hex nut |
| Anchor type | Expanding sleeve |
Frequently asked questions
What surfaces is this anchor suitable for?
What surfaces is this anchor suitable for?
It's designed for solid concrete and masonry. For tarmac or asphalt fixings, a different anchor type is needed - see our tarmac and universal fixing bolts instead.
What size drill bit do I need?
What size drill bit do I need?
Drill to match the 12mm sleeve diameter, then set the anchor to the full 120mm length before tightening the nut.
What's included with each anchor?
What's included with each anchor?
Each through bolt anchor comes complete with a washer and hex nut, ready to fit.
How does the anchor grip the hole?
How does the anchor grip the hole?
It's an expanding sleeve anchor - as the nut is tightened, the sleeve at the tip expands outward against the sides of the drilled hole to create the fixing.
What tool do I need to tighten it?
What tool do I need to tighten it?
A standard spanner or socket sized to the hex nut, the same as any bolted fixing.
How much does each anchor weigh?
How much does each anchor weigh?
0.3kg per bolt.
Can I reuse the anchor if I need to remove the fixing?
Can I reuse the anchor if I need to remove the fixing?
Once the sleeve has expanded into the hole it's intended as a permanent fixing rather than one to remove and refit.
