Mexco · SKU: 137056

Mexco GPX10-8 GP Concrete 8mm Diamond Blade

Mexco GPX10-8 general purpose concrete diamond blade. 8mm sintered segments, EN 13236 standard. Four sizes, 115mm to 300mm, wet or dry cutting.

£4.99 each, ex VAT

£5.99 inc VAT

Ships in 1 to 3 working days

Diameter

Bore Size

Buy more, pay less Per unit, ex VAT. Applied automatically.

Ships in 1 to 3 working days

Formal quote back in 3 hours. No account needed.

Quote in 3 hours No account needed

Made in the UK
Next Day Delivery Available

Pay in 30 days with a Trade Account. No fees.
UK stock. Stock and lead time are shown above.
Seen it cheaper? We beat any genuine quote. 0161 706 0479

General purpose cutting, four sizes covered

Manufactured to EN 13236

Meets the EN 13236 standard for diamond cutting tools, marked on the blade and packaging.

High diamond concentration

A high diamond concentration in the X10-grade segments gives efficient, consistent cutting on everyday site materials.

8mm segmented rim

The 8mm segmented rim is sintered for durability and cutting stability.

Wet or dry cutting

Sintered segment construction works with wet or dry cutting methods.

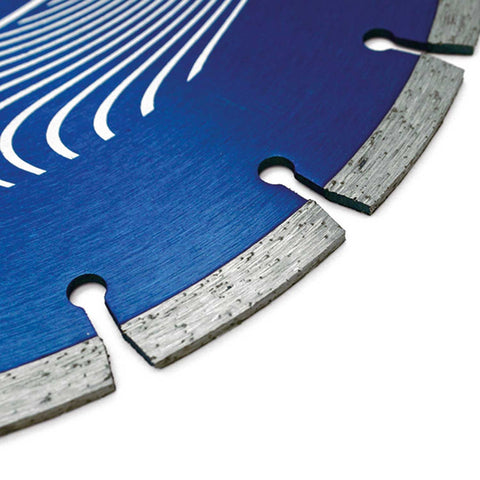

Narrow keyhole gullet

The gullet design supports airflow and debris clearance while cutting.

Overview

Mexco GPX10-8 GP Concrete Diamond Blade - Overview

The Mexco GPX10-8 GP Concrete Diamond Blade is a cost-effective general purpose blade for cutting non-abrasive building materials on site. Sintered X10-grade segments give a high diamond concentration for efficient cutting, and the 8mm segmented rim with narrow keyhole gullets keeps airflow and cutting stability consistent whether you are working wet or dry. Available in four sizes from 115mm to 300mm diameter.

8mm

Segment height

4sizes

Diameters available (115-300mm)

X10grade

Diamond segment grade

Dimensions

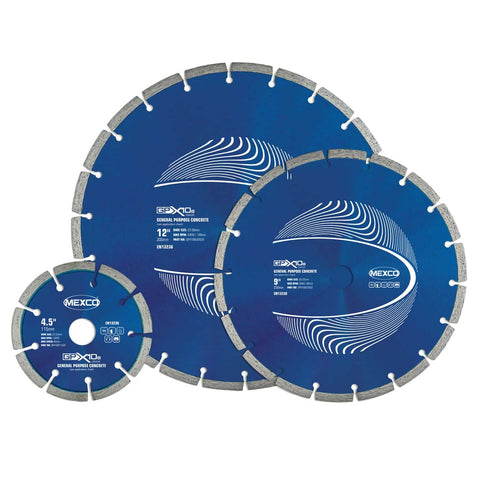

Sizes	115mm, 125mm, 230mm and 300mm diameter
Bore	22.23mm (115mm, 125mm, 230mm) / 20.00mm (300mm)
Segment height	8mm

Details
Brand	Mexco
Grade	X10
Segment attachment	Sintered
Segment type	Segmented
Gullet type	Narrow keyhole
Wet/dry	Wet and dry
Recommended tools	Angle grinder, bench saw, disc cutter
Standard	EN 13236
Undercutting protection	No
Ventilation	No

Frequently asked questions

What's the difference between the GPX10-8 and other Mexco GPX10 blades?

The GPX10-8 has an 8mm segment height, shallower than the 10mm GPX10 grade, while keeping the same X10 sintered segment construction. It's available in four sizes: 115mm, 125mm, 230mm and 300mm.

What sizes and bores does it come in?

Four sizes: 115mm, 125mm and 230mm diameter with a 22.23mm bore, and 300mm diameter with a 20.00mm bore.

Can I use this blade on brick as well as concrete?

Yes, but with reduced blade life. It's built for non-abrasive materials like reinforced concrete, limestone, kerbs and paviours - facing brick and hard sandstone will cut, but expect faster wear and possible glazing.

Does it have undercutting protection or ventilation slots?

No. This is a straightforward general purpose blade without undercutting protection or ventilation - those features sit on Mexco's specialist ranges.

What tools does it fit?

Angle grinders, bench saws and disc cutters.

Is it rated for wet and dry cutting?

Yes, the sintered segments are suitable for both wet and dry cutting.

What standard is the blade made to?

EN 13236, the European standard for diamond cutting tools, marked on the blade and its packaging.
