Procity · SKU:
401324

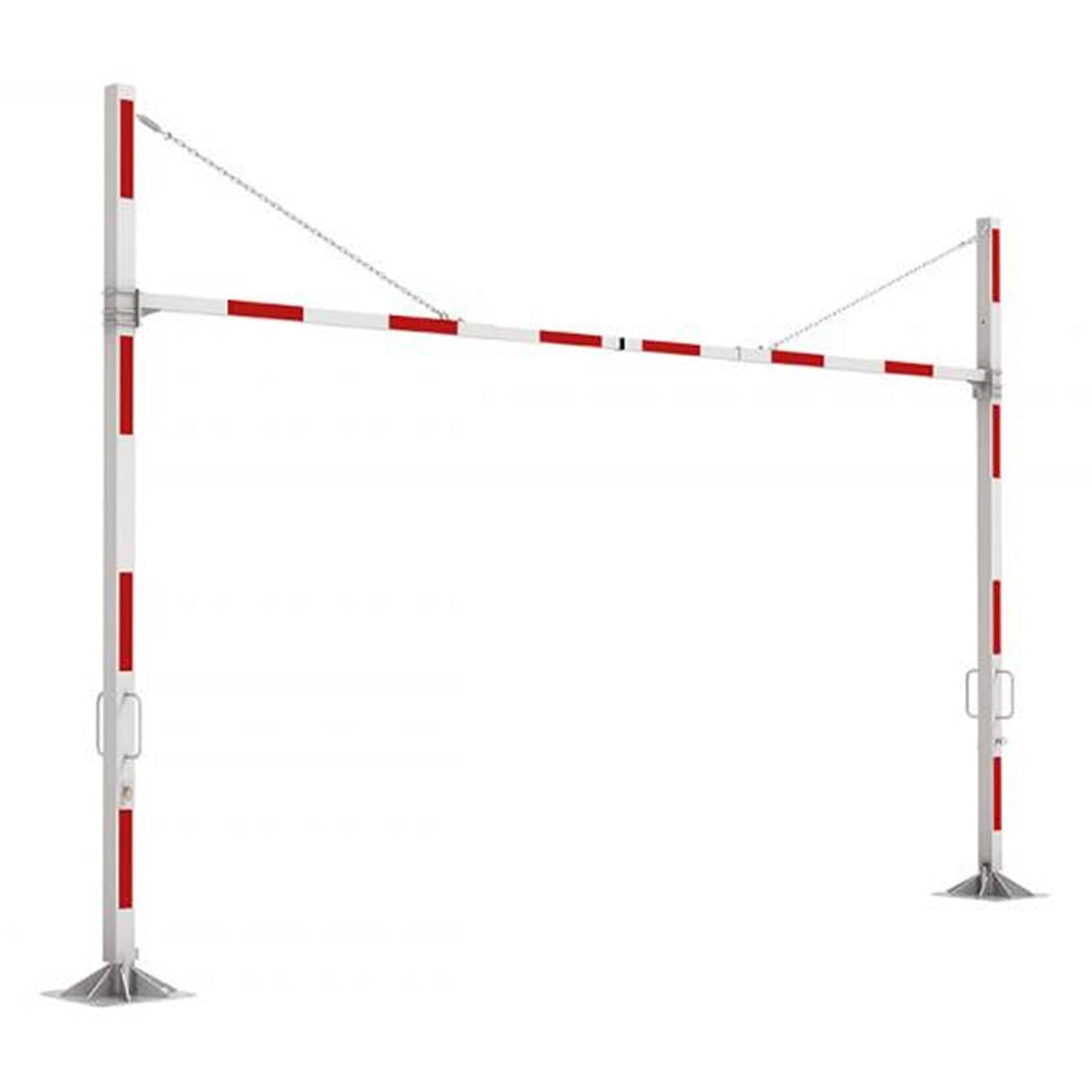

Universal Swivel Height Restrictor
Galvanised steel swivel barrier for car park and yard entrances. Pivots 90 degrees clear for oversized vehicles. Padlock included as standard.
£2,279.99
each, ex VAT
£2,735.99
inc VAT
Ships in 10 to 20 working days
Universal Swivel Height Restrictor - from 5 to 7 metres / from 1.9 to 2.5 metre is backordered and will ship as soon as it is back in stock.
Buy more, pay less
Per unit, ex VAT. Applied automatically.
Ships in
10 to 20 working days
Formal quote back in 3 hours. No account needed.
Quote in 3 hours
No account needed
- Made in the UK
- Next Day Delivery Available
- Pay in 30 days with a Trade Account. No fees.
- UK stock. Stock and lead time are shown above.
- Seen it cheaper? We beat any genuine quote. 0161 706 0479
You may also like
See all height restriction barriers ›Other height restriction barriers in the range
Economy Swivel Height RestrictorHeight Restriction Barriers
£705.83 ex VAT
£846.99 inc VAT
Half-Width Swivel Height RestrictorHeight Restriction Barriers
£1,266.66 ex VAT
£1,519.99 inc VAT
GS6 Telescopic Poles & Bunting PackHeight Restriction Barriers
£199.99 ex VAT
£239.99 inc VAT
You may be looking for
Universal Swivel Height Restrictor
Regular priceFrom
£2,735.99
Unit price
Unavailable
Universal Swivel Height Restrictor - from 5 to 7 metres / from 1.9 to 2.5 metre is backordered and will ship as soon as it is back in stock.
Why it works
Why choose the Universal Swivel Height Restrictor
Swings clear for oversized vehicles
The arm pivots 90 degrees on its post, so lorries and other large vehicles can pass, then locks back across the opening.
Two ways to lock
Pin lock with the included padlock, or a factory-fitted 11mm triangle-key lock for site staff only.
Visible in low light
Red reflective panels on a white lacquered finish keep the barrier visible to approaching drivers.
Built for outdoor use
Galvanised steel construction resists rust through years of exposure.
Overview
Universal Swivel Height Restrictor - Overview
The Universal Swivel Height Restrictor is a galvanised steel barrier that pivots out of the way for oversized vehicles, then locks back across the opening to control car park and yard access.
5-12m
Width coverage
1.9-4m
Height coverage
365kg
Maximum weight
120x120mm
Tube diameter
| Dimensions | |
|---|---|
| Width span - 5 to 7 metres | 5000-7000mm |
| Width span - 7 to 12 metres | 7000-12000mm |
| Height options (5-7m span) | 1900-2500mm / 2500-3500mm / 3500-4000mm |
| Height options (7-12m span) | 1900-2500mm / 2500-3500mm / 3500-3700mm |
| Weight (5-7m span) | 178kg / 265kg / 288kg |
| Weight (7-12m span) | 220kg / 306kg / 365kg |
| Tube diameter | 120x120mm and 80x80mm |
| Details | |
|---|---|
| Body colour | White |
| Reflective panel colour | Red |
| Material | Galvanised steel, white lacquered finish |
| Locking | Pin lock with padlock (included) or 11mm triangle-key lock (factory-fitted) |
| Levelling | Locknuts under base plates |
| Installation | Base plates with mounting brackets |
Frequently asked questions
What width and height combinations are available?
What width and height combinations are available?
The barrier comes in two width spans, 5 to 7 metres and 7 to 12 metres, each with three height options between 1.9m and 4m. Check the variant options on this page for the full list.
Can the barrier be moved out of the way for larger vehicles?
Can the barrier be moved out of the way for larger vehicles?
Yes. The arm pivots 90 degrees on its post, so it can be swung clear when an oversized vehicle needs to pass, then locked back across the opening.
How is the barrier locked?
How is the barrier locked?
A pin lock with padlock is included as standard. A factory-fitted 11mm triangle-key lock is also available for sites where only staff should be able to open it.
Does the barrier need a pre-installation kit?
Does the barrier need a pre-installation kit?
Yes. A pre-installation kit is sold separately and lets the base plates and groundwork be prepared on site before the barrier itself arrives.
Can the reflective panel colour be changed?
Can the reflective panel colour be changed?
The standard finish uses red reflective panels on white lacquered steel. Contact us if you need a different reflective colour.
Is signage included?
Is signage included?
No. A signage kit, showing the applicable height restriction, is available to purchase separately.
What is the barrier made from?
What is the barrier made from?
Galvanised steel with a white lacquered finish, so it resists rust and holds up to years of outdoor use.
