Melba Swintex · SKU: 098096

Right Ramp - Wheelchair Friendly Kerb Access Ramp

Name: Right Ramp - Wheelchair Friendly Kerb Access Ramp
Brand: Melba Swintex
SKU: 098096
Price: 59.99 GBP
Availability: InStock

Wheelchair kerb access ramp for kerbs 75-125mm, 350kg load rating, tactile tapping rails. By Melba Swintex.

£49.99 each, ex VAT

£59.99 inc VAT

Ships in 3 to 5 working days

Formal quote back in 3 hours. No account needed.

Quote in 3 hours No account needed

Made in the UK
Next Day Delivery Available

Pay in 30 days with a Trade Account. No fees.
UK stock. Stock and lead time are shown above.
Seen it cheaper? We beat any genuine quote. 0161 706 0479

Built for safe, tactile kerb access

Meets safety guidance

Designed to National Grid T/SP/E/42 and HAUC Advice Note 2018/01, with slip resistance to BS 7976: Part 2.

Tactile tapping rails

Low-rise rails on each edge give a tactile cue underfoot for visually impaired users.

Bolt down or free-stand

Two fixing holes let you bolt the ramp to the ground, or leave it free-standing for temporary use.

Grips in all weather

A textured surface pattern keeps the ramp stable for wheelchair and pushchair users in wet conditions.

Durable HDPE build

Moulded from high density polyethylene with recycled PVC feet, built to take a 350kg load without shattering.

Developed with UEA

Designed in conjunction with the University of East Anglia specifically for wheelchair and pushchair access.

Overview

Right Ramp - Overview

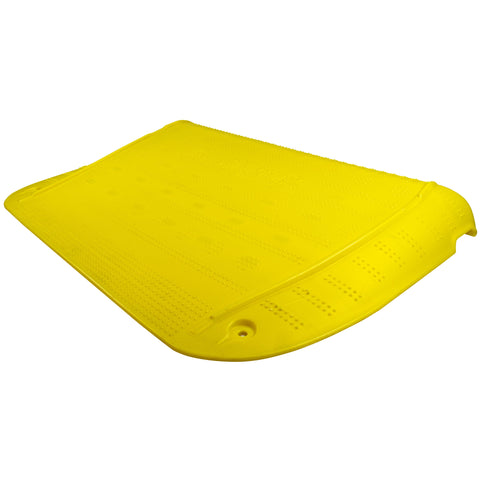

The Right Ramp is a wheelchair and pushchair kerb access ramp from Melba Swintex, developed in conjunction with the University of East Anglia. It suits kerbs from 75mm to 125mm high, lies flush to the ground with no flexing, and is built to take a 350kg load.

123mm

Ramp height

1119mm

Ramp width

350kg

Max load

13kg

Weight per ramp

Dimensions
Height	123mm
Width	1119mm
Depth	766mm
Weight	13kg

Details
Material	High density polyethylene body with recycled PVC feet
Colour	Yellow
Max load	350kg
Suits kerb height	75mm to 125mm
Fixing	2 fixing holes, can be bolted to the ground
Compliance	Designed to National Grid T/SP/E/42 and HAUC Advice Note 2018/01, slip resistance to BS 7976: Part 2
Per pallet	25 (single pallet)
Manufacturer	Melba Swintex

Frequently asked questions

What range of kerb heights does the Right Ramp suit?

The Right Ramp is designed for kerbs between 75mm and 125mm high, laying completely flat against the ground and the kerb face with no flexing.

Is the ramp suitable for visually impaired pedestrians, not just wheelchair users?

Yes. Low-rise tapping rails run along each edge, giving a tactile cue underfoot so visually impaired users can locate the ramp boundary by feel.

How much weight can the Right Ramp take?

The ramp is rated to a 350kg load, comfortably covering wheelchairs, mobility scooters and pushchairs.

Does it need to be fixed down, or can it be used loose?

It has two fixing holes so it can be bolted to the ground for permanent use, or left free-standing where a temporary or movable ramp is needed.

What is the ramp made from?

A high density polyethylene body with recycled PVC feet, giving a smooth, blow-moulded finish with no sharp edges and high impact resistance.

Who was the Right Ramp designed for?

It was developed in conjunction with the University of East Anglia specifically to address the practical shortfalls of existing wheelchair kerb ramps.

How heavy is the ramp to move between sites?

Each ramp weighs 13kg and has a built-in carry handle, so it is a straightforward single-person lift between jobs.
