Street Solutions UK | SKU:
020102

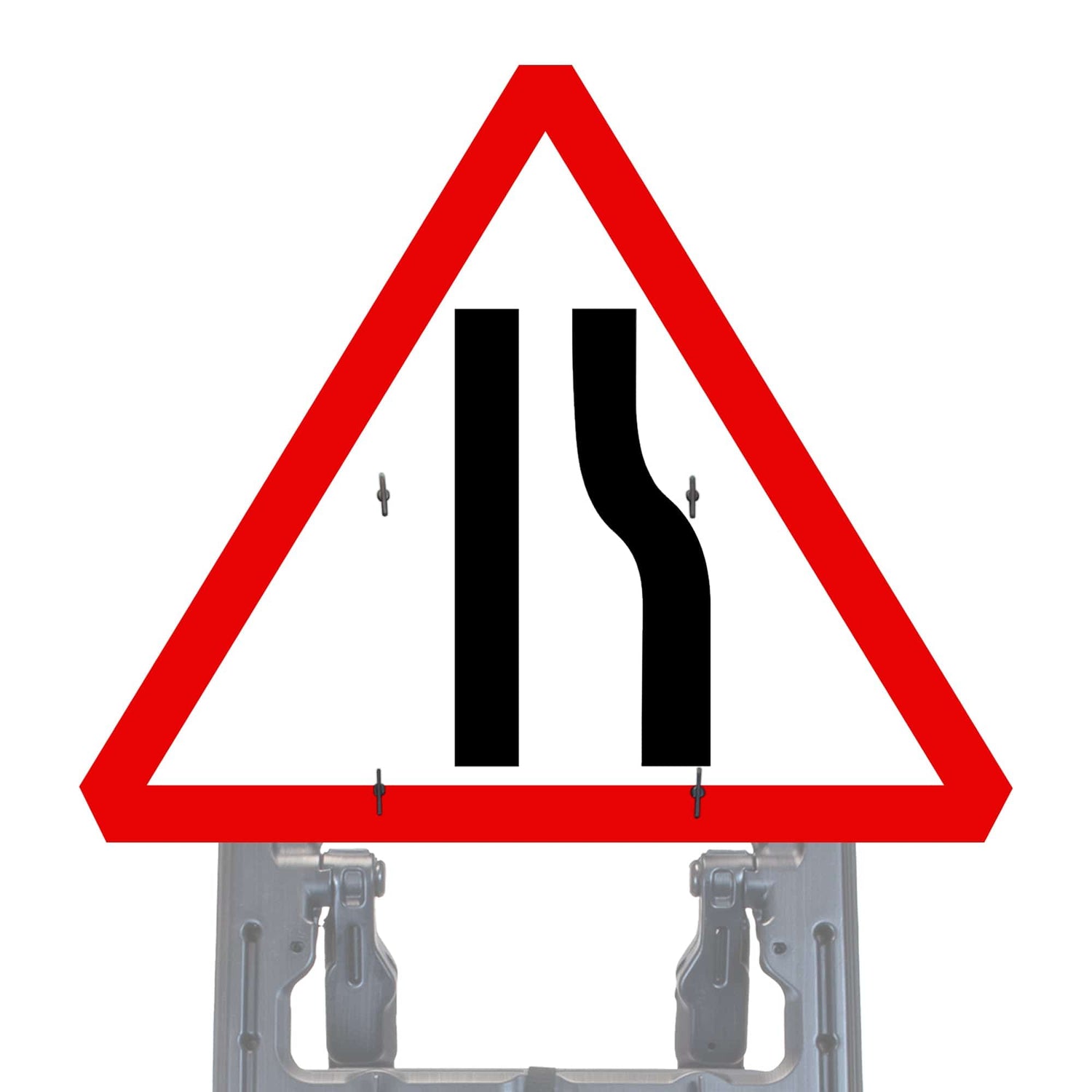

Road Narrows Right Quick-Fit Sign Face Diagram 517R (Face Only)
£13.33
Ex. VAT
£15.99
Inc. VAT
Why buy from us
- Pay in 30 days with a Trade Account. No fees.
- Trade and bulk pricing available on request
- UK stock, dispatched fast
Road Narrows Right Quick-Fit Sign Face Diagram 517R (Face Only) is backordered and will ship as soon as it is back in stock.
Ships in
3 – 5 working days
Quote in 3 hours
No account needed
- Made in the UK
- Pay in 30 days with Klarna. No fee. Learn more
- Next Day Delivery Available
Road Narrows Right Quick-Fit Sign Face Diagram 517R (Face Only)
Regular price
£15.99
Unit price
Unavailable
Road Narrows Right Quick-Fit Sign Face Diagram 517R (Face Only) is backordered and will ship as soon as it is back in stock.
Why it works
Built for fast, compliant set-outs
Road-legal for temporary works
Meets Chapter 8 of the Traffic Signs Manual and The Red Book.
Class 1 reflectivity
RA1 engineering-grade sheeting stays visible in poor light on lower-speed roads.
Quick to mount
300mm hole centres drop straight onto mini quick-fit frame toggles.
No scrap value
The plastic board is non-metallic, so it is a poor target for metal theft.
UK manufactured
Printed and finished in the UK, with custom materials and hole centres on request.
Overview
Road Narrows Right Quick-Fit Sign Face - Overview
The Road Narrows Right face (Diagram 517R) is a face-only warning board that slots into a quick-fit frame for temporary traffic management. It is printed on RA1 Class 1 engineering-grade reflective over a 3mm plastic backing, conforms to Chapter 8 and The Red Book, and is made in the UK. Frames are sold separately.
750mm
Sign height
3mm
Backing thickness
300mm
Hole centres
RA1class
Reflective grade
| Dimensions | |
|---|---|
| Height | 750mm |
| Depth | 3mm |
| Hole centres | 300mm |
| Details | |
|---|---|
| Diagram reference | 517R (Road Narrows Right) |
| Backing | 3mm plastic board |
| Reflective grade | RA1 Class 1 (engineering grade) |
| Compliance | Chapter 8, The Red Book |
| Material | Non-metallic, no scrap value |
| Origin | Made in the UK |
Frequently asked questions
When should I use the 517R Road Narrows Right sign?
When should I use the 517R Road Narrows Right sign?
Use it to warn drivers that the carriageway ahead narrows from the right - typically where street works or an obstruction take out part of the right-hand lane. It is often run with the Single File Traffic plate (Diagram 518) below it, and Chapter 8 also requires Men at Work signing on the same works. Always follow current government guidance on placement.
Do I need to buy a frame as well?
Do I need to buy a frame as well?
Yes - this listing is the sign face only. It fits quick-fit frames on 300mm hole centres, such as our mini quick-fit frames, which are sold separately.
Is RA1 reflectivity enough for my site?
Is RA1 reflectivity enough for my site?
RA1 (Class 1) engineering-grade reflective is designed for lower-speed roads - urban streets, residential areas and local roads below the national speed limit. For higher-speed roads a higher reflectivity grade may be required; contact us if you are unsure.
What is the sign made from?
What is the sign made from?
The printed reflective face is mounted on a 3mm plastic backing board. It is non-metallic, so it has no scrap value and is less likely to be stolen than a metal sign.
How big is the face and will it fit my existing frames?
How big is the face and will it fit my existing frames?
The face is 750mm high on a 3mm board with 300mm hole centres. Measure the toggle centres on your existing frames before ordering - some faces can be drilled with more than one set of holes.
Can you make this sign in other materials or hole centres?
Can you make this sign in other materials or hole centres?
Yes. We supply custom quick-fit faces in GRP, composite, aluminium or plastic, with 300mm, 450mm, 750mm or 900mm hole centres. Email sales@streetsolutionsuk.com with your requirement.
How long does delivery take?
How long does delivery take?
This sign face is made in the UK and is normally dispatched within 3-5 working days.
