Street Solutions UK | SKU:
158026

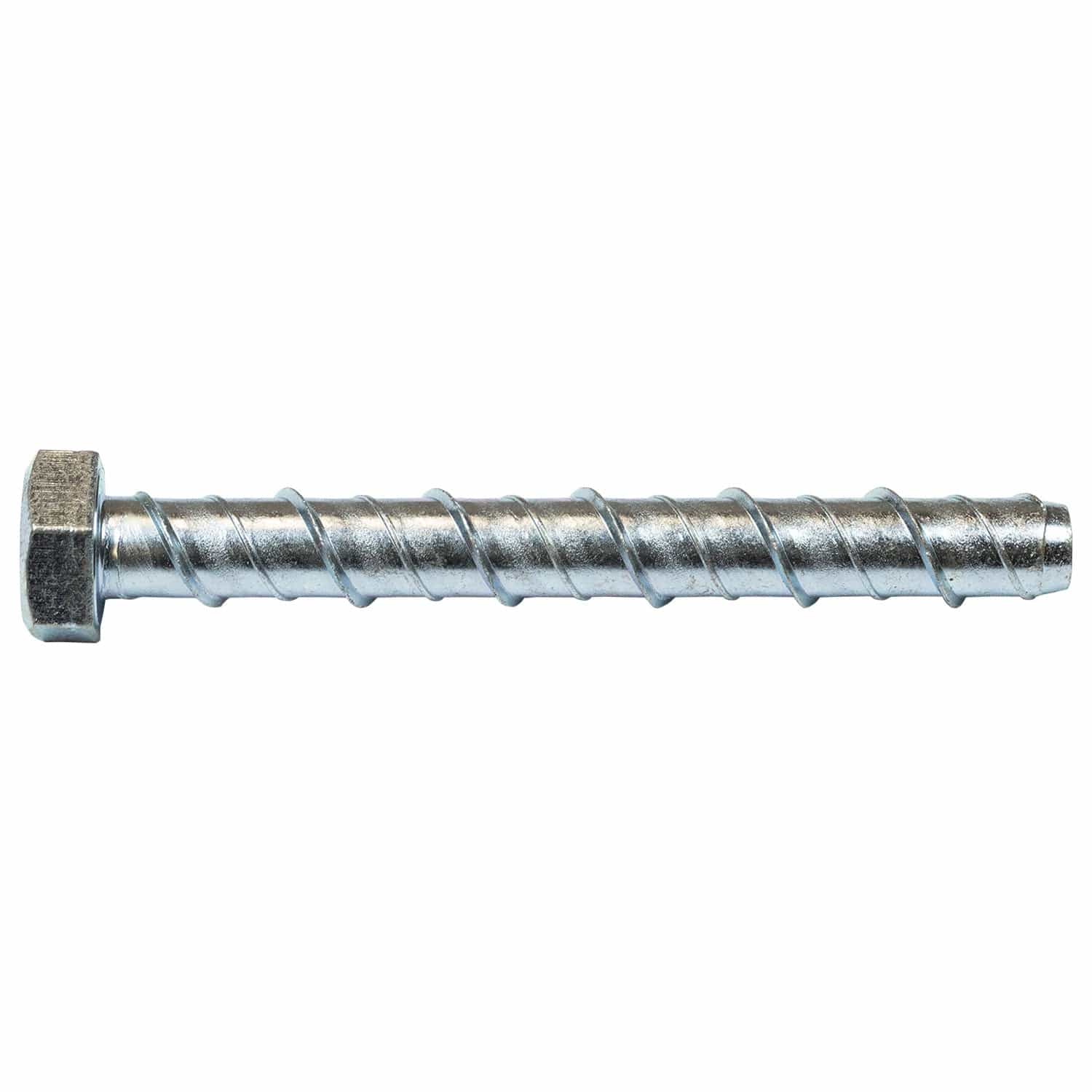

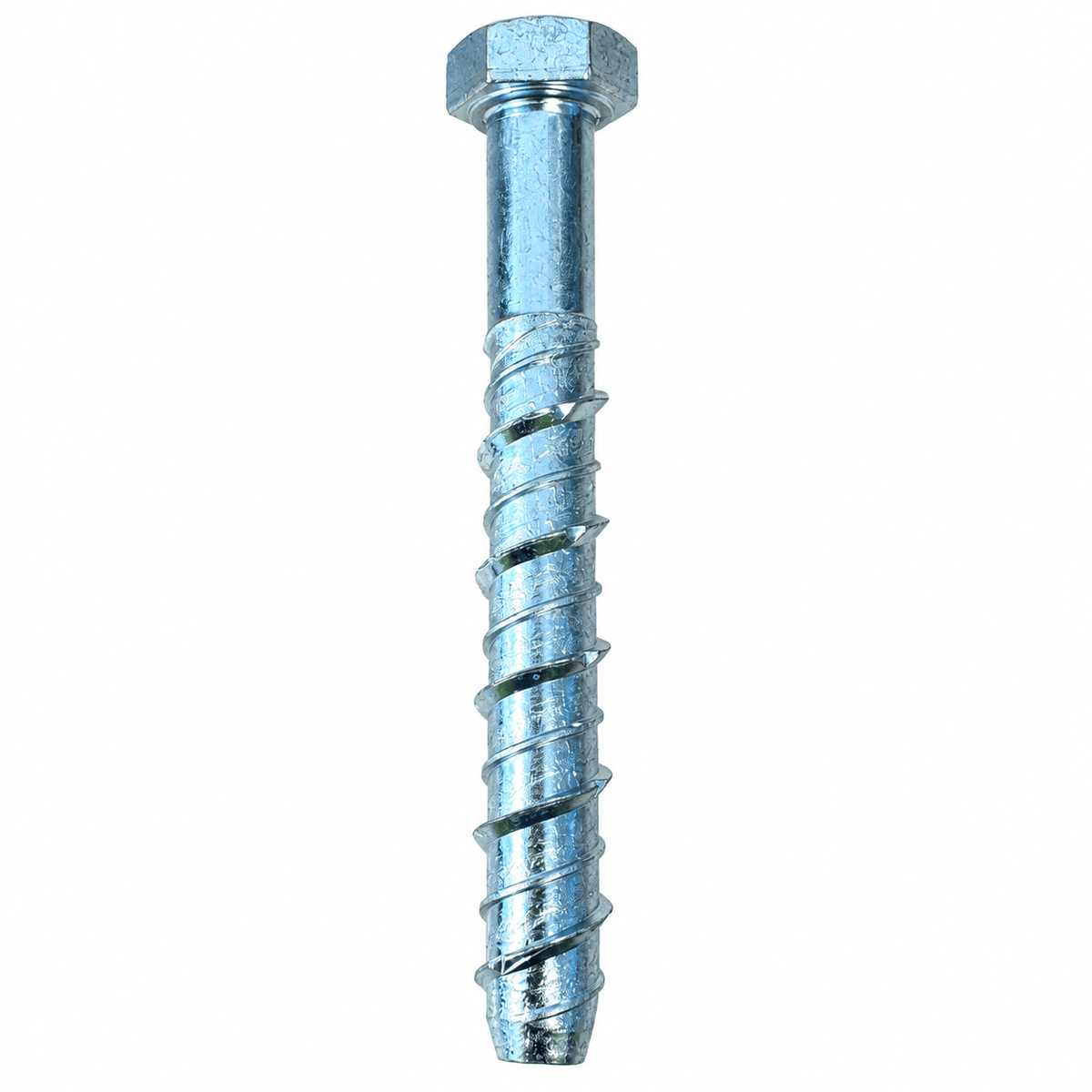

M14/16 x 130 Hexagon Head Zinc Plated Screw Bolt Anchor
£1.24
Ex. VAT
£1.49
Inc. VAT
Why buy from us
- Pay in 30 days with a Trade Account. No fees.
- Trade and bulk pricing available on request
- UK stock, dispatched fast
M14/16 x 130 Hexagon Head Zinc Plated Screw Bolt Anchor - 1 is backordered and will ship as soon as it is back in stock.
Ships in
1 – 2 working days
Quote in 3 hours
No account needed
- Made in the UK
- Pay in 30 days with Klarna. No fee. Learn more
- Next Day Delivery Available
M14/16 x 130 Hexagon Head Zinc Plated Screw Bolt Anchor
Regular priceFrom
£1.49
Unit price
Unavailable
M14/16 x 130 Hexagon Head Zinc Plated Screw Bolt Anchor - 1 is backordered and will ship as soon as it is back in stock.
Why it works
No plugs, no sleeves, just a secure fix
No plastic plug needed
Drill, clear the hole and drive the bolt straight in - no separate plug to fit.
Non-expansion design
The concave thread taps its own path, so it will not stress or crack the surrounding concrete.
High pull-out resistance
The thread profile grips the substrate for a secure, load-bearing fix.
Zinc plated finish
A zinc coating gives corrosion resistance for outdoor and site use.
Adjustable and removable
The bolt can be backed out and repositioned during installation for an accurate fit.
Overview
M14/16 x 130 Hexagon Head Zinc Plated Screw Bolt Anchor - Overview
This M14/16 x 130mm hexagon head screw bolt anchor is a non-expansion masonry fixing for concrete, brick, stone, wood and concrete block. The concave thread taps its own path as it is driven in, giving a secure, adjustable fix without a plastic plug or expansion sleeve. It is commonly used to fix HGV wheel stops, barriers and other site equipment to hard standing.
130mm
Anchor length
70mm
Embedment depth
90Nm
Tightening torque
16mm
Outside diameter
| Dimensions | |
|---|---|
| Drill diameter | 14mm |
| Outside diameter | 16mm |
| Anchor length | 130mm |
| Embedment depth | 70mm |
| Max fixture thickness | 60mm |
| Minimum hole depth | 100mm |
| Details | |
|---|---|
| Material | Zinc plated steel |
| Head type | Hexagon head |
| Thread type | Non-expansion, self-tapping concave thread |
| Tightening torque | 90Nm |
| Hole clearance through fixture | 16mm |
| Suitable materials | Concrete, brick, stone, wood, concrete block |
Frequently asked questions
Do I need a plastic plug or resin with this bolt?
Do I need a plastic plug or resin with this bolt?
No. The concave thread taps its own path as it is driven in, so there is no plug or resin needed - just drill, clear the hole and drive the bolt in.
What hole size and depth do I need?
What hole size and depth do I need?
Drill a 14mm diameter hole to at least 100mm deep, and always over-drill by 20mm beyond the required embedment to clear debris.
What is the embedment depth and maximum fixture thickness?
What is the embedment depth and maximum fixture thickness?
The bolt embeds 70mm into the base material and will clamp fixtures up to 60mm thick, giving a total anchor length of 130mm.
What tightening torque should I use?
What tightening torque should I use?
Tighten to 90Nm for a secure, load-bearing fix.
What materials will this anchor work in?
What materials will this anchor work in?
Concrete, brick, stone, wood and concrete block.
What pack sizes are available?
What pack sizes are available?

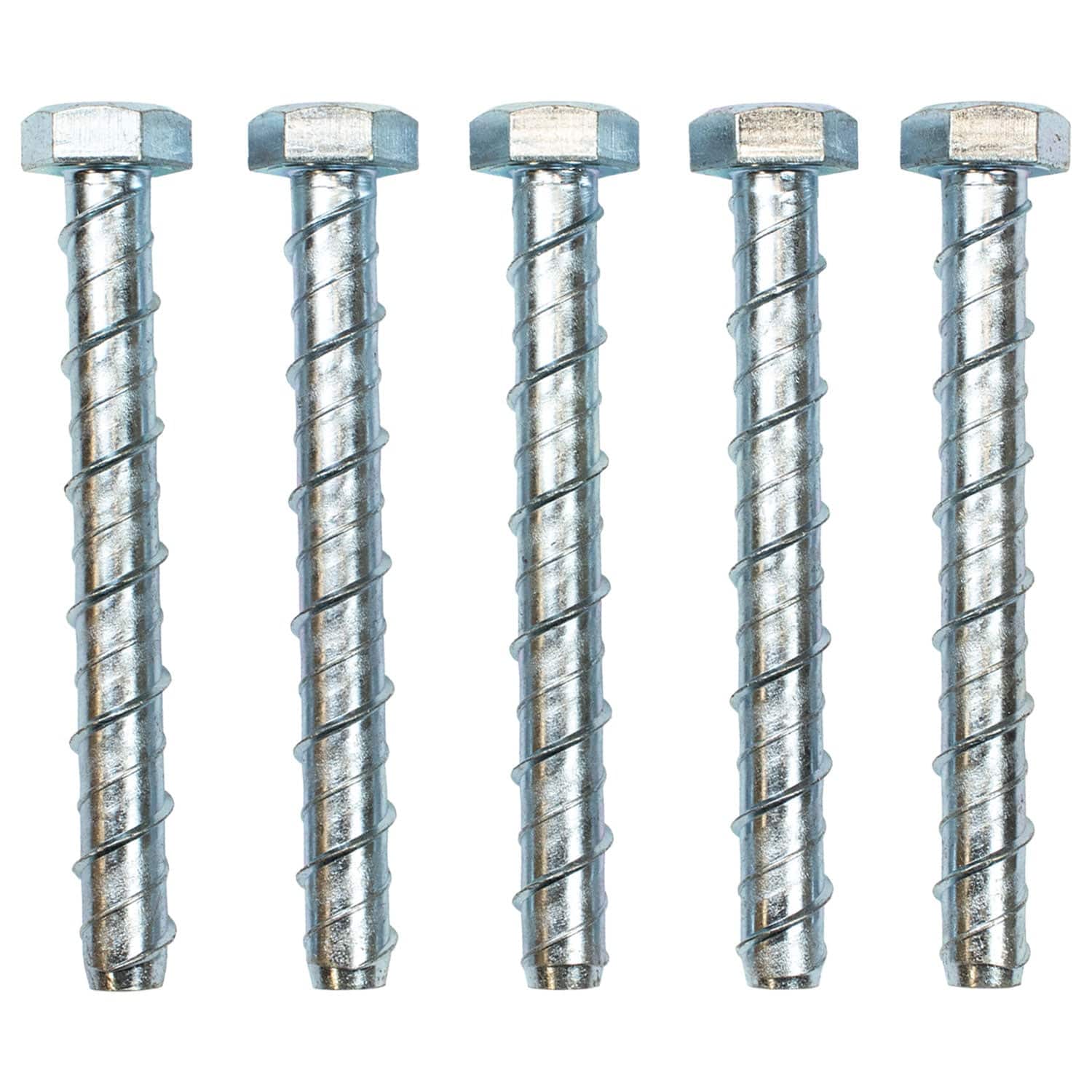

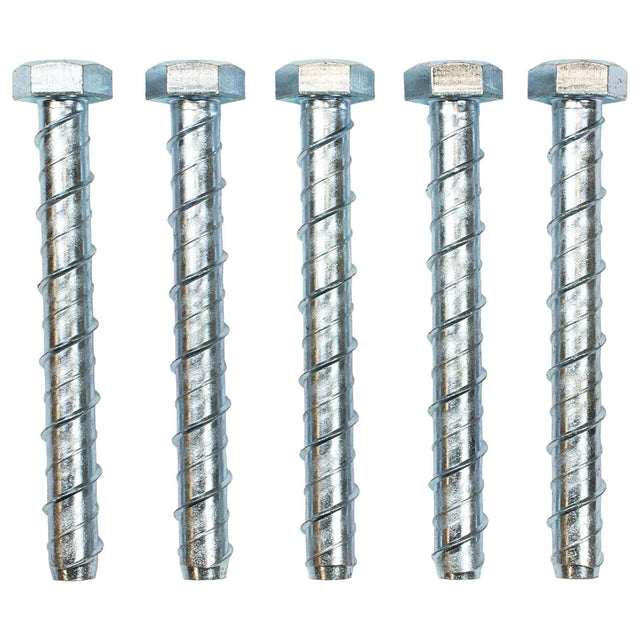

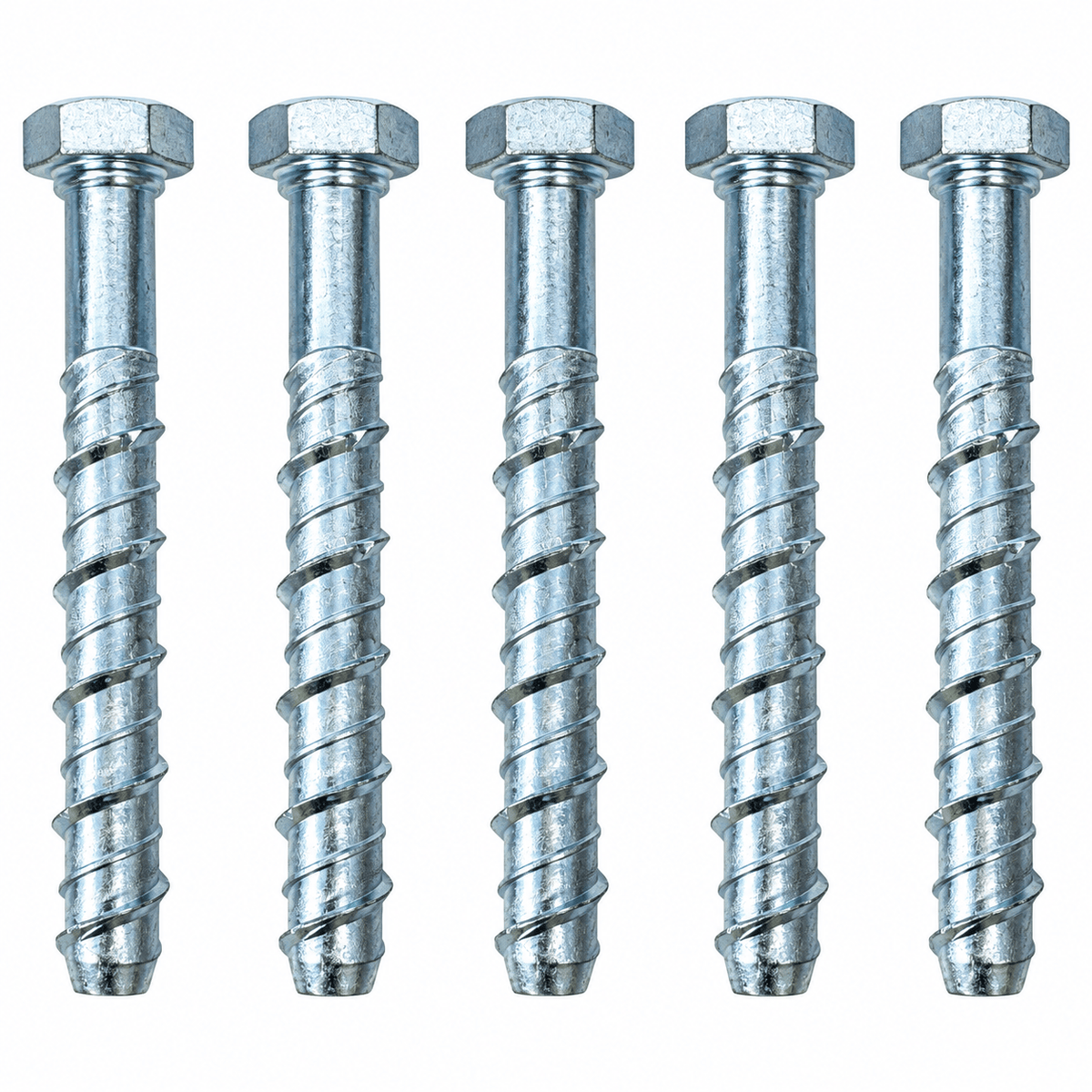

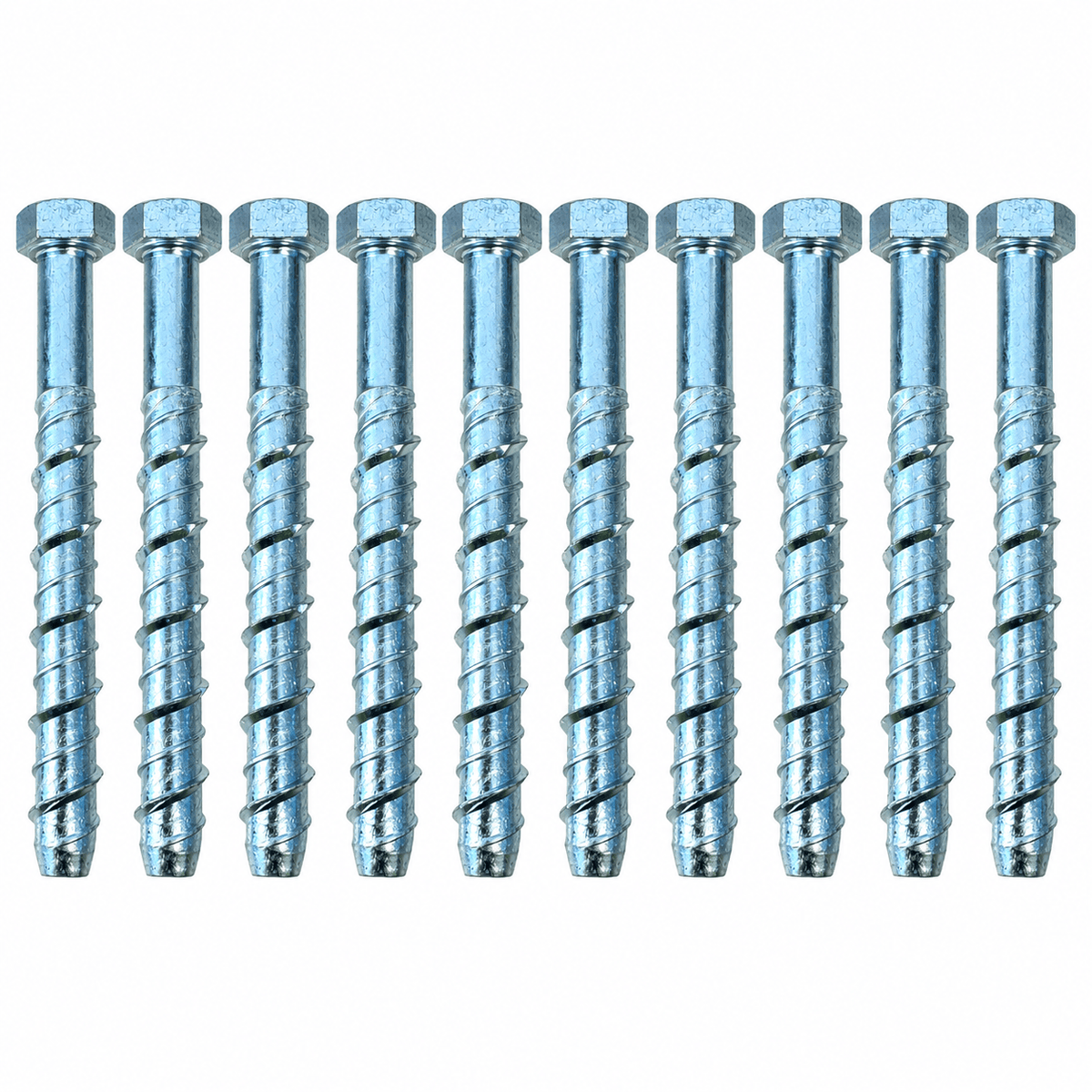

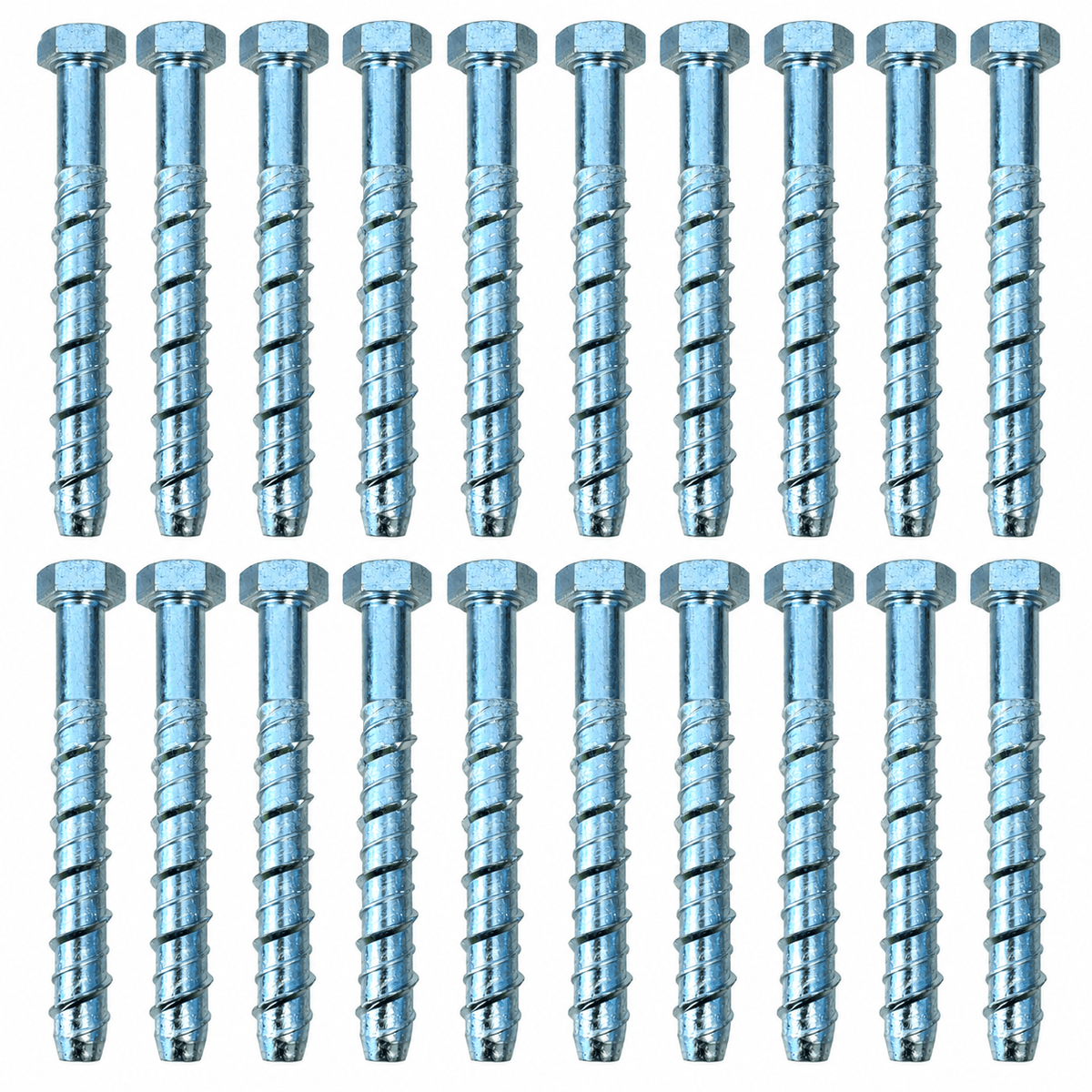

As a single bolt or in packs of 5, 10 or 20.
How quickly will my order arrive?
How quickly will my order arrive?
Dispatch is 1-2 working days from order.
