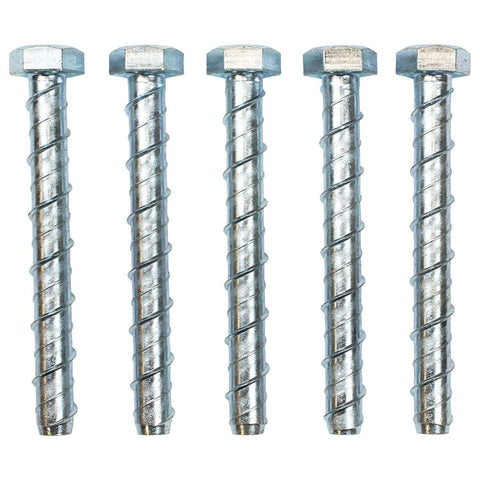

M14/16 x 130 Hexagon Head Bolt Specifications
Dimensions | |
---|---|
Drill Diameter | 14mm |
Outside Diameter | 16mm |
Anchor Length | 130mm |
Embedment Depth | 70mm |
Max Fixture Thickness | 60mm |
Minimum Hole Depth | 100mm |
Tightening Torque | 90Nm |
Material | |
Type | Zinc Plated |
Introducing our innovative M14 x 130mm bolt, revolutionising medium-duty anchoring - No need for plastic plugs – simply drill, remove debris, and wind in for stress-free installation
With a patented concave thread design, it taps its own thread effortlessly, providing exceptional pull-out resistance
This non-expansion anchor adjusts easily for secure and accurate installation, replacing traditional anchors across various materials
Always ensure a 20mm over-drill for optimal performance
The M14 Bolt requires a hole clearance through the fixture of 16mm
