Fairport  ·  SKU: 135001

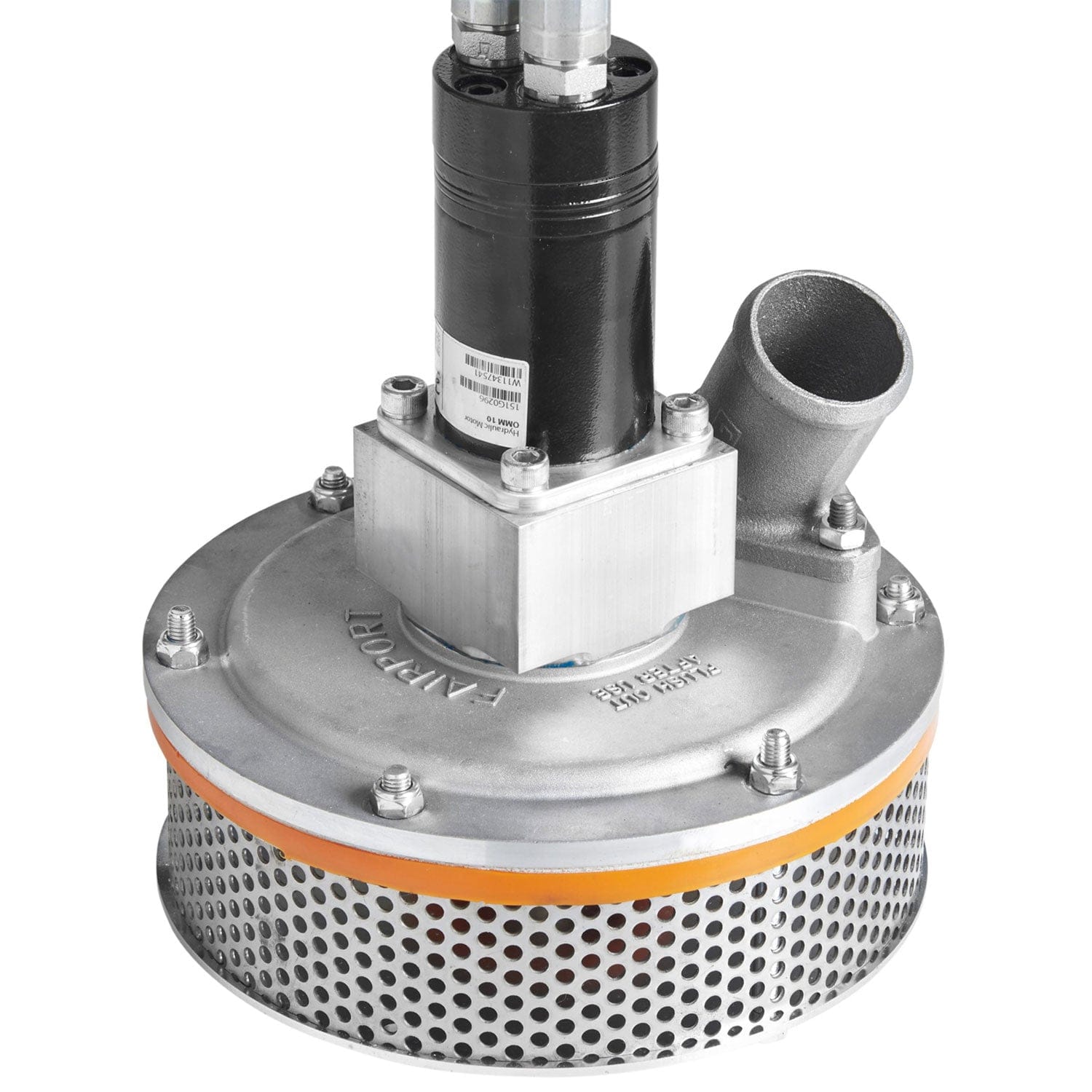

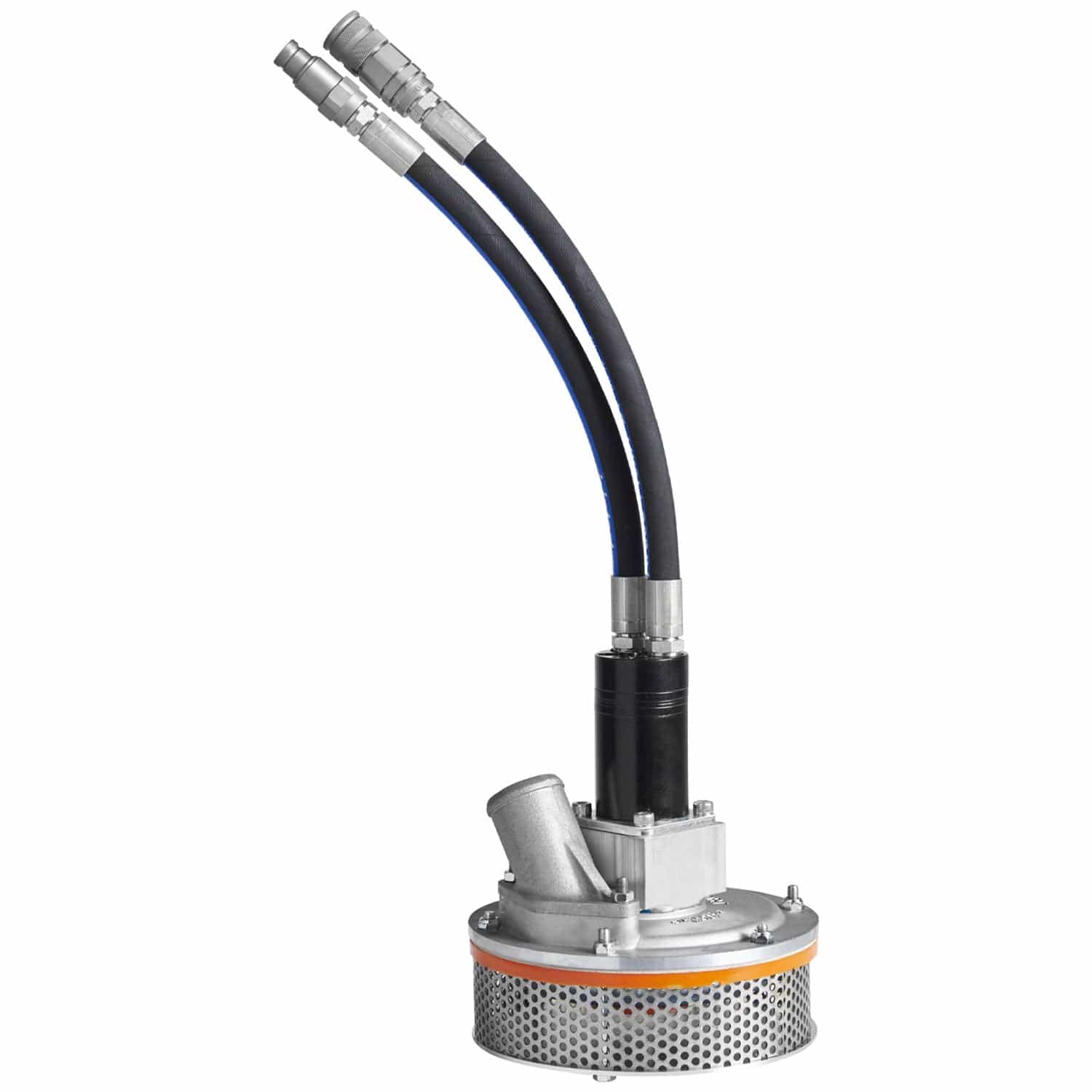

Fairport VH500 Hydraulic Submersible Pump

Hydraulic submersible pump with a 2" outlet, 6m head and 250 l/min output. Runs fully submerged, no priming required. Optional layflat hose 1-10m.

£680.83 each, ex VAT
£816.99 inc VAT
Ships in 3 to 5 working days
Buy more, pay less Per unit, ex VAT. Applied automatically.
Ships in 3 to 5 working days

Formal quote back in 3 hours. No account needed.

Quote in 3 hours No account needed
  • Made in the UK
  • Next Day Delivery Available
How to Pay
  • Pay in 30 days with a Trade Account. No fees.
  • UK stock. Stock and lead time are shown above.
  • Seen it cheaper? We beat any genuine quote. 0161 706 0479
You may also like

Other submersible pumps in the range

See all submersible pumps ›
Tall 1200 Litre Pillar Water Butt with Multiple Outlets - BlackWater Butts
£539.16 ex VAT £646.99 inc VAT
Tall Rectangular 650 Litre Baffled Water/Storage Tank - V3 BlackWater Tanks
£398.33 ex VAT £477.99 inc VAT
Fairport PDU Petrol Drive Unit Honda GX160 with Dynapac Housing for Poker & Pump Drive UnitsConcrete Vibrator Drive Units
£705.83 ex VAT £846.99 inc VAT

You may be looking for

Submersible Pumps Tools & Construction Equipment Water Pumps
Why it works

Why choose the VH500

High-volume transfer

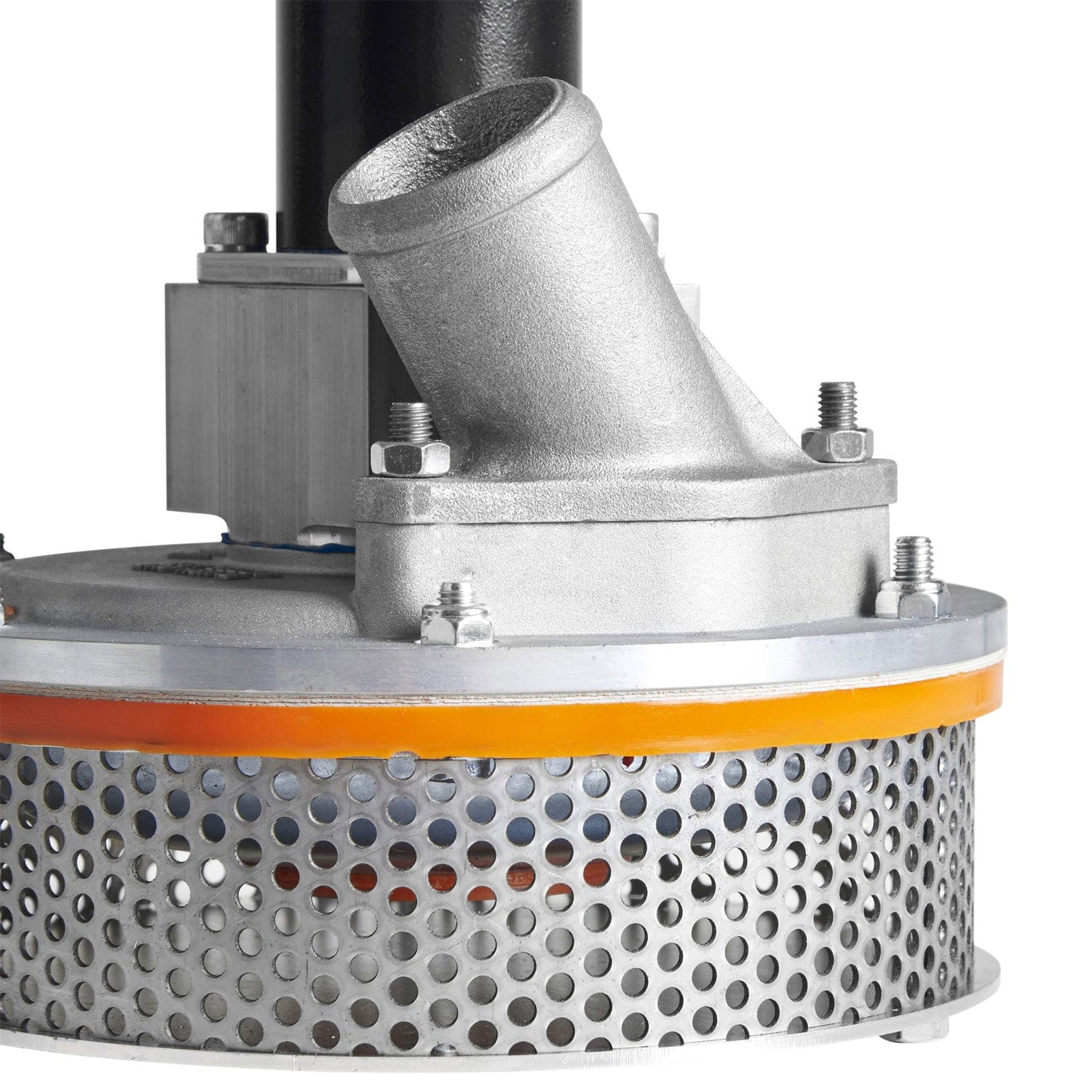

2" outlet moves up to 250 litres a minute against a 6m head, and accepts standard hoses with no adapters.

Quick-release coupling

Flat-faced hydraulic coupling connects and disconnects in seconds, and needs no priming before it starts pumping.

Runs fully submerged, no electrics

Hydraulic drive rather than electric, with a polyurethane-coated housing to resist knocks and abrasion on site.

Rated for unattended running

Can be left running for extended periods once submerged (never run dry), and handles solids up to 5mm in suspension.
Overview

Fairport VH500 Hydraulic Submersible Pump - Overview

The Fairport VH500 is a hydraulically driven submersible pump for shifting large volumes of water fast, without mains power or an engine on board. It runs on a 2" outlet compatible with standard hoses and is built for sites where an electric pump would be impractical or unsafe.
250l/min
Max output
6m
Max head
8kg
Weight
5mm
Max solids handled
Dimensions
Height260mm
Diameter222mm
Head6m
Outlet diameter2"
Weight8kg
Details
Hydraulic oil pressure92 bar
Hydraulic oil flow20 l/min
Max output250 l/min
Drive typeHydraulic (no electrics)
Solids handlingUp to 5mm in suspension
CouplingQuick-release flat-faced hydraulic

Frequently asked questions

Does the VH500 run on electricity?
No - it's a hydraulic pump, powered by a hydraulic power pack or another hydraulic source rather than mains or battery power, so there's no electrical risk when it's fully submerged.

What size hose does it take?
A 2" outlet that accepts standard hoses. You can also order the pump with a 2" layflat hose already fitted, in lengths from 1m up to 10m.

Can it handle dirty or debris-laden water?
Yes, it will pass solids up to 5mm in suspension without clogging, though it isn't designed for heavily silted or debris-filled water beyond that.

How far can it pump water vertically?
Up to a 6 metre head, with a maximum output of 250 litres a minute.

Can I leave it running unattended?
Yes, it's rated to run unattended for extended periods, but it must never be allowed to run dry.

Does it need priming before use?
No, priming isn't required - it starts pumping as soon as it's submerged.

What's the pump's weight and size?
It weighs 8kg and measures 260mm in height by 222mm in diameter, small enough to lower into most sumps and excavations by hand.
