Melba Swintex | SKU:
098096
Right Ramp - Wheelchair Friendly Kerb Access Ramp
£49.99
Ex. VAT
£59.99
Inc. VAT
Why buy from us
- Pay in 30 days with a Trade Account. No fees.
- Trade and bulk pricing available on request
- UK stock, dispatched fast
Right Ramp - Wheelchair Friendly Kerb Access Ramp is backordered and will ship as soon as it is back in stock.
Ships in
3 – 5 working days
Quote in 3 hours
No account needed
- Made in the UK
- Pay in 30 days with Klarna. No fee. Learn more
- Next Day Delivery Available
Right Ramp - Wheelchair Friendly Kerb Access Ramp
Regular price
£59.99
Unit price
Unavailable
Right Ramp - Wheelchair Friendly Kerb Access Ramp is backordered and will ship as soon as it is back in stock.
Why it works
Built for safe, tactile kerb access
Meets safety guidance
Designed to National Grid T/SP/E/42 and HAUC Advice Note 2018/01, with slip resistance to BS 7976: Part 2.

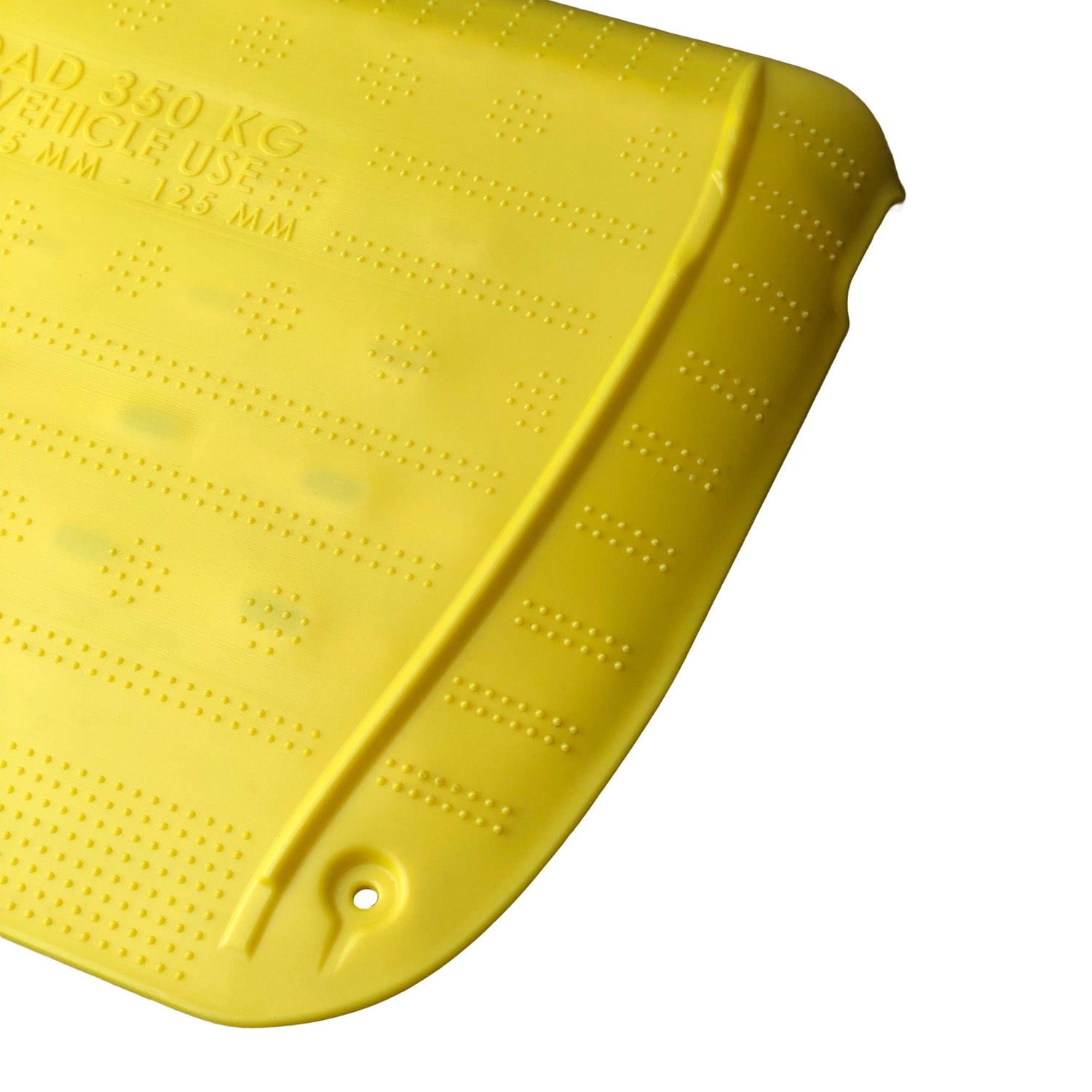

Tactile tapping rails

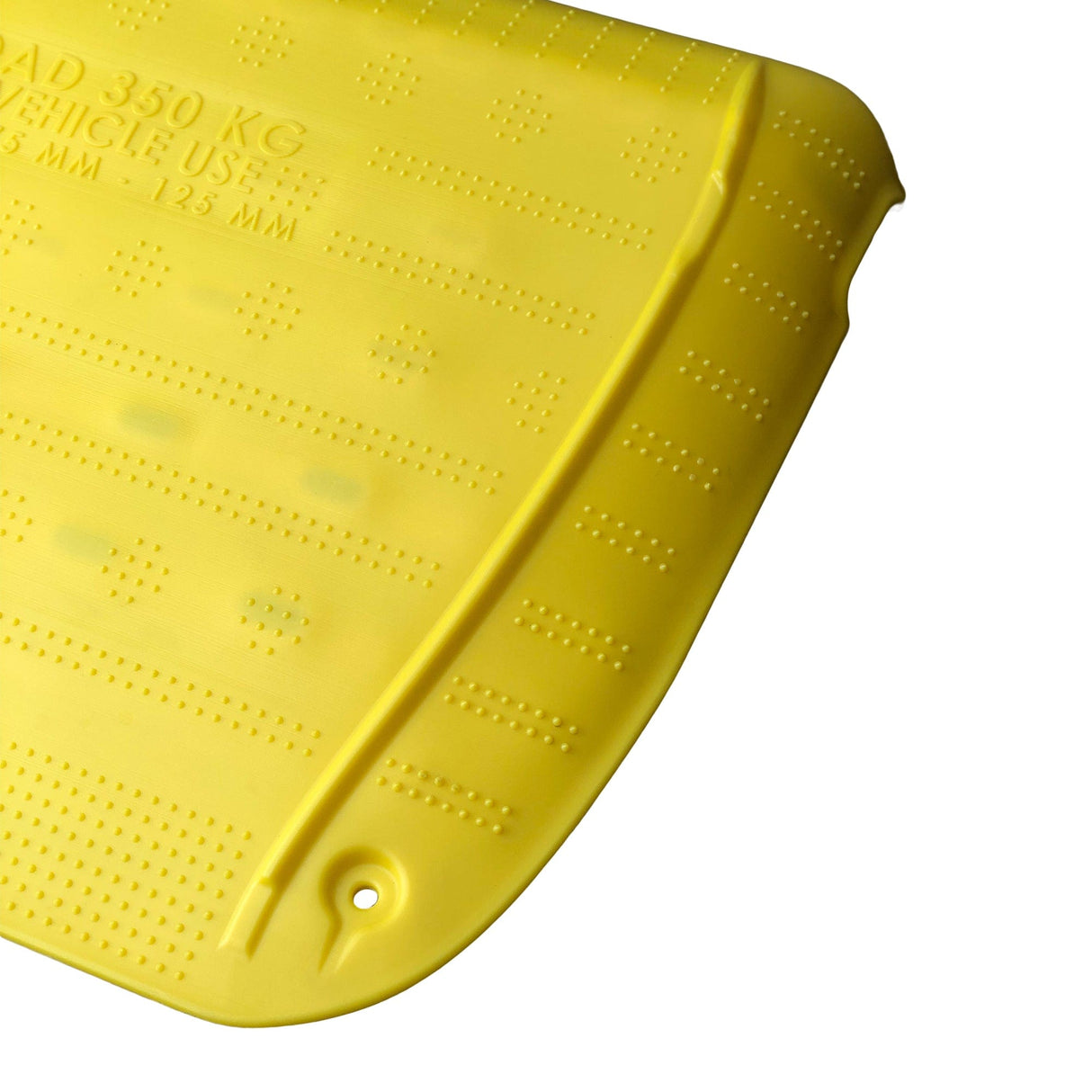

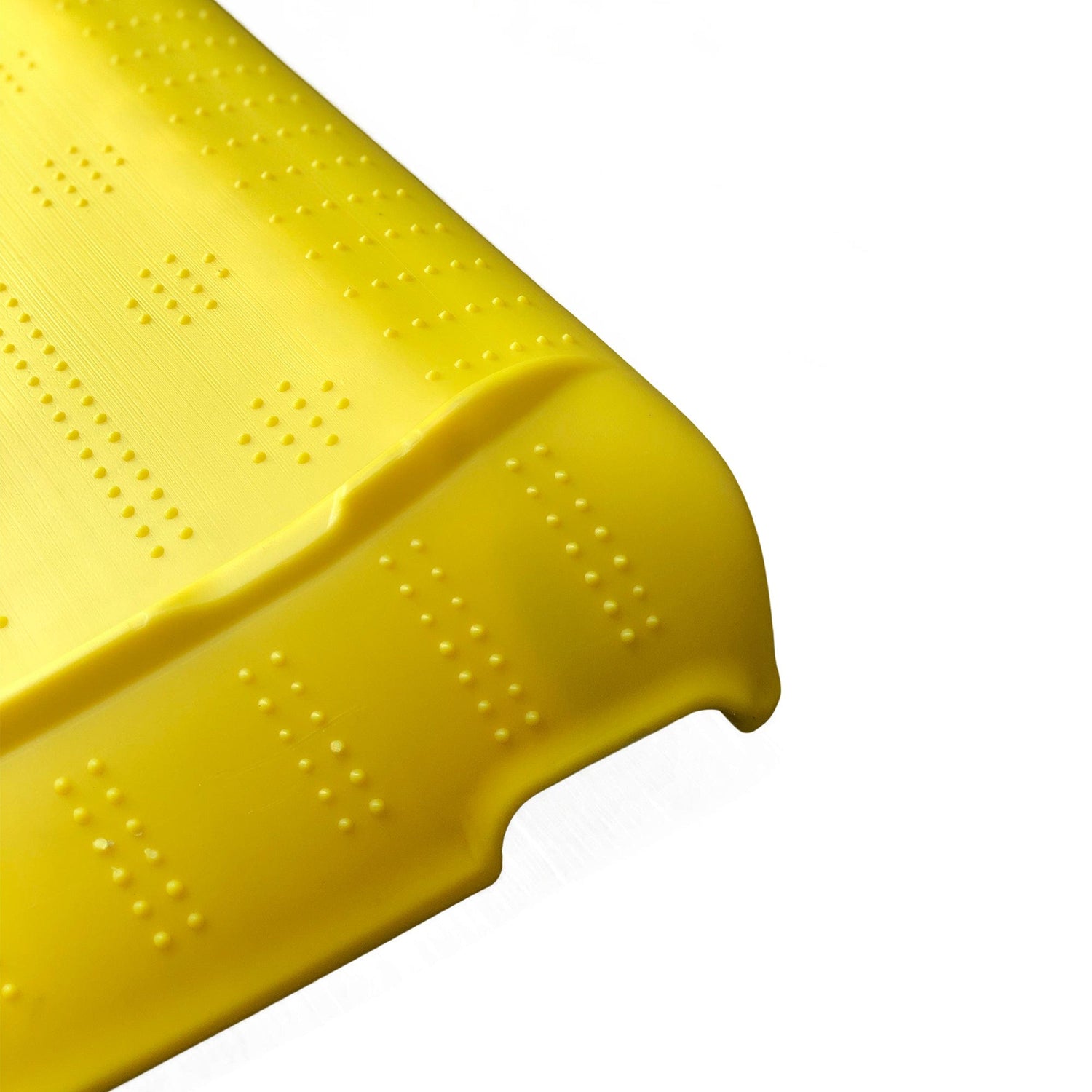

Low-rise rails on each edge give a tactile cue underfoot for visually impaired users.

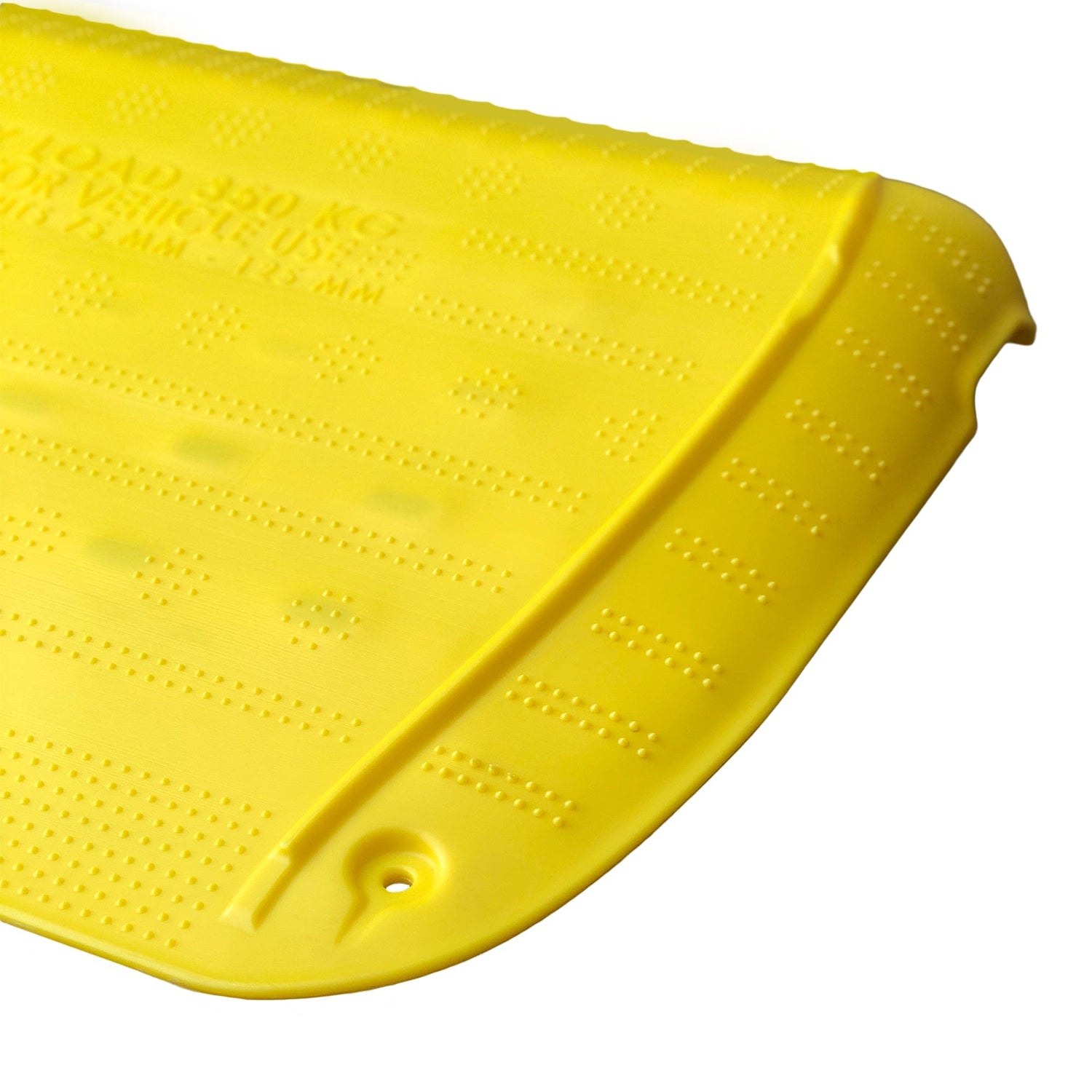

Bolt down or free-stand

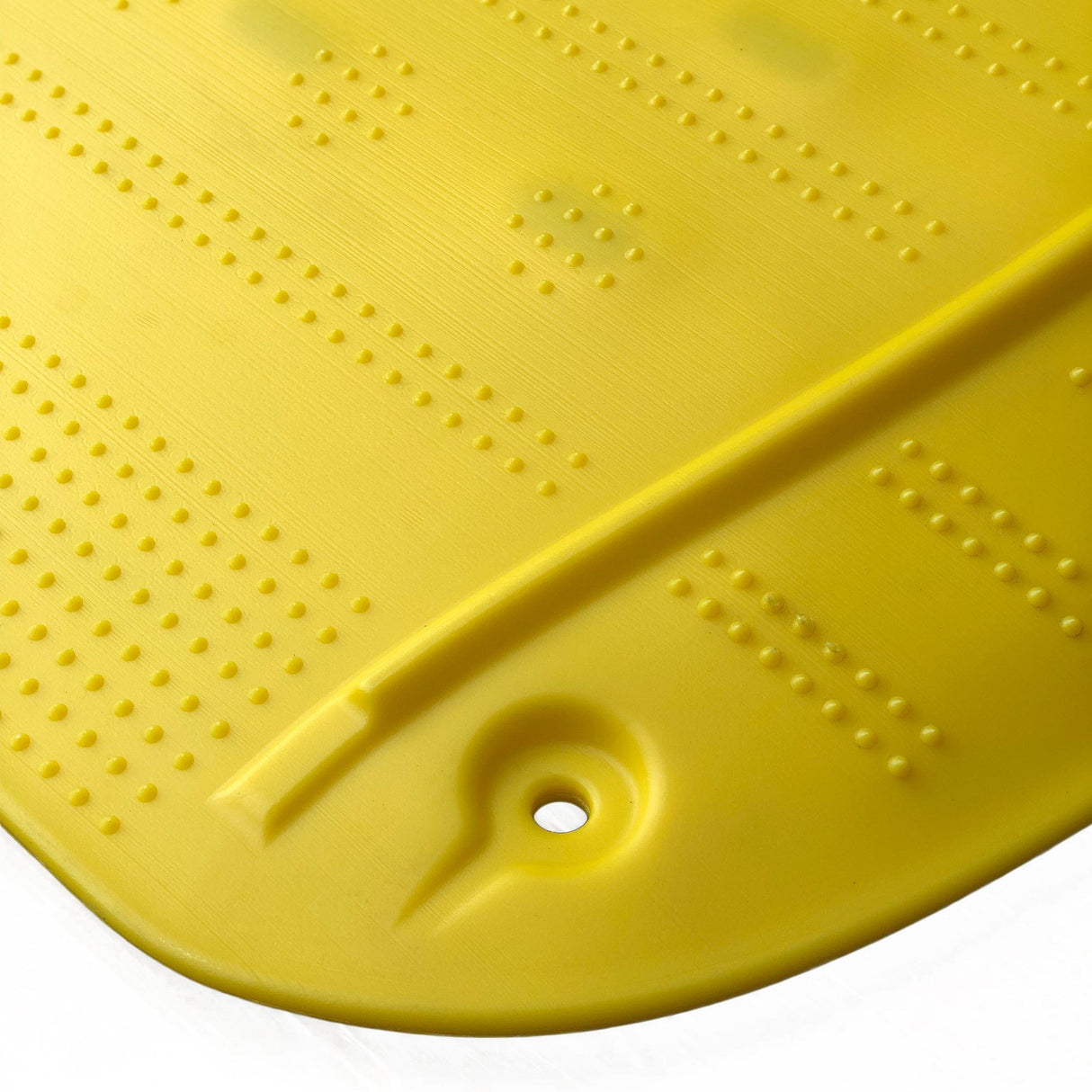

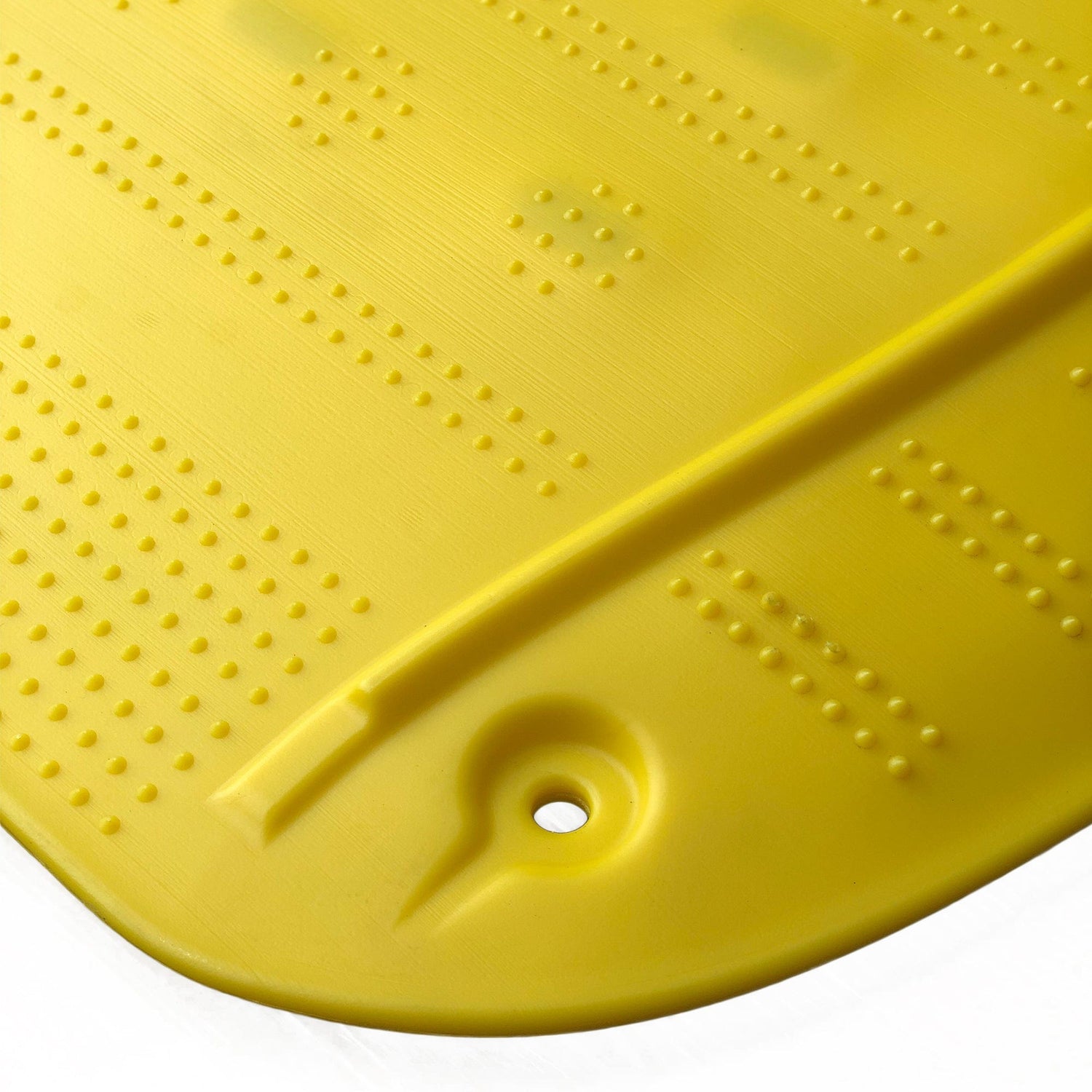

Two fixing holes let you bolt the ramp to the ground, or leave it free-standing for temporary use.
Grips in all weather
A textured surface pattern keeps the ramp stable for wheelchair and pushchair users in wet conditions.
Durable HDPE build

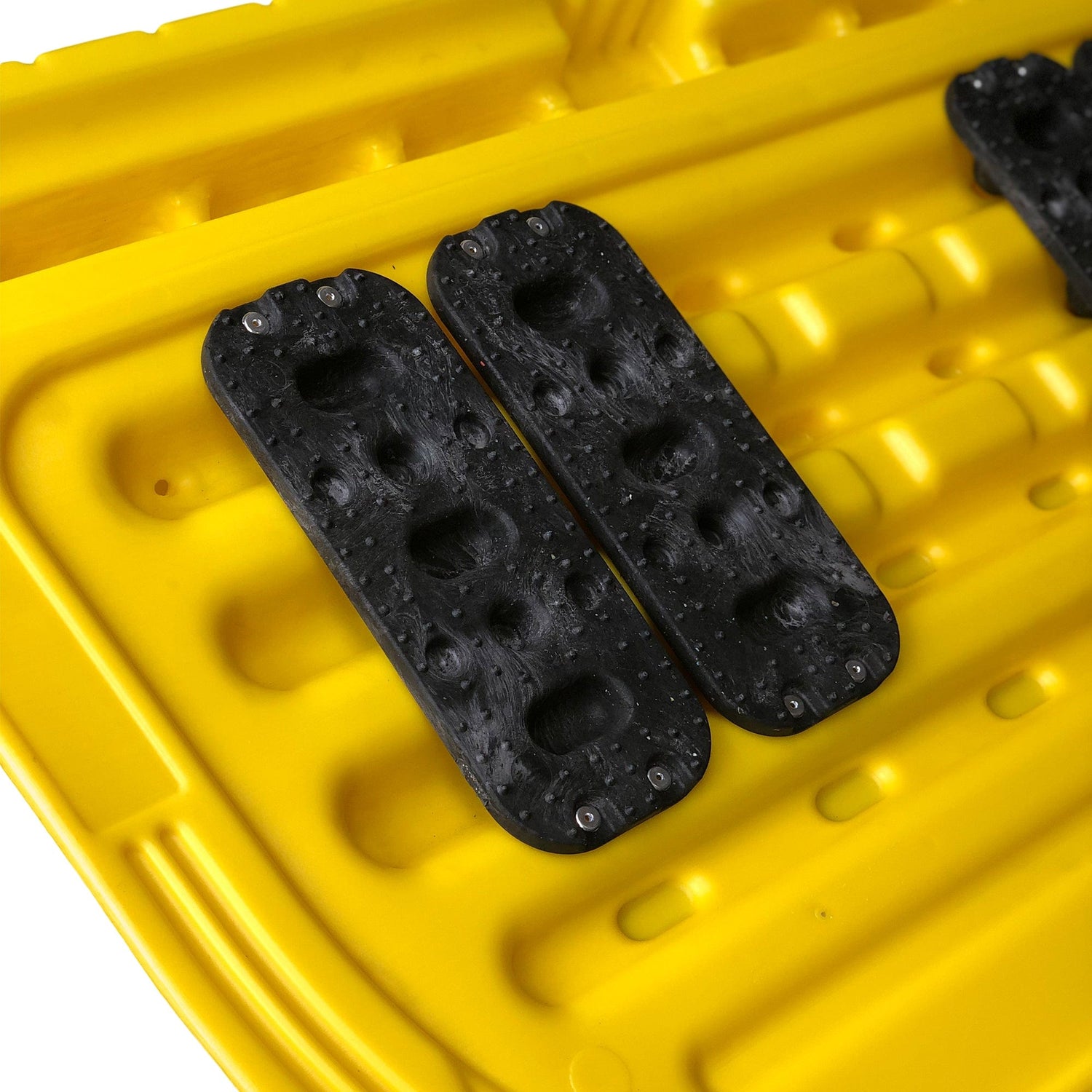

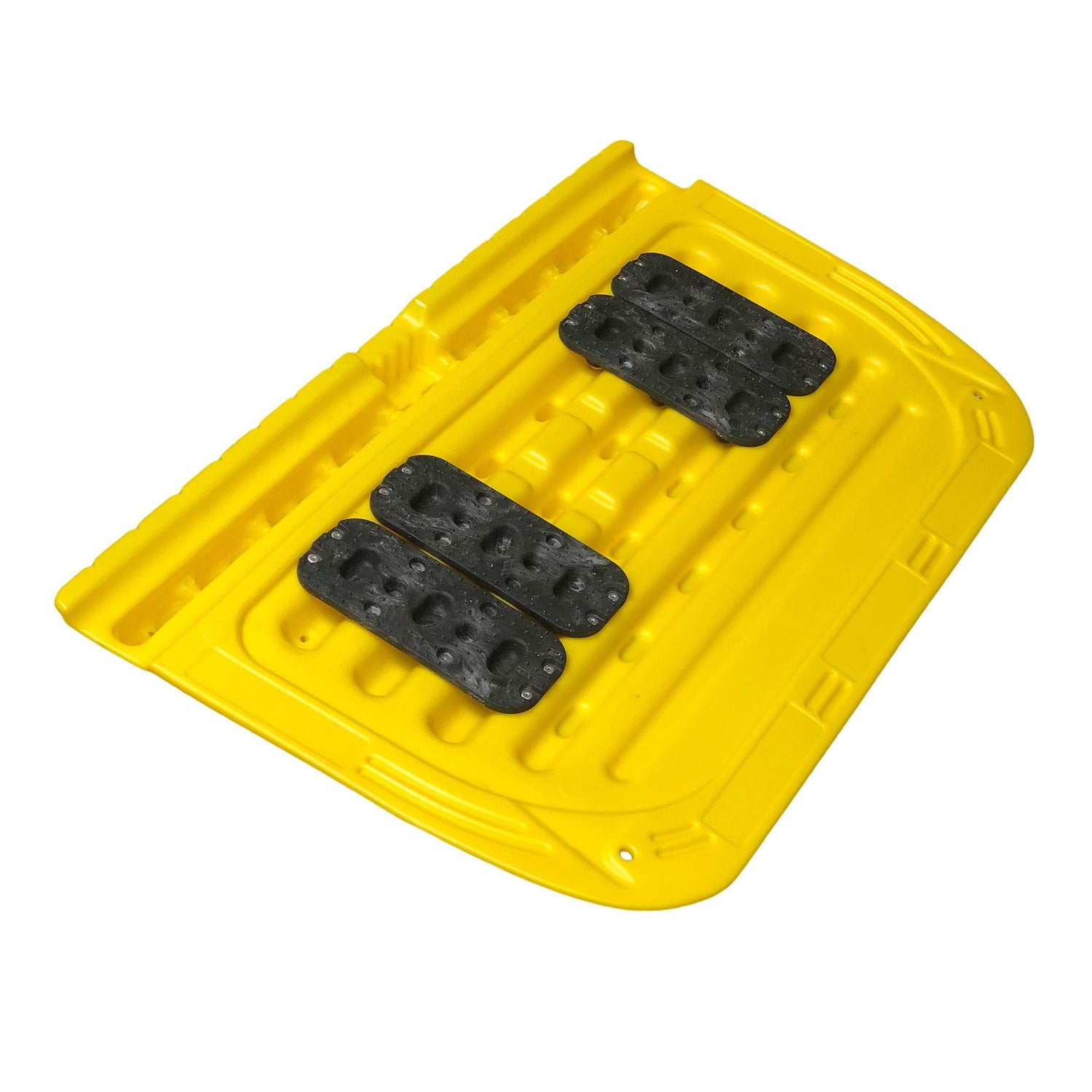

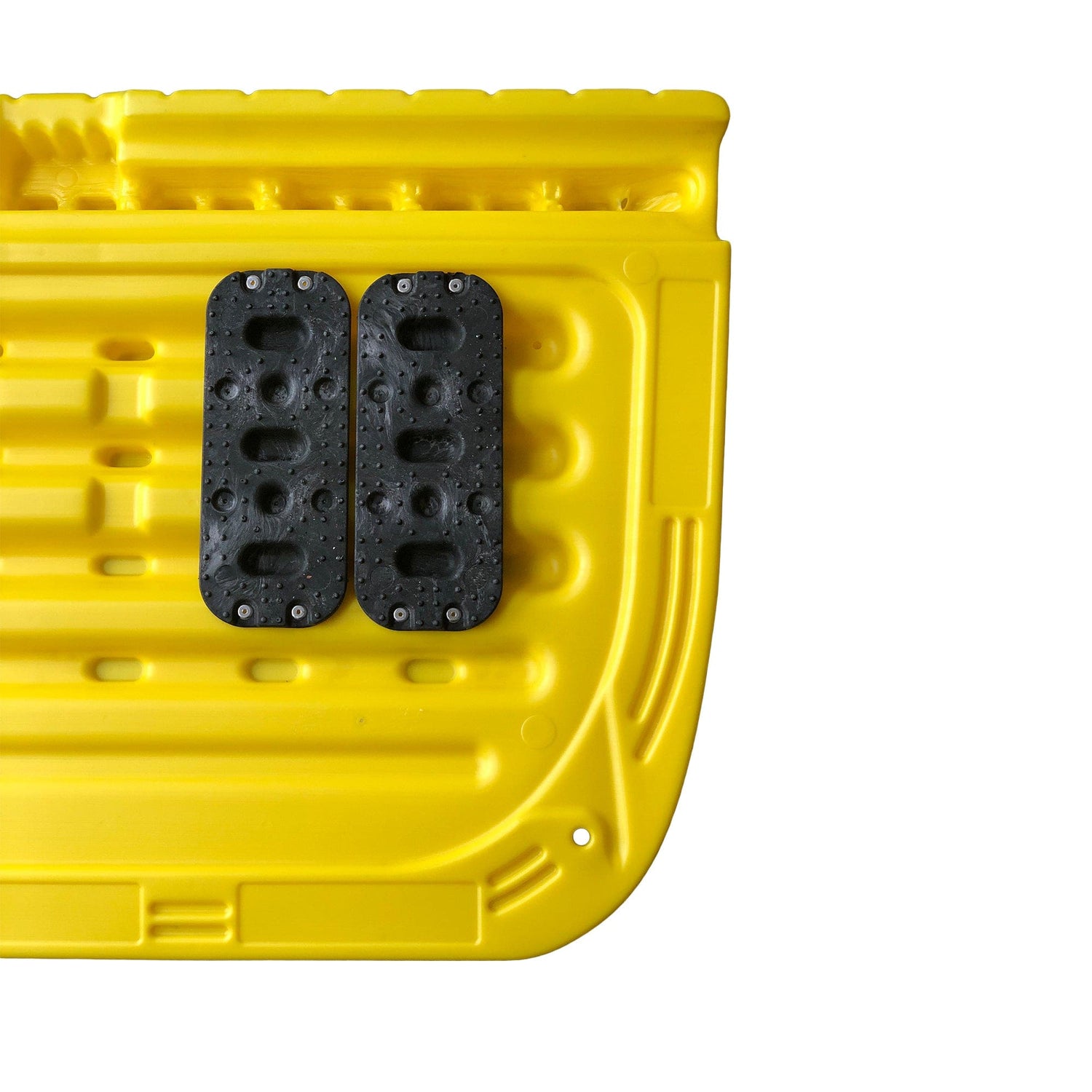

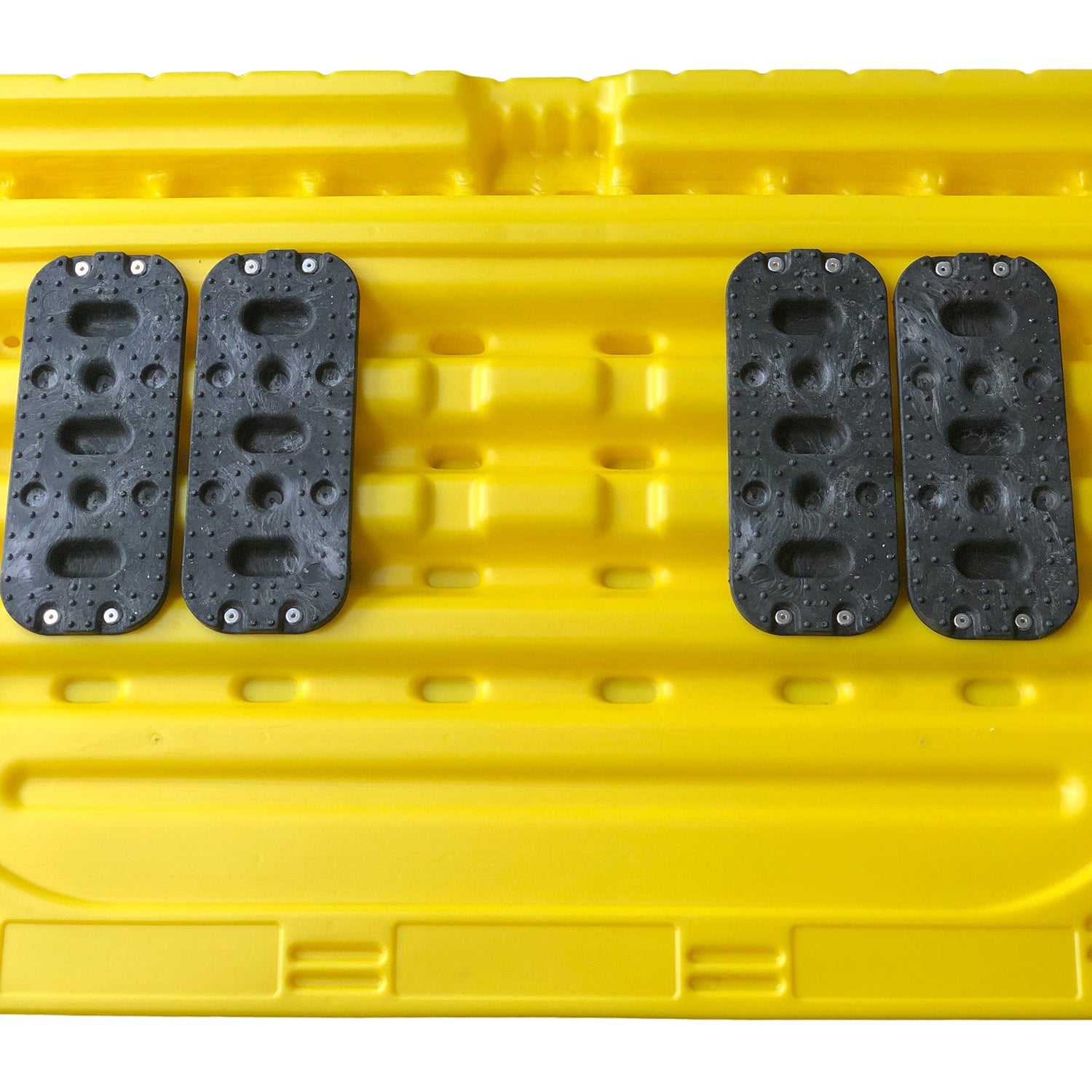

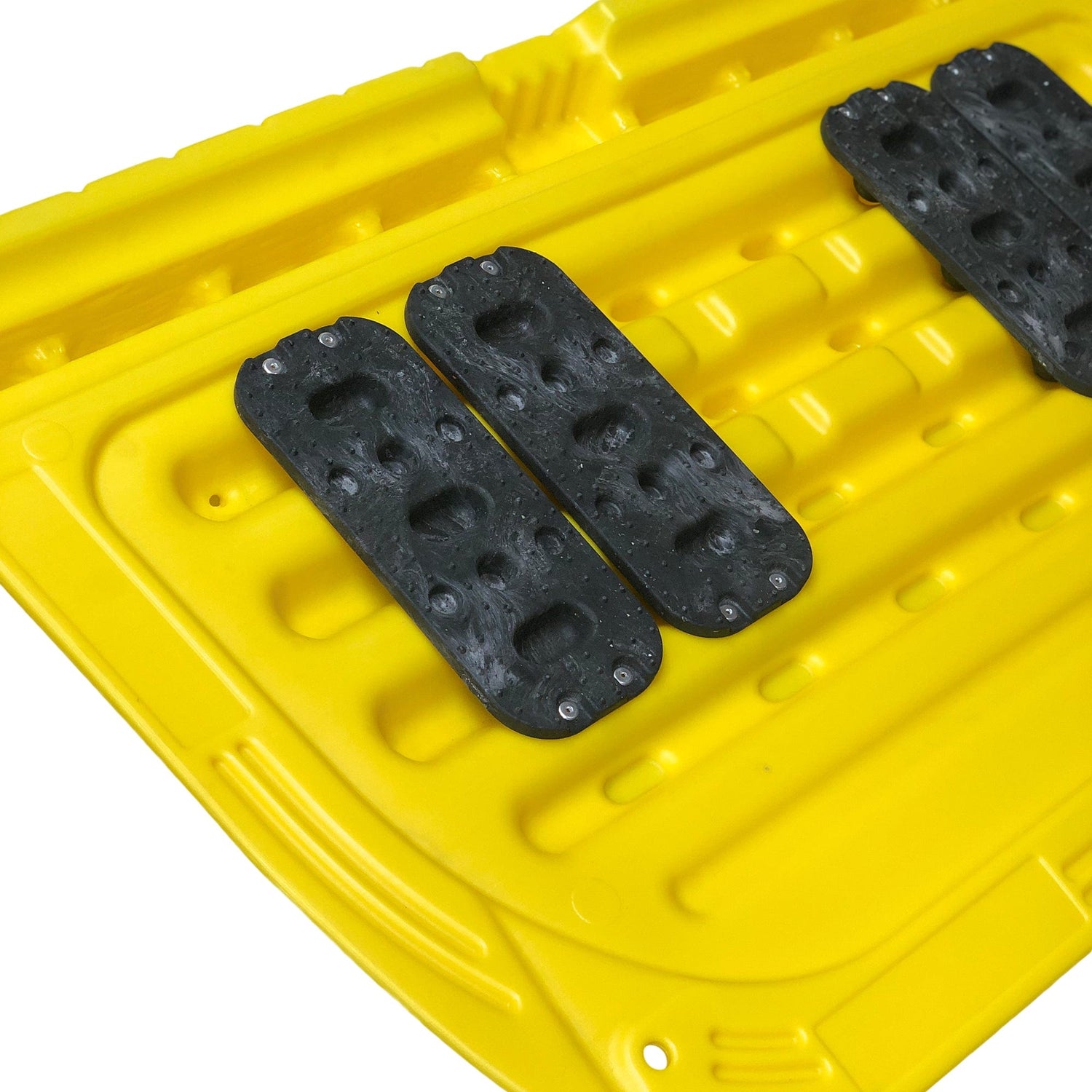

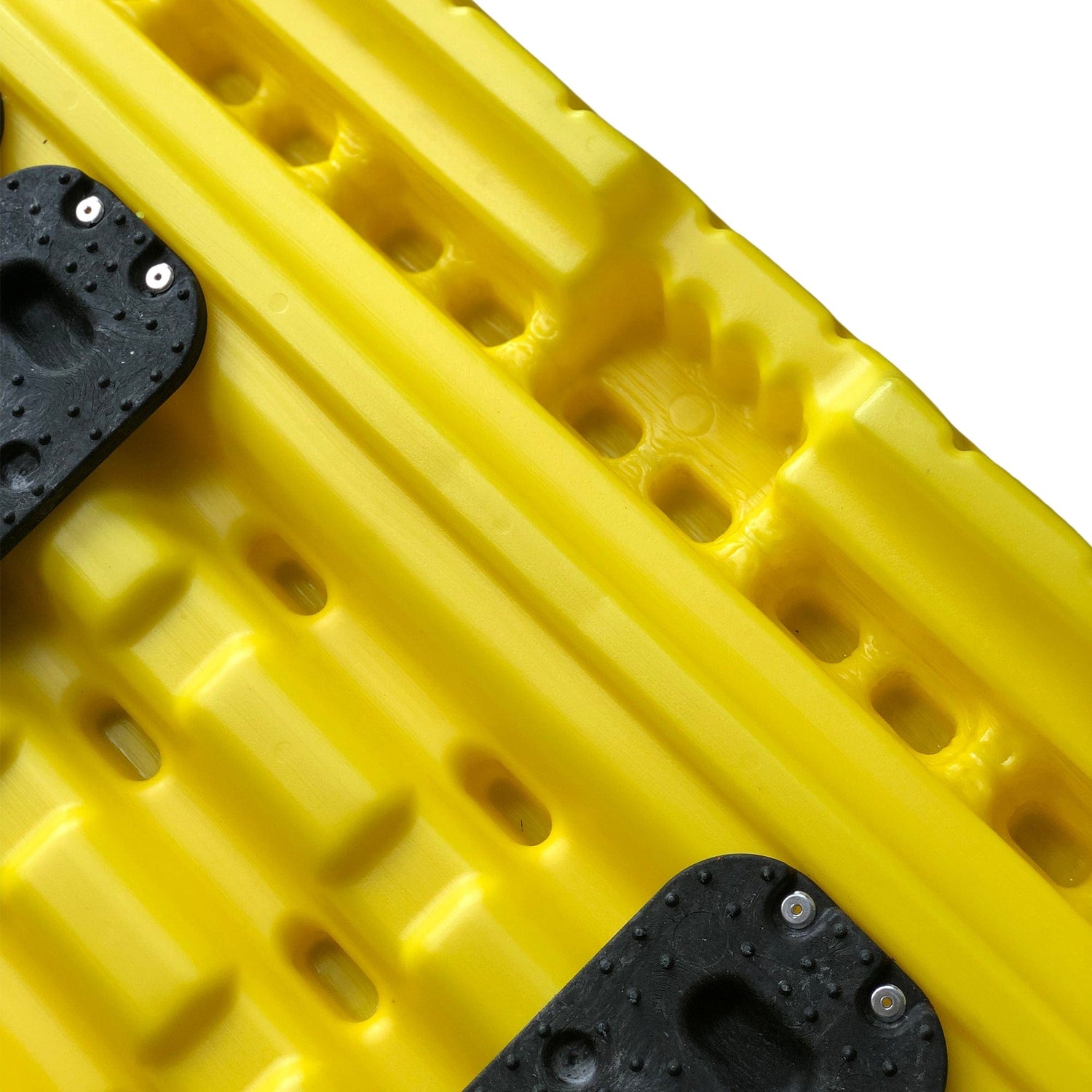

Moulded from high density polyethylene with recycled PVC feet, built to take a 350kg load without shattering.
Developed with UEA
Designed in conjunction with the University of East Anglia specifically for wheelchair and pushchair access.
Overview
Right Ramp - Overview

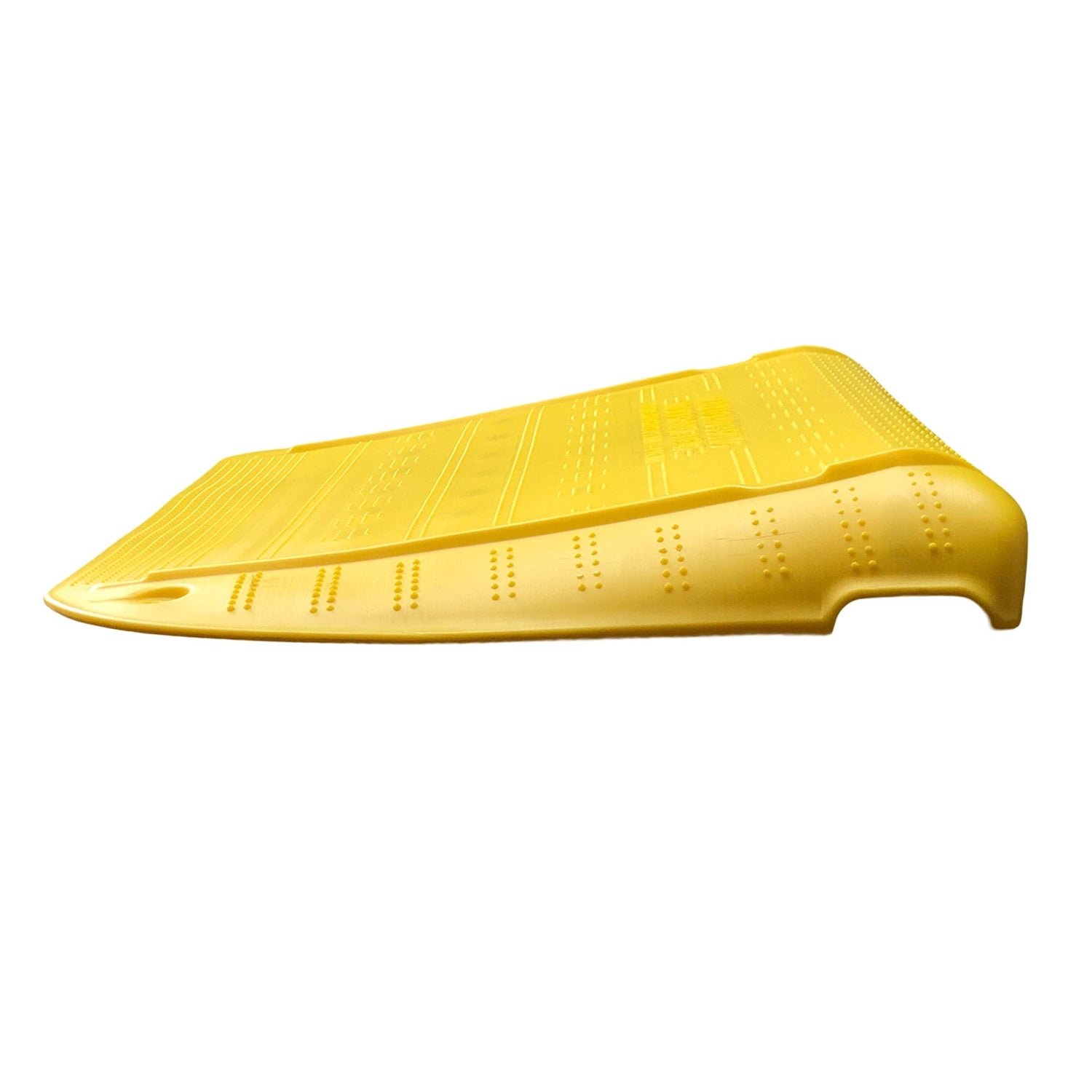

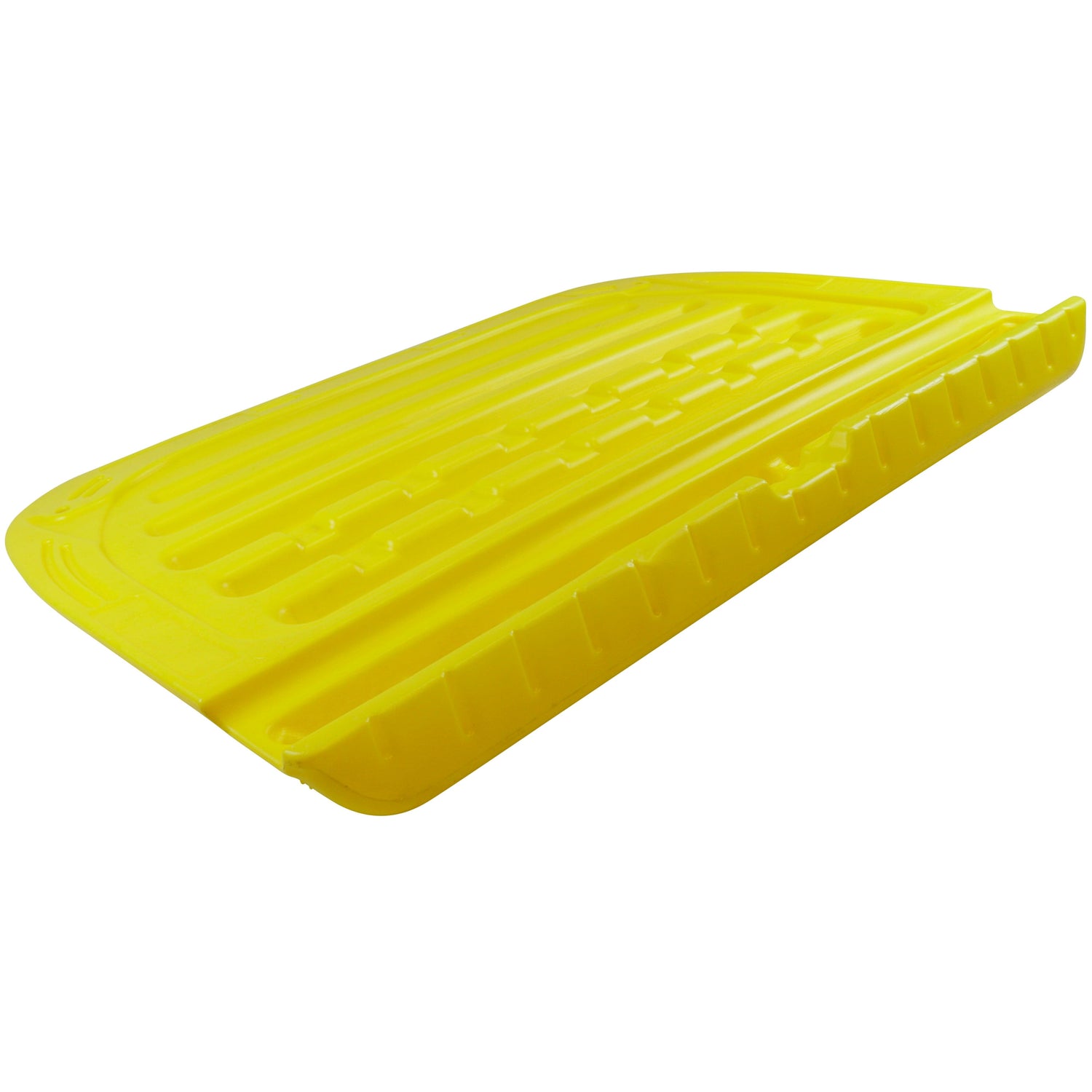

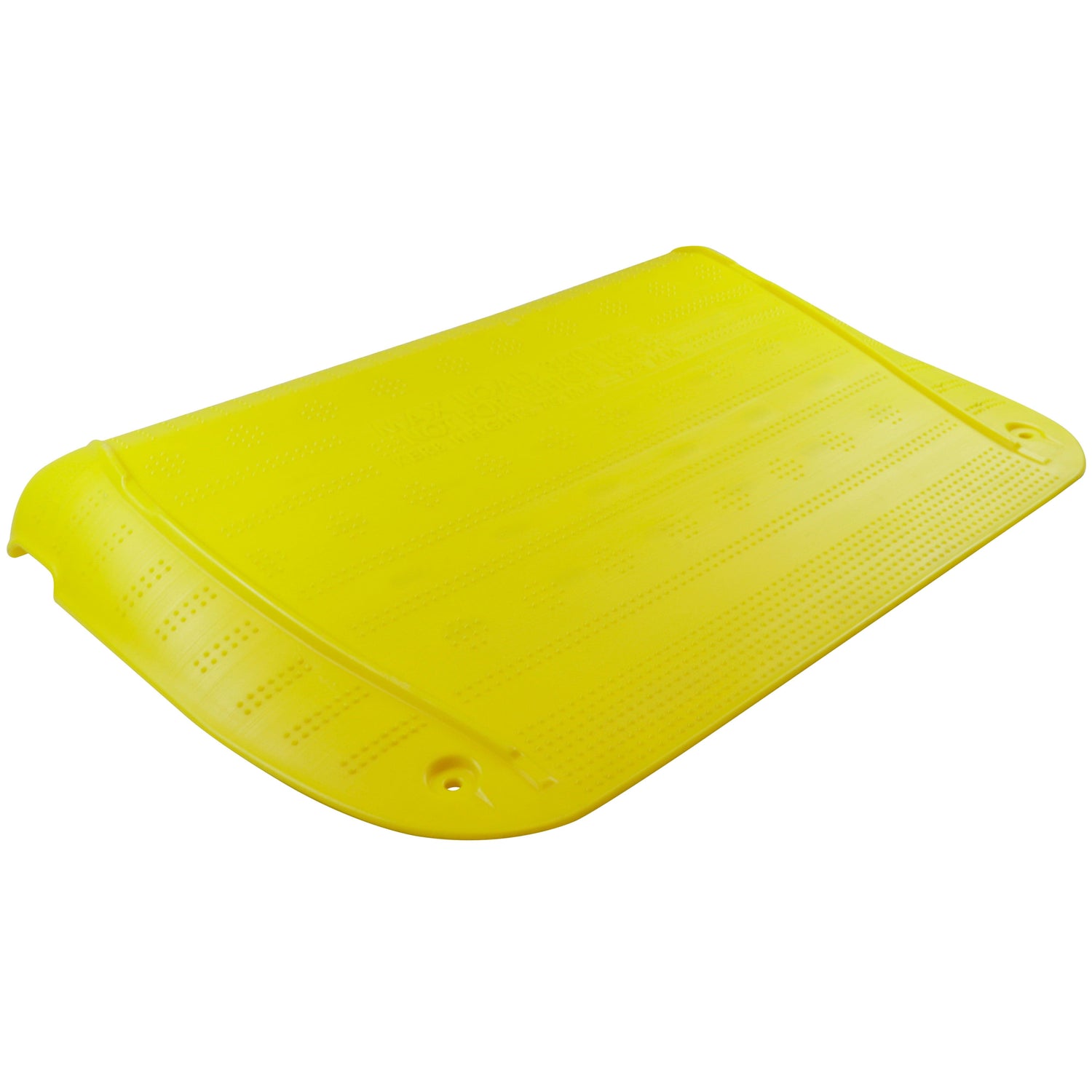

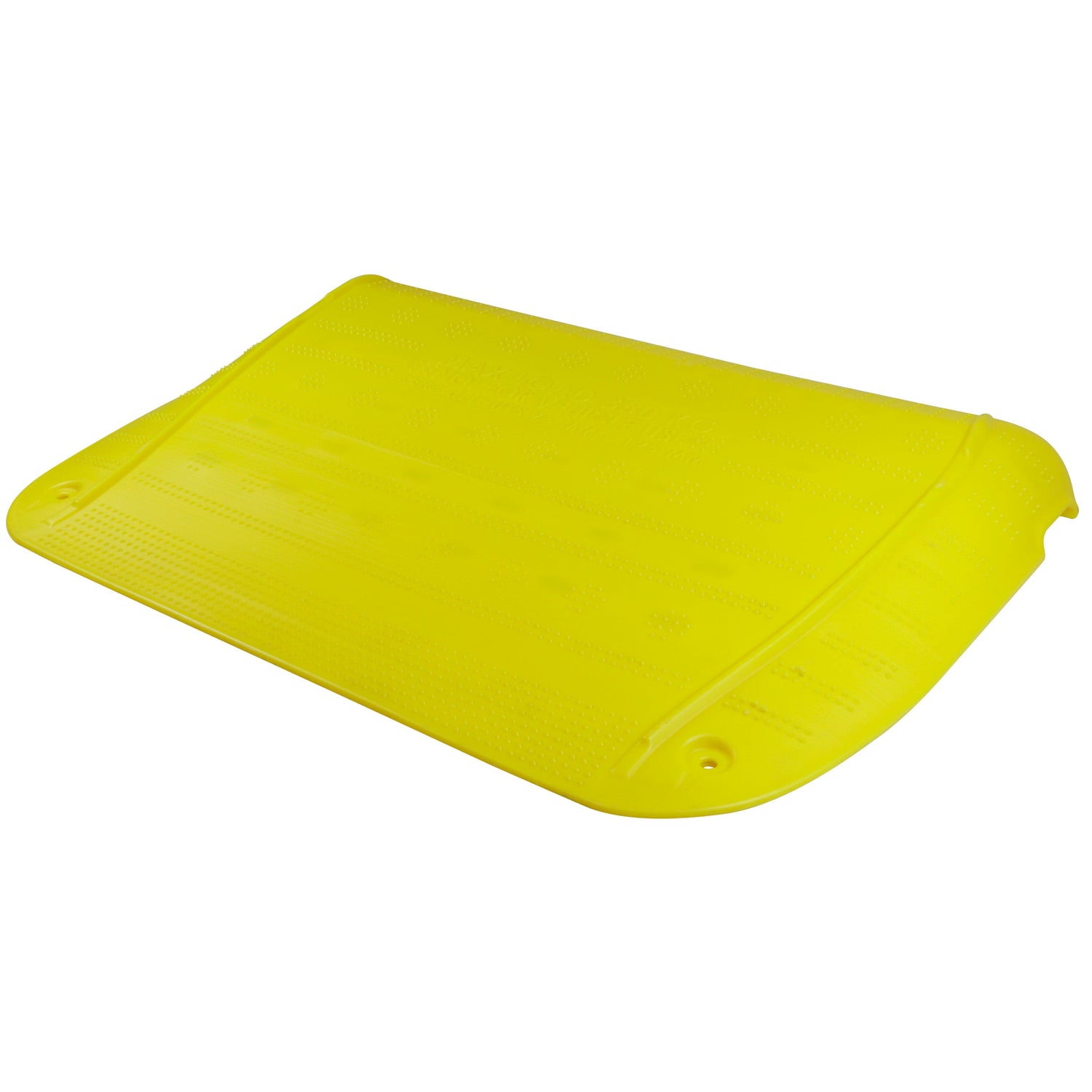

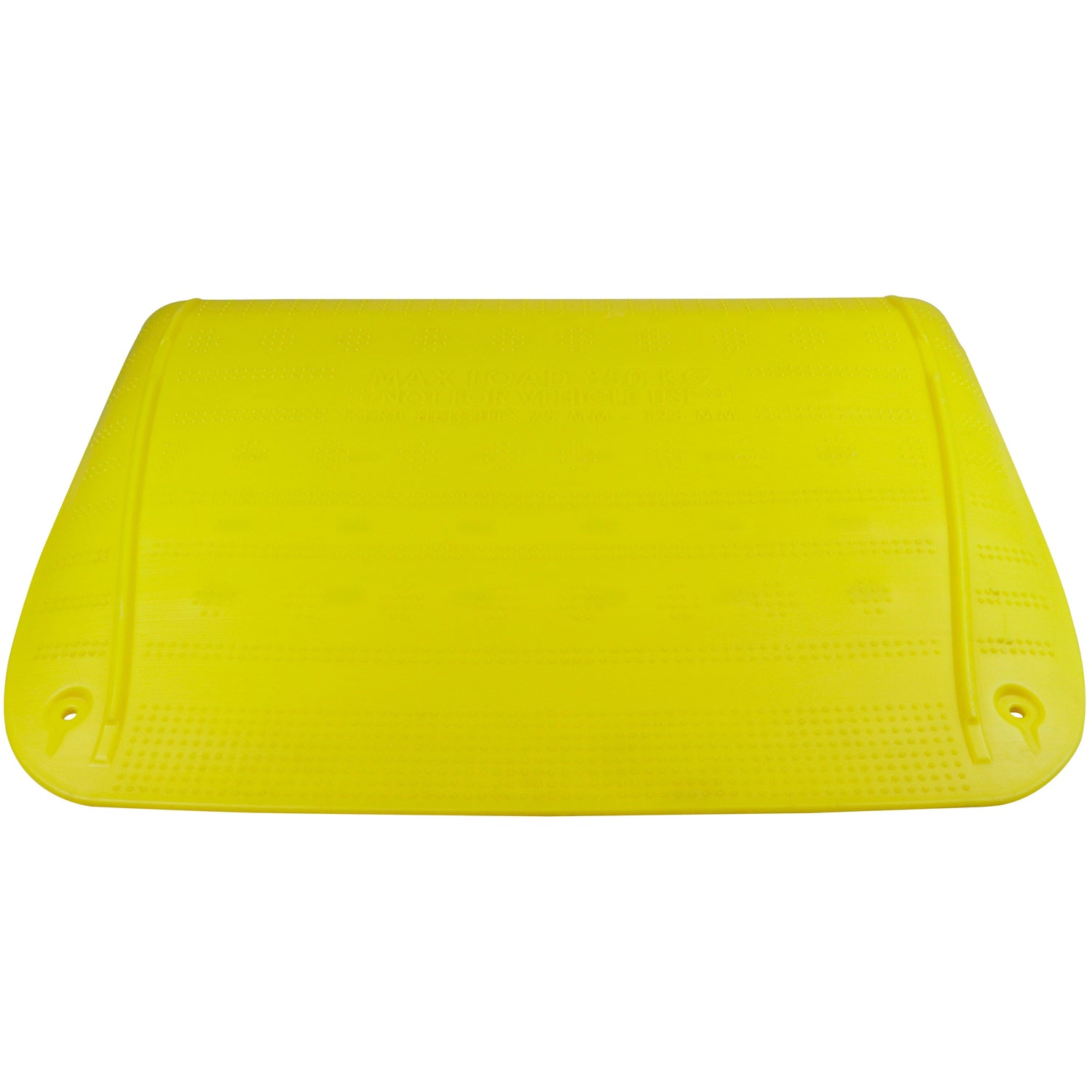

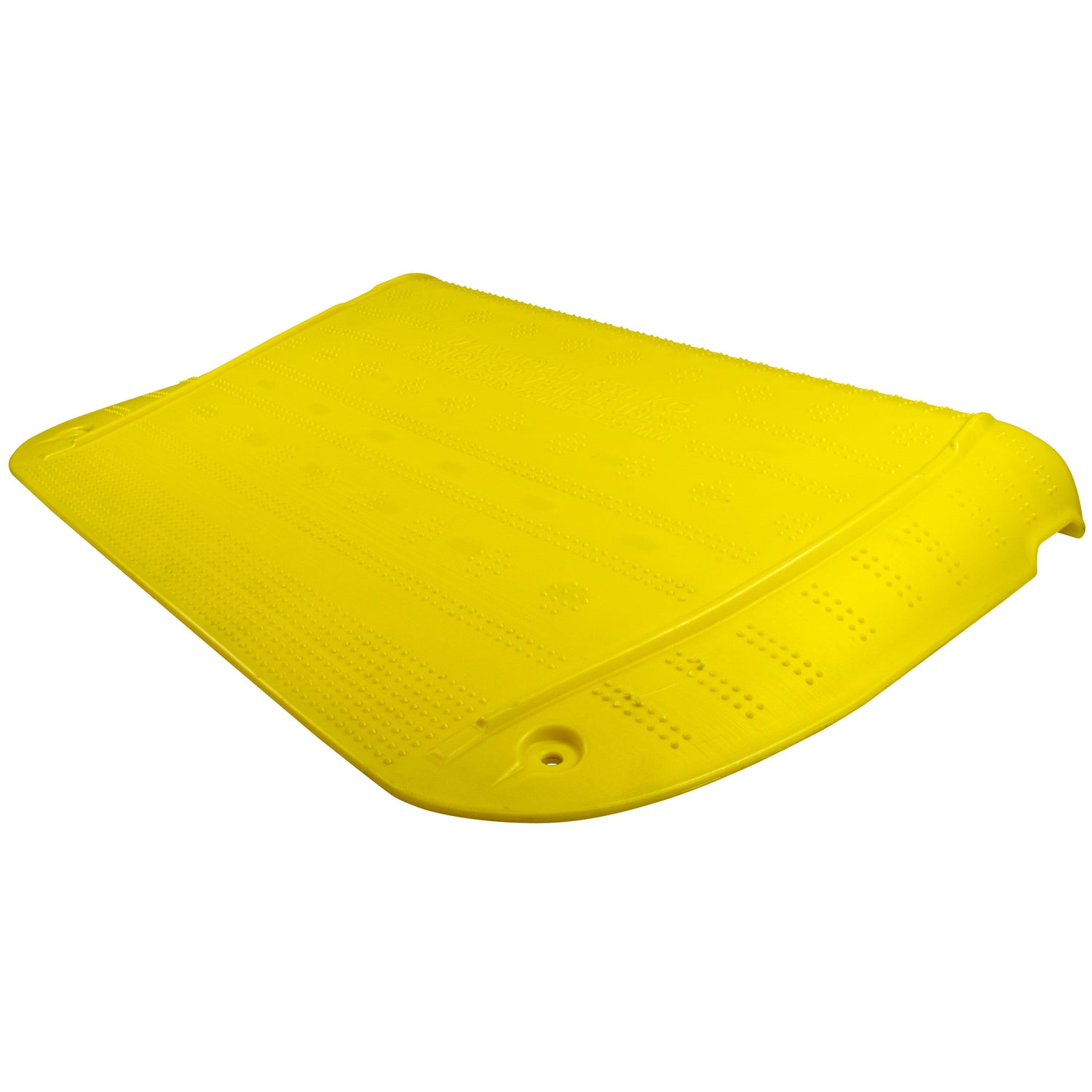

The Right Ramp is a wheelchair and pushchair kerb access ramp from Melba Swintex, developed in conjunction with the University of East Anglia. It suits kerbs from 75mm to 125mm high, lies flush to the ground with no flexing, and is built to take a 350kg load.
123mm
Ramp height
1119mm
Ramp width
350kg
Max load
13kg
Weight per ramp
| Dimensions | |
|---|---|
| Height | 123mm |
| Width | 1119mm |
| Depth | 766mm |
| Weight | 13kg |
| Details | |
|---|---|
| Material | High density polyethylene body with recycled PVC feet |
| Colour | Yellow |
| Max load | 350kg |
| Suits kerb height | 75mm to 125mm |
| Fixing | 2 fixing holes, can be bolted to the ground |
| Compliance | Designed to National Grid T/SP/E/42 and HAUC Advice Note 2018/01, slip resistance to BS 7976: Part 2 |
| Per pallet | 25 (single pallet) |
| Manufacturer | Melba Swintex |
Frequently asked questions
What range of kerb heights does the Right Ramp suit?
What range of kerb heights does the Right Ramp suit?
The Right Ramp is designed for kerbs between 75mm and 125mm high, laying completely flat against the ground and the kerb face with no flexing.
Is the ramp suitable for visually impaired pedestrians, not just wheelchair users?
Is the ramp suitable for visually impaired pedestrians, not just wheelchair users?
Yes. Low-rise tapping rails run along each edge, giving a tactile cue underfoot so visually impaired users can locate the ramp boundary by feel.
How much weight can the Right Ramp take?
How much weight can the Right Ramp take?
The ramp is rated to a 350kg load, comfortably covering wheelchairs, mobility scooters and pushchairs.
Does it need to be fixed down, or can it be used loose?
Does it need to be fixed down, or can it be used loose?
It has two fixing holes so it can be bolted to the ground for permanent use, or left free-standing where a temporary or movable ramp is needed.
What is the ramp made from?
What is the ramp made from?
A high density polyethylene body with recycled PVC feet, giving a smooth, blow-moulded finish with no sharp edges and high impact resistance.
Who was the Right Ramp designed for?
Who was the Right Ramp designed for?
It was developed in conjunction with the University of East Anglia specifically to address the practical shortfalls of existing wheelchair kerb ramps.
How heavy is the ramp to move between sites?
How heavy is the ramp to move between sites?

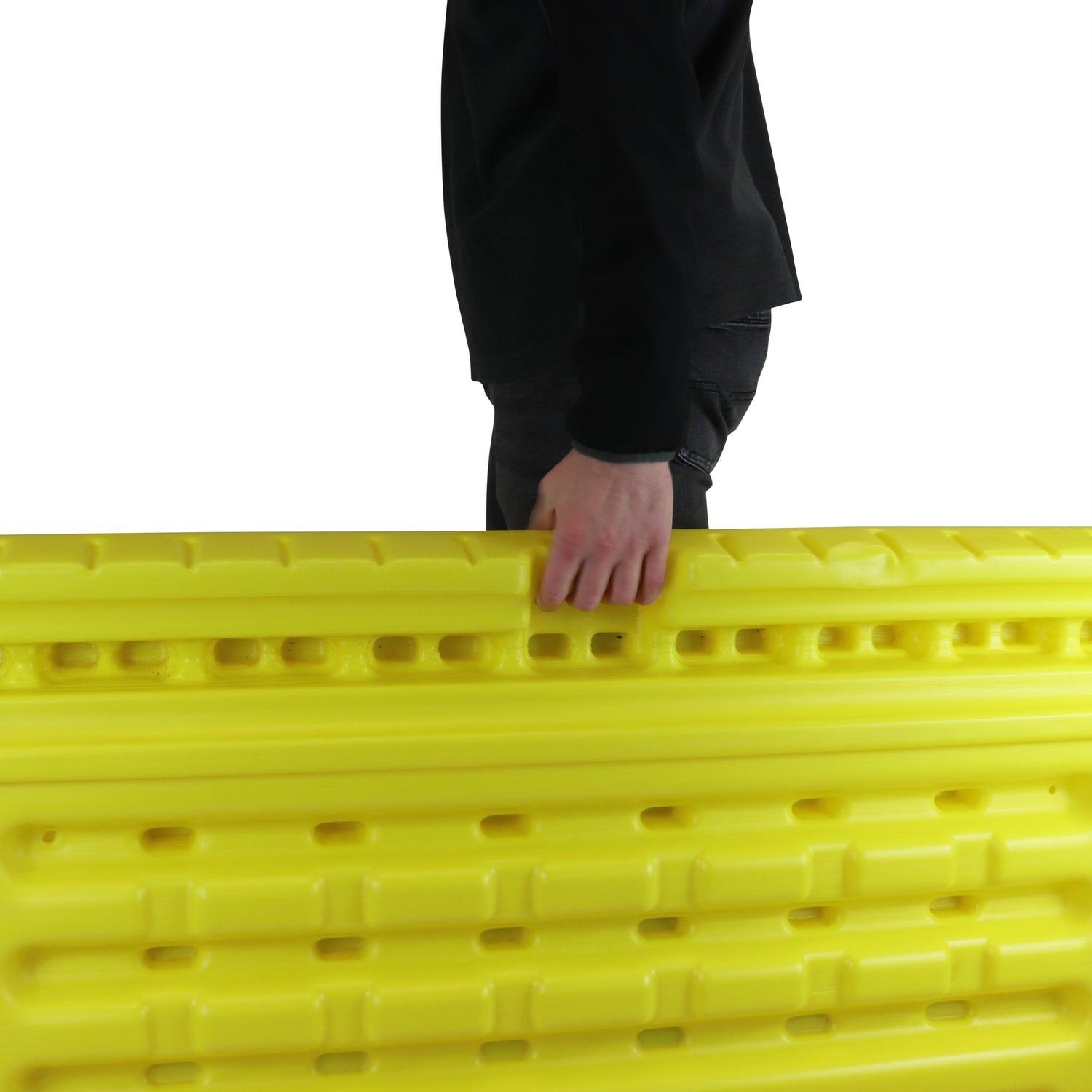

Each ramp weighs 13kg and has a built-in carry handle, so it is a straightforward single-person lift between jobs.
