Prosolve | SKU:
170008
4 Way Flat Joint
£6.92
Ex. VAT
£8.30
Inc. VAT
Why buy from us
- Pay in 30 days with a Trade Account. No fees.
- Trade and bulk pricing available on request
- UK stock, dispatched fast
4 Way Flat Joint - Black is backordered and will ship as soon as it is back in stock.
Ships in
1 – 5 working days
Quote in 3 hours
No account needed
- Made in the UK
- Pay in 30 days with Klarna. No fee. Learn more
- Next Day Delivery Available
4 Way Flat Joint
Regular priceFrom
£8.30
Unit price
Unavailable
4 Way Flat Joint - Black is backordered and will ship as soon as it is back in stock.
Why it works
Quick push-fit flat joint, two colour options
Tool-free push-fit
Ribbed spigot ends grip the tube for a secure join with no welding, screws or adhesive.
Secure flat cross join
Holds four tube ends together in one flat plane, keeping lattice grids and cross-braced panels square and stable.
Compact and light
At 70 x 25 x 25mm and 0.16kg, it adds negligible bulk or weight to a build.
Recyclable plastic
Moulded from plastic, which can be recycled at end of life.
Overview
4 Way Flat Joint - Overview

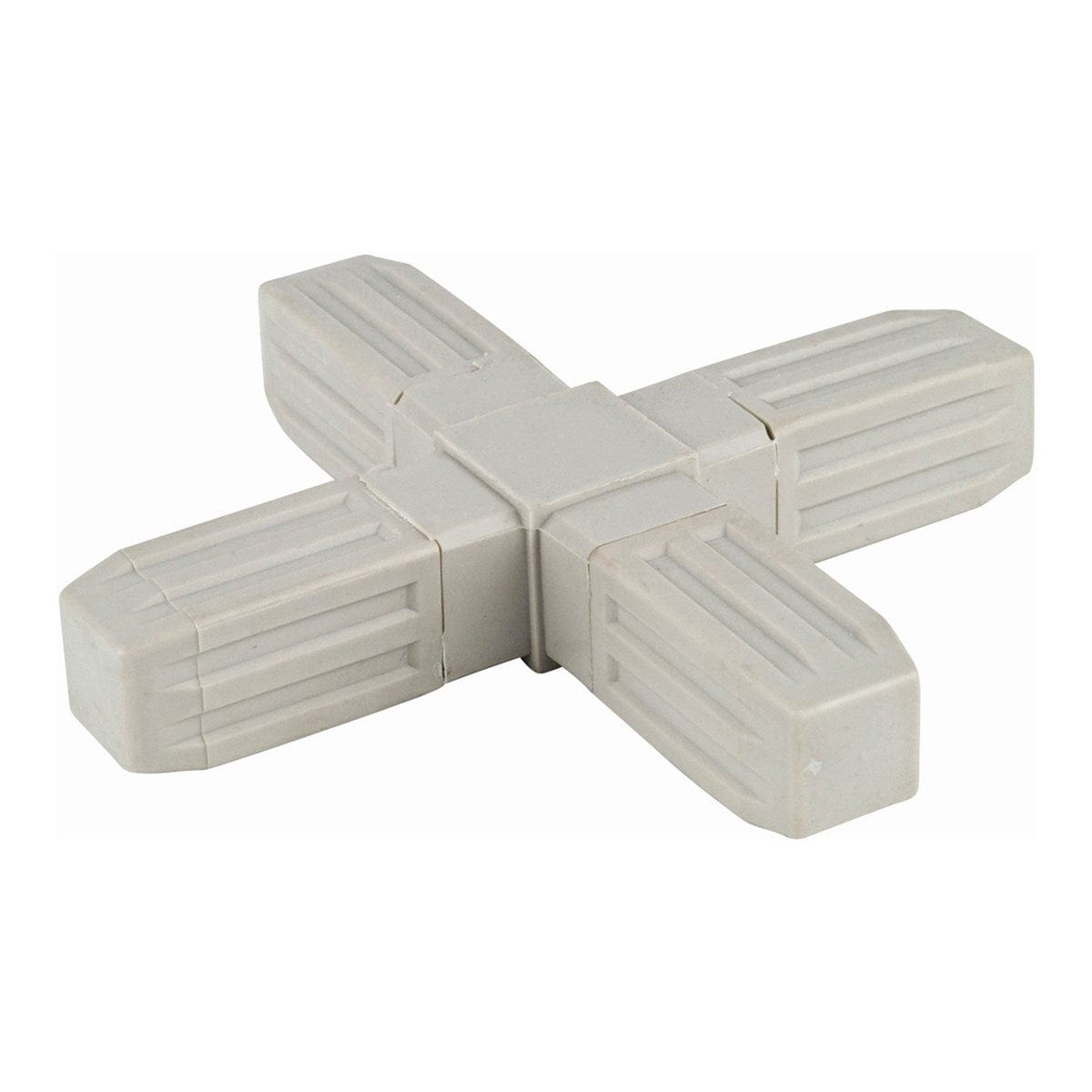

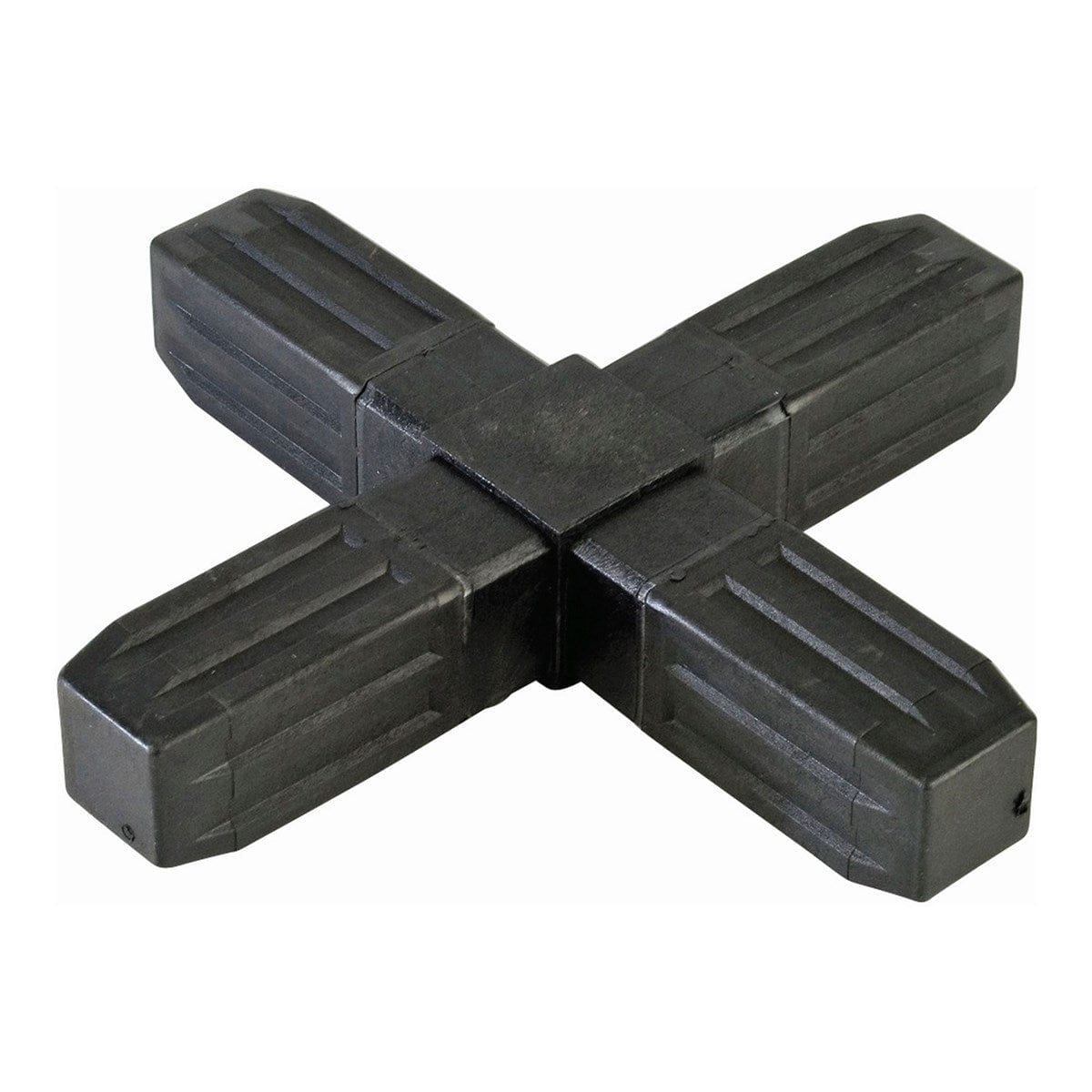

The 4-way flat joint connects four lengths of 25mm square tube in a cross pattern, with all four arms sitting in the same flat plane. It push-fits onto the tube ends for a quick, tool-free connection, and is available in Black or Grey.
4tubes
Joined per connector
70mm
Overall length
25mm
Tube size
0.16kg
Weight
| Dimensions | |
|---|---|
| Length | 70mm |
| Width | 25mm |
| Height | 25mm |
| Weight | 0.16kg |
| Details | |
|---|---|
| Material | Moulded plastic |
| Colour | Black or Grey |
| Fixing | Push-fit, no tools required |
| Tube size | 25mm square |
Frequently asked questions
How does the 4-way flat joint connect four lengths of tube?
How does the 4-way flat joint connect four lengths of tube?
It joins four tube ends in a cross pattern, with all four arms sitting in the same flat plane rather than angling apart in 3D.
Is this the same as the 4-way joint, SKU 170010?
Is this the same as the 4-way joint, SKU 170010?
No. The 4-way joint's arms angle apart for 3D box-frame corners, while this flat joint keeps all four arms in one plane for flat lattice work.
What tube size does it fit?
What tube size does it fit?
25mm square tube - all four arms are sized for the same profile.
Do I need tools, screws or adhesive to fit it?
Do I need tools, screws or adhesive to fit it?
No. The ribbed ends push-fit into the tube and hold it in place without any extra fixings.
What colours does it come in?
What colours does it come in?
Black (SKU 170008) or Grey (SKU 170009), sold as separate variants so you can match the rest of your build.
What is it made from?
What is it made from?
Moulded plastic, giving a light, corrosion-free connector for indoor and light outdoor use.
Can I mix this with other joints from the same system?
Can I mix this with other joints from the same system?
Yes - it uses the same 25mm square tube as the 2-way, 3-way and 3D 4-way joints in the range, so you can combine them on one build.
