Street Solutions UK | SKU:
204334

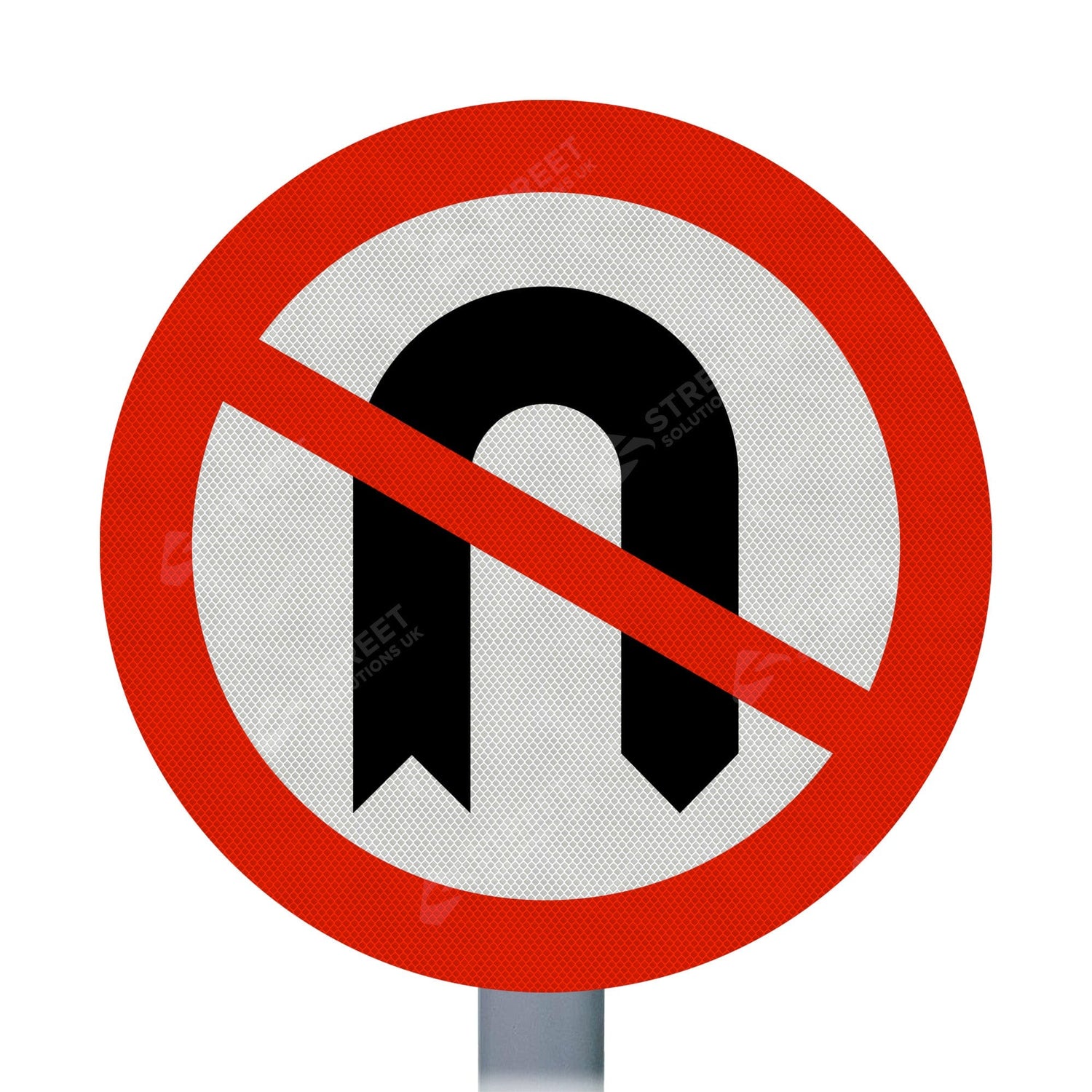

614 No U-Turn Sign Face | Post & Wall Mounted
£13.74
Ex. VAT
£16.49
Inc. VAT
Why buy from us
- Pay in 30 days with a Trade Account. No fees.
- Trade and bulk pricing available on request
- UK stock, dispatched fast
614 No U-Turn Sign Face | Post & Wall Mounted - 300mm / Wall Mounted Sign is backordered and will ship as soon as it is back in stock.
Ships in
7 – 10 working days
Quote in 3 hours
No account needed
- Made in the UK
- Pay in 30 days with Klarna. No fee. Learn more
- Next Day Delivery Available
614 No U-Turn Sign Face | Post & Wall Mounted
Regular priceFrom
£16.49
Unit price
Unavailable
614 No U-Turn Sign Face | Post & Wall Mounted - 300mm / Wall Mounted Sign is backordered and will ship as soon as it is back in stock.
Why it works
Prohibition signing to highway standard
CE marked to BS EN 12899-1
Meets the manufacturing standard required of permanent road signs on UK public highways.
High intensity reflective
The Class 2 RA2 surface reflects a significant amount of light back to drivers in low light.
Post or wall fixing
Rear channels clamp to posts with anti-rotational clips; the wall version drills or bonds with no special fixings.
All-weather build
Aluminium composite construction withstands year-round outdoor conditions.
UK manufactured
Made in the UK in sizes from 300mm to 750mm.
Overview

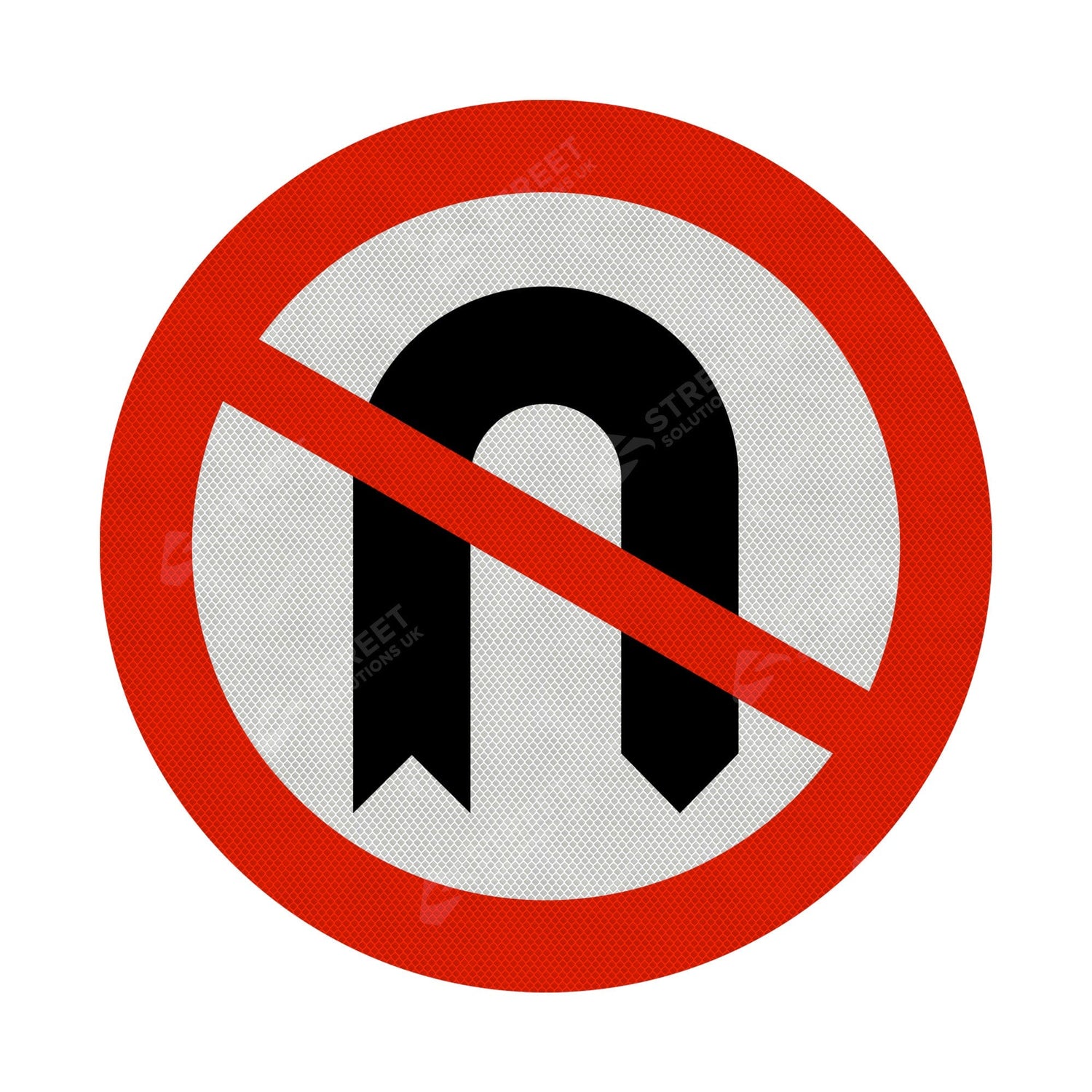

614 No U-Turn Sign Face - Overview
The diagram 614 sign prohibits U-turns where turning across the road would be dangerous. Each face is 3mm aluminium composite in red, white and black with Class 2 RA2 high intensity reflectivity, manufactured to BS EN 12899-1:2007 and CE marked for public highways and private roads. Four sizes, post or wall mounted. Posts and clips are sold separately.
300-750mm
Four sizes
3mm
Face thickness
RA2class 2
Reflectivity
614TSRGD
Diagram reference
| Dimensions | |
|---|---|
| Sizes | 300mm, 450mm, 600mm or 750mm |
| Face thickness | 3mm |
| Details | |
|---|---|
| Diagram reference | 614 |
| Material | Aluminium composite |
| Colours | Red, white and black face, grey rear |
| Reflectivity | Class 2 R2/RA2 high intensity |
| Standard | BS EN 12899-1:2007, CE marked |
| Mounting | Post mounted (rear channels) or wall mounted |
| Posts and clips | Sold separately |
| Origin | Made in the UK |
In use
Where the 614 sign is used
Diagram 614 prohibits U-turns where turning across the road would be dangerous.
- Junctions where a U-turn would put drivers at risk
- Central refuges and reservations on dual carriageways
- Lengths of road where the restriction applies, with distance plates
- Private roads and estates
Frequently asked questions
Where should a no U-turn sign be placed?
Where should a no U-turn sign be placed?
At junctions without traffic signals it normally sits on the central refuge, facing the side the restriction applies to. With no central island it usually goes on the left, and can be duplicated or moved to the right where visibility is poor.
Does one sign cover a whole stretch of road?
Does one sign cover a whole stretch of road?
If the restriction applies to a length of road rather than a single point, add distance plates showing where it applies and repeater signs at intervals along the stretch.
Is it legal to install on the public highway?
Is it legal to install on the public highway?
Yes - the face is manufactured to BS EN 12899-1:2007 and CE marked with Class 2 RA2 reflectivity, as required of permanent road signs.
Which mounting option should I pick?
Which mounting option should I pick?
Choose post mounted if the sign is going on a pole - the rear channels clamp on with two anti-rotational clips. Choose wall mounted for buildings and structures - the plain face drills for screws or bonds with adhesive.
What sizes does it come in?
What sizes does it come in?
300mm, 450mm, 600mm and 750mm. Match the size to the road and position using the TSRGD guidance, or ask our team.
What do I need to install a post mounted sign?
What do I need to install a post mounted sign?
A 76mm galvanised post and two anti-rotational post clips, both sold separately.
How long does delivery take?
How long does delivery take?
These faces are made to order and dispatched in 7-10 working days.
