Frequently Bought Together

⊛ Available in a variety of colours

⊛ Lightweight and durable

⊛ Easy to install

⊛ Base fixes to ground

⊛ Handle grips for easy twist to lock manoeuvre

⊛ Corporate identification can be embossed

Ariane Cylinder Delineator Post Specifications

Ariane Cylinder Delineator Post Dimensions
Width	200mm
Height	750mm
Ariane Cylinder Delineator Post Weight
Per Piece Base	1.4kg
Per Post	1.14kg
Ariane Cylinder Delineator Post Material
Type	Coloured HDPE Centre Piece with a fully recycled PVC base
Ariane Cylinder Delineator Post Details
Colour	High visibility orange top. Black base

ARIANE CYLINDER DELINEATOR POST

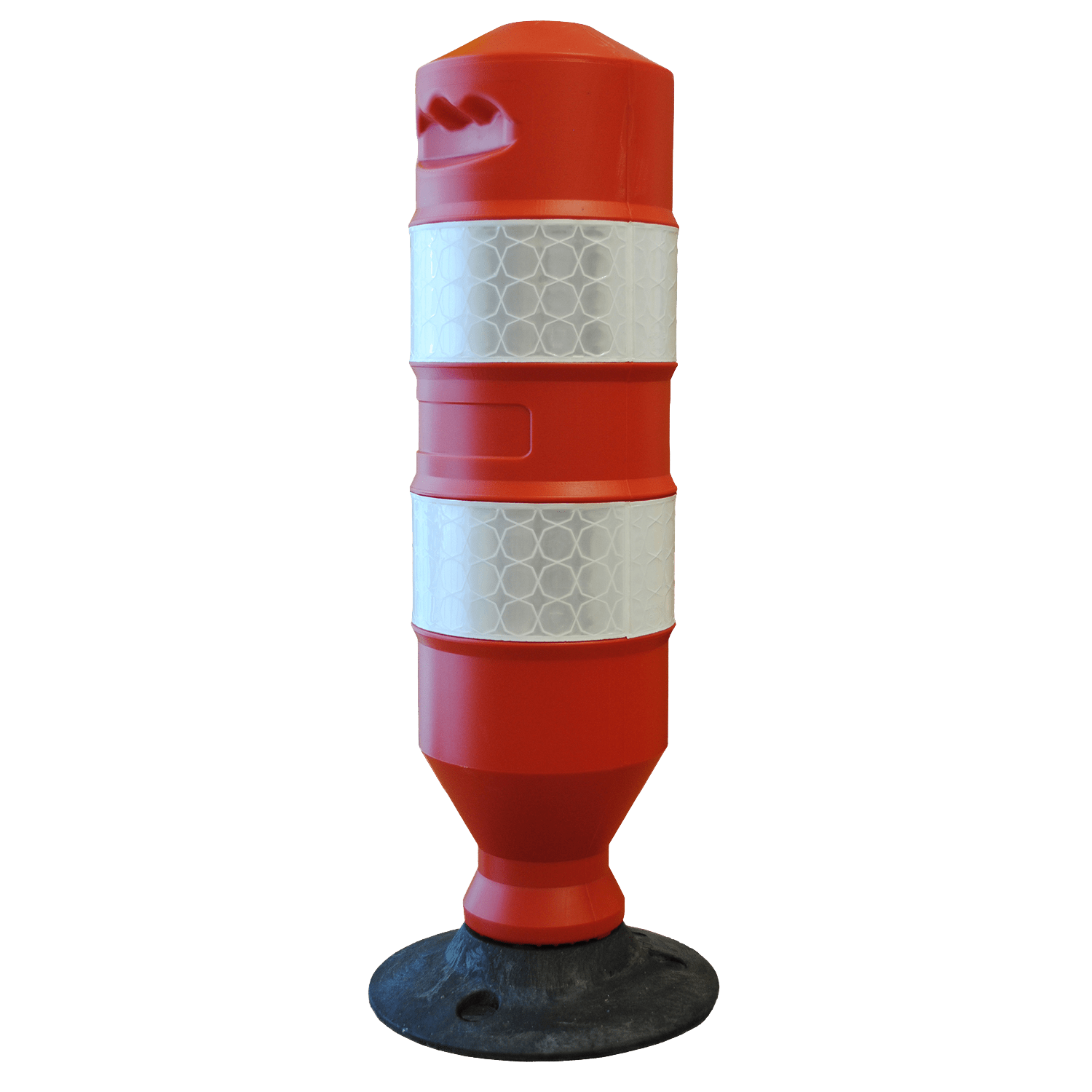

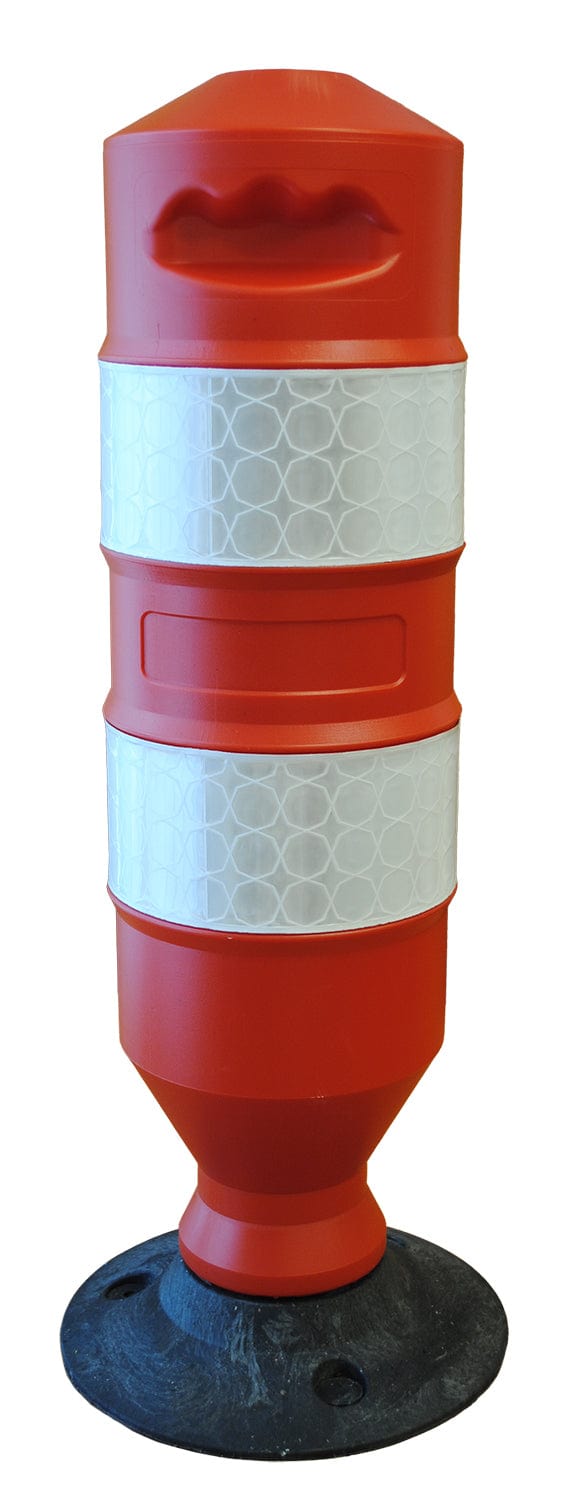

The Ariane Cylinder Delineator Post is the largest of its kind and is perfect for managing the direction of traffic, the larger size coupled with the highly reflective banding mean that the Ariane Cylinders are nearly impossible to miss when set up on the roads.

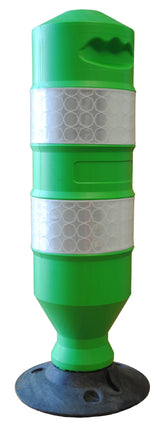

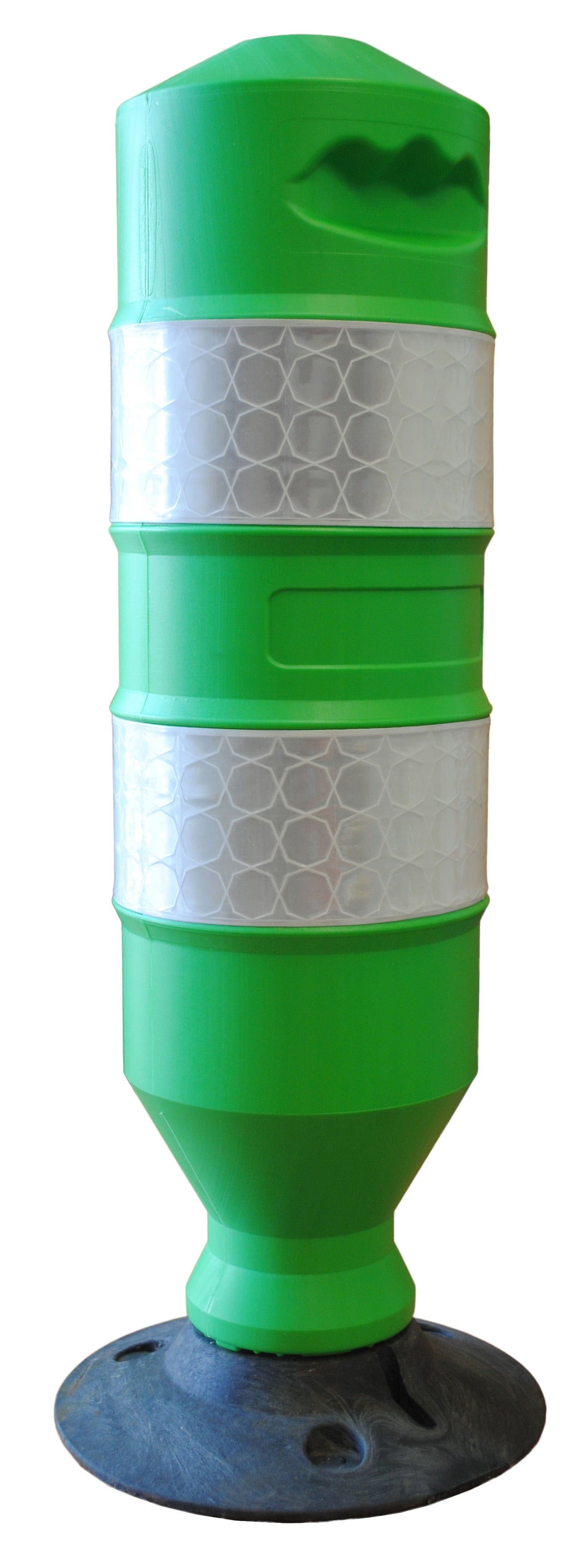

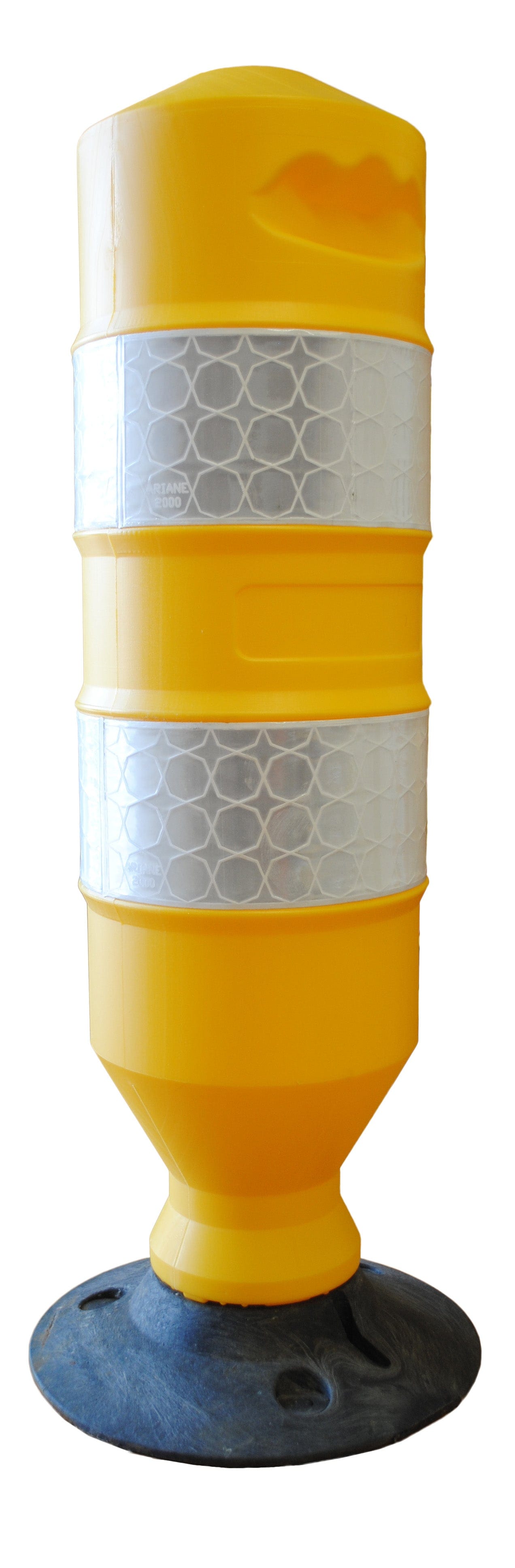

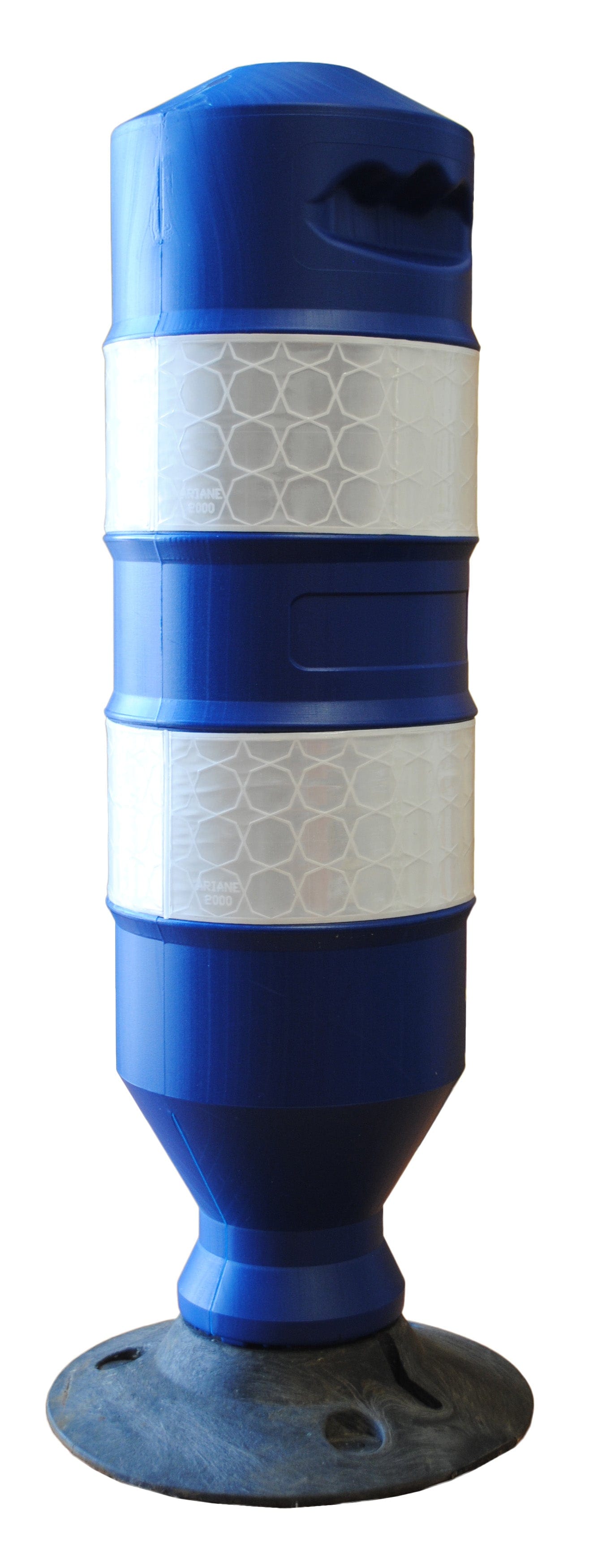

The Ariane Twist-Lock is available in a vast range of colours* which make it possible to reflect your brand image. As well as this, it is now also possible to emboss company identification onto the centre of the Cylinder which could include your logo, company name and contact details for greater brand awareness.

SIZING & SAFETY

The Ariane Cylinder is 750mm in height.

Each Ariane Cylinder is equipped with the signature Starlux® reflective dual banded sleeves that are compliant with the BSEN13422 standards, offering great day light luminance and night-time reflectivity.

INSTALLATION & SET UP

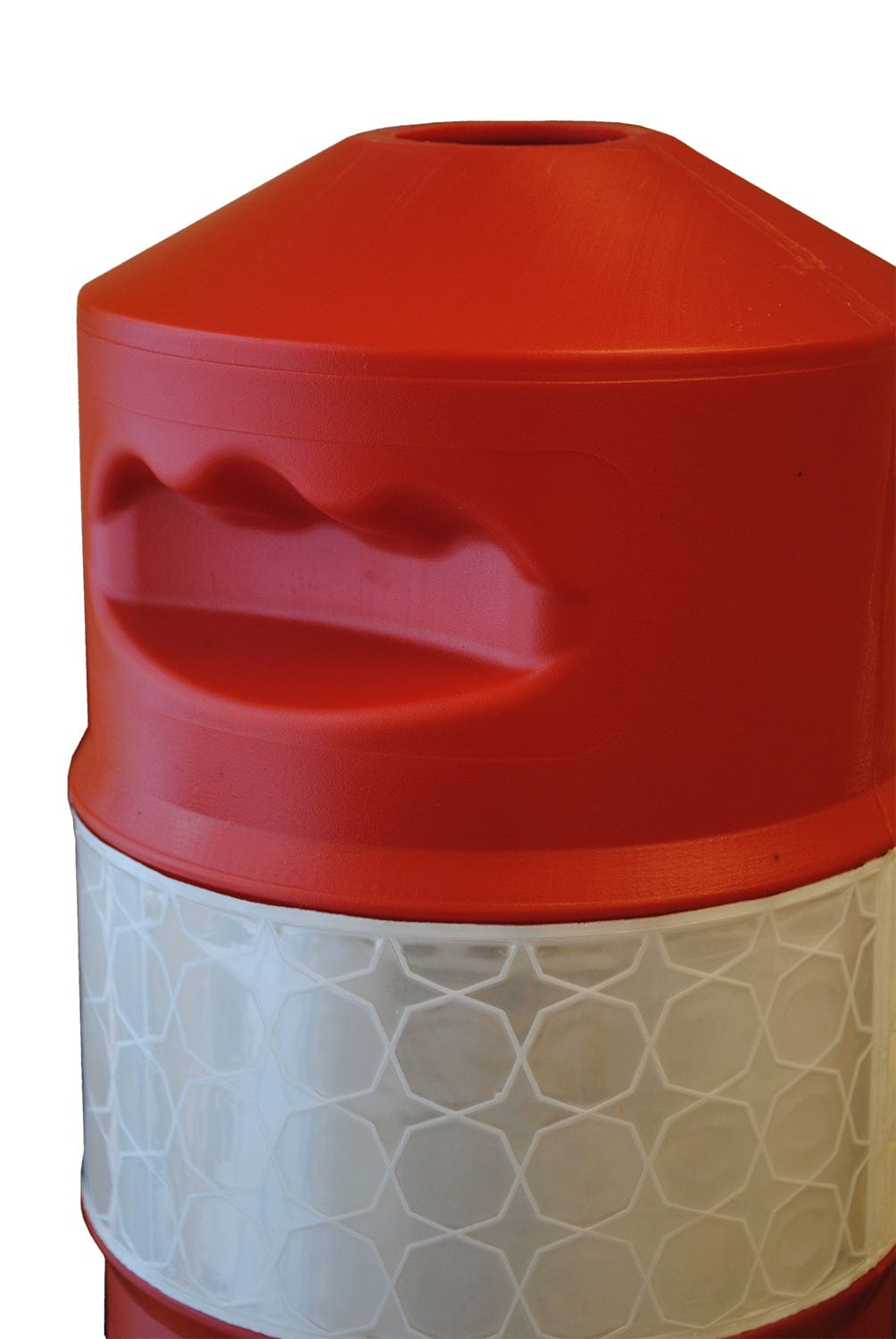

The addition of the easy to grab handles at the top of the cylinder has made installing and removing the Ariane Cylinder post a simple process, completed in seconds.
When purchased together with the Cats Eye Bases you will need to follow these installation stages.
Step 1) Fixing the Cats Eyes Base to the ground is required first, please use the adhesive pads or the ground fixing bolts to securely set the base to the ground.
Step 2) Once the Cats Eye Base is in place, locate the Cylinder into the base and twist 90° to fit.
Step 3) Pre-drill a pilot hole through the slot on the Base into the Cylinder

Step 4) Using a self-tapping wood screw at over 35mm thread, secure the Base to the Cylinder.

KEY FEATURES

⊛ Bespoke Colouring – Supplied as standard in Orange, we can offer the Ariane Cylinders in custom colours. Please contact our sales team for details on this service, minimum order quantities apply

⊛ Safety Focused – The larger size of the Ariane Cylinder has been introduced to offer greater visibility to motorists and pedestrians

⊛ UK Made – Manufactured by Melba Swintex in the UK the items are of the highest quality available, as used by various main contracting firms throughout the country

⊛ Lightweight Design – The 750mm Ariane Cylinder posts weigh just over 1kg, making them great for easily transporting between sites
