Melba Swintex | SKU:
004015
Red Utility Barrier Kit
£60.33
Ex. VAT
£72.39
Inc. VAT
Why buy from us
- Pay in 30 days with a Trade Account. No fees.
- Trade and bulk pricing available on request
- UK stock, dispatched fast
Red Utility Barrier Kit - 750mm / 3 Gate is backordered and will ship as soon as it is back in stock.
In Stock
Ready to go
Quote in 3 hours
No account needed
- Made in the UK
- Pay in 30 days with Klarna. No fee. Learn more
- Next Day Delivery Available
Red Utility Barrier Kit
Regular priceFrom
£72.39
Unit price
Unavailable
Red Utility Barrier Kit - 750mm / 3 Gate is backordered and will ship as soon as it is back in stock.
Why it works
Fast to link, road-legal spec
Links in seconds
Panels connect with the Melba D-hinge and two D-clips per join, with no tools needed.
Chapter 8 compliant
Red and white reflective meets BS EN 12899-1, Chapter 8 and the TSRGD for public works.
High-visibility reflective
A large reflective area keeps the barrier clear to drivers and pedestrians in low light.
Drains and stacks
Deep channels shed rainwater and the panels stack in any orientation for compact storage.
Recyclable HDPE
Moulded from durable, UV-stabilised HDPE that is fully recyclable at end of life.
Made in the UK
Manufactured in the UK by Melba Swintex, with embossing and colour changes to order.
Overview
Red Utility Barrier Kit - Overview

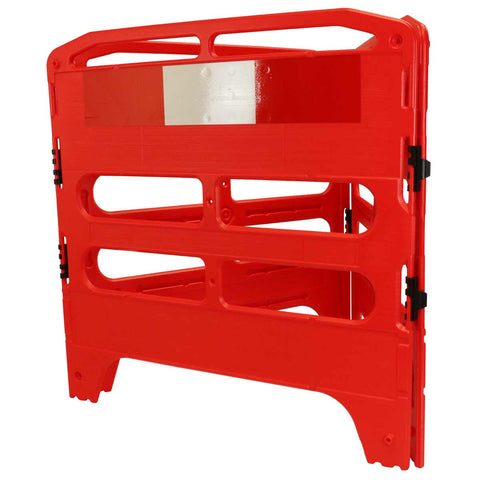

The Red Utility Barrier Kit is an interlocking panel barrier for guarding open manholes, exposed drops and works areas across utilities, construction and highways. Made in the UK from UV-stabilised HDPE, the panels link with the Melba D-hinge and D-clips, stack in any orientation, and carry a Chapter 8 red and white reflective finish.
750mm
Panel width
1000mm
Panel height
8.1kg
From, per kit
3-4gates
Panels per kit
| Dimensions | |
|---|---|
| Panel width | 750mm or 1000mm |
| Panel height | 1000mm |
| Panel depth | 20mm |
| Weight (750mm) | 8.1kg (3 gate) / 10.8kg (4 gate) |
| Weight (1 metre) | 10.8kg (3 gate) / 14.4kg (4 gate) |
| Details | |
|---|---|
| Material | UV-stabilised HDPE |
| Colour | Red with red and white reflective |
| Configurations | 3 gate or 4 gate |
| Connection | Melba D-hinge and D-clips |
| Compliance | BS EN 12899-1, Chapter 8, TSRGD |
| Per pallet | 33 x 3 gate / 25 x 4 gate |
| Origin | Made in the UK |
In use
Where the utility barrier works
The utility barrier guards drops and closes off areas on the road, on site and indoors.
- Utilities and drainage works, guarding open manholes
- Construction sites and exposed edges
- Warehouses and factories, closing off machinery
- Retail aisles, staircases and escalators
- Highways, street works and pedestrian direction
Frequently asked questions
Are these barriers Chapter 8 compliant?
Are these barriers Chapter 8 compliant?
Yes. The red and white reflective meets BS EN 12899-1, Chapter 8 of the Traffic Signs Manual and the TSRGD, so they can be used on public highways and street works as well as private sites.
How do the panels connect together?
How do the panels connect together?
Each panel links to the next with the Melba D-hinge and two D-clips per join, so a run goes together in seconds without any tools.
What sizes and kits are available?
What sizes and kits are available?
Panels come in 750mm or 1 metre widths, and each kit is supplied as a 3 gate or 4 gate configuration. Pick the width to suit the gap and the gate count to suit the run length.
How much does a kit weigh?
How much does a kit weigh?
A 750mm kit is 8.1kg (3 gate) or 10.8kg (4 gate), and a 1 metre kit is 10.8kg (3 gate) or 14.4kg (4 gate), so every kit is a comfortable single-person lift.
Can I use them to guard an open manhole?
Can I use them to guard an open manhole?
Yes. Guarding open manholes and exposed drops is one of the main uses, alongside general utility, construction and highways works.
Can I add branding or change the colour?
Can I add branding or change the colour?
Yes. Barriers can be embossed from 150 single pieces and colour changed from 500 single pieces, so you can add a company name, logo or colour scheme. Ask about trade-account pricing.
Are they compatible with other barriers?
Are they compatible with other barriers?
The kit is designed to be compatible with existing barriers on the market and stacks with itself in every orientation for compact storage.
