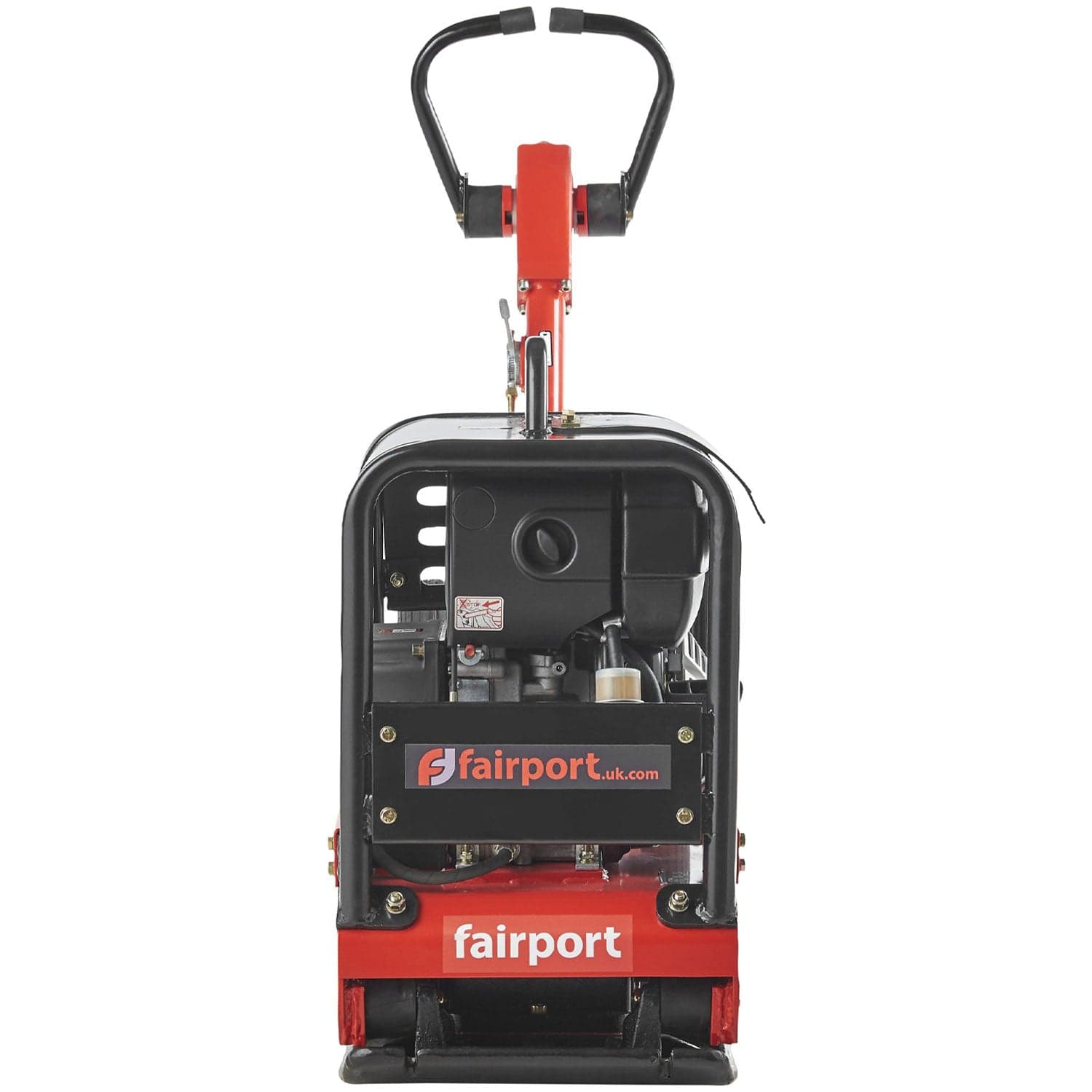

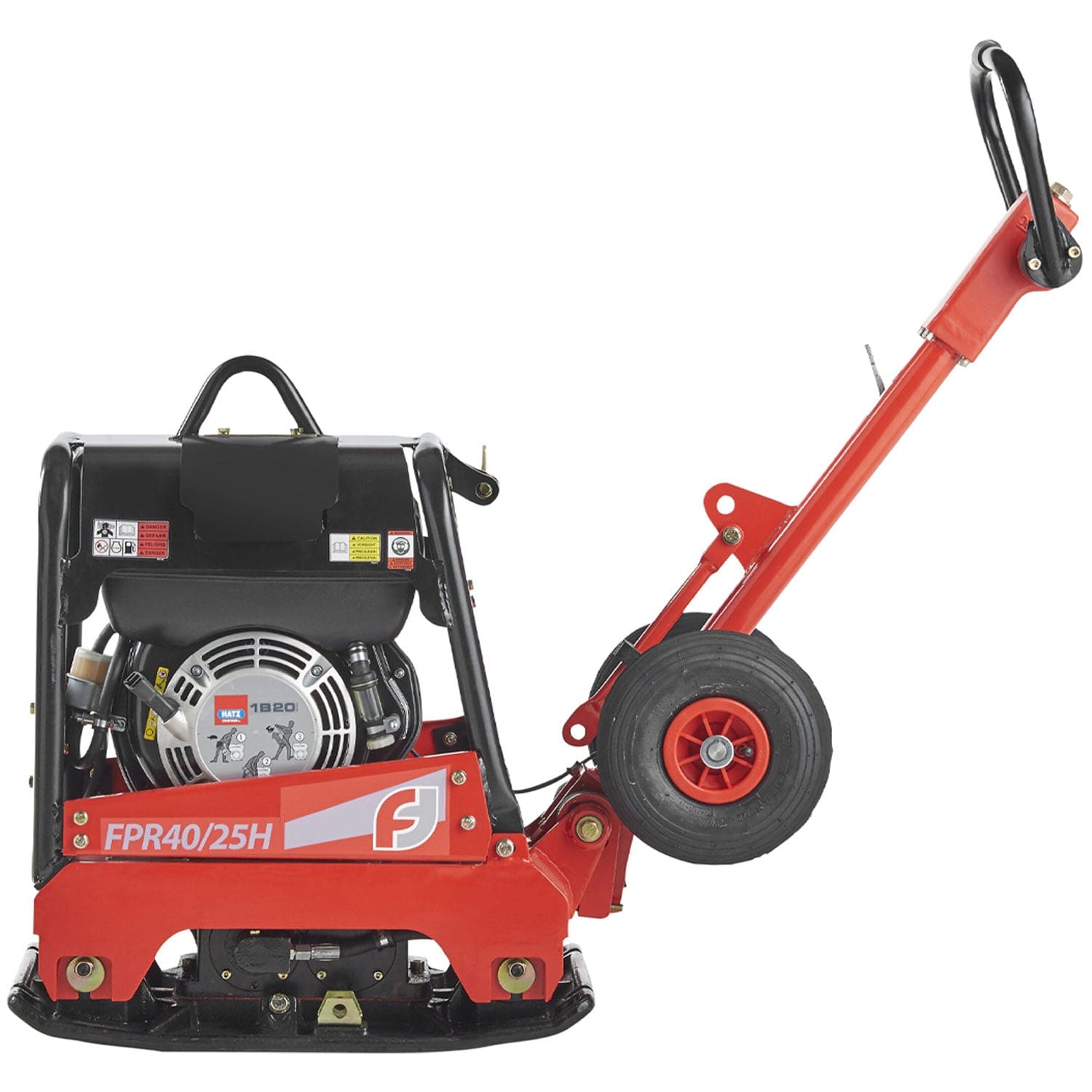

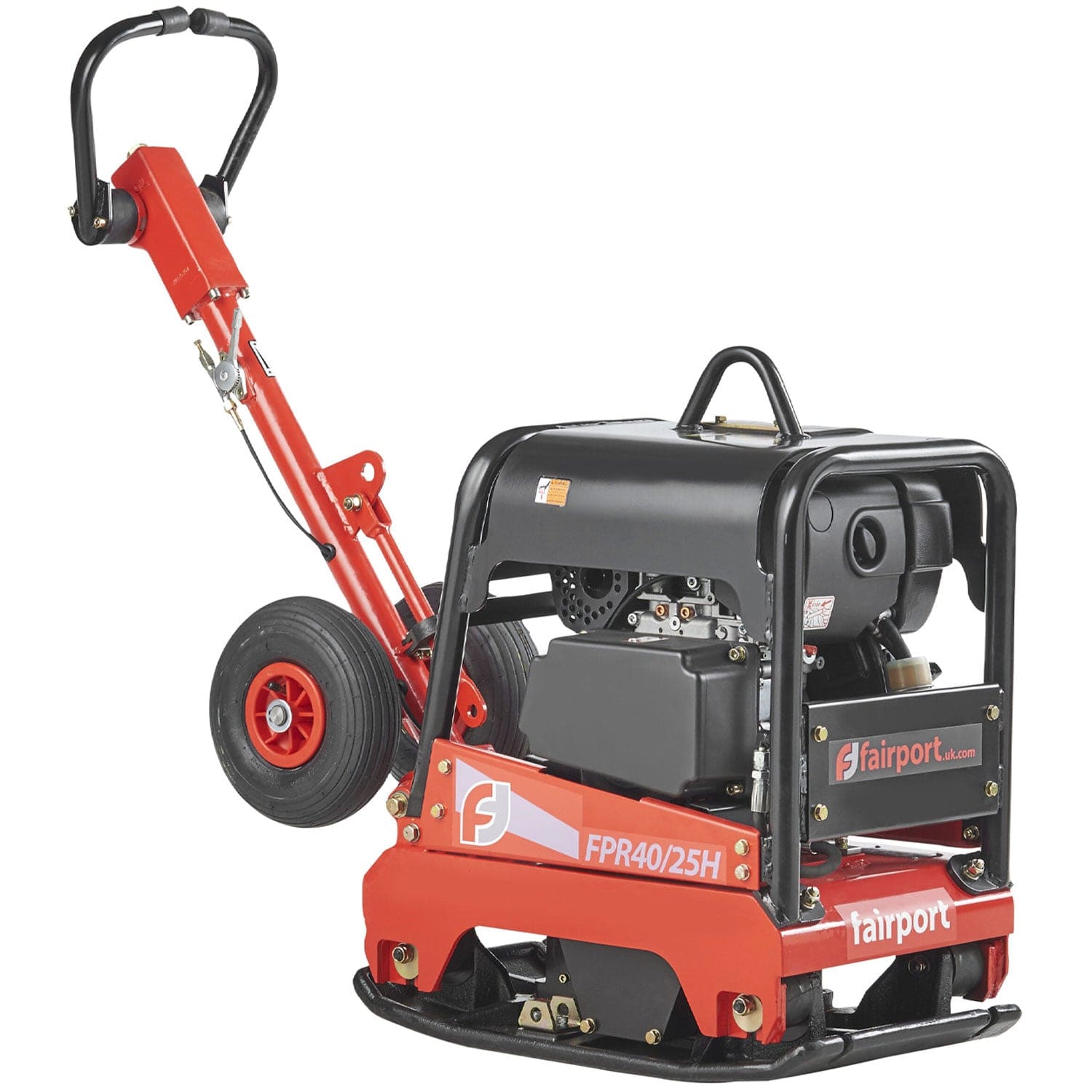

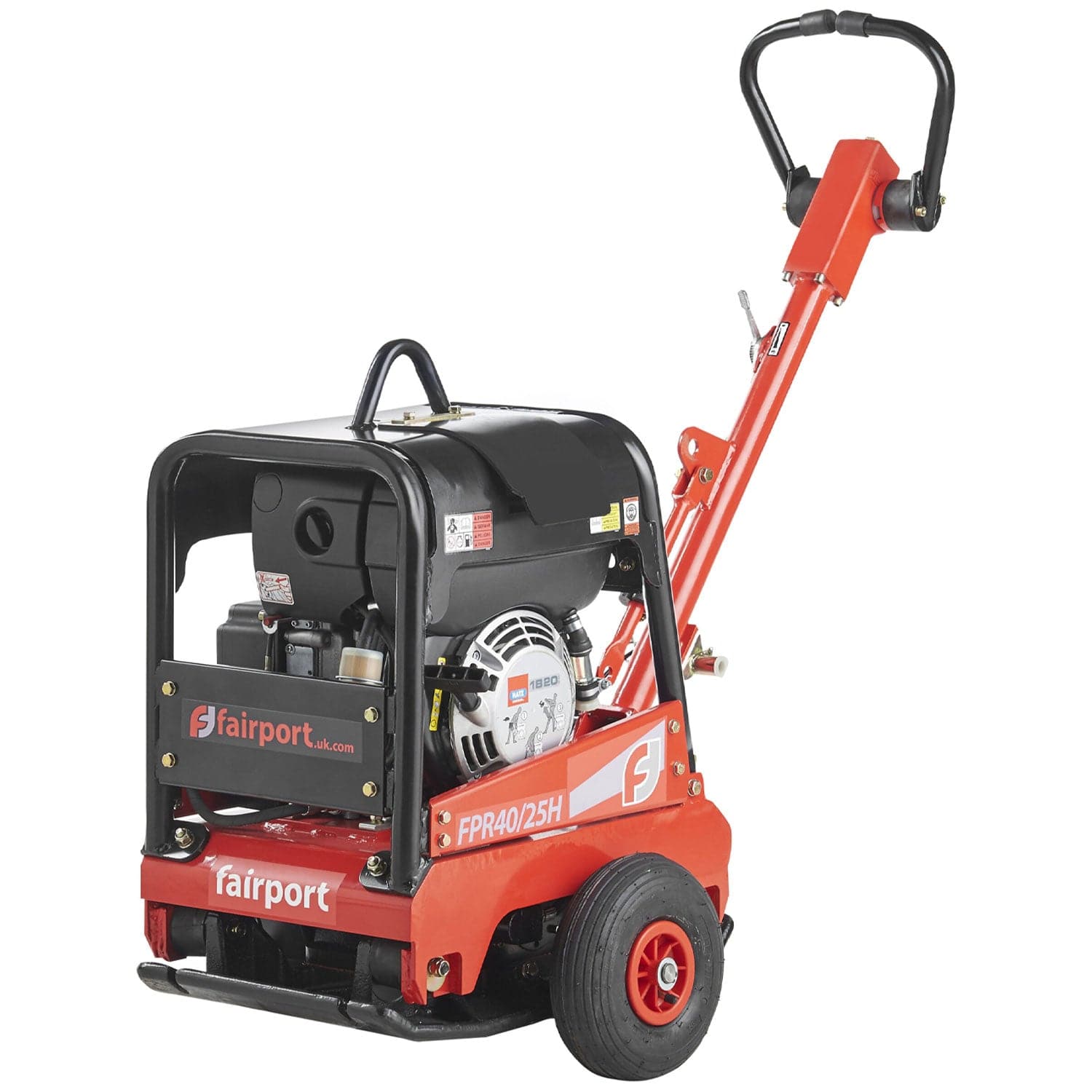

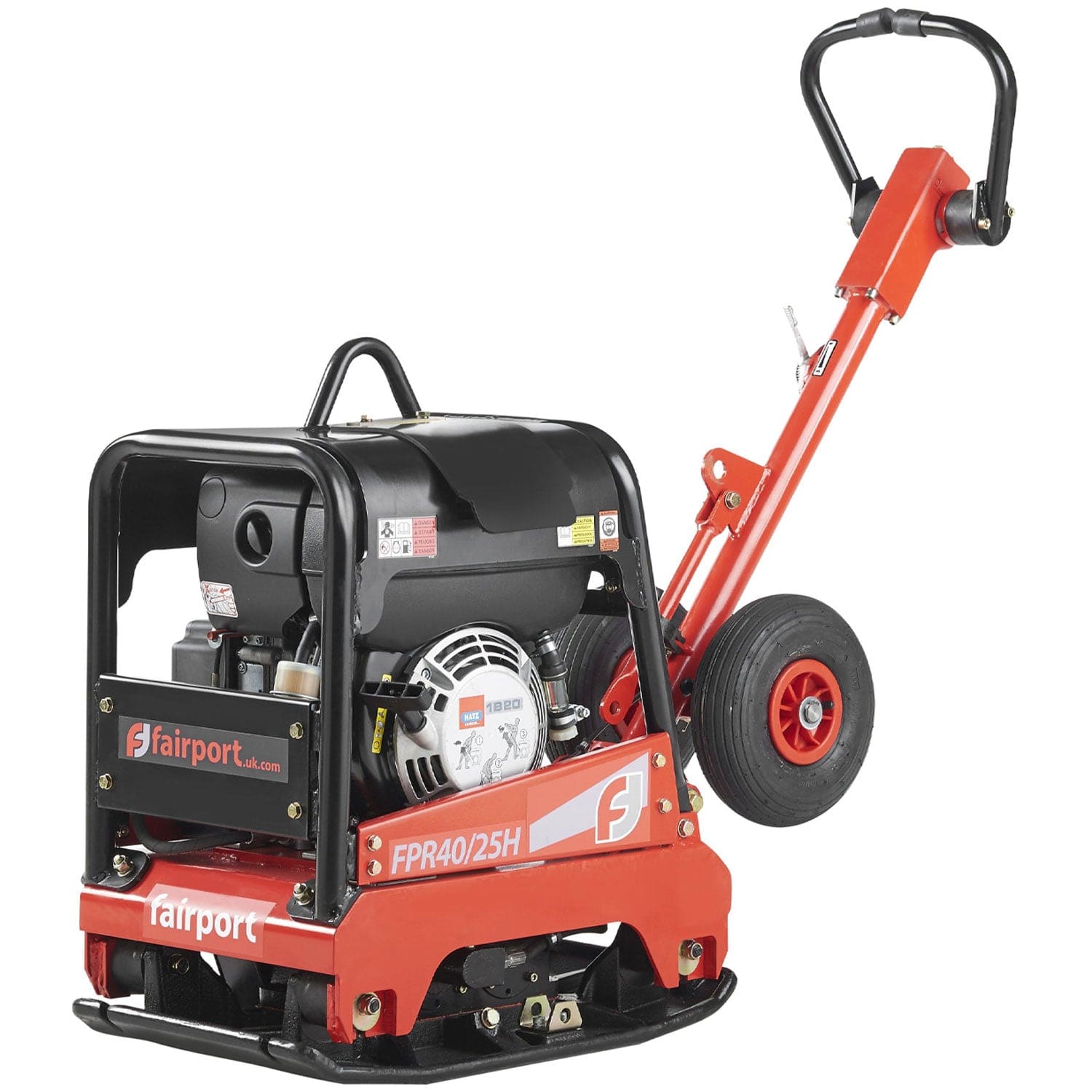

Fairport FPR40/25D Hatz Diesel Reversible Plate Compactor
Fairport FPR40/25D Hatz diesel reversible plate compactor - 25kN centrifugal force, hydraulic forward and reverse drive for site compaction.
£4,754.16
each, ex VAT
£5,704.99
inc VAT
In stock, ready to go
Fairport FPR40/25D Hatz Diesel Reversible Plate Compactor is backordered and will ship as soon as it is back in stock.
Buy more, pay less
Per unit, ex VAT. Applied automatically.
In stock
ready to go
Formal quote back in 3 hours. No account needed.
Quote in 3 hours
No account needed
- Made in the UK
- Next Day Delivery Available
- Pay in 30 days with a Trade Account. No fees.
- UK stock. Stock and lead time are shown above.
- Seen it cheaper? We beat any genuine quote. 0161 706 0479
You may also like
See all reversible plates ›Other compaction equipment in the range
Fairport FPR40/25H Petrol Reversible Plate CompactorCompaction Equipment
£3,839.99 ex VAT
£4,607.99 inc VAT
Fairport FPR50/30D Hatz Diesel Reversible Plate CompactorCompaction Equipment
£3,839.99 ex VAT
£4,607.99 inc VAT
Fairport PP33-GX120 Plate Compactor Honda PetrolCompaction Equipment
£1,281.66 ex VAT
£1,537.99 inc VAT
You may be looking for
Fairport FPR40/25D Hatz Diesel Reversible Plate Compactor
Regular price
£5,704.99
Unit price
Unavailable
Fairport FPR40/25D Hatz Diesel Reversible Plate Compactor is backordered and will ship as soon as it is back in stock.
Why it works
Built for repeat-pass site compaction
Hydraulic forward and reverse
Switch direction under power instead of manhandling the machine round for each pass.
Reverse-travel safety
The plate defaults to forward drive if the operator lets go of the handle.

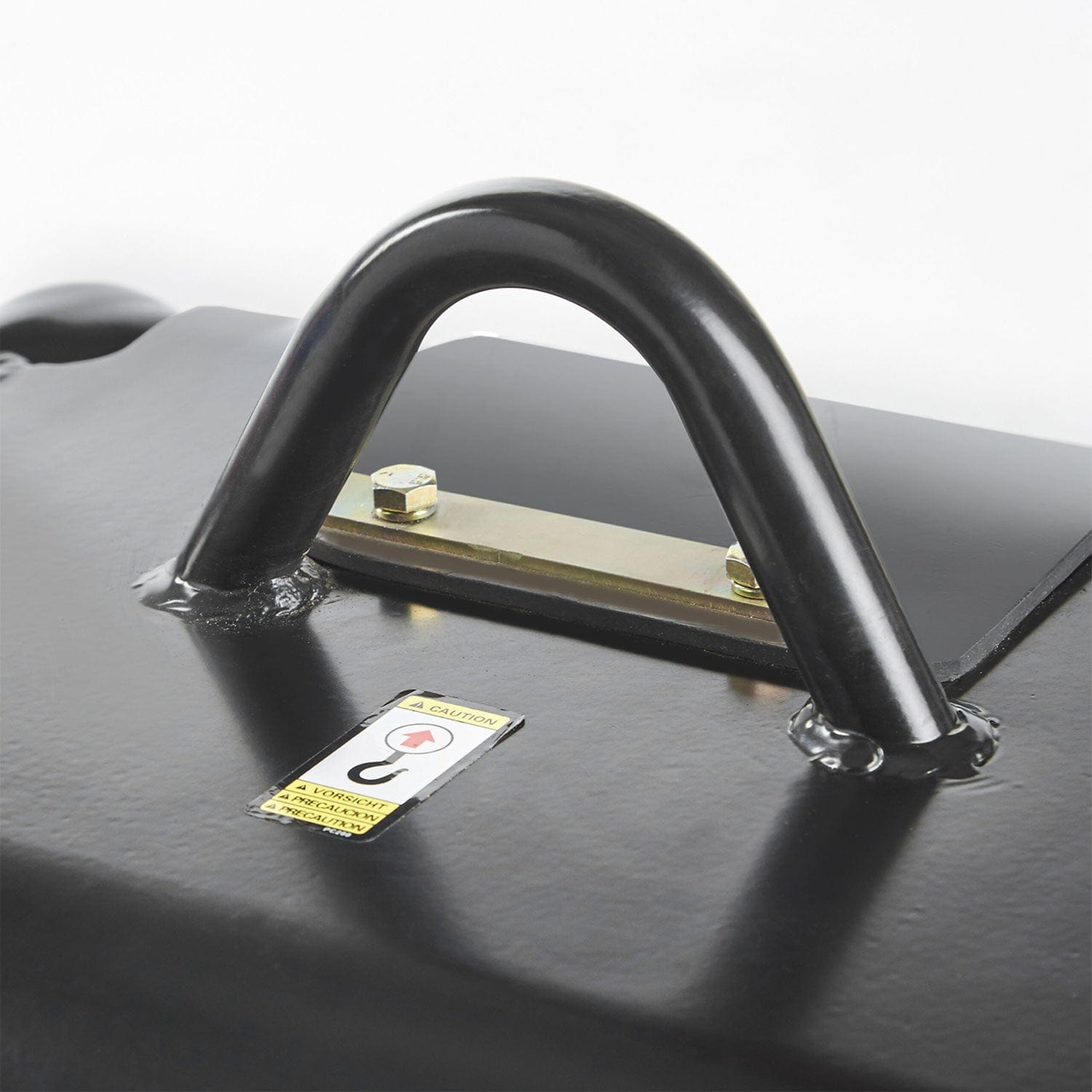

Heavy-duty roll cage
A roll cage with an integral lifting eye for crane or forklift handling on site.

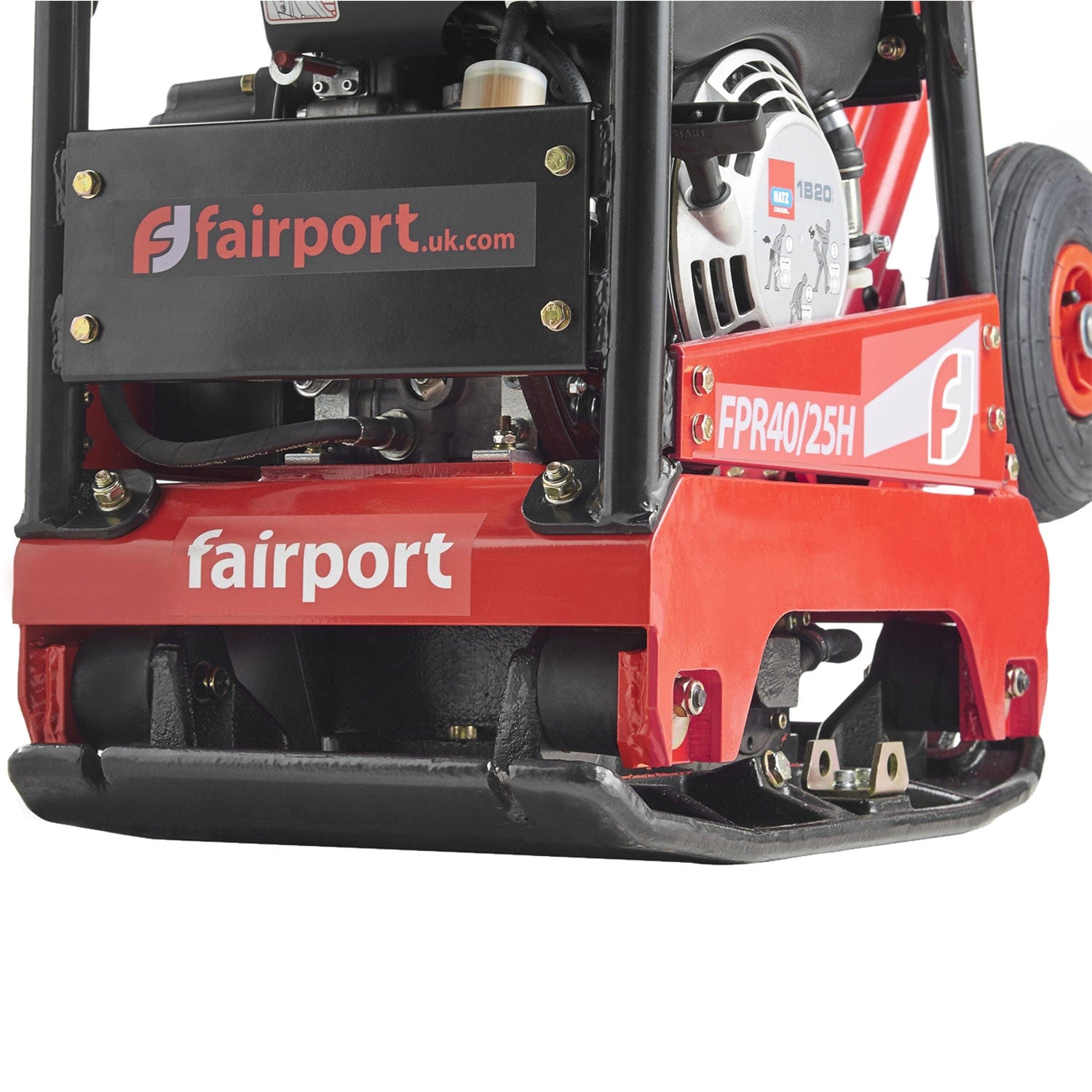

Self-cleaning base-plate
Impact-resistant, open base-plate design stops material building up mid-job.
Overview
Fairport FPR40/25D Hatz Diesel Reversible Plate Compactor - Overview
A diesel-powered reversible plate compactor for groundworks and civil engineering contractors who need consistent two-way compaction on hardcore, sub-base and soil without repositioning the machine between passes.
170kg
Weight
25kN
Centrifugal Force
4.8HP
Engine Power
650mm
Plate Width
| Dimensions | |
|---|---|
| Plate width | 650mm |
| Plate length | 400mm |
| Weight | 170kg |
| Details | |
|---|---|
| Engine | Hatz 1B20 diesel |
| Power | 4.8 HP / 3.5kW |
| Centrifugal force | 25kN |
| Hand-arm vibration (HAV) | 4.2m/s² |
Frequently asked questions
Is this the diesel or petrol version?
Is this the diesel or petrol version?
It runs a Hatz 1B20 diesel engine. If you would rather run on petrol, the FPR40/25H is the same frame size with a petrol engine.
How much does it weigh and how do you move it?
How much does it weigh and how do you move it?
It weighs 170kg. The roll cage has an integral lifting eye for crane or forklift lifting, and it has transport wheels fitted as standard for rolling it short distances on site.
What does the hand-arm vibration rating tell me?
What does the hand-arm vibration rating tell me?
It is rated at 4.2m/s². Site teams use this figure to track how long an operator can run the machine before reaching daily workplace vibration exposure limits.
Can it compact in both directions?
Can it compact in both directions?
Yes. The hydraulic drive runs forward and reverse under power, and it defaults to forward travel if the operator releases the handle, which is a built-in safety feature rather than an optional extra.
What is the self-cleaning base-plate for?
What is the self-cleaning base-plate for?
It is an impact-resistant, open base-plate design that stops aggregate and sub-base material building up underneath the machine during use.

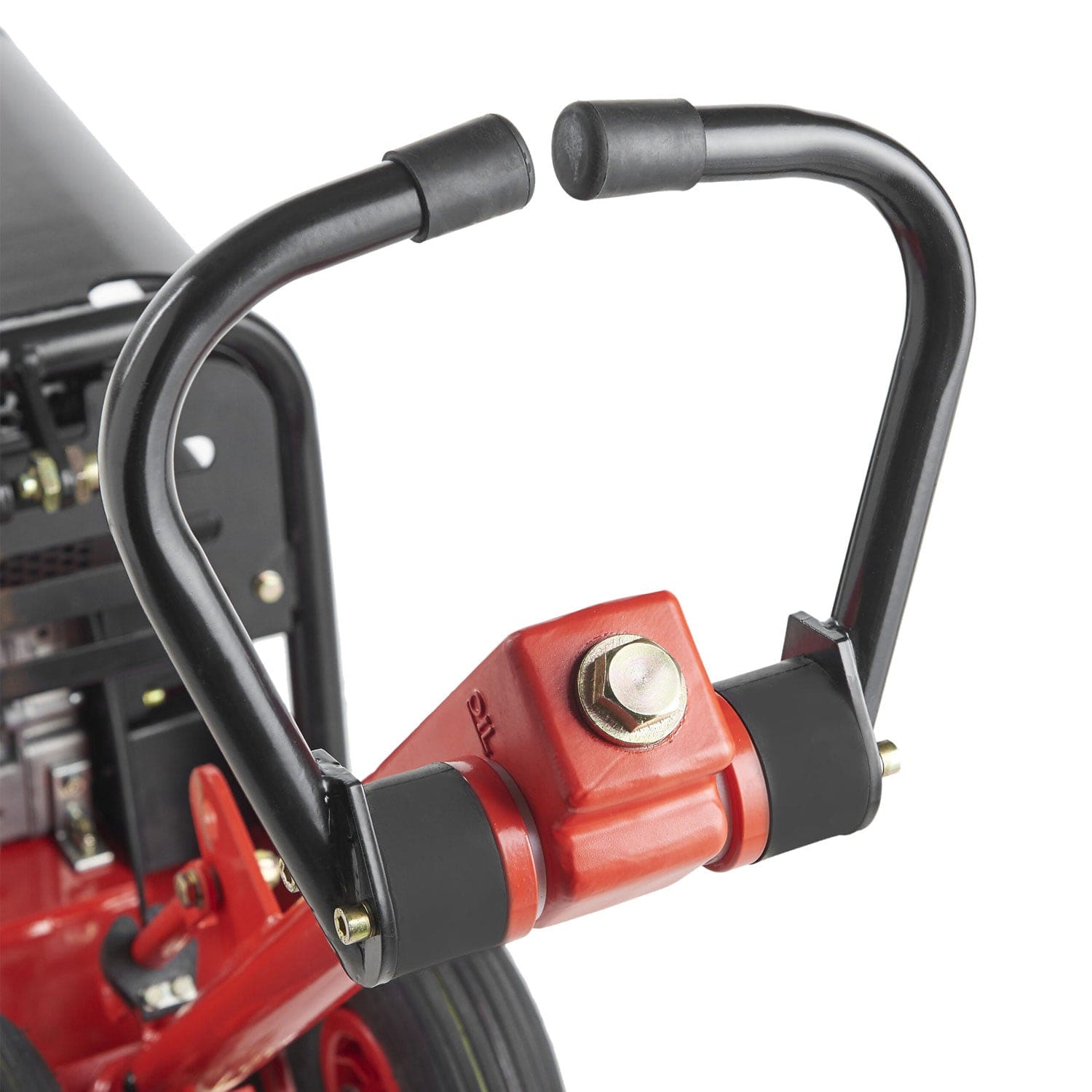

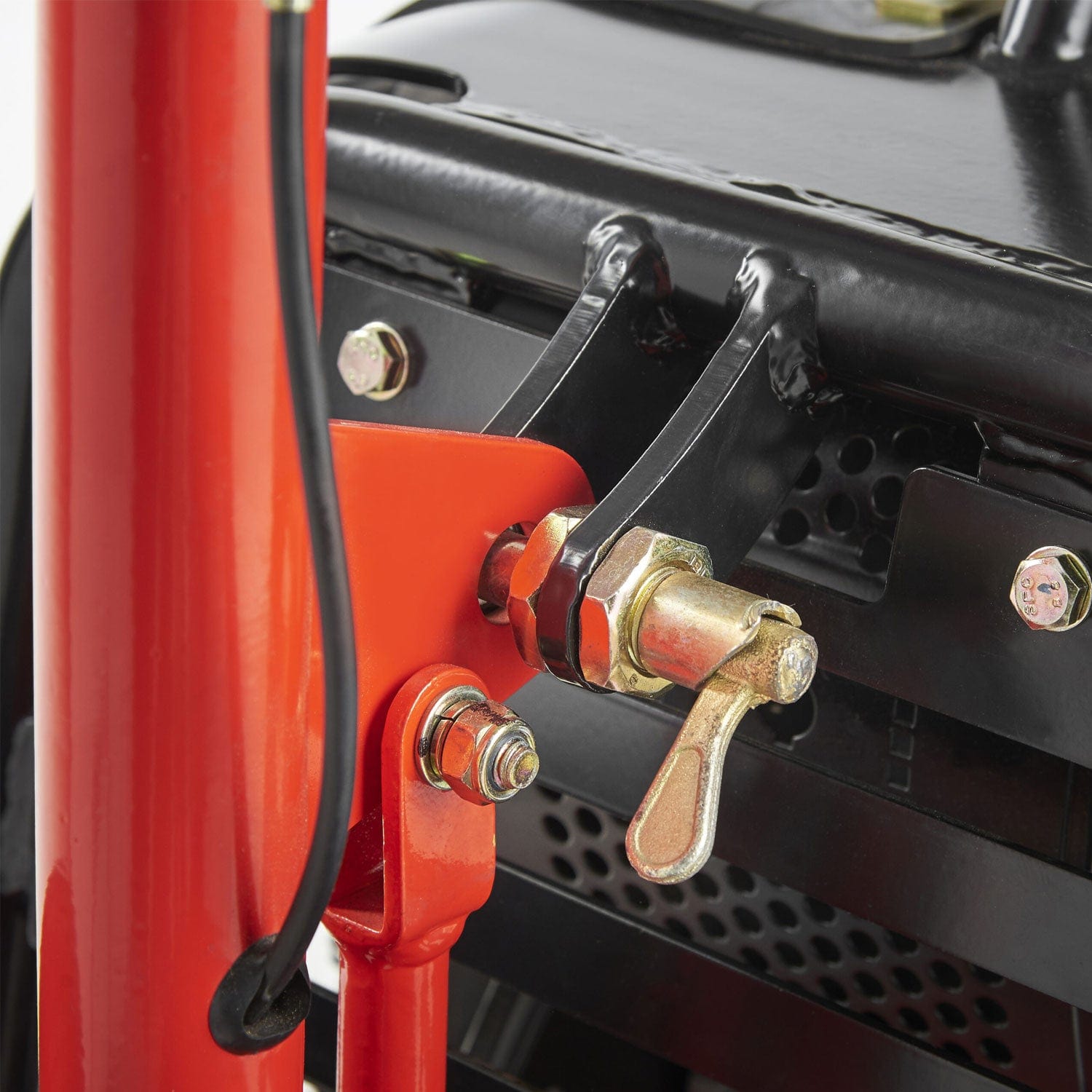

Does the handle fold down?
Does the handle fold down?
Yes, to 45 degrees and 90 degrees. That makes it easier to load onto a trailer or van as well as to store between jobs.
What is covered under warranty?
What is covered under warranty?
Fairport provide a 1-year warranty from the date of purchase. A warranty registration form needs to be submitted within 7 days of sale for a claim to be valid.
