Procity · SKU:
041006
Steel Height Restriction Nudge Bar
Galvanised steel height restriction bar, 1500mm long with adjustable chains and red reflective bands for car parks and tunnels.
£126.66
each, ex VAT
£151.99
inc VAT
Ships in 10 to 20 working days
Steel Height Restriction Nudge Bar is backordered and will ship as soon as it is back in stock.
Buy more, pay less
Per unit, ex VAT. Applied automatically.
Ships in
10 to 20 working days
Formal quote back in 3 hours. No account needed.
Quote in 3 hours
No account needed
- Made in the UK
- Pay in 30 days with Klarna. No fee. Learn more
- Next Day Delivery Available
- Pay in 30 days with a Trade Account. No fees.
- UK stock. Stock and lead time are shown above.
- Seen it cheaper? We beat any genuine quote. 0161 706 0479
You may also like
See all vehicle nudge bars ›Other height restriction barriers in the range
Plastic Height Restriction Nudge BarHeight Restriction Barriers
£45.83 ex VAT
£54.99 inc VAT
GS6 Telescopic Poles & Bunting PackHeight Restriction Barriers
£199.99 ex VAT
£239.99 inc VAT
Heavy Duty Fixed Height Vehicle Restrictor - With Swing GateHeight Restriction Barriers
£1,845.83 ex VAT
£2,214.99 inc VAT
Steel Height Restriction Nudge Bar
Regular price
£151.99
Unit price
Unavailable
Steel Height Restriction Nudge Bar is backordered and will ship as soon as it is back in stock.
Why it works
Built to warn, not damage
Corrosion-resistant build
Galvanised steel keeps protecting even if the white lacquer finish gets chipped or scratched.
High-visibility bands
Red reflective bands on a white body make the bar easy to spot in low light or against a busy background.
Bolt-fit installation
Fixes to concrete or metal overhead structures with M10 bolts - no specialist tools or equipment needed.
Adjustable fit
500mm chains let you set the exact height the bar hangs at for the vehicles you need to stop.
Overview
Steel Height Restriction Nudge Bar - Overview

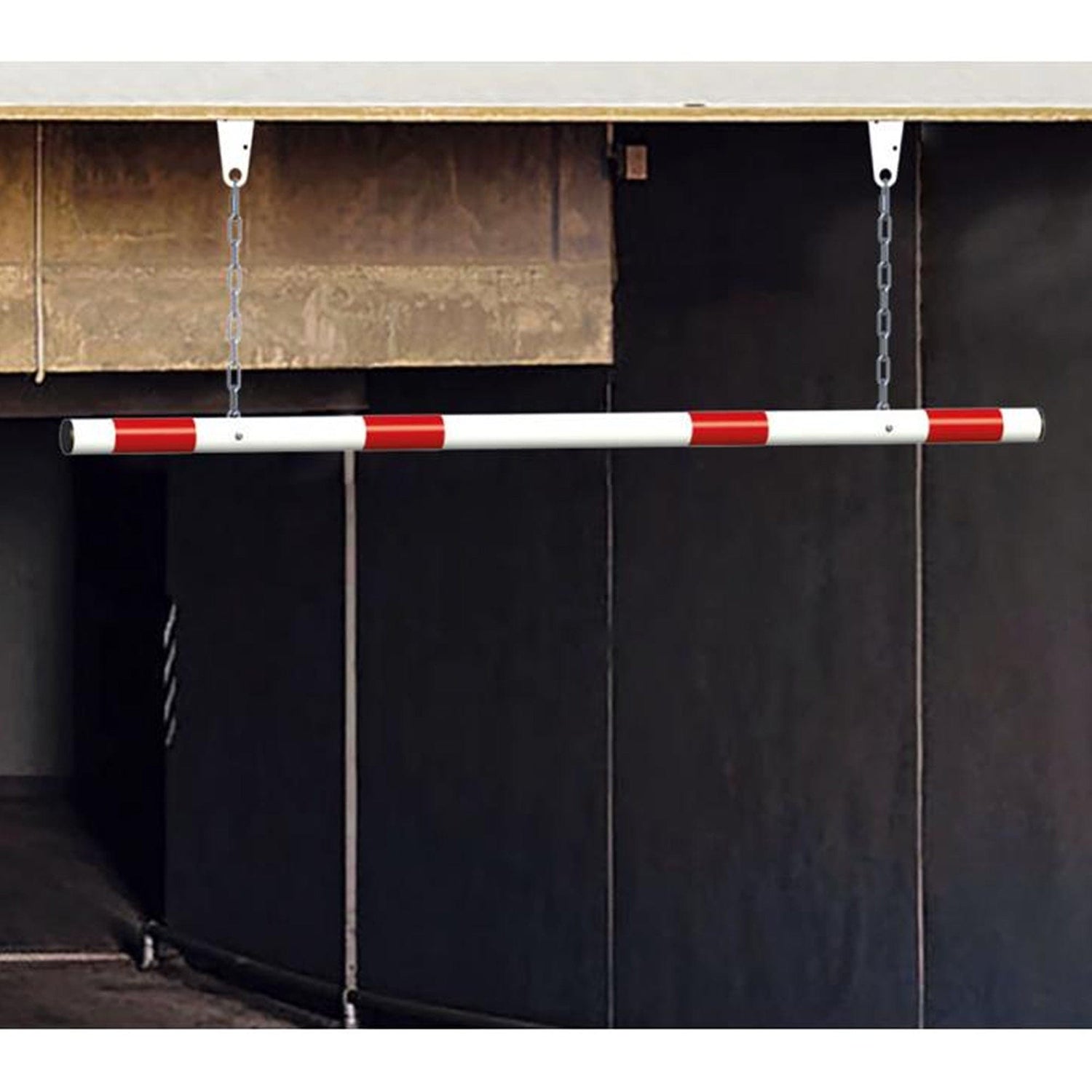

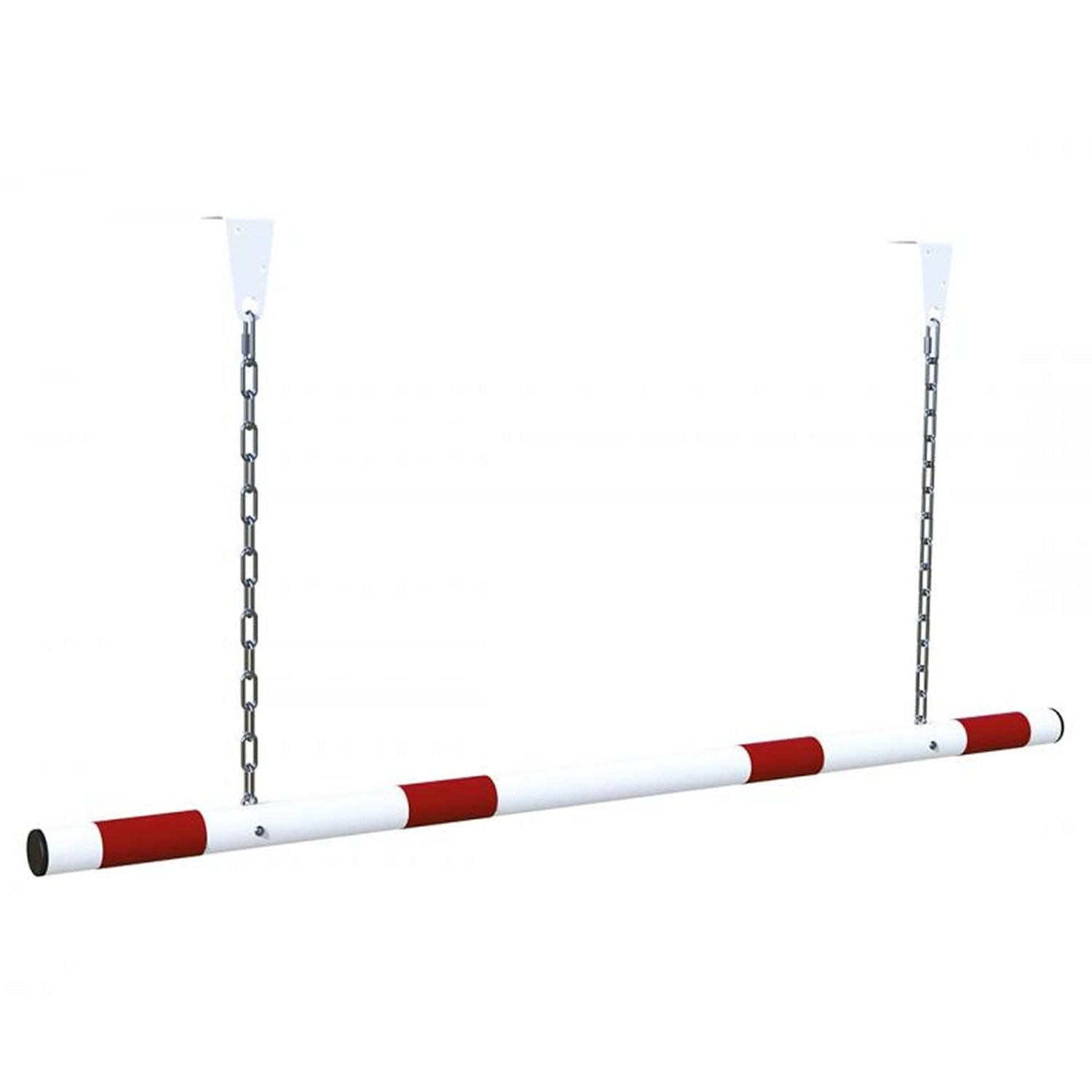

A galvanised steel bar that hangs above a vehicle route on adjustable chains, warning drivers with an audible signal before an oversized vehicle strikes an overhead structure. Built for car parks, tunnels and industrial yards where height clearance needs a visible, durable check.
1500mm
Bar length
50mm
Tube diameter
7kg
Weight
704mm
Ceiling clearance
| Dimensions | |
|---|---|
| Length | 1500mm |
| Diameter | 50mm |
| Distance between ceiling and bar | 704mm |
| Weight | 7kg |
| Details | |
|---|---|
| Colour | Red & white |
| Installation | Chain and links (500mm chain supplied), M10 ceiling bolts (x4) |
| Material | Galvanised steel |
| Finish | White lacquer with red reflective bands |
Frequently asked questions
What happens if a vehicle hits the bar?
What happens if a vehicle hits the bar?
The bar swings on its chains and creates an audible warning on contact. It is designed to alert the driver rather than stop or damage the vehicle, and the bar itself is not damaged by normal contact.
Can I adjust the height it hangs at?
Can I adjust the height it hangs at?
Yes. The bar is suspended on two 500mm chains, so you can shorten or lengthen the drop to set the exact height for your access route.
What is the bar made from?
What is the bar made from?
A 50mm diameter galvanised steel tube finished in white lacquer with red reflective bands. The galvanised coating keeps protecting against corrosion even if the paint finish gets scratched.
How is it fixed in place?
How is it fixed in place?
Universal fixing brackets let you suspend the bar from concrete or metal overhead structures using the supplied chains, then bolt the brackets in with M10 fixings.
How much does the bar weigh?
How much does the bar weigh?
The bar weighs 7kg, so two people can lift and fit it without any lifting equipment.
What size opening does it cover?
What size opening does it cover?
The bar is 1500mm long, wide enough for most single traffic lanes such as a car park entrance or a tunnel approach.
