Fairport · SKU:
131001

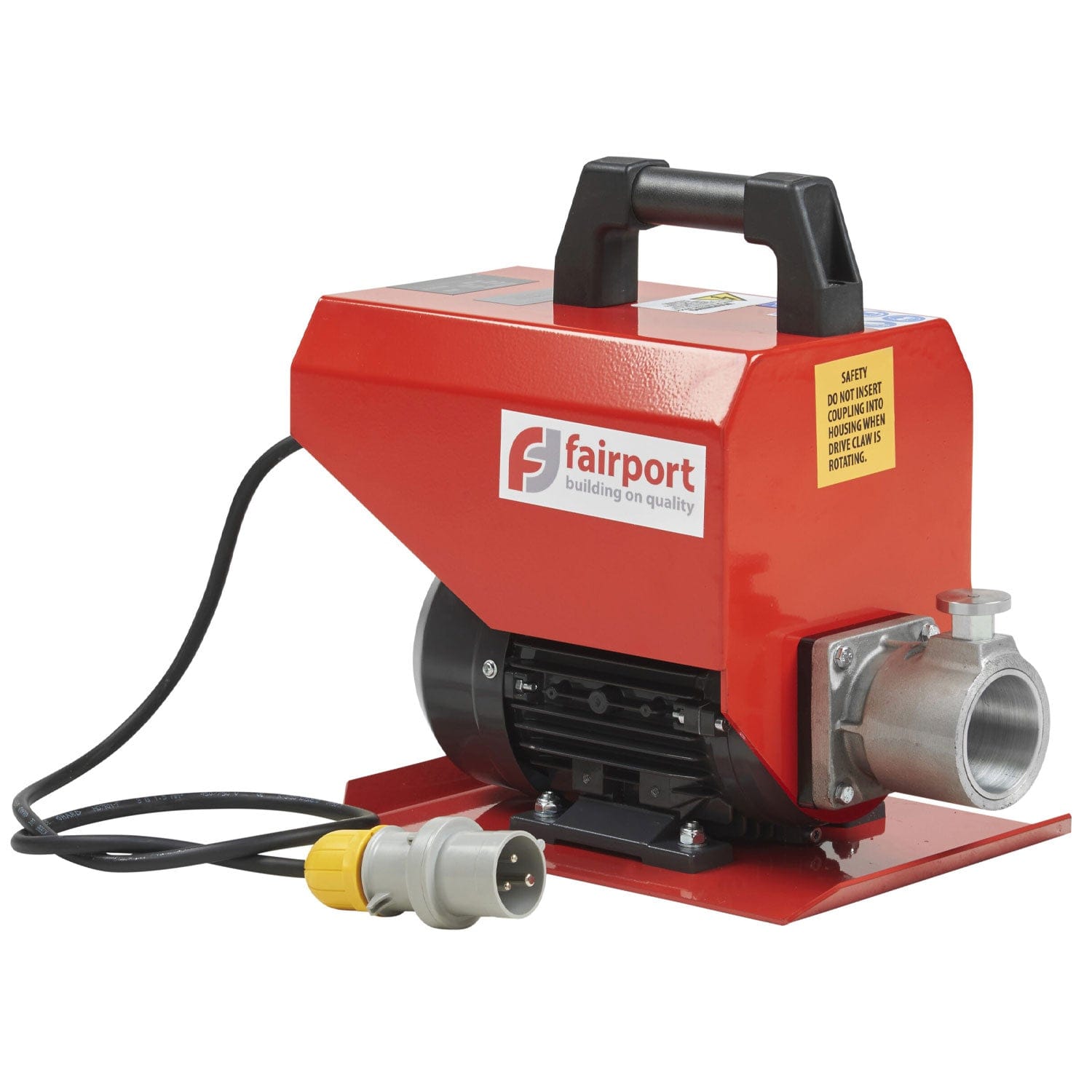

Fairport Electric Drive Unit for Poker & Pump Drive Unit 115v
Fairport 115V electric drive unit for concrete pokers - Dynapac coupling, 0.75kW motor, 2800rpm and thermal overload protection in a steel casing.
£755.83
each, ex VAT
£906.99
inc VAT
Ships in 1 to 5 working days
Fairport Electric Drive Unit for Poker & Pump Drive Unit 115v - Dynapac is backordered and will ship as soon as it is back in stock.
Buy more, pay less
Per unit, ex VAT. Applied automatically.
Ships in
1 to 5 working days
Formal quote back in 3 hours. No account needed.
Quote in 3 hours
No account needed
- Made in the UK
- Next Day Delivery Available
- Pay in 30 days with a Trade Account. No fees.
- UK stock. Stock and lead time are shown above.
- Seen it cheaper? We beat any genuine quote. 0161 706 0479
You may also like
See all vibrating pokers ›Other concrete vibrator drive units in the range
Fairport Ultravibe Handheld Electric Motor 115v - Power UnitConcrete Vibrator Drive Units
£349.16 ex VAT
£418.99 inc VAT
Fairport PDU Petrol Drive Unit Honda GX160 with Dynapac Housing for Poker & Pump Drive UnitsConcrete Vibrator Drive Units
£705.83 ex VAT
£846.99 inc VAT
You may be looking for
Fairport Electric Drive Unit for Poker & Pump Drive Unit 115v
Regular price
£906.99
Unit price
Unavailable
Fairport Electric Drive Unit for Poker & Pump Drive Unit 115v - Dynapac is backordered and will ship as soon as it is back in stock.
Why it works
Site-Ready by Design

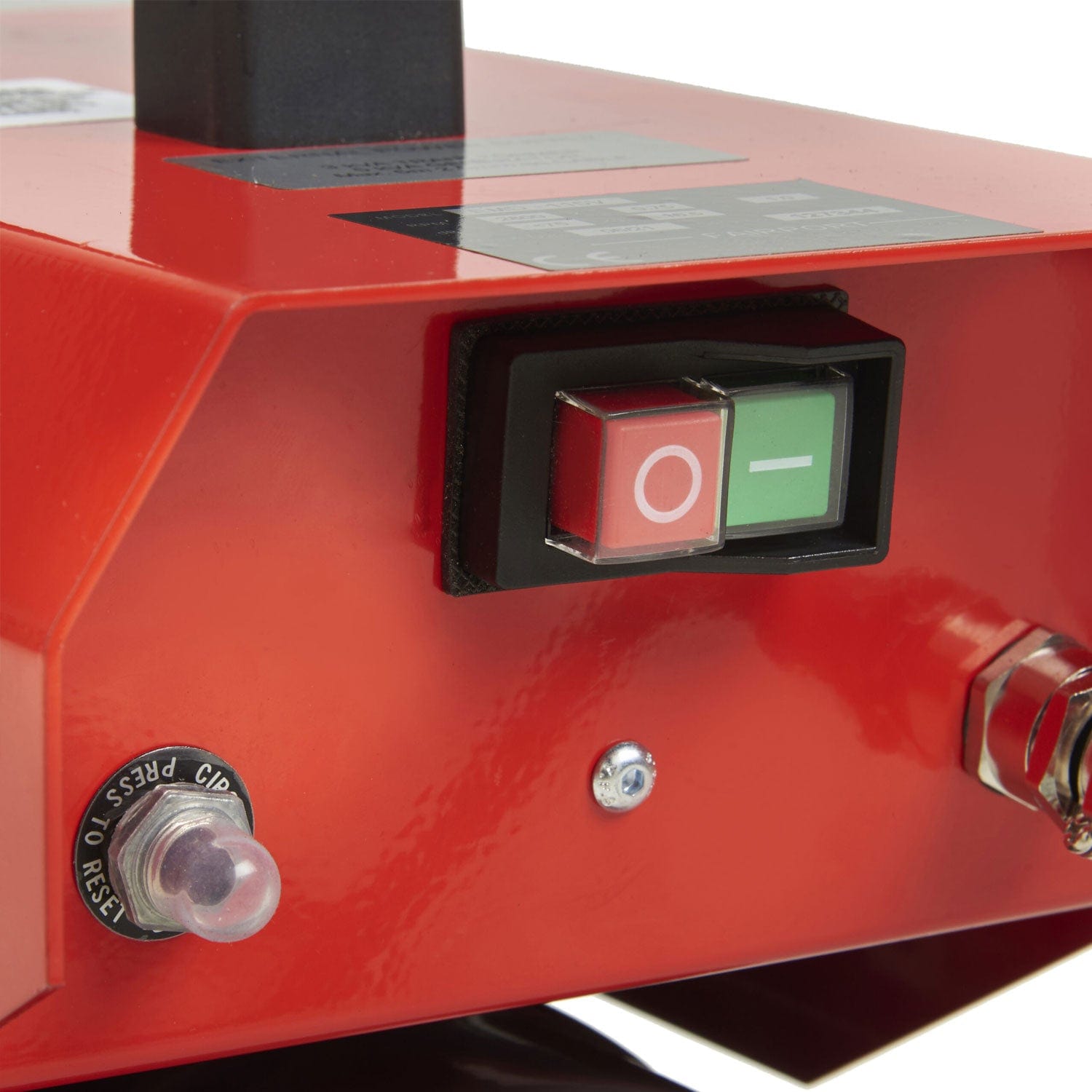

Thermal cut-out protection
A manual-reset thermal cut-out protects the motor if it overheats in use.

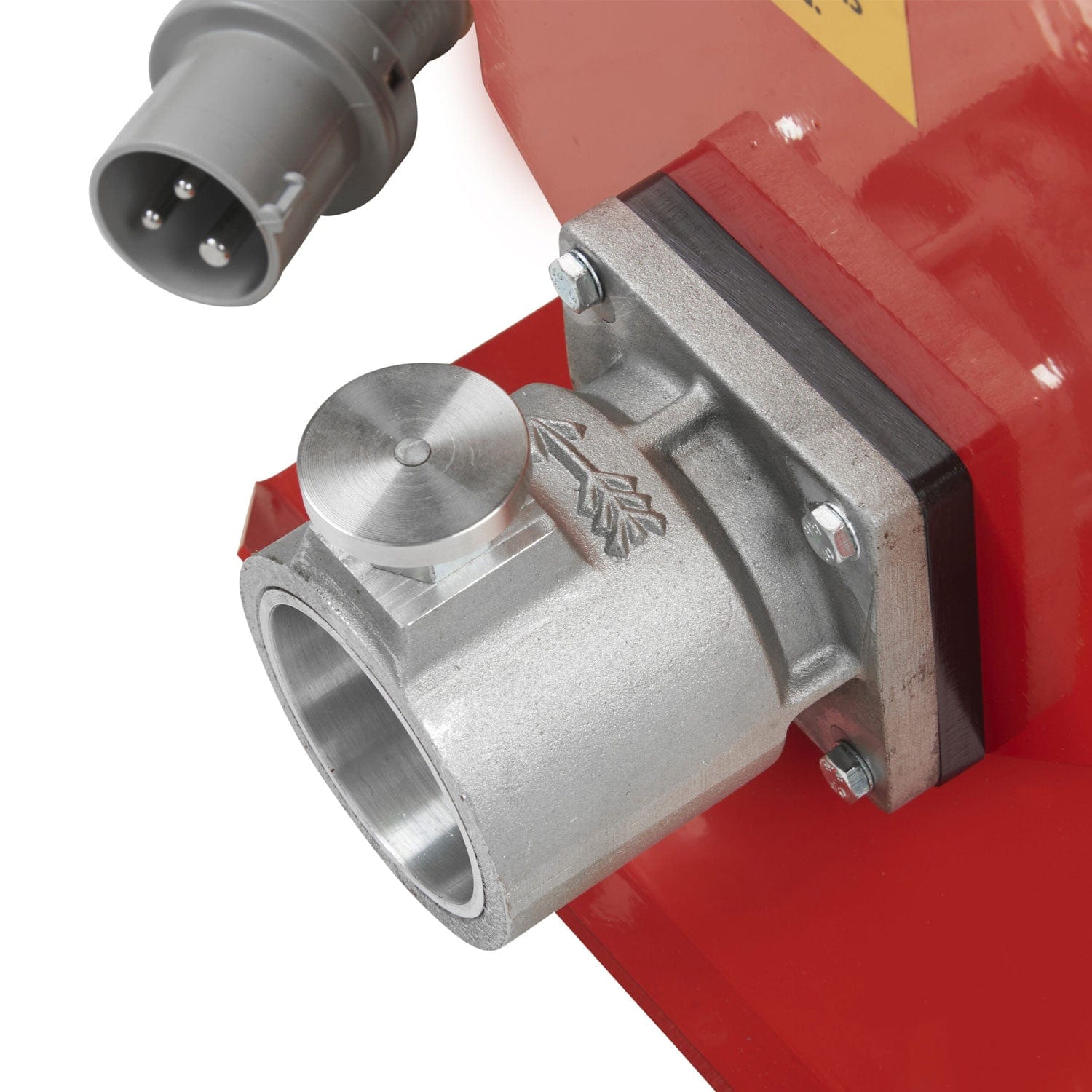

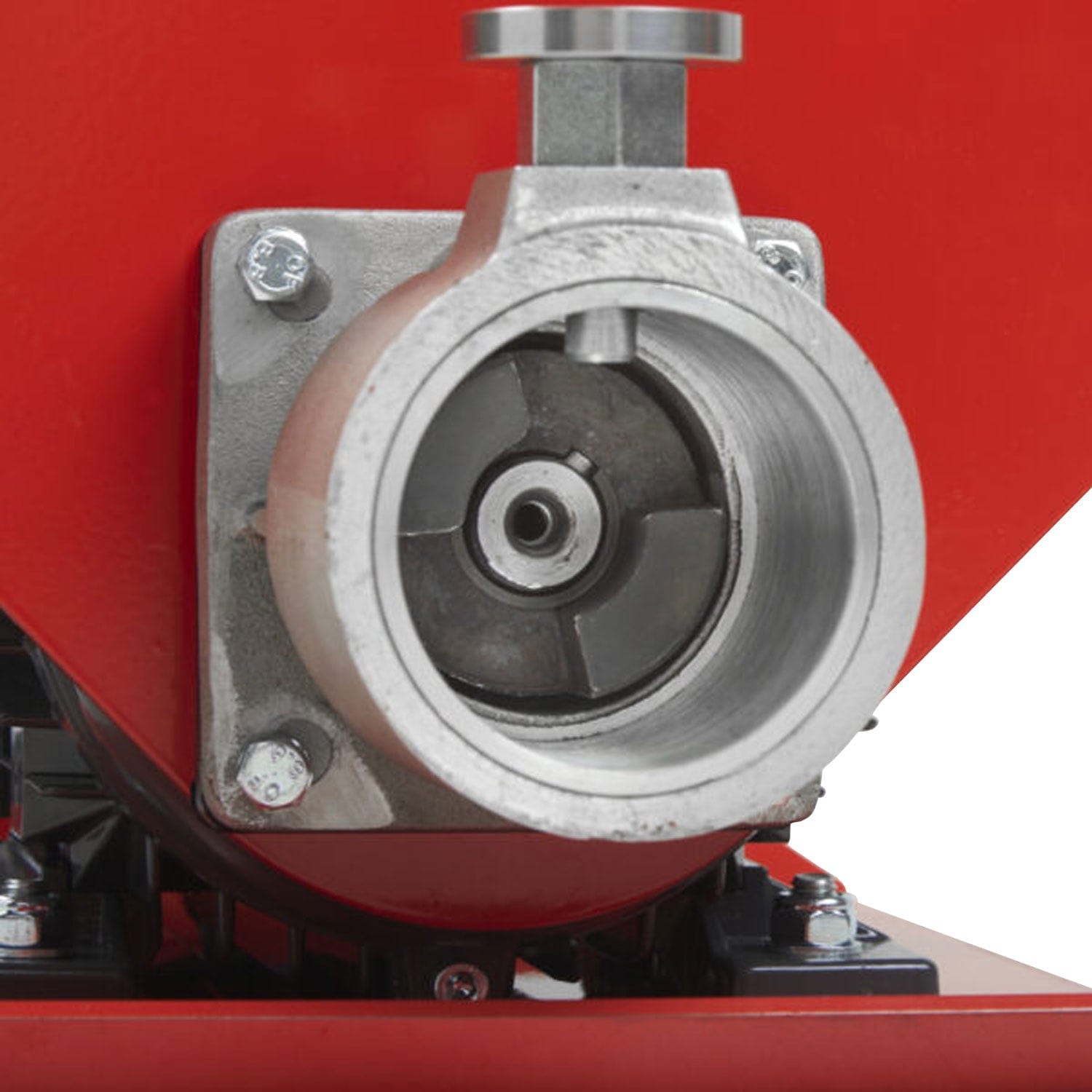

Dynapac coupling fit
Drives Dynapac-coupled poker and pump heads without an adaptor.
Steel casing build
Steel casing shields the motor from knocks and site conditions.
High-visibility casing
The red steel casing and safety warning labels keep the unit easy to spot on a busy site.
Overview
Fairport Electric Drive Unit - Overview

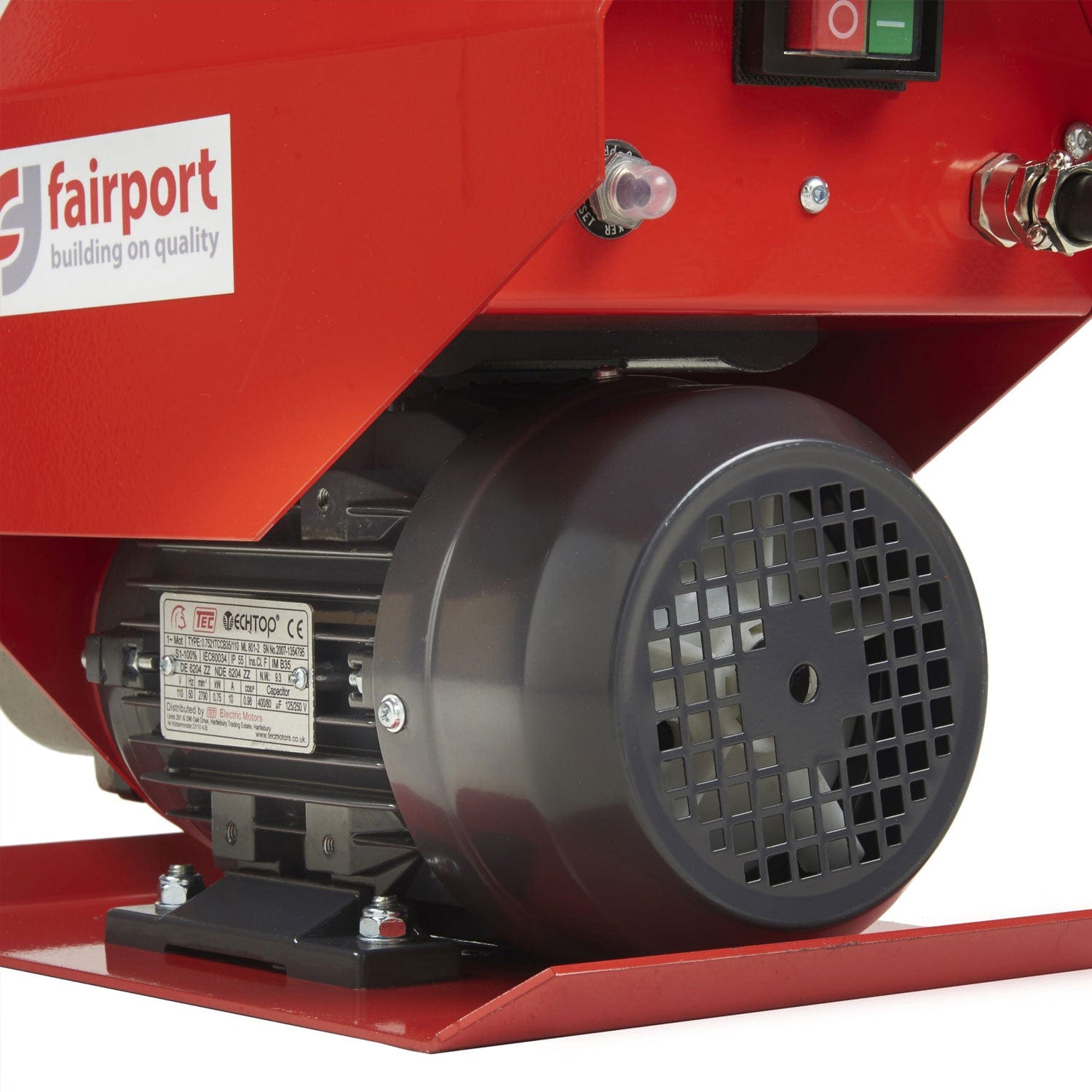

A 115V electric drive unit built to power Fairport pump and poker attachments on site. The compact steel-cased unit pairs a 0.75kW motor with a Dynapac coupling, making it a straightforward swap for contractors already running Dynapac-fit poker heads.
0.75kW
Motor power
2800rpm
Motor speed
16.5kg
Weight
75dB
Max sound power
| Dimensions | |
|---|---|
| Length | 316mm |
| Height | 315mm |
| Width | 245mm |
| Weight | 16.5kg |
| Details | |
|---|---|
| Power | 1.0hp / 0.75kW |
| Speed | 2800rpm |
| Sound power | <75dB |
| Drive coupling | Dynapac |
| Voltage | 115V |
Frequently asked questions
What voltage does this drive unit run on?
What voltage does this drive unit run on?
It runs on a 115V site supply via a 16A plug, matching standard UK/Ireland site transformers.
Which poker heads will it fit?
Which poker heads will it fit?
It uses a Dynapac-pattern coupling, so it fits poker and pump heads built for that coupling type. Check your poker's coupling before ordering if you're not already running Dynapac.
How powerful is the motor?
How powerful is the motor?
The motor is rated 0.75kW (1.0hp) and runs at 2800rpm.
What happens if the motor overheats?
What happens if the motor overheats?
A thermal cut-out trips automatically and the unit is restarted with the manual reset button on the casing.
How heavy is the unit to carry?
How heavy is the unit to carry?

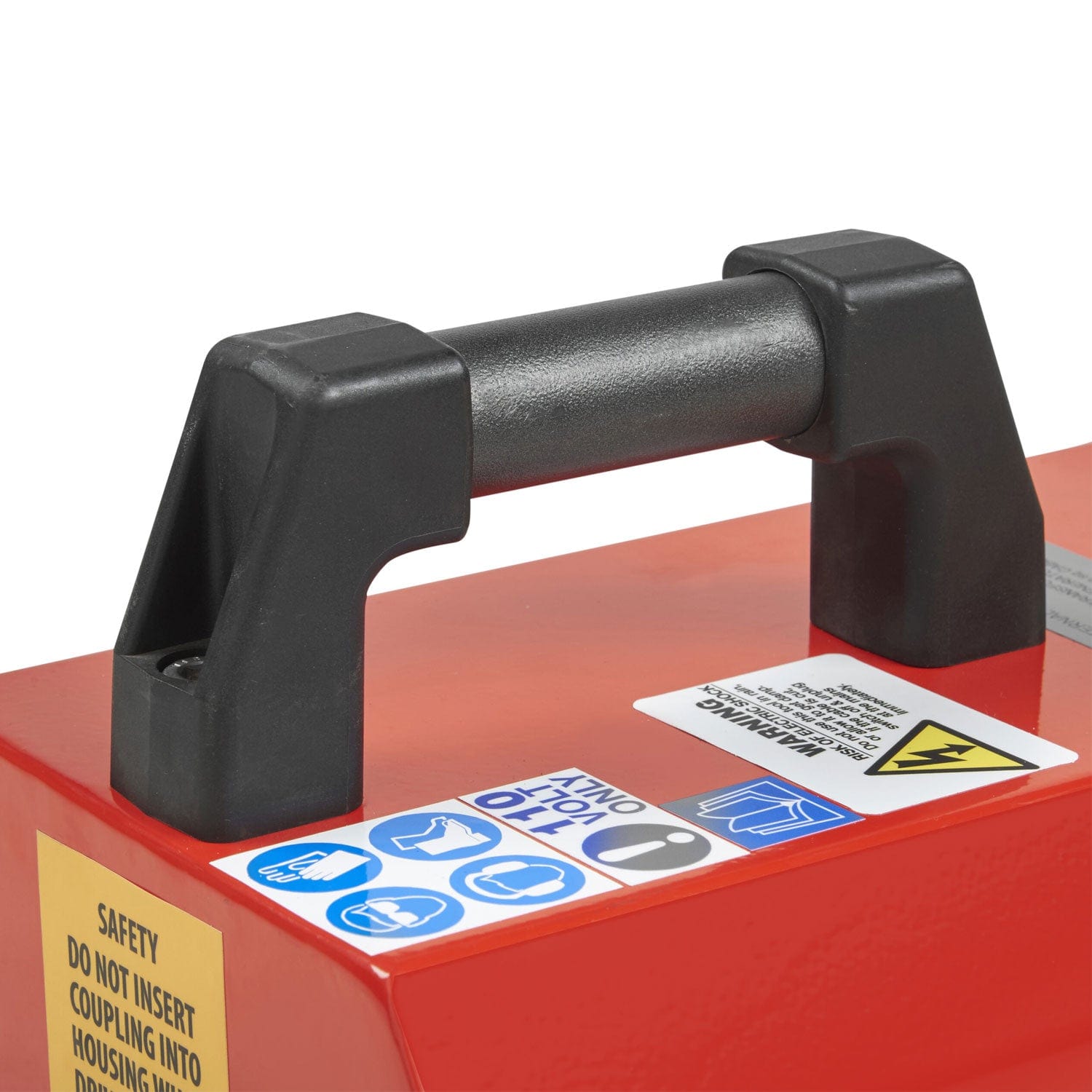

It weighs 16.5kg and has a moulded lifting handle, so one person can move it between locations.
Is it noisy to run?
Is it noisy to run?
Guaranteed sound power is under 75dB, which is quiet for a site-based drive unit.
Does it come with the poker or hose attached?
Does it come with the poker or hose attached?
No - this is the drive unit only. The poker head and flexible drive shaft are sold separately.
