Autopa | SKU:
085003
ACP1 Galvanised Steel Column Protector - 800mm
£339.74
Ex. VAT
£407.69
Inc. VAT
Why buy from us
- Pay in 30 days with a Trade Account. No fees.
- Trade and bulk pricing available on request
- UK stock, dispatched fast
ACP1 Galvanised Steel Column Protector - 800mm - Galvanised / Concrete In is backordered and will ship as soon as it is back in stock.
Ships in
10 – 15 working days
Quote in 3 hours
No account needed
- Made in the UK
- Pay in 30 days with Klarna. No fee. Learn more
- Next Day Delivery Available
ACP1 Galvanised Steel Column Protector - 800mm
Regular priceFrom
£385.89
Unit price
Unavailable
ACP1 Galvanised Steel Column Protector - 800mm - Galvanised / Concrete In is backordered and will ship as soon as it is back in stock.
Why it works
Built to take the impact
Absorbs impact
Three-post tube-steel construction takes the hit from forklifts and reversing vehicles instead of the column behind it.

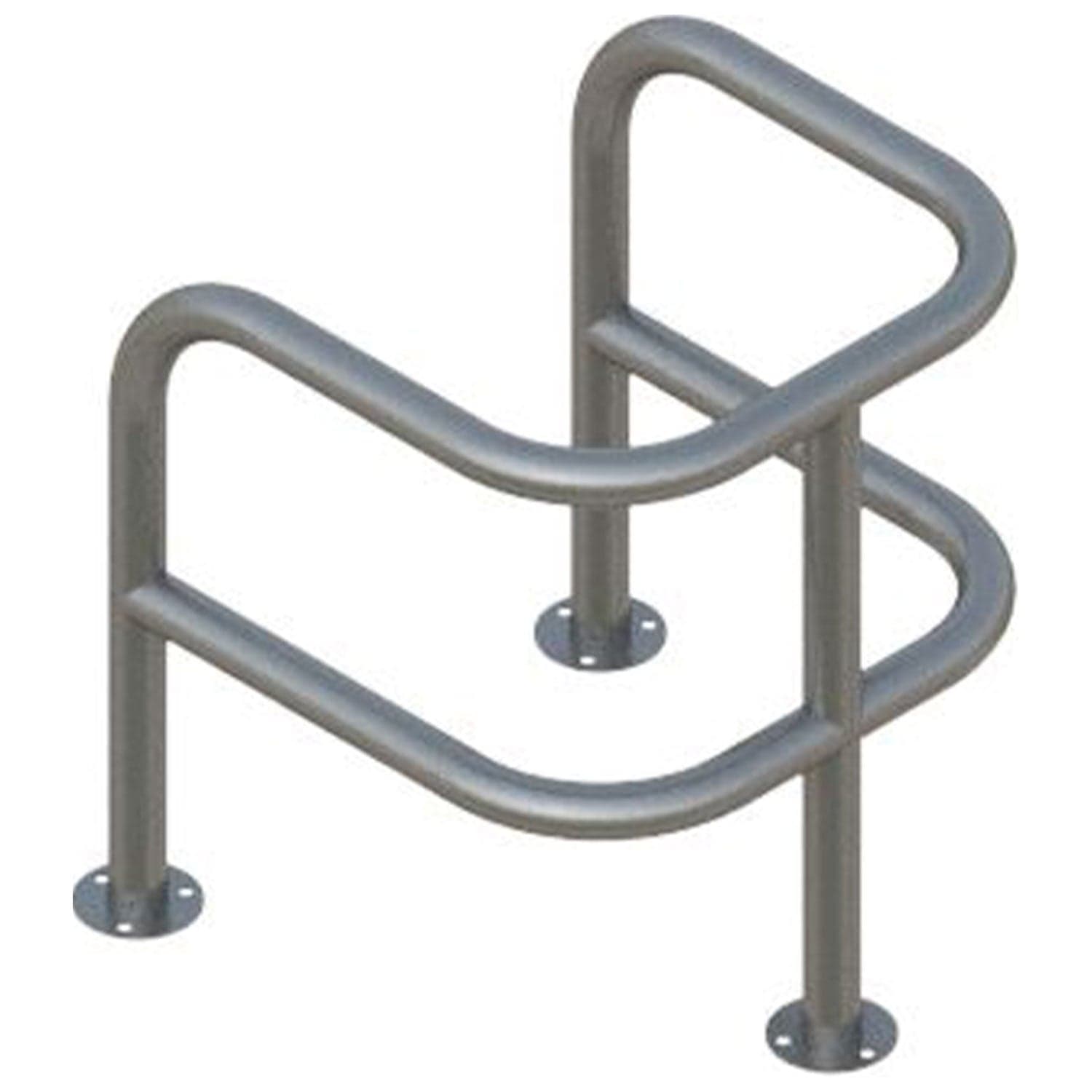

Galvanised for durability
Hot-dip galvanised steel resists corrosion indoors and outdoors, with a powder-coated option for extra protection.
Two fixing options
Concrete-in for a permanent install, or a flanged bolt-down base for an existing slab.
Optional reflective tape
Adds visibility in low-light warehouse and yard environments.

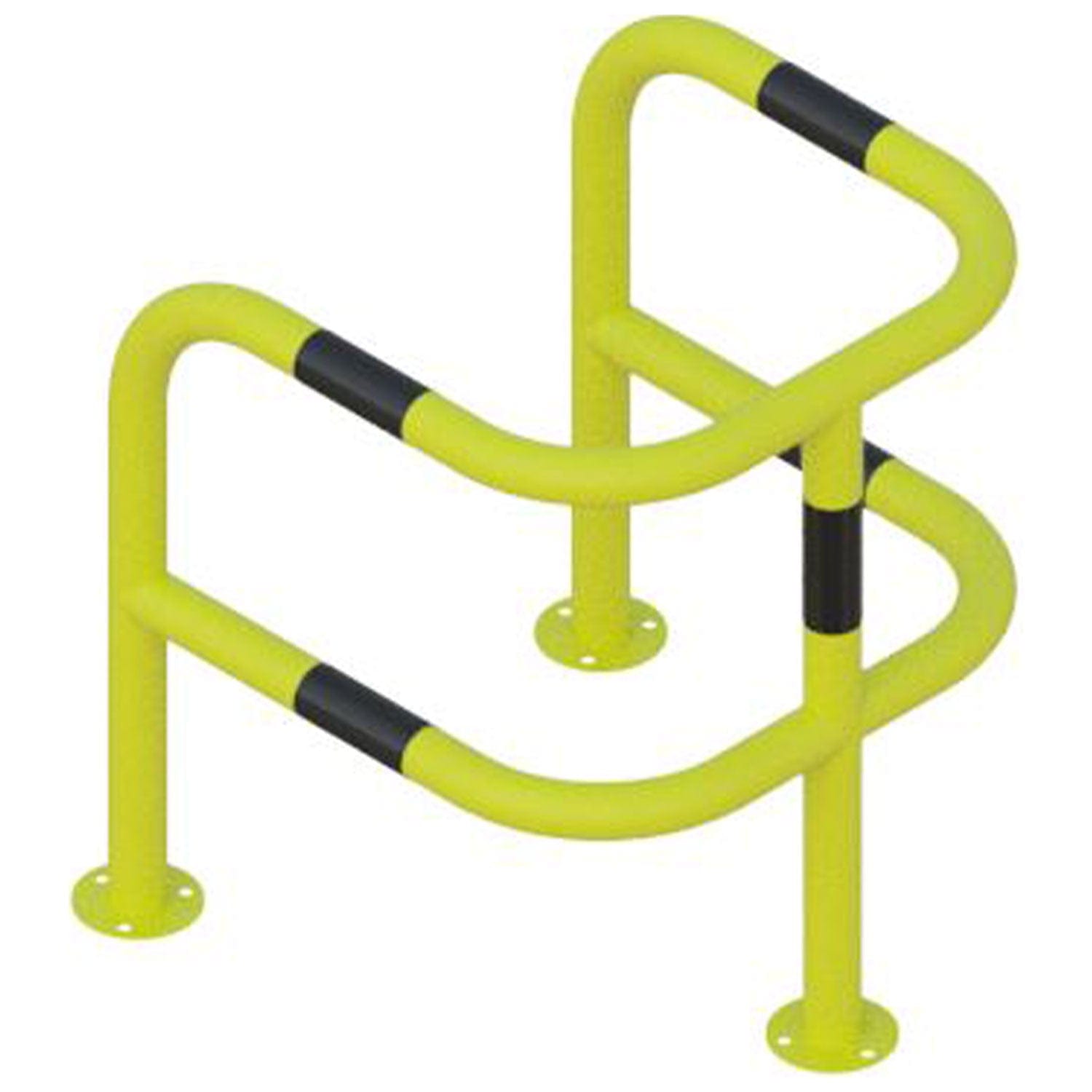

Any RAL or BS colour
Powder-coated to order for site branding or hazard marking.
Overview
ACP1 Galvanised Steel Column Protector - Overview

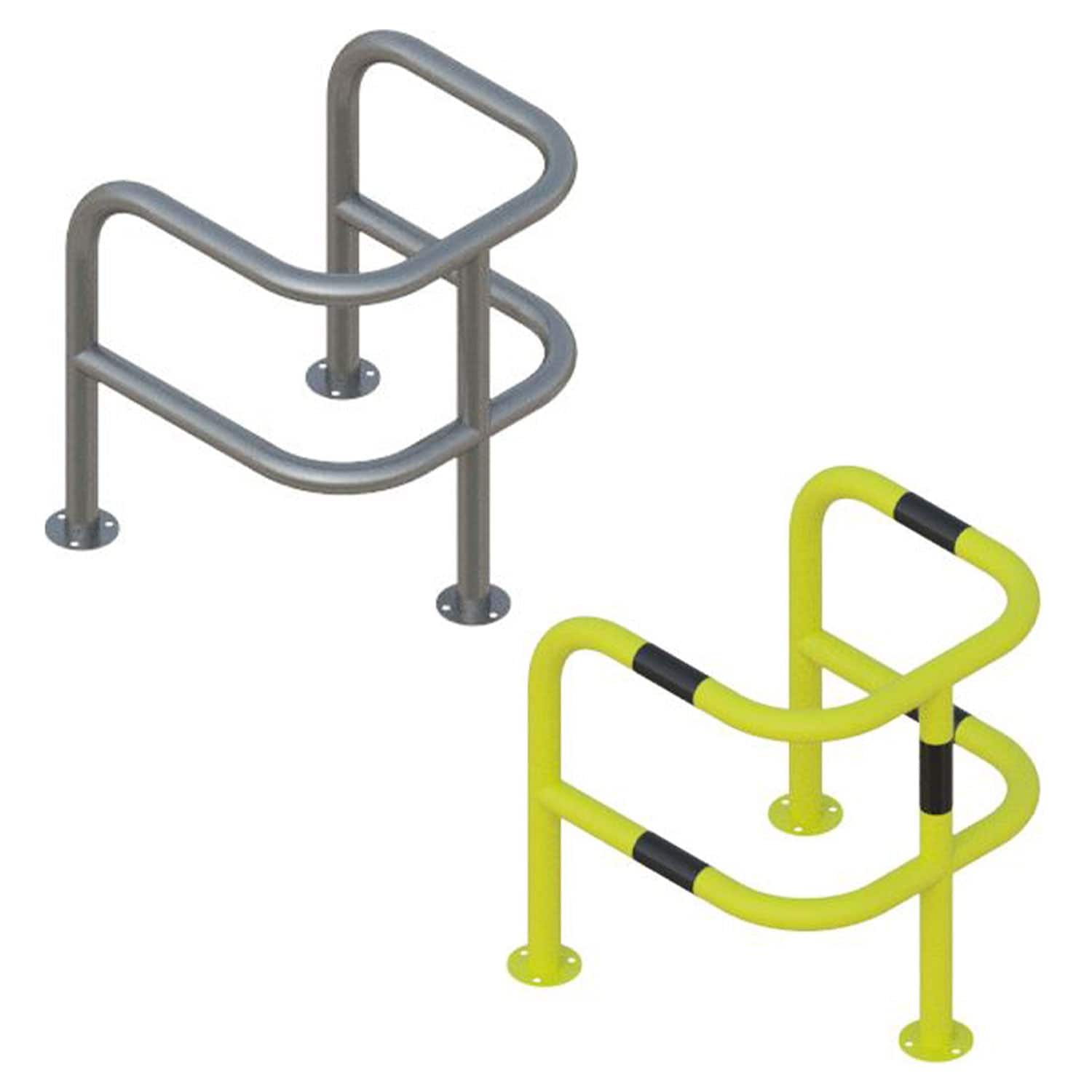

The ACP1 is a three-post guard formed from bent circular tube steel that wraps around columns, corners and other fixed structures to absorb impact from forklifts, pallet trucks and reversing vehicles. Hot-dip galvanised as standard, it suits both indoor and outdoor sites.
800mm
Height
700mm
External width
60mm
Tube diameter
9bolts
Per bolt-down unit
| Dimensions | |
|---|---|
| Height | 800mm |
| External width | 700mm |
| Internal width | 580mm |
| Tube diameter | 60mm |
| Details | |
|---|---|
| Material | Galvanised steel |
| Finish | Galvanised, or galvanised and powder-coated |
| Fixing | Concrete-in or bolt-down |
| Concrete-in depth | 300mm |
| Bolts required (bolt-down) | 9 per unit |
| Weight (concrete-in) | 28kg |
| Weight (bolt-down) | 25kg |
Frequently asked questions
What's the difference between the ACP1 and the ACP2?
What's the difference between the ACP1 and the ACP2?
Both stand 800mm high, but the ACP1 has a 580mm internal width and a 60mm tube, while the ACP2 uses a wider 76mm tube with a 548mm internal width. Choose whichever internal clearance and tube profile suits the column you are protecting.
Does the bolt-down version come with fixing bolts?
Does the bolt-down version come with fixing bolts?
The bolt-down base is designed for 9 bolts per unit; let us know when ordering whether you need the bolts supplied or are fixing into an existing bolt pattern.
Can the ACP1 be powder-coated in a specific colour?
Can the ACP1 be powder-coated in a specific colour?
Yes. Galvanised is the standard finish, and it can also be powder-coated in any RAL or BS colour to match site branding or hazard-marking - just provide the reference when ordering.
Is the ACP1 suitable for outdoor sites?
Is the ACP1 suitable for outdoor sites?
Yes. The hot-dip galvanised finish is designed to resist corrosion in both indoor and outdoor environments.
How much clearance is there inside the guard?
How much clearance is there inside the guard?
The internal width is 580mm, which is the usable space around the column or corner being protected.
What's the weight difference between the two fixing options?
What's the weight difference between the two fixing options?
28kg for the concrete-in version and 25kg for the bolt-down version.
Can I add reflective tape to the ACP1?
Can I add reflective tape to the ACP1?
Yes, reflective tape can be added as an option to improve visibility in low-light warehouse and yard areas.
