Autopa | SKU:
085012
ACP11 Galvanised Steel Column Protector - 500mm
£166.66
Ex. VAT
£199.99
Inc. VAT
Why buy from us
- Pay in 30 days with a Trade Account. No fees.
- Trade and bulk pricing available on request
- UK stock, dispatched fast
ACP11 Galvanised Steel Column Protector - 500mm - Galvanised / Concrete In is backordered and will ship as soon as it is back in stock.
Ships in
10 – 15 working days
Quote in 3 hours
No account needed
- Made in the UK
- Pay in 30 days with Klarna. No fee. Learn more
- Next Day Delivery Available
ACP11 Galvanised Steel Column Protector - 500mm
Regular priceFrom
£199.99
Unit price
Unavailable
ACP11 Galvanised Steel Column Protector - 500mm - Galvanised / Concrete In is backordered and will ship as soon as it is back in stock.
Why it works
Why choose the ACP11
Absorbs vehicle impact
Triangular tube-steel frame guards columns and corners from forklift and pallet-truck contact.
Two fixing options
Choose a concrete-in base for a permanent fit or a flanged bolt-down base for an existing slab.
Reflective tape option
Add reflective tape to improve visibility in low-light warehouse and yard areas.
Custom colour finish
Powder-coated in a standard yellow and black finish or any RAL/BS colour to match site branding.
Overview
ACP11 Galvanised Steel Column Protector - Overview

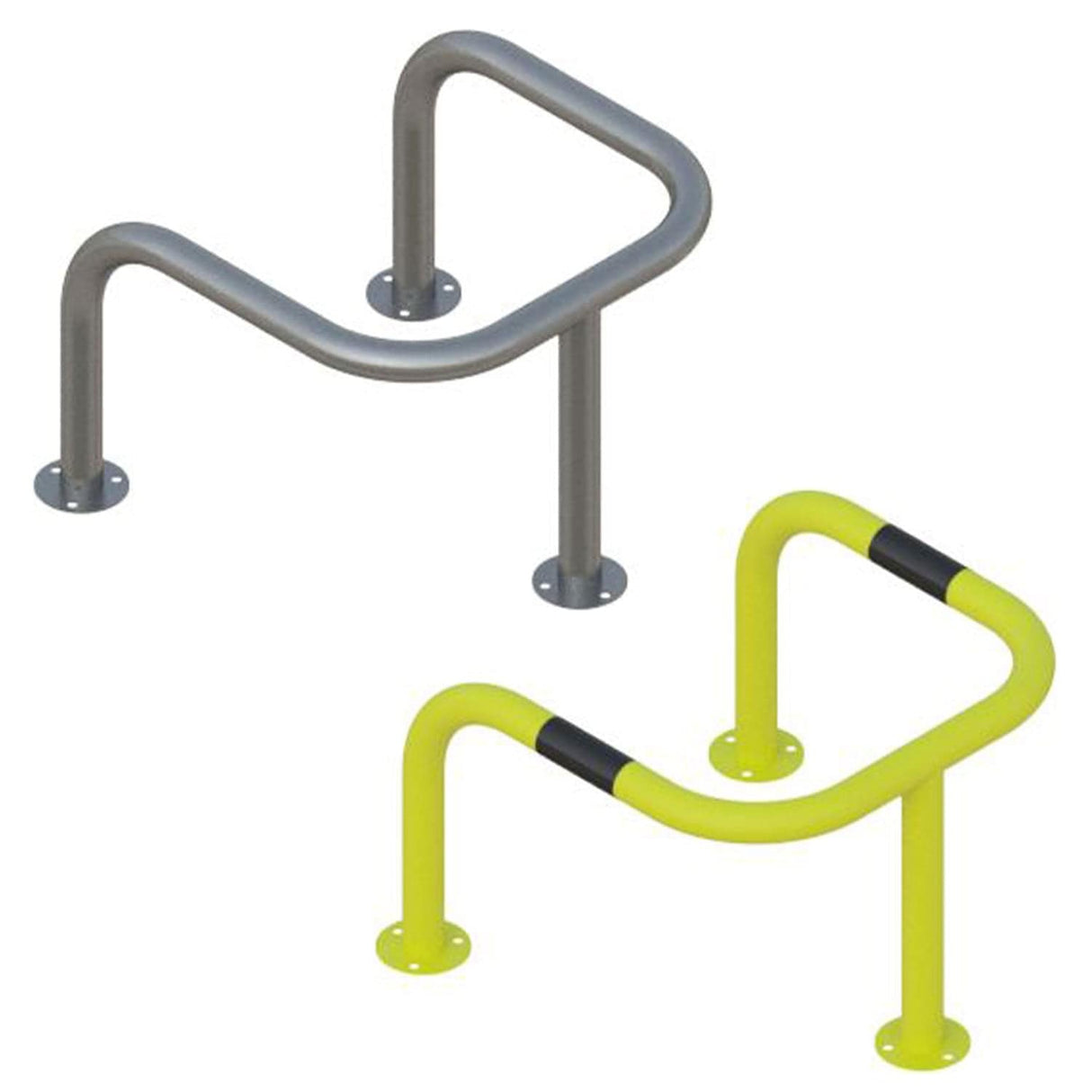

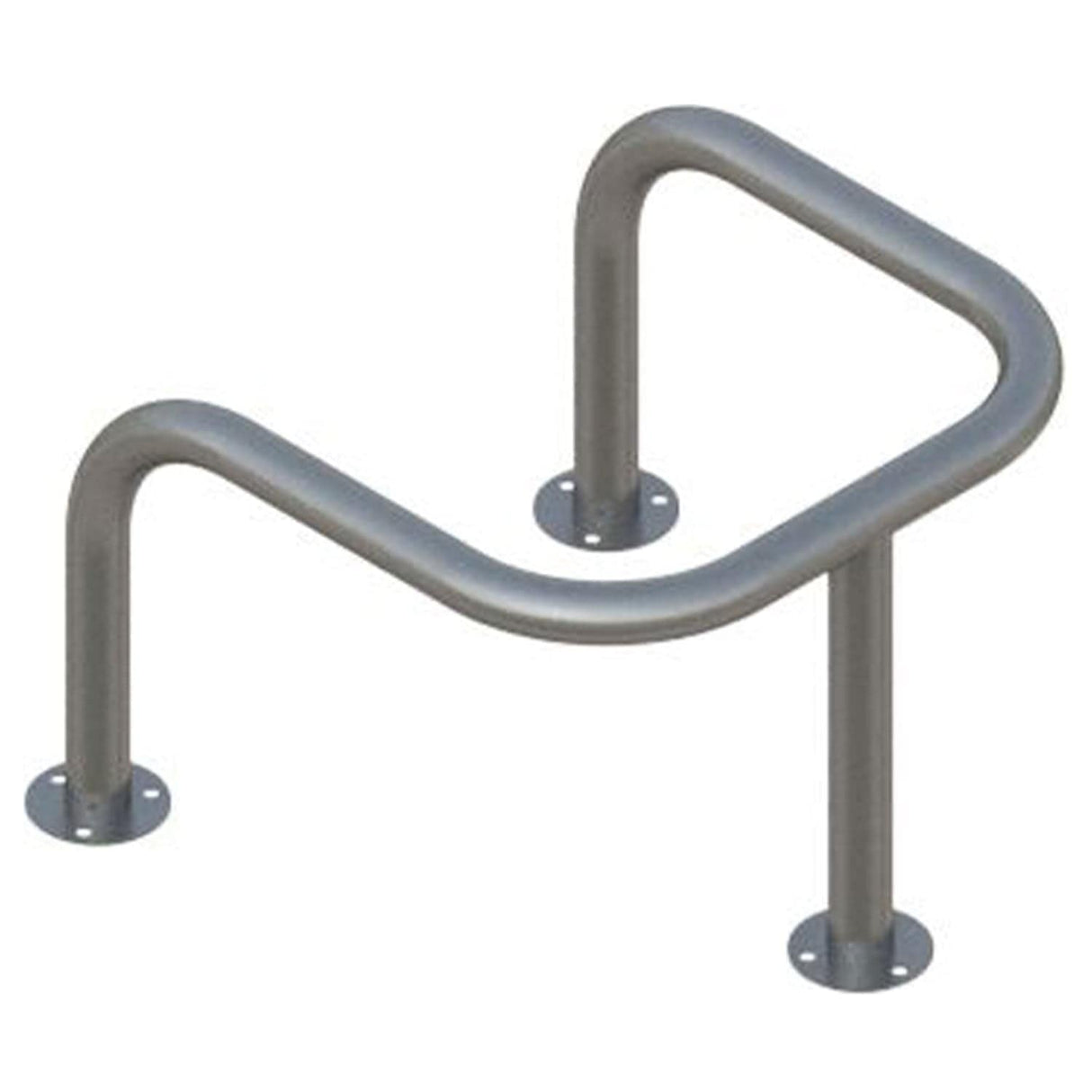

A triangular tube-steel guard that fits around columns, corners and other fixed structures to absorb impact from forklifts, pallet trucks and reversing vehicles. Suitable for indoor and outdoor use, with a concrete-in or bolt-down fixing to suit the site.
500mm
Height
700mm
External width
60mm
Tube diameter
9bolts
Per bolt-down unit
| Dimensions | |
|---|---|
| Height | 500mm |
| External width | 700mm |
| Internal width | 580mm |
| Tube diameter | 60mm |
| Details | |
|---|---|
| Material | Galvanised steel |
| Finish | Galvanised, or galvanised and powder-coated |
| Fixture | Concrete-in or flanged bolt-down |
| Concrete-in depth | 300mm |
| Bolts required (bolt-down) | 9 per unit |
| Weight (concrete-in) | 17kg |
| Weight (bolt-down) | 14kg |
Frequently asked questions
What sizes does the ACP11 come in?
What sizes does the ACP11 come in?
The ACP11 stands 500mm high with a 700mm external width and 580mm internal width, sized to fit around standard structural columns. Taller 800mm versions (ACP1 and ACP2) are also available if you need to protect more of the column height.
What is the difference between the concrete-in and bolt-down fixing?
What is the difference between the concrete-in and bolt-down fixing?
The concrete-in base sets 300mm into a concrete footing for a permanent fixing, while the flanged bolt-down base bolts directly onto an existing slab using 9 bolts per unit, useful where digging a footing is not practical.
Are the bolts included?
Are the bolts included?
Bolt-down units are available with or without bolts included - select the option you need when ordering.
Can I get it in a colour other than galvanised?
Can I get it in a colour other than galvanised?

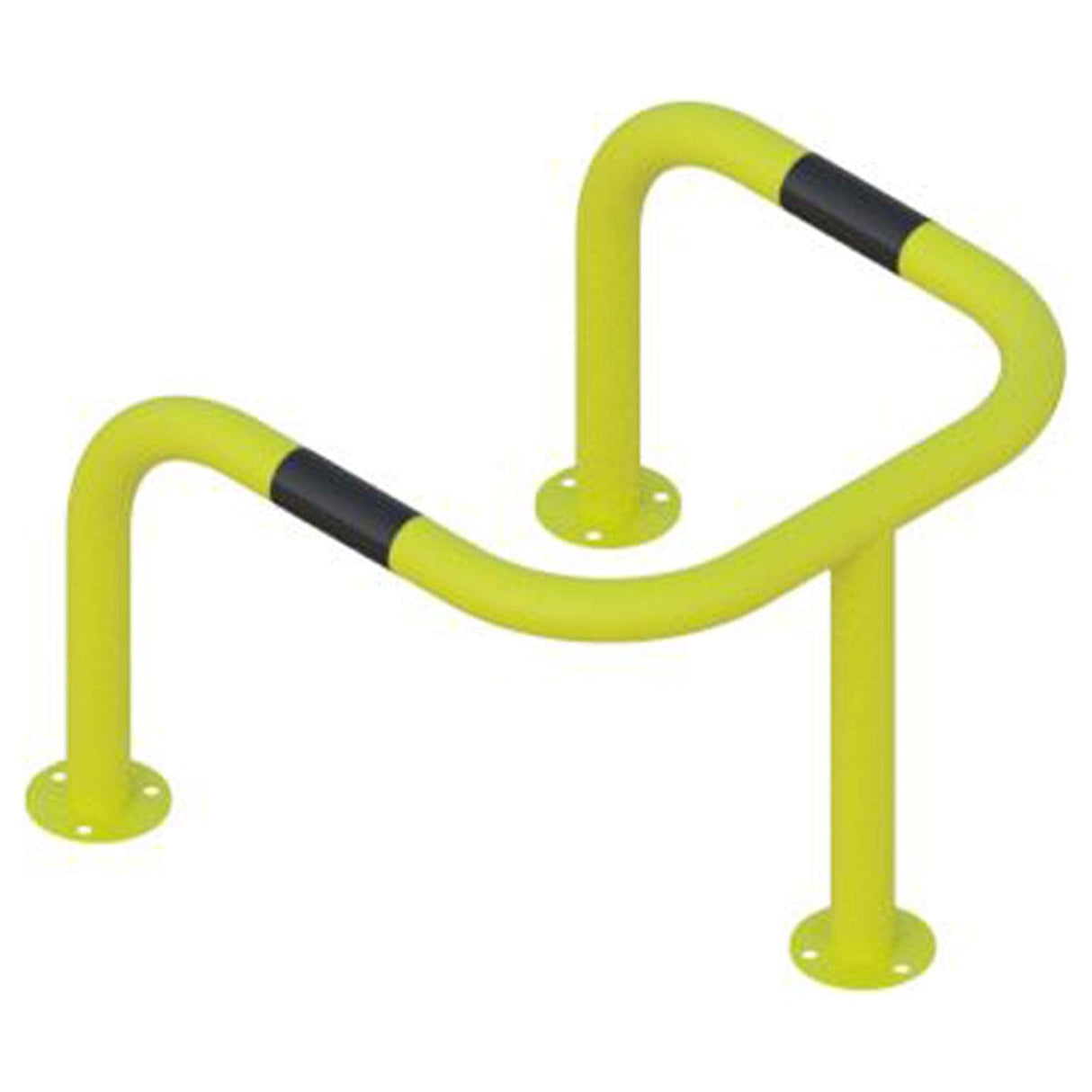

Yes. Alongside the standard galvanised finish, the ACP11 is available powder-coated in yellow with black hazard bands, or in any RAL/BS colour - provide the code when ordering.
Is it suitable for outdoor use?
Is it suitable for outdoor use?
Yes, the galvanised finish is designed for both indoor and outdoor use.
How much does it weigh?
How much does it weigh?
17kg for the concrete-in version and 14kg for the bolt-down version.
Can reflective tape be added?
Can reflective tape be added?
Yes, reflective tape is available as an option to improve visibility in low-light areas.
