ACP2 Galvanised Steel Column Protector - 800mm
£385.91
Ex. VAT
£463.09
Inc. VAT
Why buy from us
- Pay in 30 days with a Trade Account. No fees.
- Trade and bulk pricing available on request
- UK stock, dispatched fast
ACP2 Galvanised Steel Column Protector - 800mm - Galvanised / Concrete In is backordered and will ship as soon as it is back in stock.
Ships in
10 – 15 working days
Quote in 3 hours
No account needed
- Made in the UK
- Pay in 30 days with Klarna. No fee. Learn more
- Next Day Delivery Available
ACP2 Galvanised Steel Column Protector - 800mm
Regular priceFrom
£463.09
Unit price
Unavailable
ACP2 Galvanised Steel Column Protector - 800mm - Galvanised / Concrete In is backordered and will ship as soon as it is back in stock.
Why it works
Why choose the ACP2
Absorbs vehicle impact
Three-post tube-steel frame guards columns and corners from forklift and pallet-truck contact.
Two fixing options
Choose a concrete-in base for a permanent fit or a flanged bolt-down base for an existing slab.
Reflective tape option
Add reflective tape to improve visibility in low-light warehouse and yard areas.
Custom colour finish
Powder-coated in a standard yellow and black finish or any RAL/BS colour to match site branding.
Overview
ACP2 Galvanised Steel Column Protector - Overview

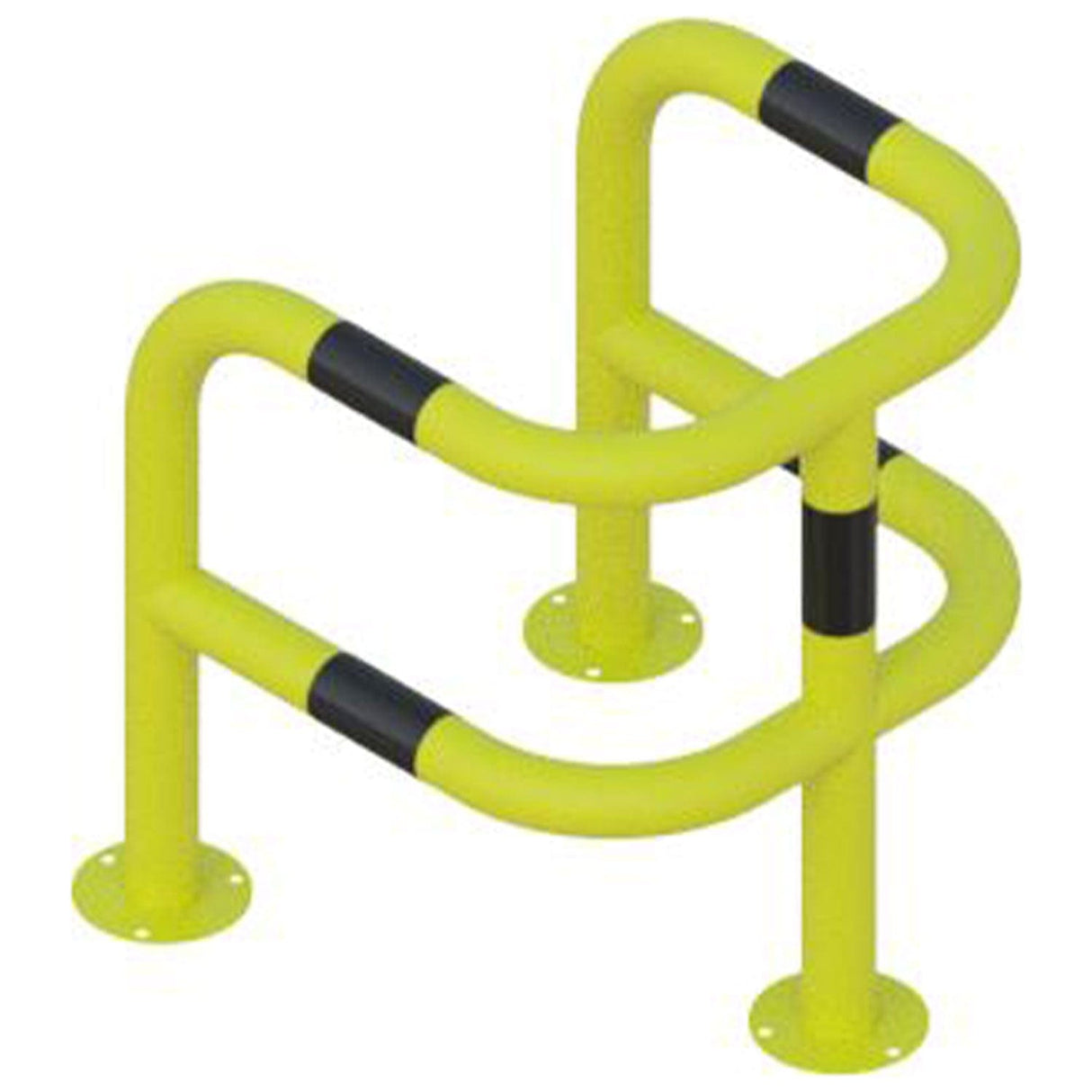

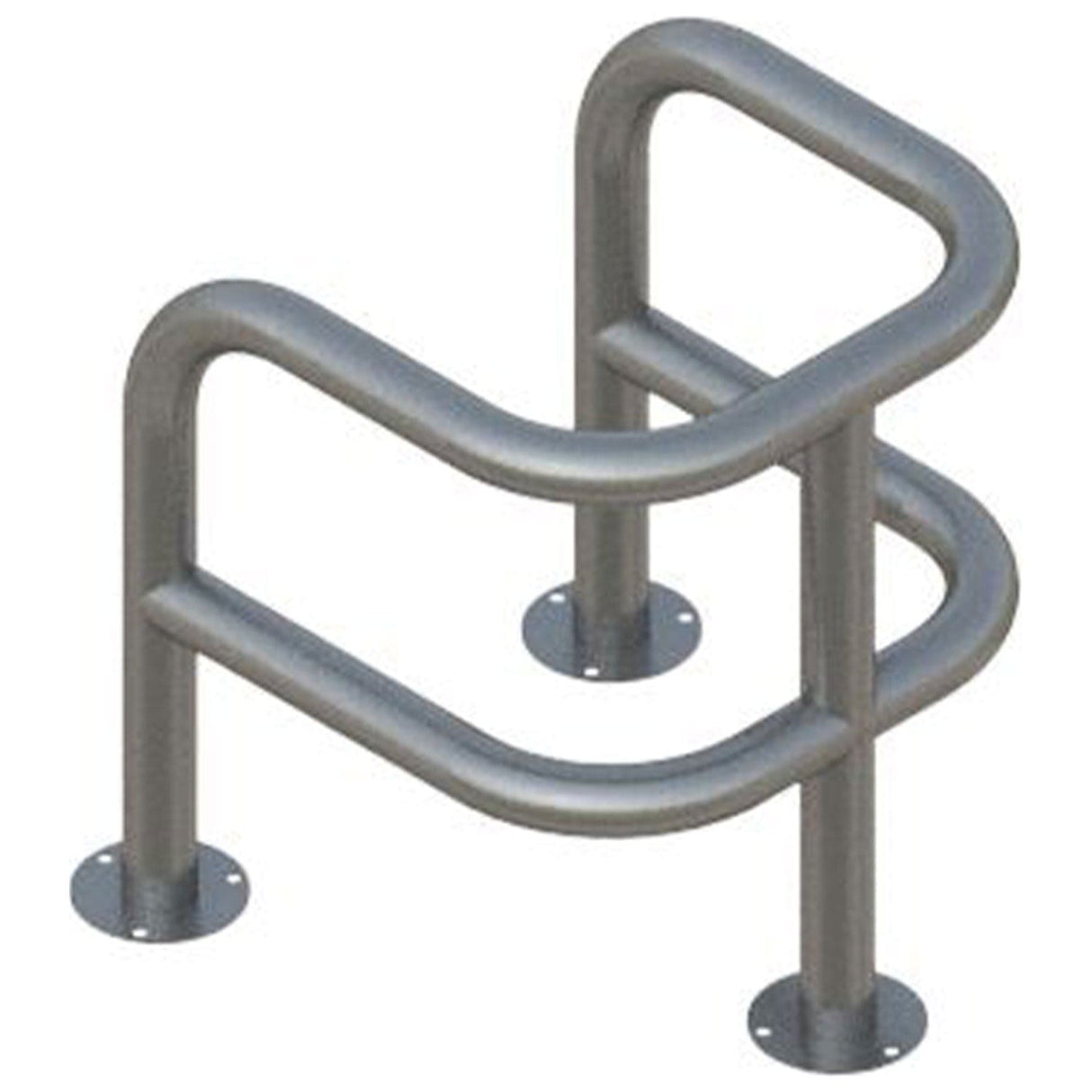

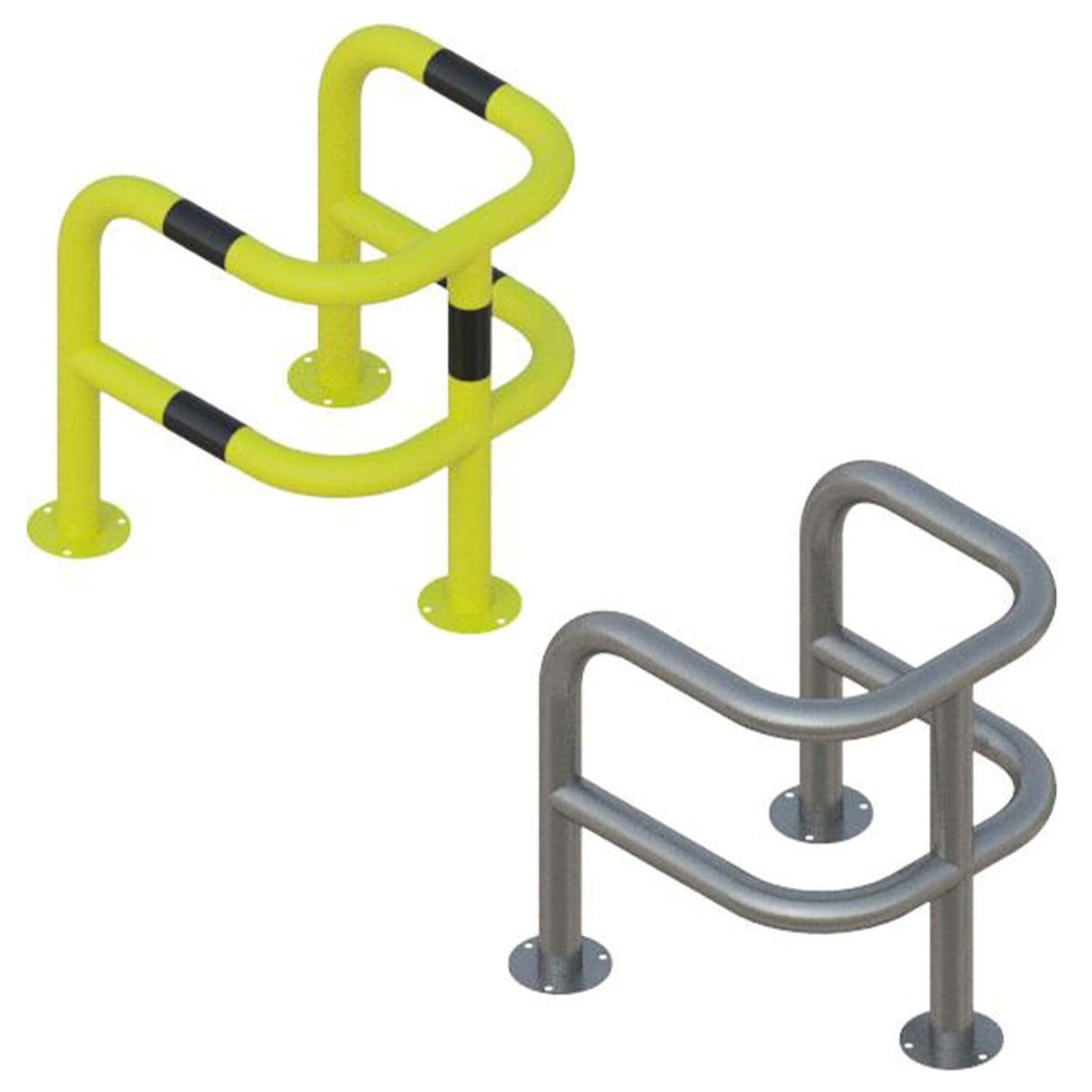

A three-post guard formed from bent circular tube-steel rail that wraps around columns, corners and other fixed structures to absorb impact from forklifts, pallet trucks and reversing vehicles. Suitable for indoor and outdoor use, with a concrete-in or bolt-down fixing to suit the site.
800mm
Height
700mm
External width
76mm
Tube diameter
9bolts
Per bolt-down unit
| Dimensions | |
|---|---|
| Height | 800mm |
| External width | 700mm |
| Internal width | 548mm |
| Tube diameter | 76mm |
| Details | |
|---|---|
| Material | Galvanised steel |
| Finish | Galvanised, or galvanised and powder-coated |
| Fixture | Concrete-in or flanged bolt-down |
| Concrete-in depth | 300mm |
| Bolts required (bolt-down) | 9 per unit |
| Weight (concrete-in) | 35kg |
| Weight (bolt-down) | 32kg |
Frequently asked questions
How tall is the ACP2 compared to the ACP11 and ACP3?
How tall is the ACP2 compared to the ACP11 and ACP3?
The ACP2 stands 800mm high, taller than the 500mm ACP11 and ACP3, giving fuller protection up a column where a taller guard is needed.
What's the difference between the concrete-in and bolt-down base?
What's the difference between the concrete-in and bolt-down base?
The concrete-in base is set 300mm into a concrete footing for a permanent fixing. The flanged bolt-down base bolts onto an existing slab with 9 bolts per unit, which suits sites where breaking out a footing isn't practical.
Does the bolt-down version come with fixing bolts?
Does the bolt-down version come with fixing bolts?
You can order it with or without the bolts included, depending on what you need on site.
What colours is the ACP2 available in?
What colours is the ACP2 available in?
Galvanised is the standard finish. It's also available powder-coated in yellow with black hazard bands, or in any RAL/BS colour to match site branding - just provide the code when ordering.
Will it hold up outdoors?
Will it hold up outdoors?
Yes. The hot-dip galvanised finish is designed to resist corrosion in both indoor and outdoor environments.
What's the weight difference between the two fixing options?
What's the weight difference between the two fixing options?
35kg for the concrete-in version and 32kg for the bolt-down version.
Can I add reflective tape?
Can I add reflective tape?
Yes, reflective tape can be added as an option to improve visibility in low-light areas.
