Autopa · SKU: 085012

ACP11 Galvanised Steel Column Protector - 500mm

Triangular tube-steel column guard, 500mm high. Concrete-in or bolt-down fixing, galvanised or custom RAL colour finish.

£166.66 each, ex VAT

£199.99 inc VAT

Ships in 10 to 15 working days

Finish: Galvanised

Fixing Options

Buy more, pay less Per unit, ex VAT. Applied automatically.

Ships in 10 to 15 working days

Formal quote back in 3 hours. No account needed.

Quote in 3 hours No account needed

Made in the UK
Pay in 30 days with Klarna. No fee. Learn more
Next Day Delivery Available

Pay in 30 days with a Trade Account. No fees.
UK stock. Stock and lead time are shown above.
Seen it cheaper? We beat any genuine quote. 0161 706 0479

Why choose the ACP11

Absorbs vehicle impact

Triangular tube-steel frame guards columns and corners from forklift and pallet-truck contact.

Two fixing options

Choose a concrete-in base for a permanent fit or a flanged bolt-down base for an existing slab.

Reflective tape option

Add reflective tape to improve visibility in low-light warehouse and yard areas.

Custom colour finish

Powder-coated in a standard yellow and black finish or any RAL/BS colour to match site branding.

Overview

ACP11 Galvanised Steel Column Protector - Overview

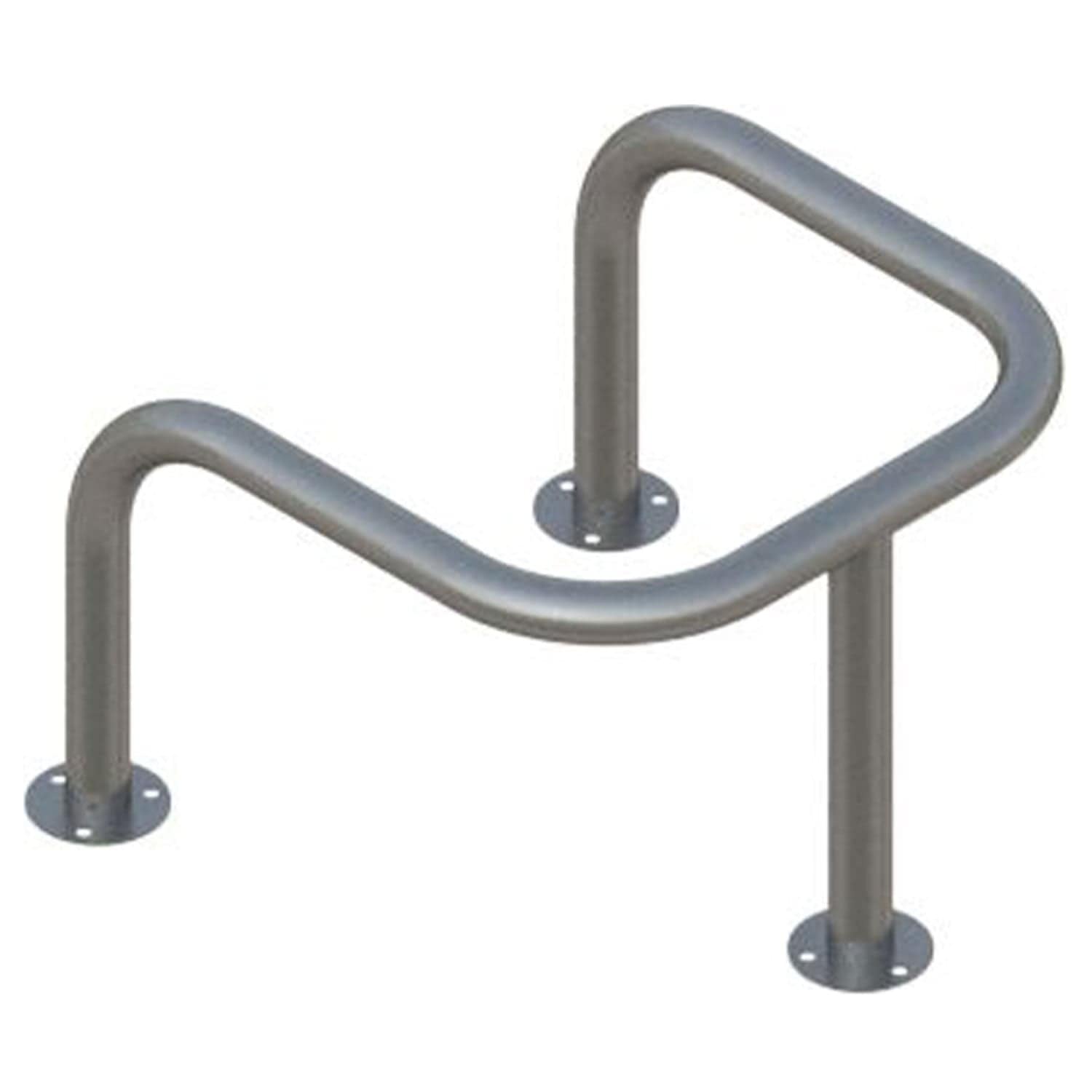

A triangular tube-steel guard that fits around columns, corners and other fixed structures to absorb impact from forklifts, pallet trucks and reversing vehicles. Suitable for indoor and outdoor use, with a concrete-in or bolt-down fixing to suit the site.

500mm

Height

700mm

External width

60mm

Tube diameter

9bolts

Per bolt-down unit

Dimensions
Height	500mm
External width	700mm
Internal width	580mm
Tube diameter	60mm

Details
Material	Galvanised steel
Finish	Galvanised, or galvanised and powder-coated
Fixture	Concrete-in or flanged bolt-down
Concrete-in depth	300mm
Bolts required (bolt-down)	9 per unit
Weight (concrete-in)	17kg
Weight (bolt-down)	14kg

Frequently asked questions

What sizes does the ACP11 come in?

The ACP11 stands 500mm high with a 700mm external width and 580mm internal width, sized to fit around standard structural columns. Taller 800mm versions (ACP1 and ACP2) are also available if you need to protect more of the column height.

What is the difference between the concrete-in and bolt-down fixing?

The concrete-in base sets 300mm into a concrete footing for a permanent fixing, while the flanged bolt-down base bolts directly onto an existing slab using 9 bolts per unit, useful where digging a footing is not practical.

Are the bolts included?

Bolt-down units are available with or without bolts included - select the option you need when ordering.

Can I get it in a colour other than galvanised?

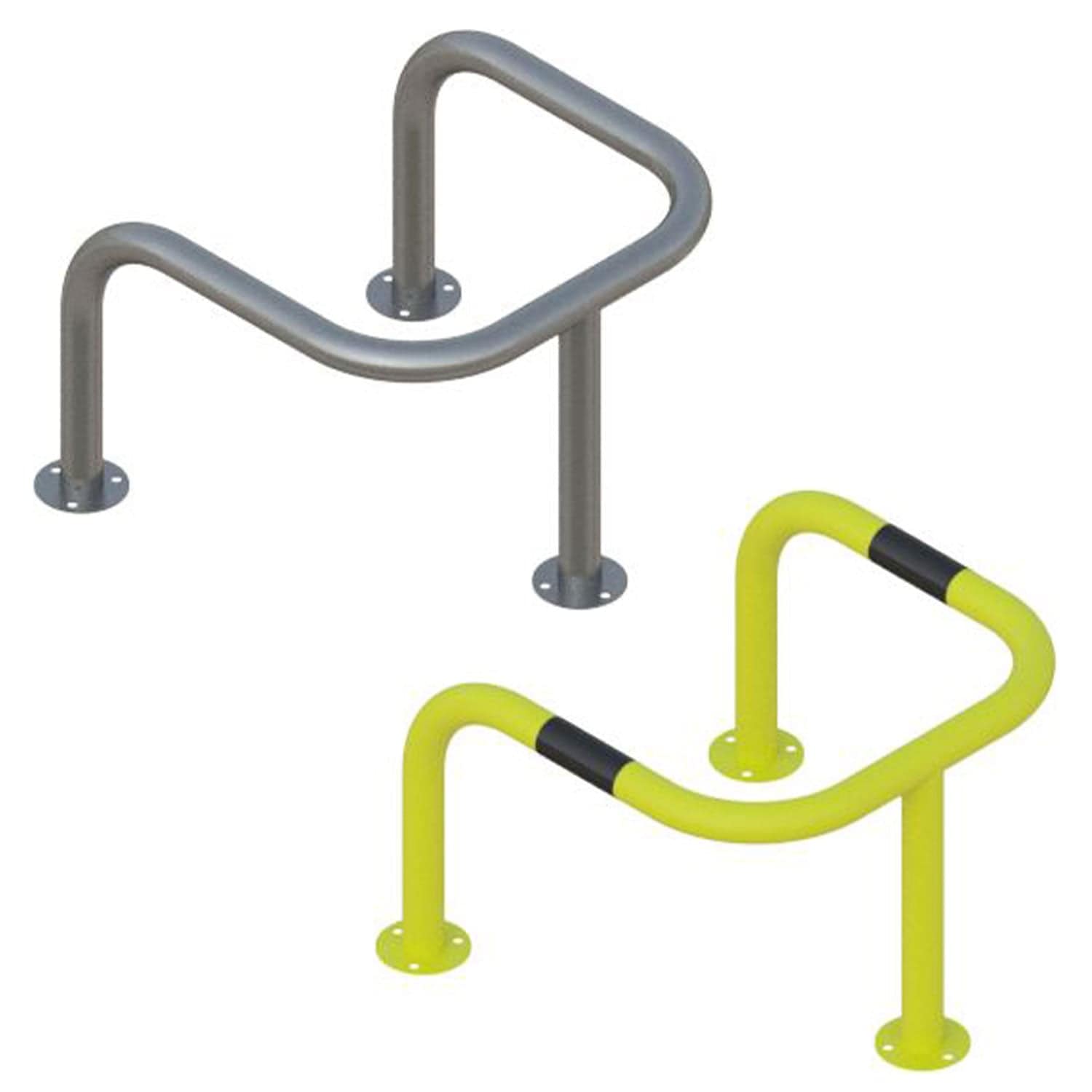

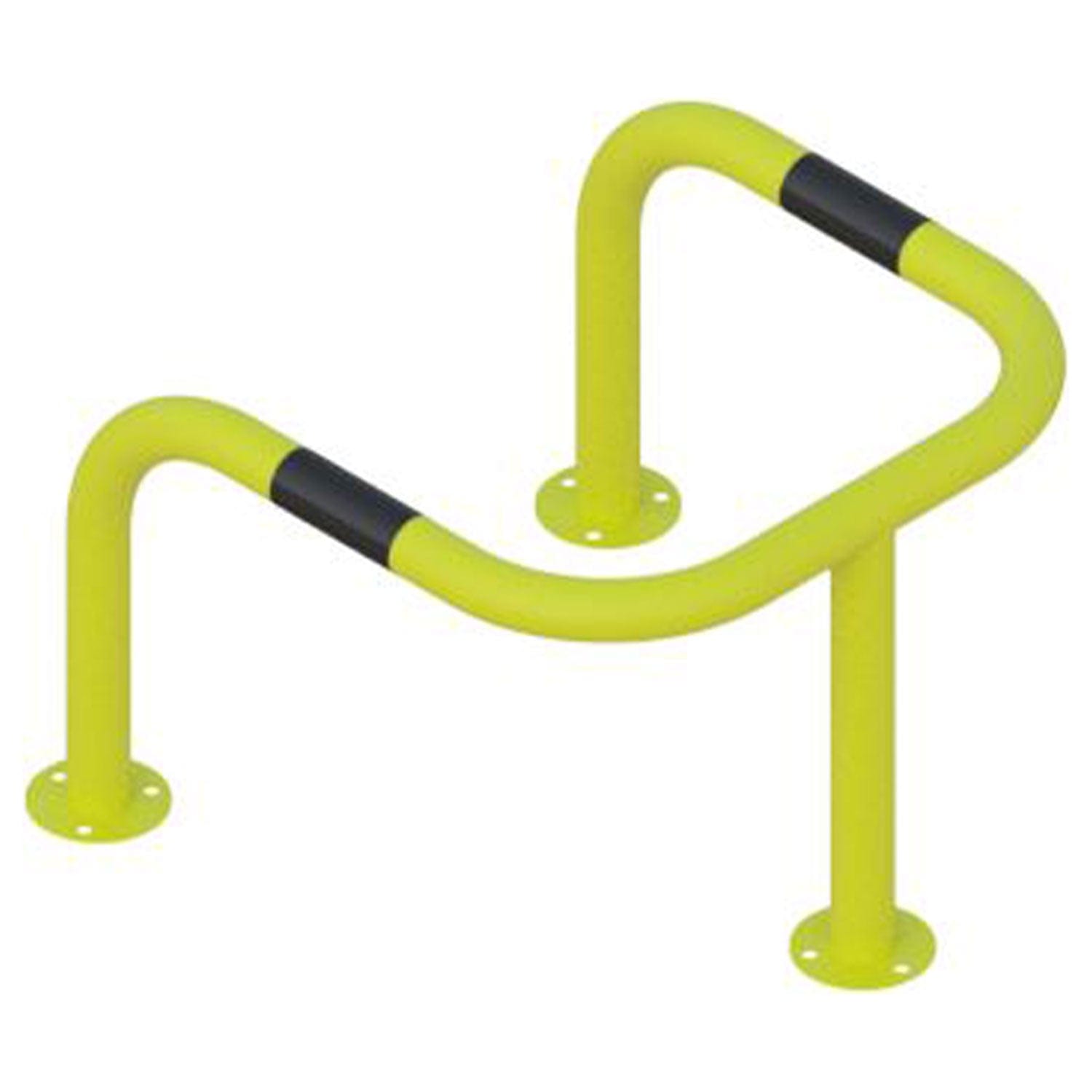

Yes. Alongside the standard galvanised finish, the ACP11 is available powder-coated in yellow with black hazard bands, or in any RAL/BS colour - provide the code when ordering.

Is it suitable for outdoor use?

Yes, the galvanised finish is designed for both indoor and outdoor use.

How much does it weigh?

17kg for the concrete-in version and 14kg for the bolt-down version.

Can reflective tape be added?

Yes, reflective tape is available as an option to improve visibility in low-light areas.
