ACP2 Galvanised Steel Column Protector - 800mm

Three-post galvanised steel column guard, 800mm high. Concrete-in or bolt-down fixing, galvanised or custom RAL colour finish.

£385.91 each, ex VAT

£463.09 inc VAT

Ships in 10 to 15 working days

Finish: Galvanised

Fixing Options

Buy more, pay less Per unit, ex VAT. Applied automatically.

Ships in 10 to 15 working days

Formal quote back in 3 hours. No account needed.

Quote in 3 hours No account needed

Made in the UK
Pay in 30 days with Klarna. No fee. Learn more
Next Day Delivery Available

Pay in 30 days with a Trade Account. No fees.
UK stock. Stock and lead time are shown above.
Seen it cheaper? We beat any genuine quote. 0161 706 0479

Frequently purchased with

Complete the kit

Tick to add

VPP Vertical Column / Pipe Protector - Wall MountablePipe & Column Protectors 1 £262.08 £262.08 each

0 add-ons selected · £0.00 ex VAT

Why choose the ACP2

Absorbs vehicle impact

Three-post tube-steel frame guards columns and corners from forklift and pallet-truck contact.

Two fixing options

Choose a concrete-in base for a permanent fit or a flanged bolt-down base for an existing slab.

Reflective tape option

Add reflective tape to improve visibility in low-light warehouse and yard areas.

Custom colour finish

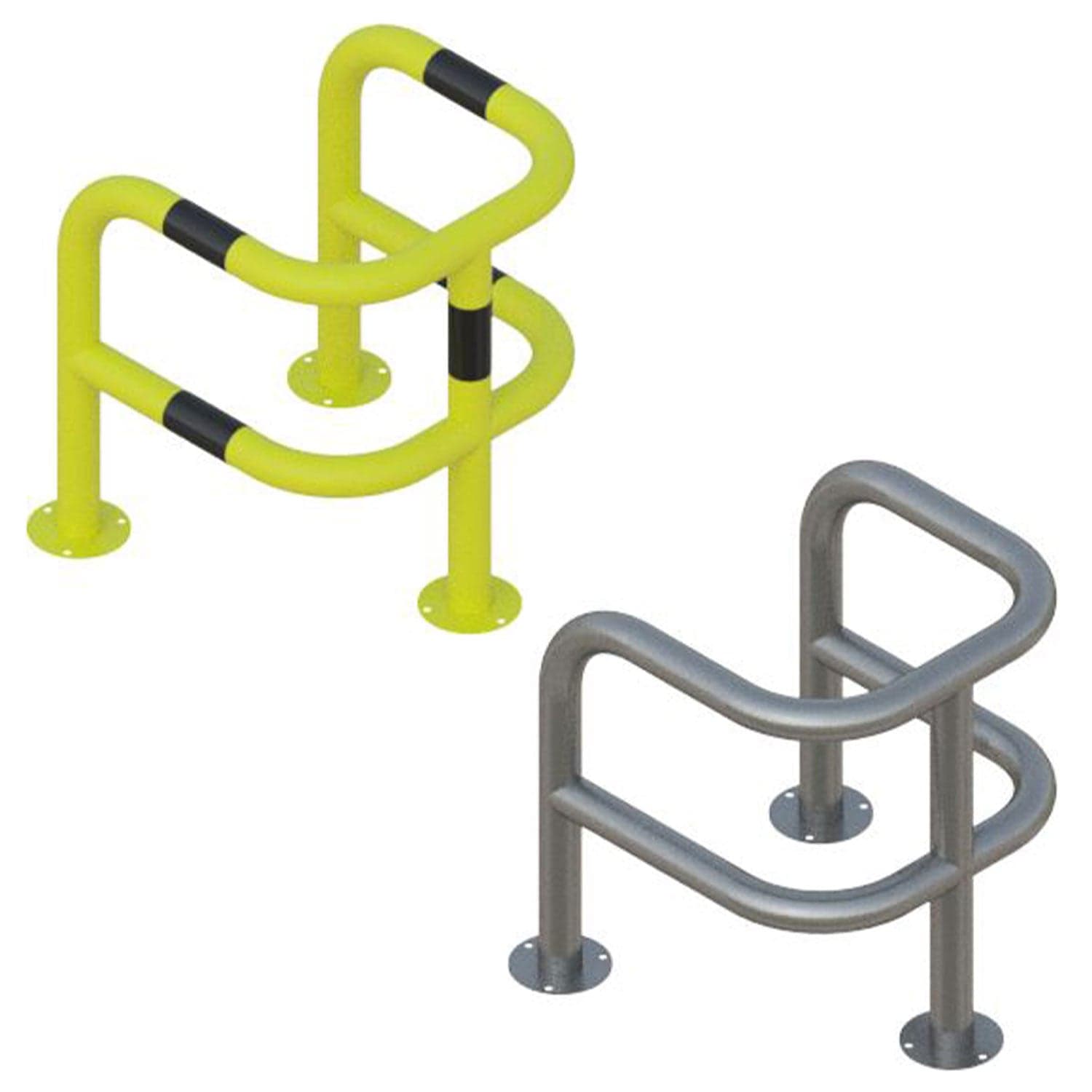

Powder-coated in a standard yellow and black finish or any RAL/BS colour to match site branding.

Overview

ACP2 Galvanised Steel Column Protector - Overview

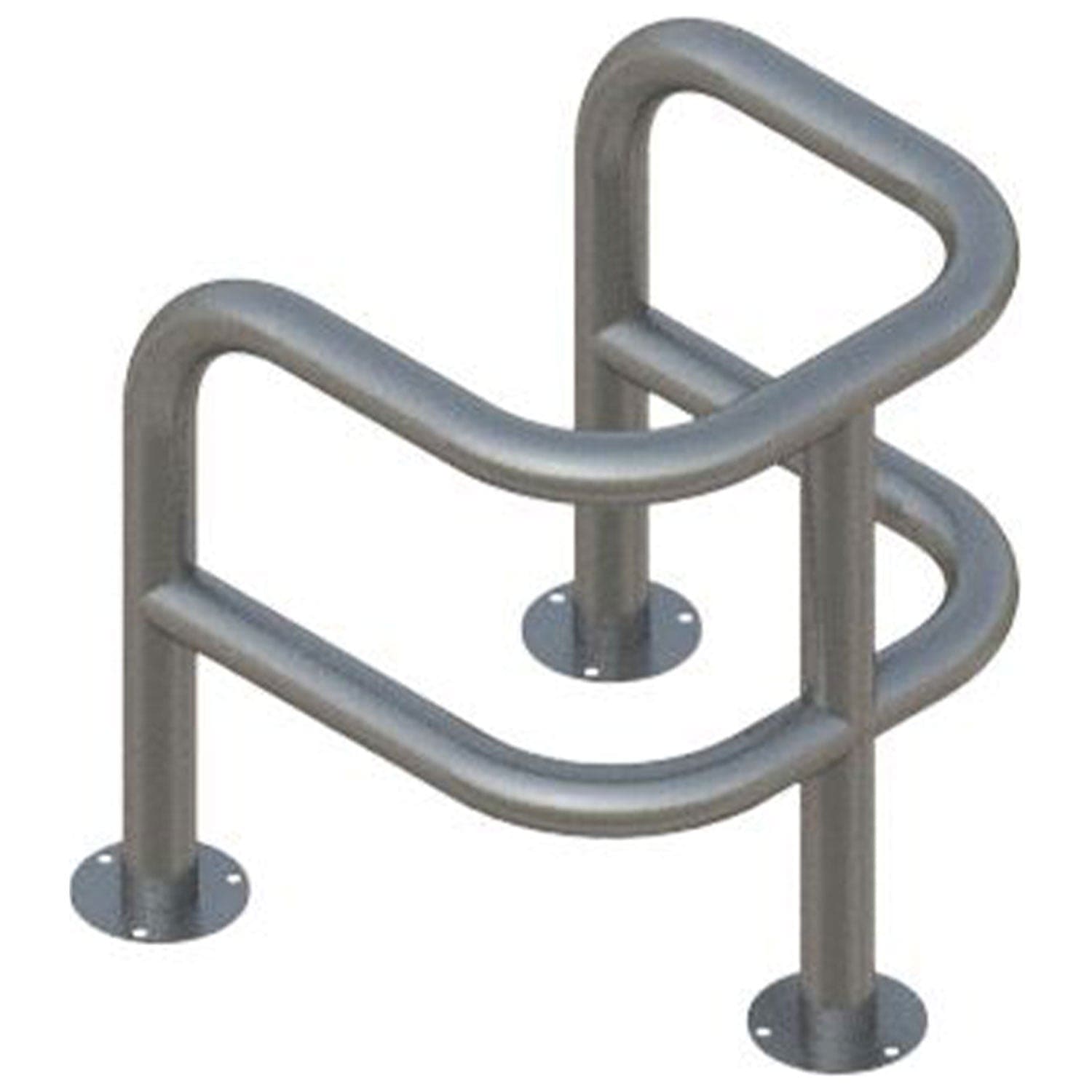

A three-post guard formed from bent circular tube-steel rail that wraps around columns, corners and other fixed structures to absorb impact from forklifts, pallet trucks and reversing vehicles. Suitable for indoor and outdoor use, with a concrete-in or bolt-down fixing to suit the site.

800mm

Height

700mm

External width

76mm

Tube diameter

9bolts

Per bolt-down unit

Dimensions
Height	800mm
External width	700mm
Internal width	548mm
Tube diameter	76mm

Details
Material	Galvanised steel
Finish	Galvanised, or galvanised and powder-coated
Fixture	Concrete-in or flanged bolt-down
Concrete-in depth	300mm
Bolts required (bolt-down)	9 per unit
Weight (concrete-in)	35kg
Weight (bolt-down)	32kg

Frequently asked questions

How tall is the ACP2 compared to the ACP11 and ACP3?

The ACP2 stands 800mm high, taller than the 500mm ACP11 and ACP3, giving fuller protection up a column where a taller guard is needed.

What's the difference between the concrete-in and bolt-down base?

The concrete-in base is set 300mm into a concrete footing for a permanent fixing. The flanged bolt-down base bolts onto an existing slab with 9 bolts per unit, which suits sites where breaking out a footing isn't practical.

Does the bolt-down version come with fixing bolts?

You can order it with or without the bolts included, depending on what you need on site.

What colours is the ACP2 available in?

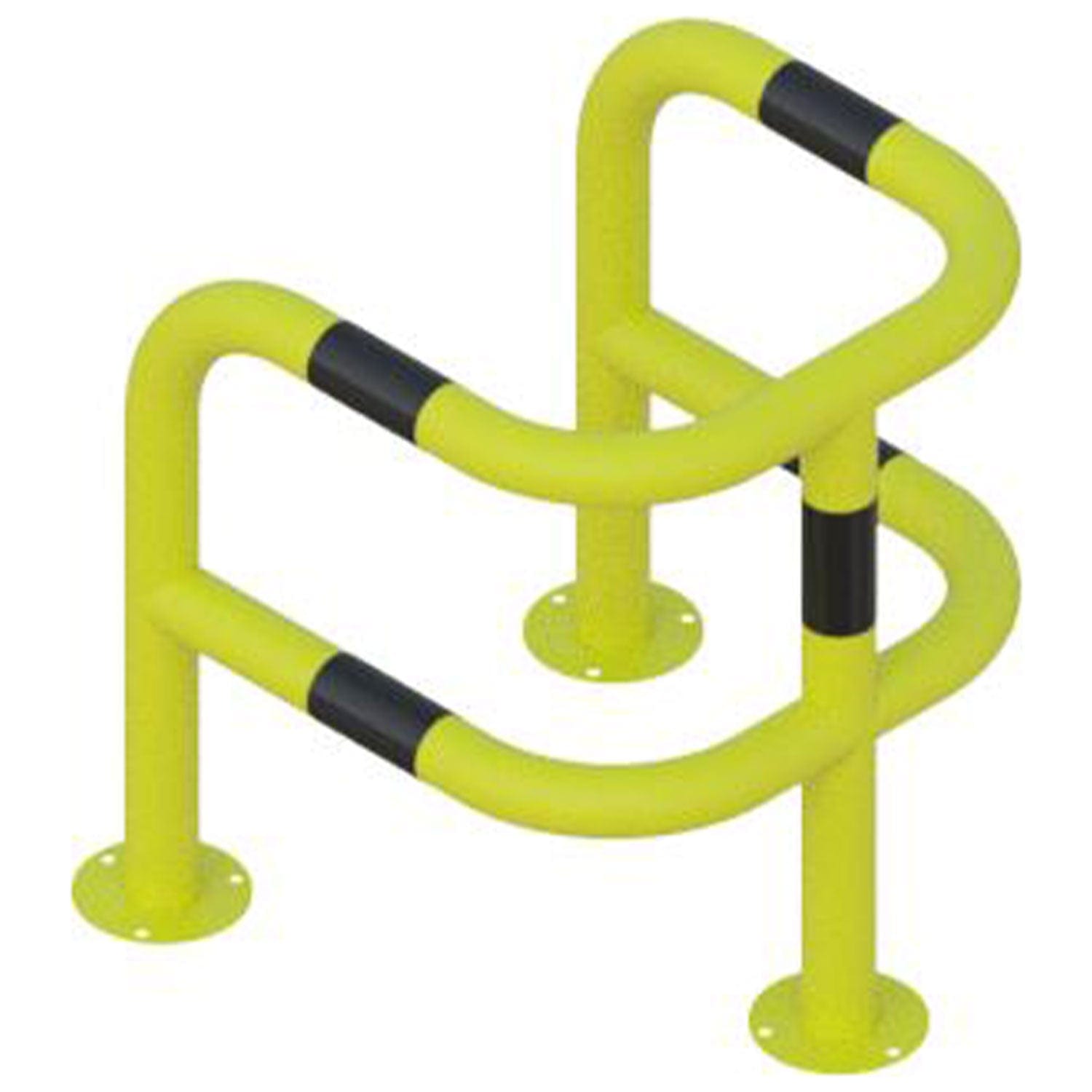

Galvanised is the standard finish. It's also available powder-coated in yellow with black hazard bands, or in any RAL/BS colour to match site branding - just provide the code when ordering.

Will it hold up outdoors?

Yes. The hot-dip galvanised finish is designed to resist corrosion in both indoor and outdoor environments.

What's the weight difference between the two fixing options?

35kg for the concrete-in version and 32kg for the bolt-down version.

Can I add reflective tape?

Yes, reflective tape can be added as an option to improve visibility in low-light areas.
