ACP21 Galvanised Steel Column Protector - 500mm

ACP21 galvanised steel column protector, 500mm height, 76mm tube. Concrete-in or bolt-down fixing, custom RAL colours available.

£213.58 each, ex VAT

£256.29 inc VAT

Ships in 10 to 15 working days

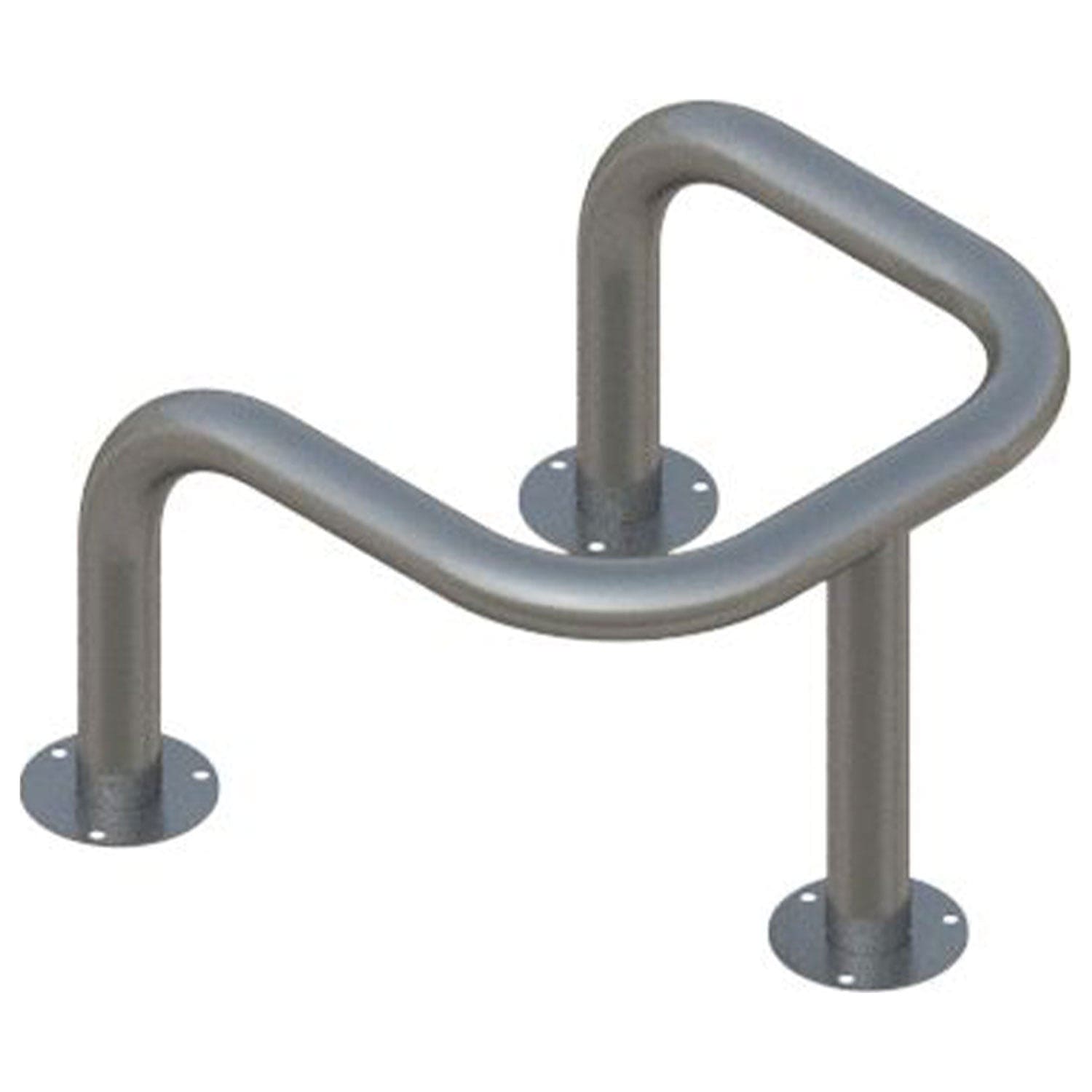

Finish: Galvanised

Fixing Options

Buy more, pay less Per unit, ex VAT. Applied automatically.

Ships in 10 to 15 working days

Formal quote back in 3 hours. No account needed.

Quote in 3 hours No account needed

Made in the UK
Pay in 30 days with Klarna. No fee. Learn more
Next Day Delivery Available

Pay in 30 days with a Trade Account. No fees.
UK stock. Stock and lead time are shown above.
Seen it cheaper? We beat any genuine quote. 0161 706 0479

Impact protection, built to last

Absorbs impact, not damage

Galvanised steel construction stands up to repeated knocks from forklifts and plant, protecting the column or corner behind it rather than the vehicle.

Two fixing methods

Choose concrete-in for a permanent 300mm-deep foundation, or bolt-down (flanged) where you need to fix to an existing floor.

Built for the weather

Hot-dip galvanised finish resists corrosion, so the protector performs the same outdoors as it does inside a warehouse.

Optional high-visibility tape

Add reflective tape at the point of order to keep the protector visible in low light or busy traffic areas.

Custom colour to order

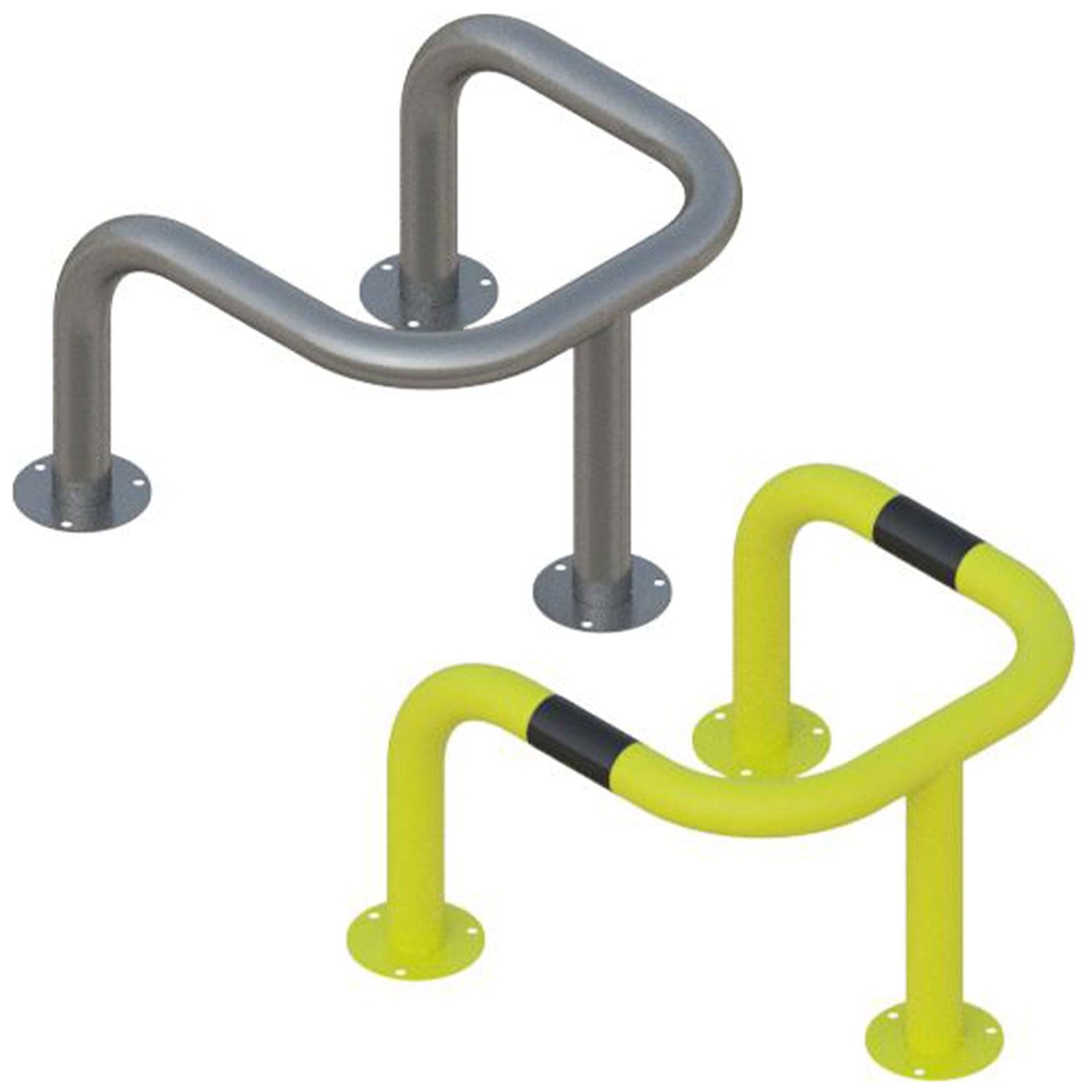

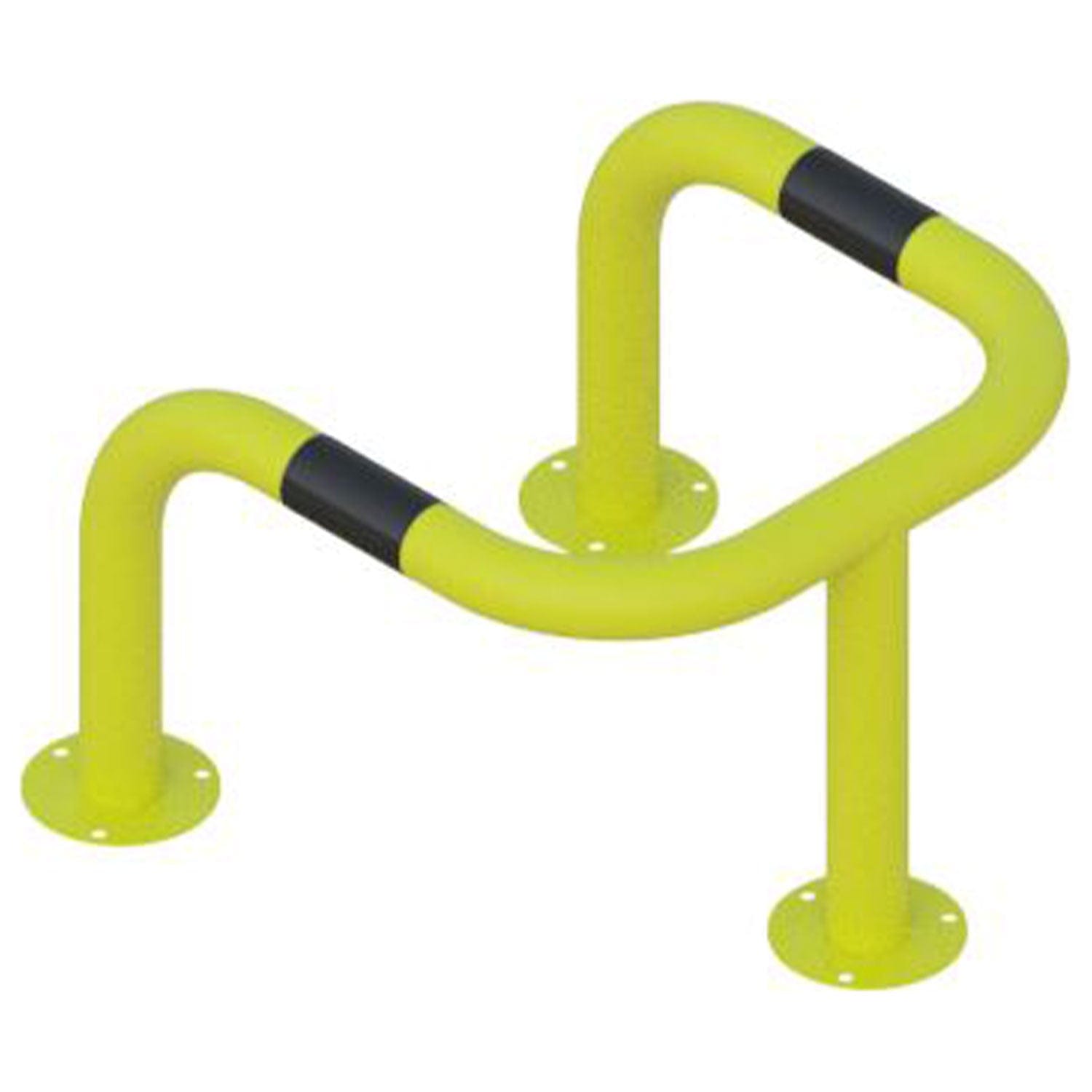

Available powder-coated to any RAL or BS reference alongside the standard galvanised and yellow-with-black-bands finish.

Overview

ACP21 Galvanised Steel Column Protector - Overview

The ACP21 is a heavy-duty column protector for corners, pillars and columns exposed to forklift and vehicle traffic in warehouses, factories and logistics sites. Made from galvanised mild steel, it fits over the vulnerable structure and takes the impact so the column does not have to.

500mm

Height

76mm

Tube diameter

21kg

Bolt-down weight

300mm

Concrete-in depth

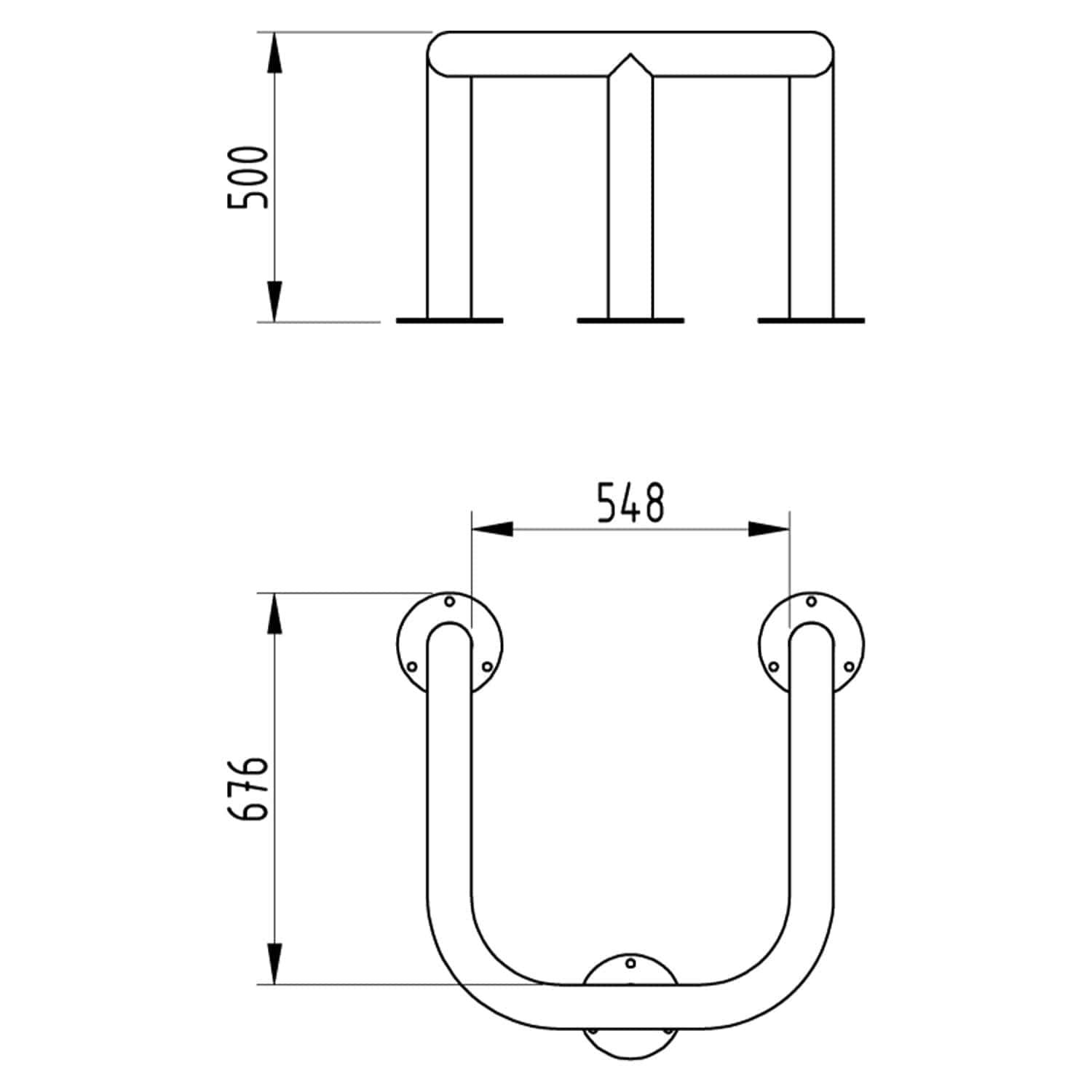

Dimensions
Height	500mm
External width	700mm
Internal width	548mm
Tube diameter	76mm

Details
Material	Galvanised steel
Finish options	Galvanised, or galvanised and powder-coated
Fixing options	Concrete-in or bolt-down (flanged)
Concrete-in depth	300mm
Fixing bolts required	9 (not included with this variant)
Weight, concrete-in	18kg
Weight, bolt-down	21kg

Frequently asked questions

Does this include the fixing bolts?

No - this SKU is the bolt-down (flanged) version excluding bolts, so you'll need 9 bolts of your own. A version with the bolts included is also listed, along with a concrete-in base.

What's the difference between concrete-in and bolt-down fixing?

Concrete-in sets into a 300mm-deep foundation for a permanent fix; bolt-down (flanged) bolts straight onto an existing floor, which suits sites where digging a foundation isn't practical.

What size column or corner will this fit?

The protector has a 548mm internal width and stands 500mm tall, suited to corner columns and pillars within that footprint. The ACP1, ACP2 and ACP11 protectors cover other sizes in the range if this one isn't the right fit.

Can I have it powder-coated in our company colour?

Yes - alongside the standard galvanised and yellow-with-black-bands finishes, we can powder-coat to any RAL or BS reference; add the code when ordering.

Is it suitable outdoors as well as inside?

Yes - the galvanised finish is corrosion-resistant, so it performs the same outside as it does on an indoor warehouse floor.

How much does it weigh?

21kg for the bolt-down version and 18kg for the concrete-in version - both fine for a two-person lift into place.

Can reflective tape be added?

Yes - reflective tape is available as an option at the point of order for extra visibility in busy or low-light areas.
