Autopa · SKU: 086012

ACP4 Galvanised Steel Column Protector - 900mm

ACP4 galvanised steel column protector, 900mm bolt-down guard with twin 48mm rails. Custom RAL colours and reflective tape available.

£172.33 each, ex VAT

£206.79 inc VAT

Ships in 10 to 15 working days

Finish: Galvanised

Fixing Options

Buy more, pay less Per unit, ex VAT. Applied automatically.

Ships in 10 to 15 working days

Formal quote back in 3 hours. No account needed.

Quote in 3 hours No account needed

Made in the UK
Pay in 30 days with Klarna. No fee. Learn more
Next Day Delivery Available

Pay in 30 days with a Trade Account. No fees.
UK stock. Stock and lead time are shown above.
Seen it cheaper? We beat any genuine quote. 0161 706 0479

Corner protection built to take the knocks

Deflects impact

Twin 48mm galvanised rails take the hit from forklifts and pallet trucks, protecting the column behind.

Two fixing options

Choose a concrete-in base for a cast foundation or a bolt-down flanged base for a fast fit to an existing floor.

Colour options

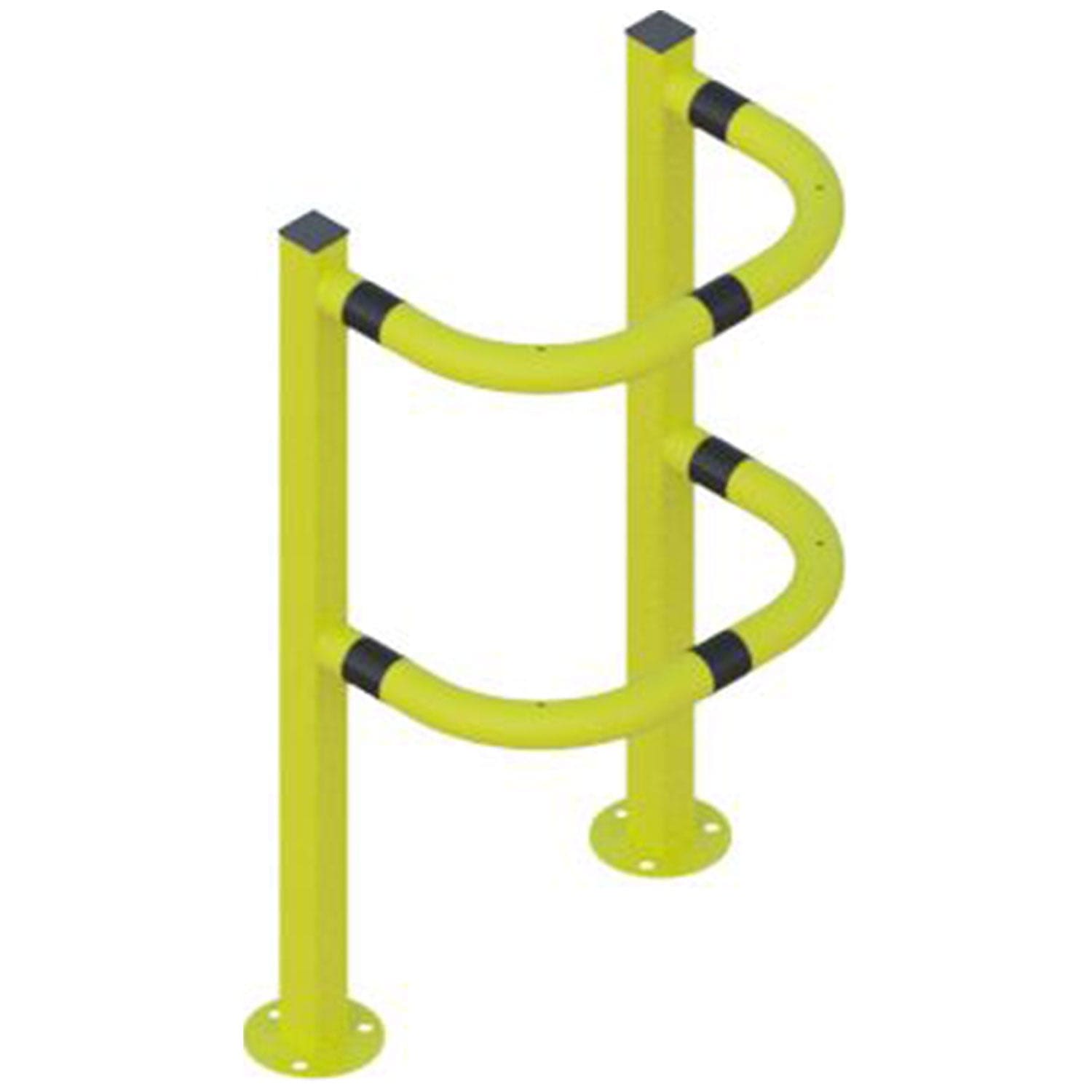

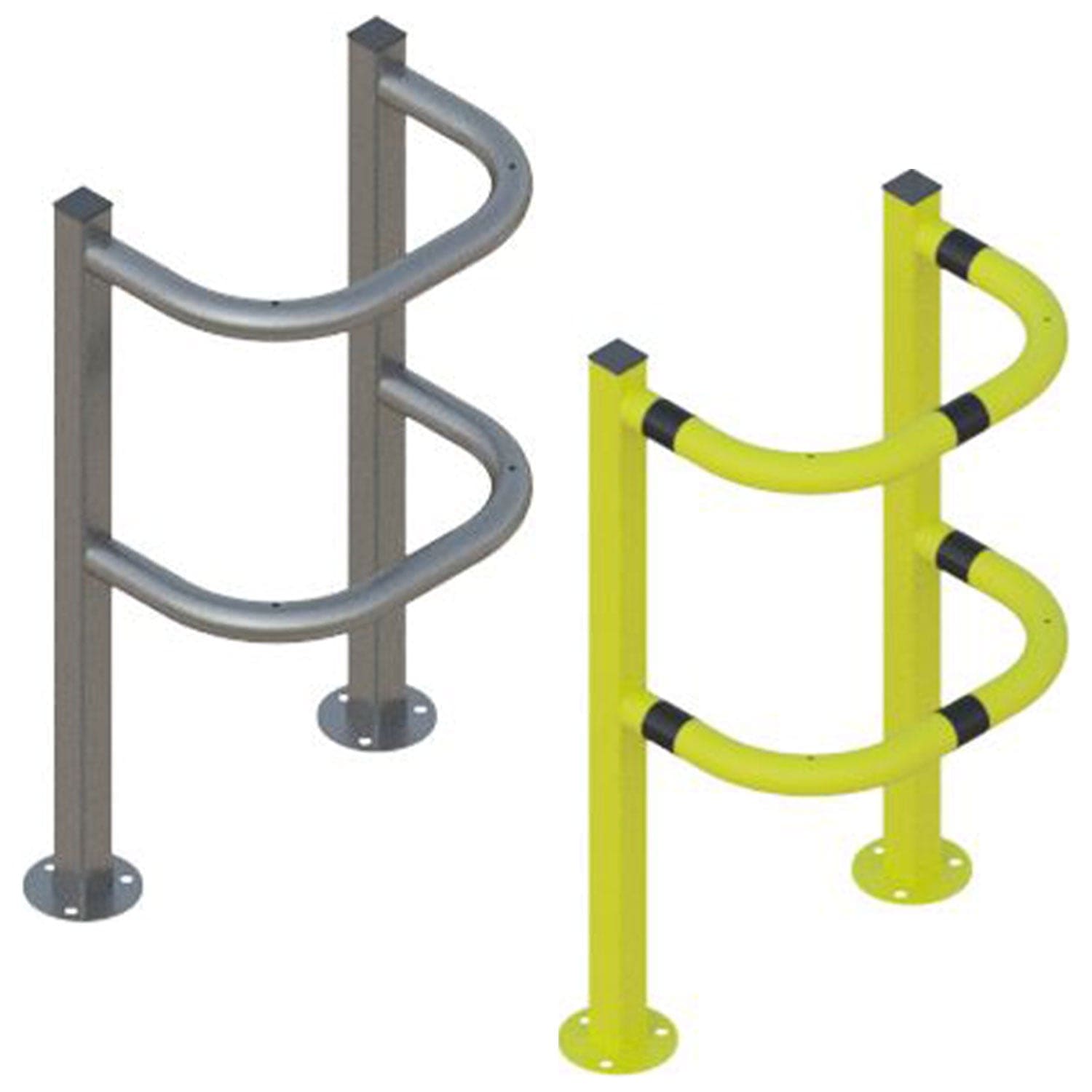

Plain galvanised, powder-coated yellow with black hazard bands, or a custom RAL/BS colour to order.

Made in the UK

Manufactured by Autopa from galvanised mild steel, built to handle daily knocks.

Overview

ACP4 Galvanised Steel Column Protector - Overview

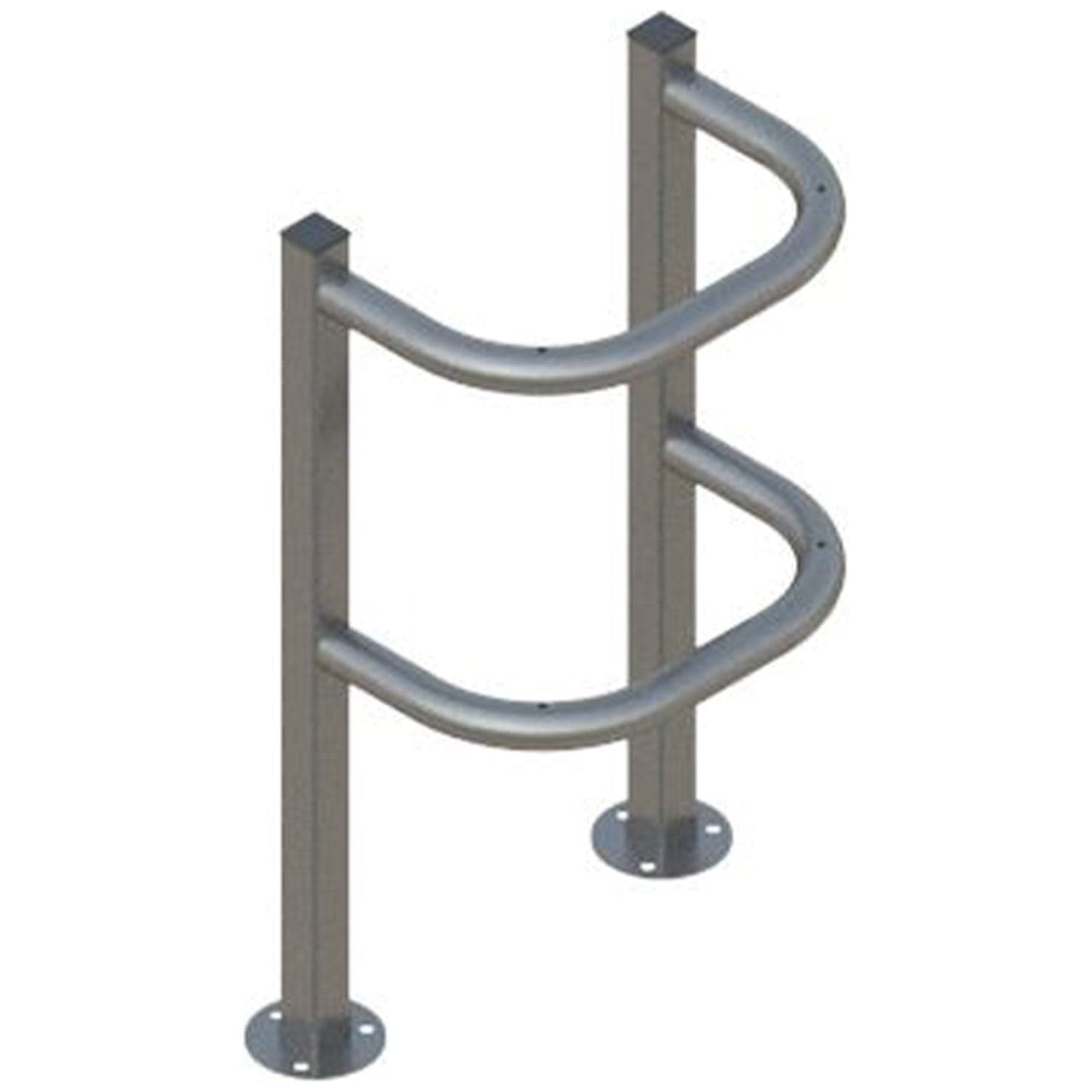

The ACP4 Galvanised Steel Column Protector is a bolt-down corner guard for 900mm columns, deflecting forklift and pallet-truck impact away from the structure behind. Twin 48mm galvanised steel rails span between two upright posts, built by Autopa in the UK.

900mm

Height

500mm

External width

48mm

Tube diameter

14kg

Weight (bolt-down)

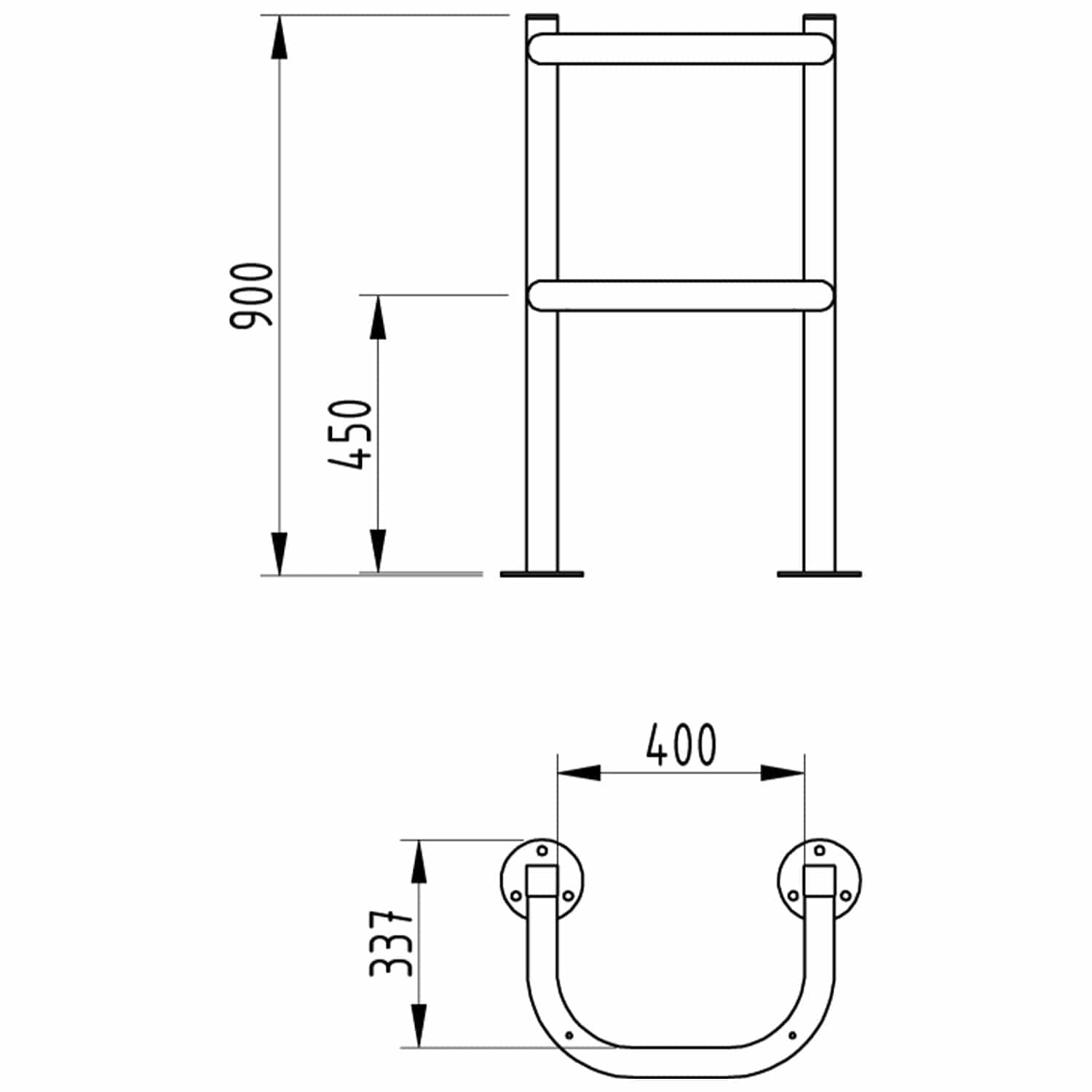

Dimensions
Height	900mm
External width	500mm
Internal width	400mm
Tube diameter	48mm

Details
Weight (concrete-in)	16kg
Weight (bolt-down)	14kg
Concrete-in depth	300mm
Bolts required	9 per unit
Material	Galvanised mild steel
Finish	Galvanised or galvanised and powder-coated

Frequently asked questions

Does this listing include the fixing bolts?

No. This is the bolt-down (flanged) version excluding bolts, so you will need 9 bolts of your own choosing. A version with the bolts included is also available, as is a concrete-in base.

What's the difference between the concrete-in and bolt-down versions?

The concrete-in base sets into a 300mm-deep cast foundation, while the bolt-down (flanged) base fixes straight to an existing floor - useful where you cannot dig a foundation.

What size column will this fit?

The guard has a 400mm internal width and stands 900mm tall, so it suits corner columns and pillars up to that footprint. For a taller or shorter column, the ACP1, ACP2 and ACP11 protectors cover other heights.

Can I get it in a specific colour?

Yes. Alongside the plain galvanised and yellow-with-black-bands finishes, we can powder-coat to a custom RAL or BS colour - add your reference when ordering.

Is reflective tape available?

Yes, reflective tape can be added to order for extra visibility in low light or busy traffic areas.

Is it suitable for outdoor use?

Yes. The mild steel is galvanised, so it resists rust and holds up outdoors as well as inside a warehouse or factory.

How much does it weigh?

The bolt-down version weighs 14kg and the concrete-in version 16kg, so it is a manageable two-person lift for installation.
