Autopa · SKU: 085039

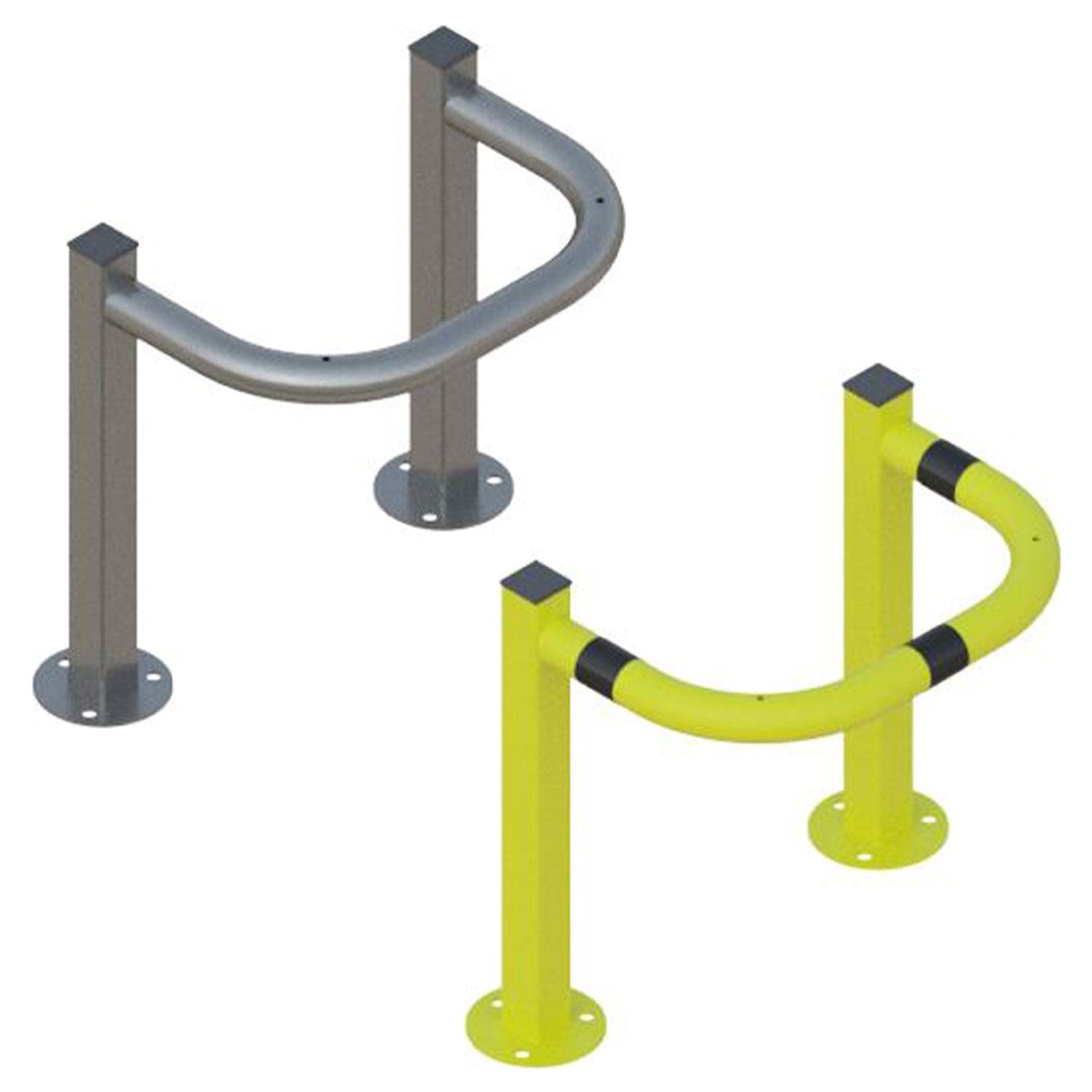

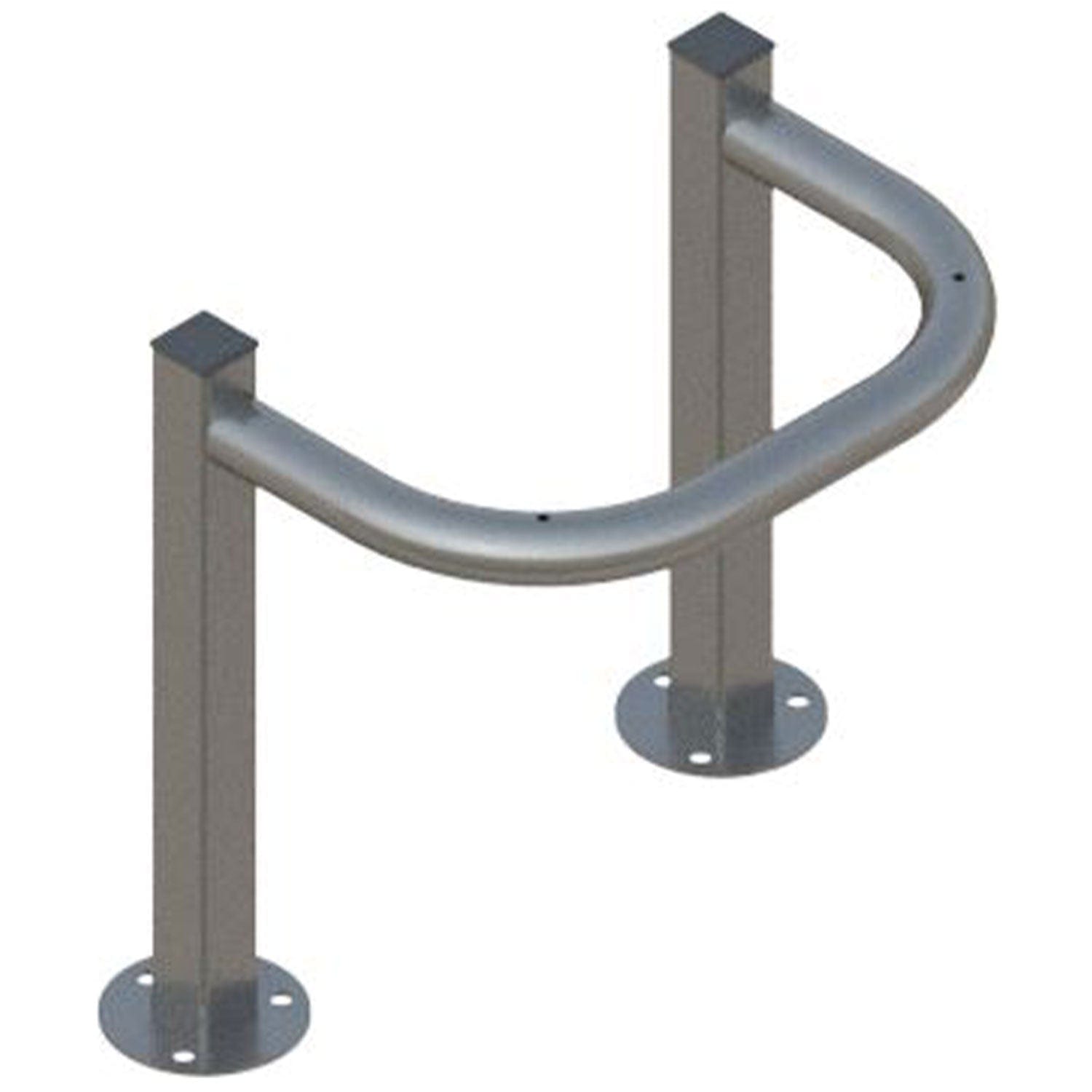

ACP5 Galvanised Steel Column Protector - 500mm

Two-post galvanised steel column guard, 500mm high, 500mm external / 400mm internal width. Concrete-in or bolt-down fixing, custom RAL colour available.

£107.99 each, ex VAT

£129.59 inc VAT

Ships in 10 to 15 working days

Finish: Galvanised

Fixing Options

Buy more, pay less Per unit, ex VAT. Applied automatically.

Ships in 10 to 15 working days

Formal quote back in 3 hours. No account needed.

Quote in 3 hours No account needed

Made in the UK
Pay in 30 days with Klarna. No fee. Learn more
Next Day Delivery Available

Pay in 30 days with a Trade Account. No fees.
UK stock. Stock and lead time are shown above.
Seen it cheaper? We beat any genuine quote. 0161 706 0479

Why choose the ACP5

Deflects impact

The curved rail absorbs and redirects forklift and pallet-truck strikes away from the corner.

Two fixing options

Bolt down to an existing slab or set 300mm into concrete for a permanent fixing.

Tight-radius protection

A 400mm internal width suits narrower columns and corners than the wider ACP3 guard.

Built to last

Hot-dip galvanised mild steel resists corrosion indoors and outdoors.

Overview

ACP5 Galvanised Steel Column Protector - Overview

A two-post corner guard that deflects forklifts, pallet trucks and other vehicles away from columns and racking corners, built from hot-dip galvanised steel for indoor and outdoor use. Its 400mm internal width suits narrower columns than the wider ACP3 guard.

500mm

Height

500mm

External width

400mm

Internal width

10kg

Weight (concrete-in)

Dimensions
Height	500mm
External width	500mm
Internal width	400mm
Tube diameter	48mm
Upright section	50mm x 50mm square tube

Details
Material	Galvanised steel
Finish	Galvanised, or galvanised and powder-coated
Fixing	Concrete-in (300mm depth) or flanged bolt-down
Bolts required (bolt-down)	6 per unit
Weight (concrete-in)	10kg
Weight (bolt-down)	8kg

Frequently asked questions

How does the ACP5 compare to the ACP3?

Both stand 500mm high, but the ACP5 has a 500mm external and 400mm internal width, tighter than the ACP3's 471mm external and 460mm internal width, so the ACP5 suits narrower columns and corners.

Does this bolt-down version come with fixing bolts?

This listing is the bolt-down version excluding bolts. A version including the fixing bolts is also available, or choose the concrete-in fixing instead.

Can I match it to our site colour scheme?

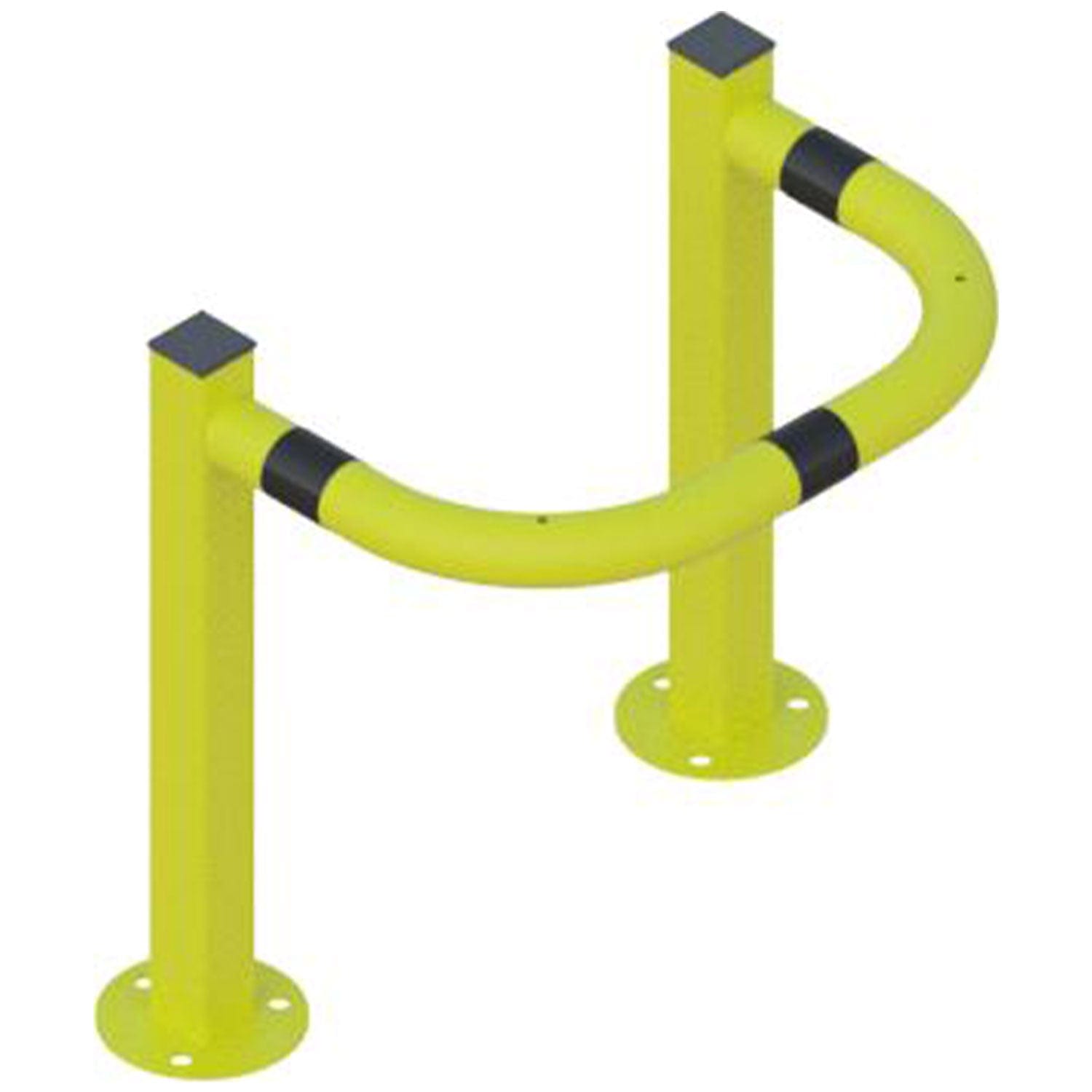

Yes. Alongside the standard galvanised finish and the yellow/black hazard-band option, the ACP5 can be powder-coated in any RAL or BS colour - provide the code when you order.

Will it hold up in an outdoor yard?

Yes, the hot-dip galvanised finish is built for both indoor and outdoor sites.

What's the weight difference between the two fixing options?

The concrete-in version weighs 10kg and the bolt-down version weighs 8kg.

Can reflective tape be added?

Yes, reflective tape is available as an option to improve visibility in low-light areas.
