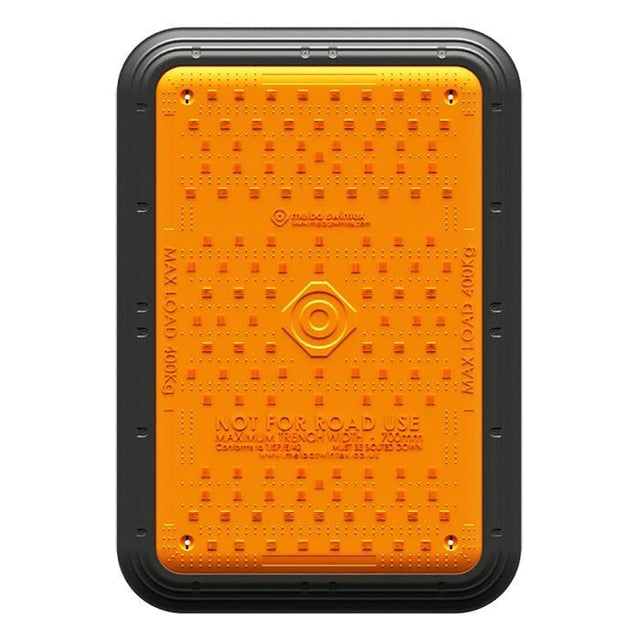

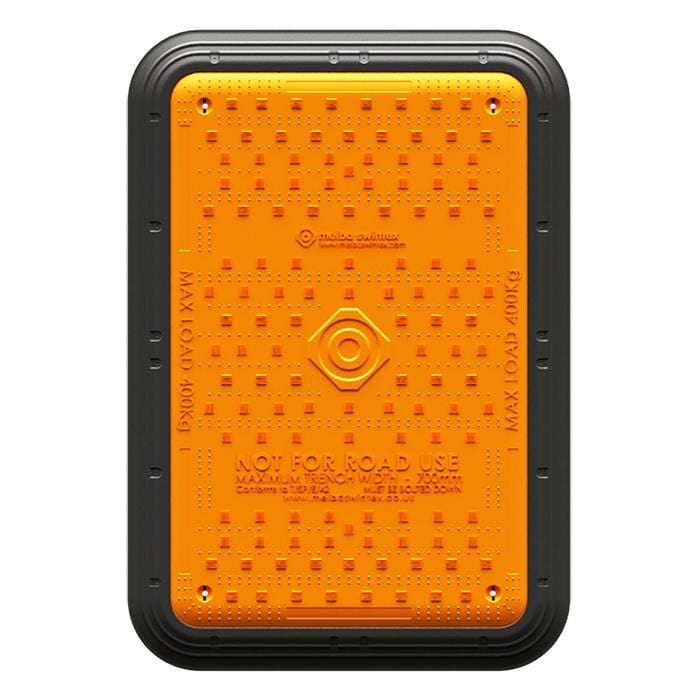

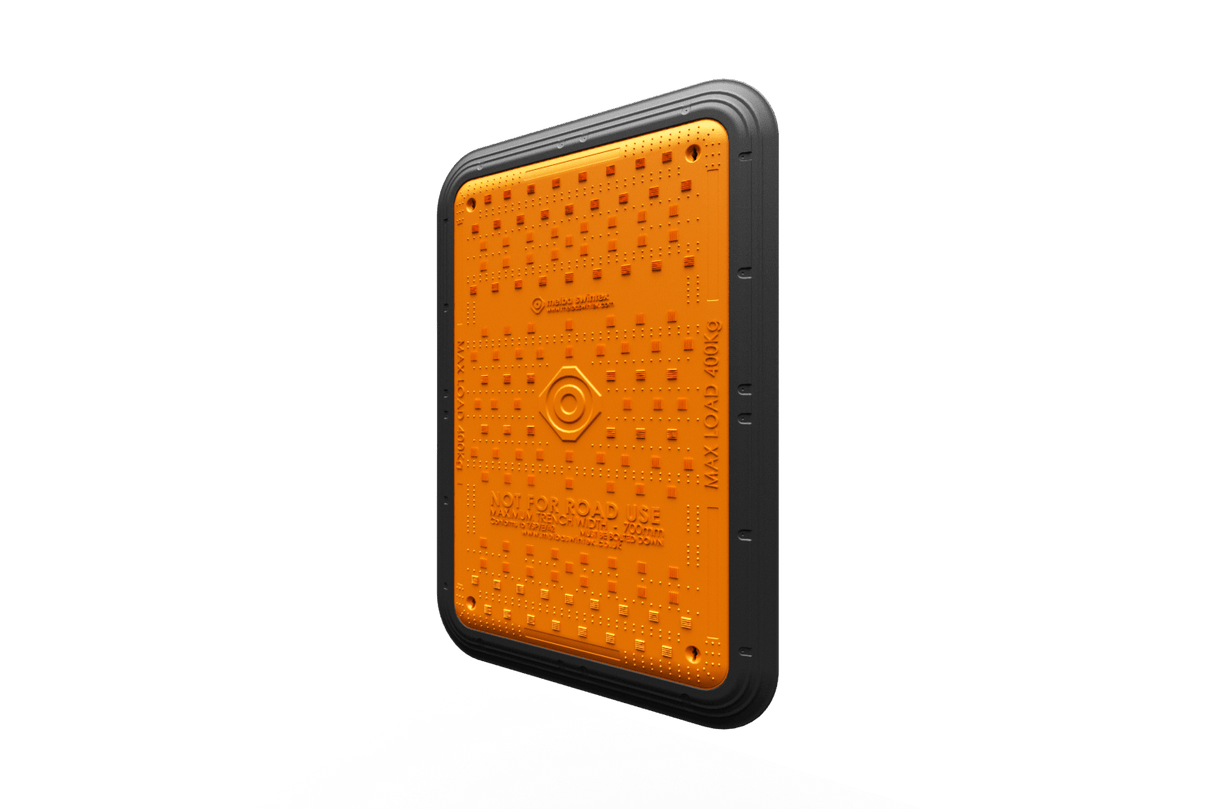

1200 x 800 Trench Cover Anti Slip

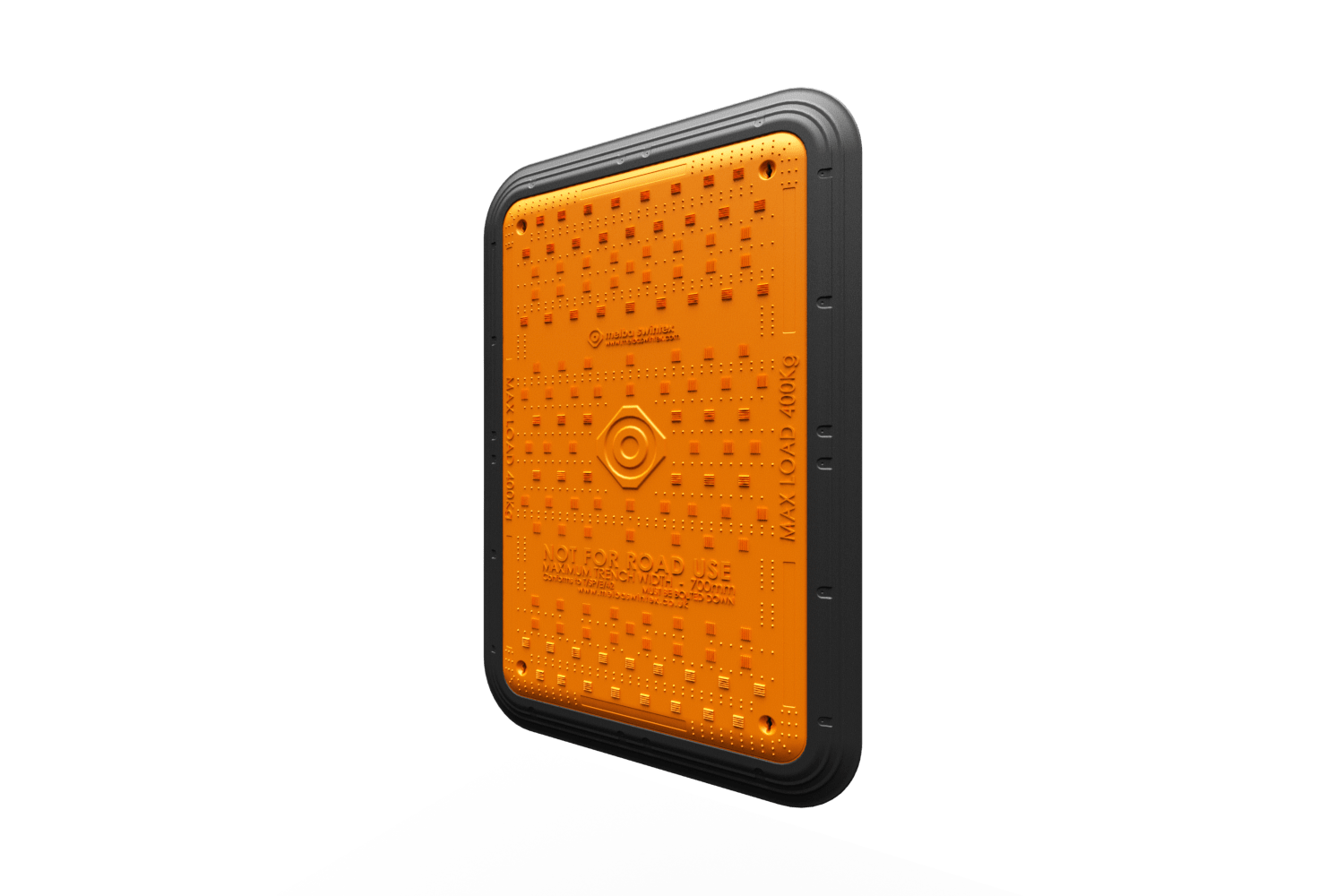

The Tuff Tread is a single-man lift Trench Cover which boasts great strength and durability. The cover consists of a PVC Skirt that is incredibly durable and offers great Anti-Slip properties. We also stock a Standard Trench Cover without the Anti-Slip Tread.
- 100% Recyclable.
- Single man lift.
- Built-in handles for easy lifting.

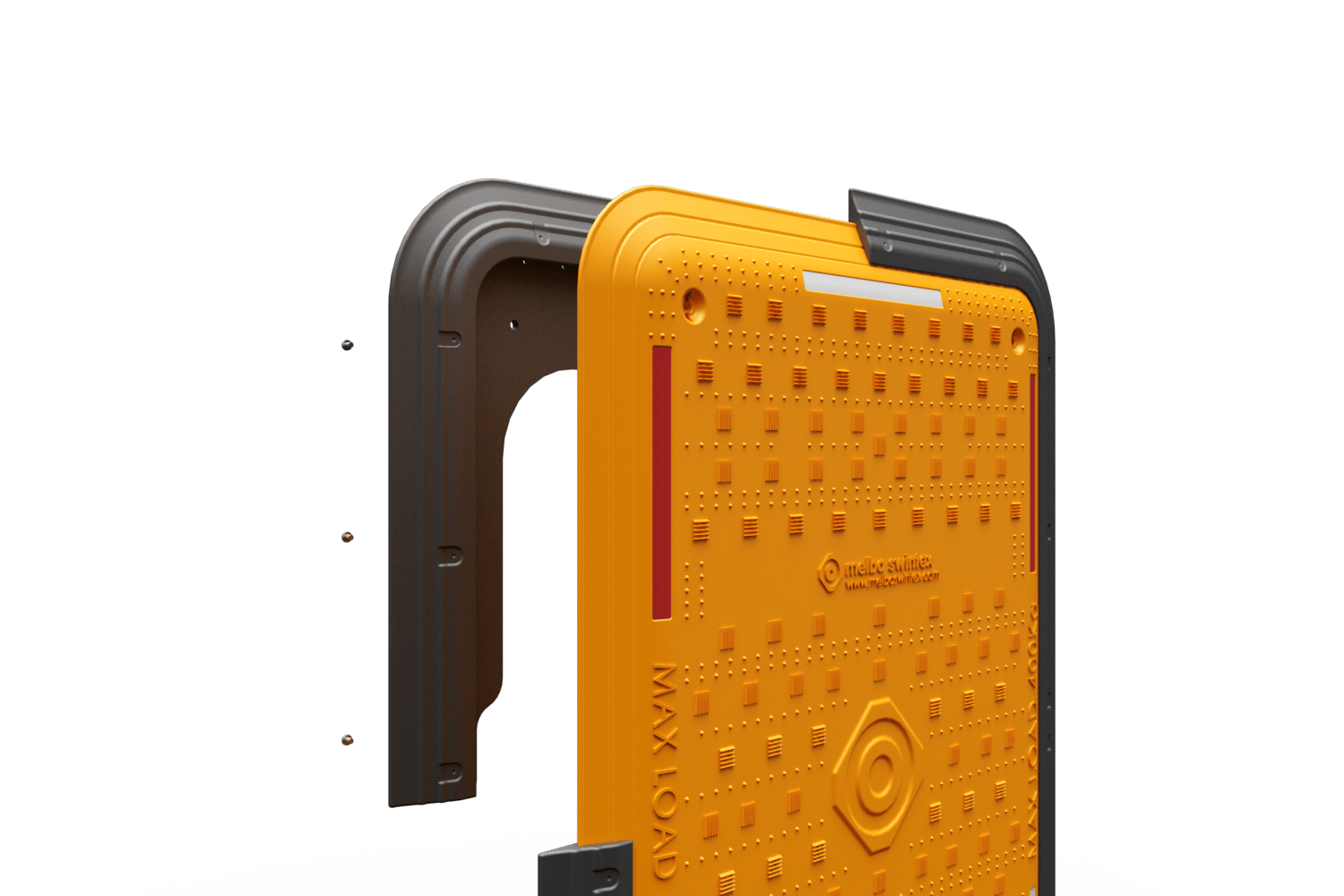

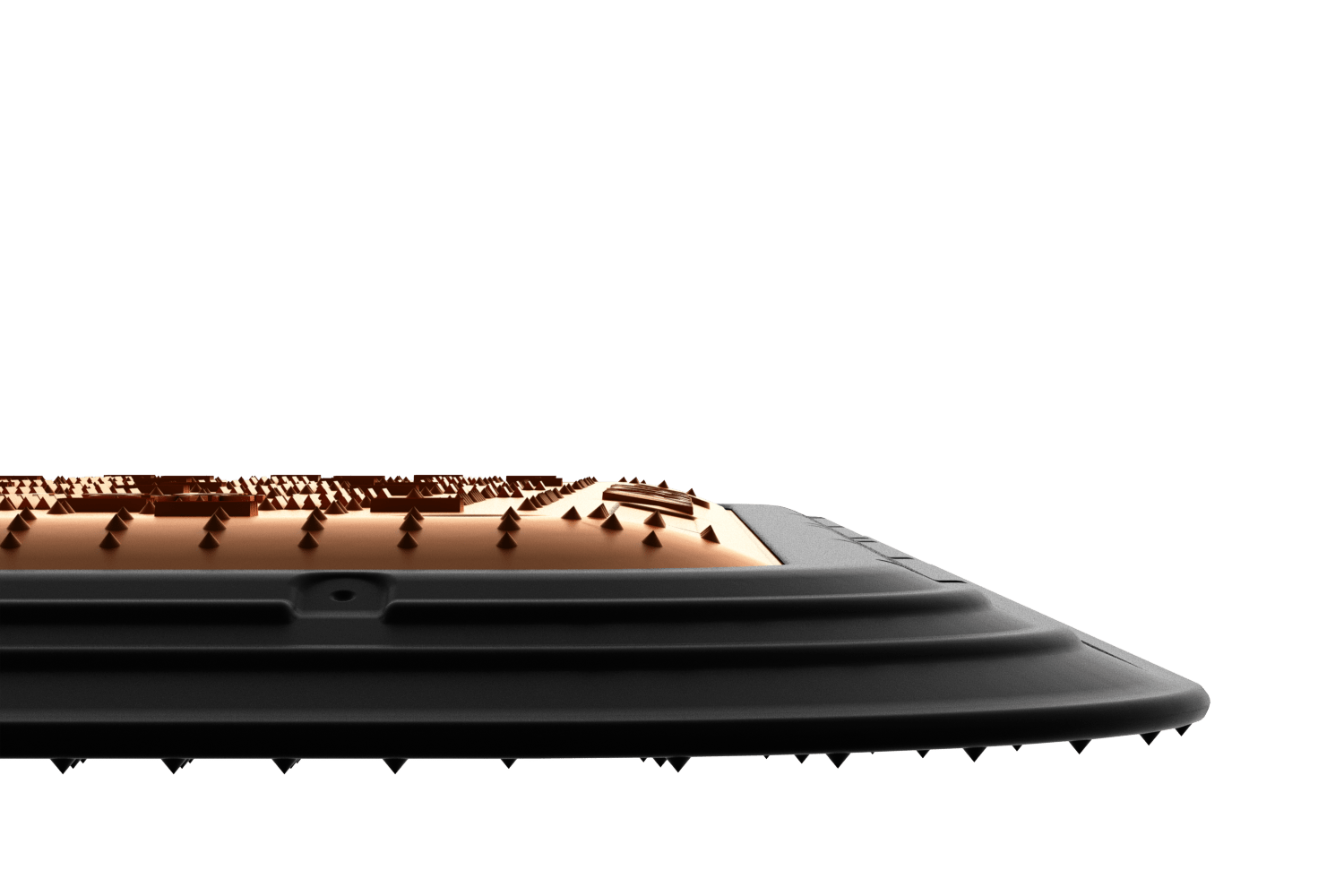

- PVC Skirt for increased grip.
- 4 fixing holes can be bolted to the ground if required.

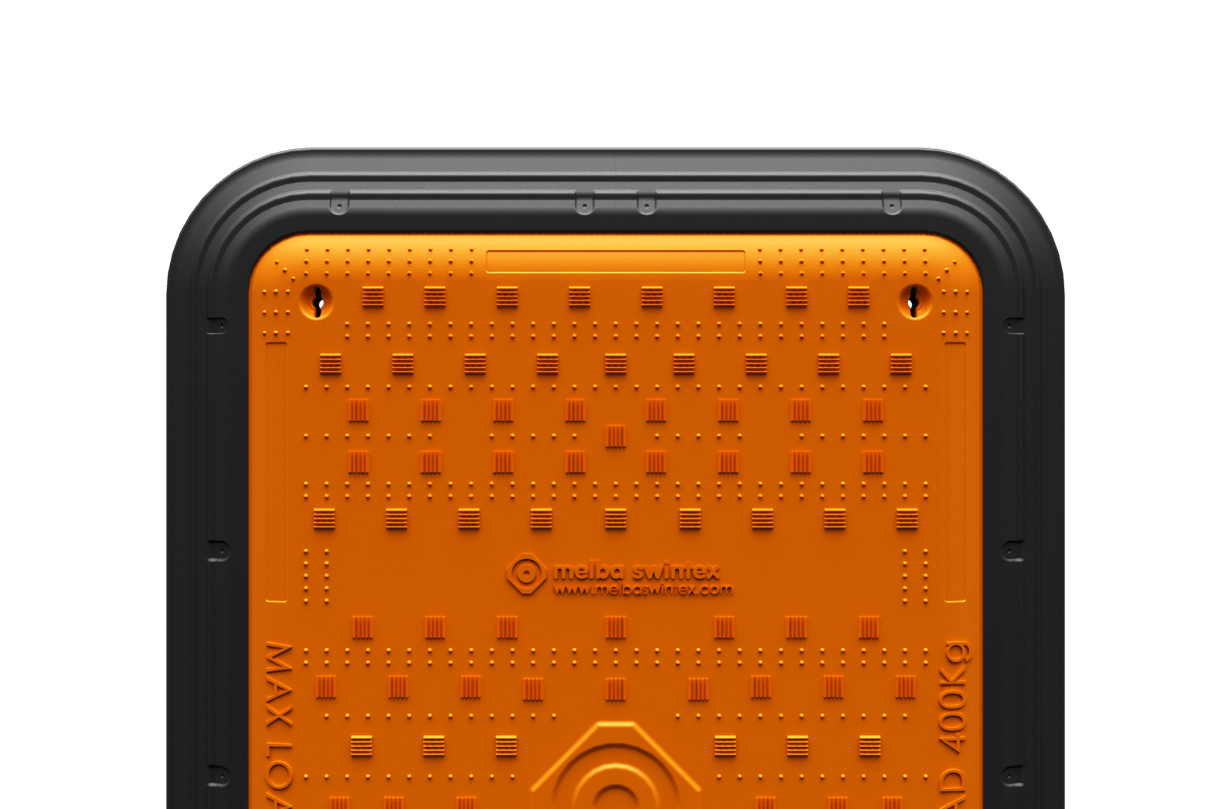

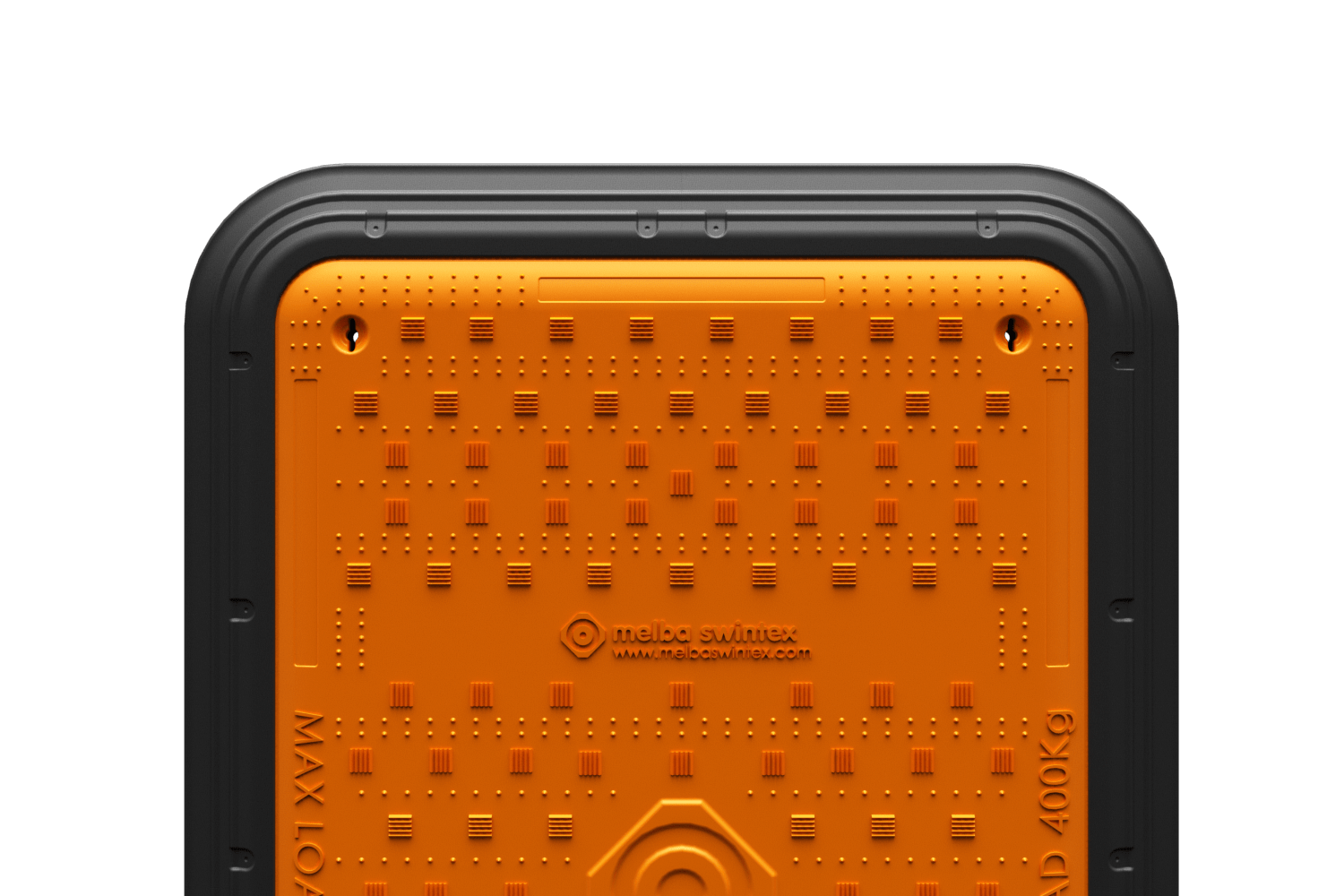

- Anti-Slip pattern.
- Designed with Anti-Trip edges.
- Corporate logos can be embossed.*
- Manufactured in yellow for high visibility, corporate colours available.
This Trench Cover is amongst those that we can get tailored to suit your requirements. This customisation includes custom colours and embossing of company names and branding. If you have any queries please contact our sales office on 0161 706 0479 or contact us here to discuss your requirements.
We offer Three types of customisation on the Tuff Tread.

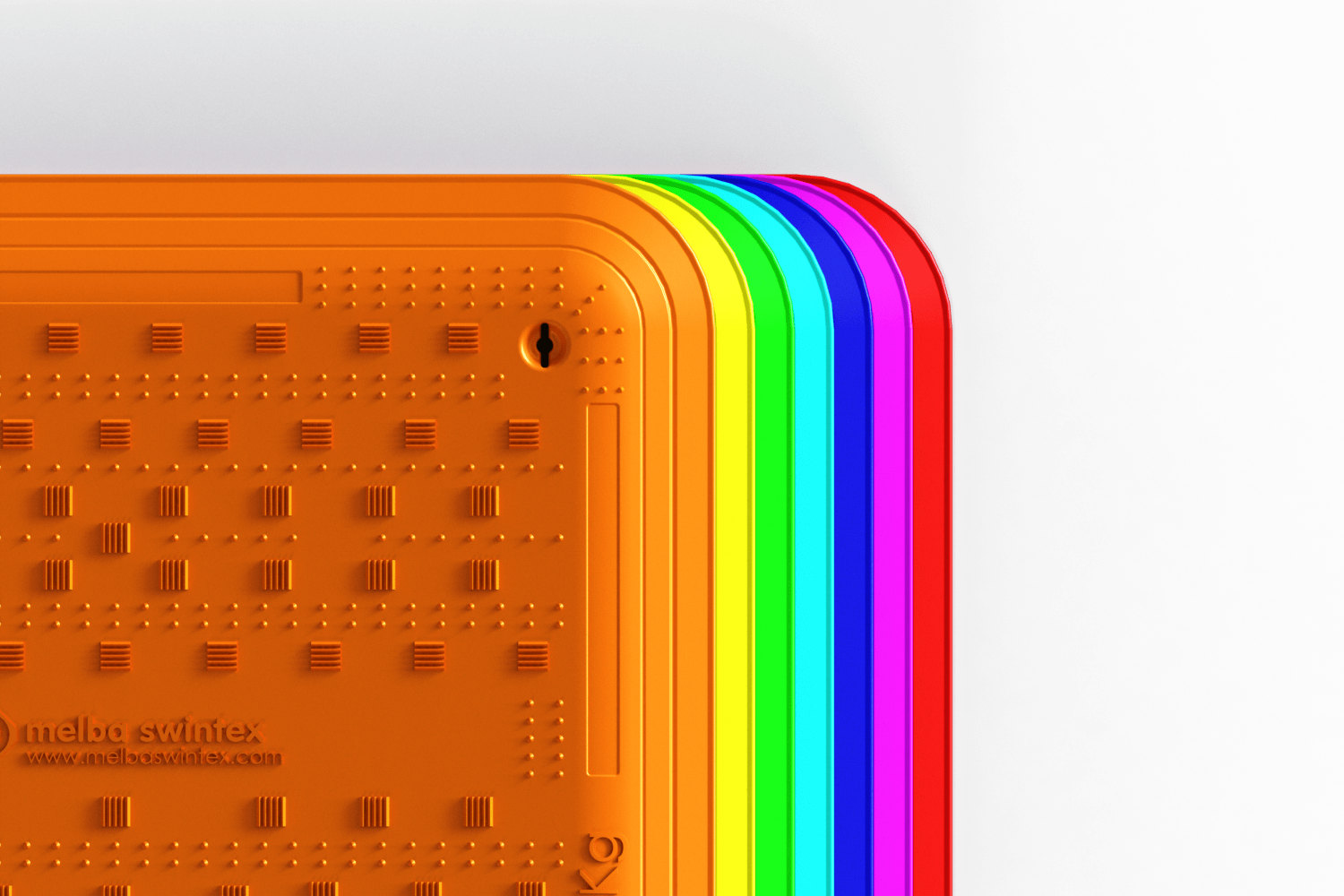

Colour: If you are not happy with the colours we offer then a custom colour can be made, this will be subject to a colour match a purchase charge, depending on amount and colour chosen.
- Embossing: There is a minimum order quantity of 40 for custom embossing on the Barrier. This carries a tooling charge of £30.
We are proud to offer next working day delivery on all in-stock items when ordering before 10am.
If you require pre-9:00, pre-10:00 or other requirements for delivery please phone us for a price on 0161 706 0479. Or visit our Delivery Information page for further information.
We work with several courier services to provide our customers with the best prices and value when ordering with us.
- Depth -40mm
- Length - 1200mm
- Width - 800mm
- 16kg per piece
- Type - UV stabilised High-Density Polyurethane (Body)
- Yellow. Custom Colours upon request.
- Pallet Type - Single
- Per pallet - 40 pcs
For more information on this product please read the Melba Swintex Tuff Trench data sheet which is linked below, or get in touch via email or telephone 0161 706 0479.
Concentrated load tests were carried out in accordance with the criteria of the HAUC Advice Note No. 2018/01.

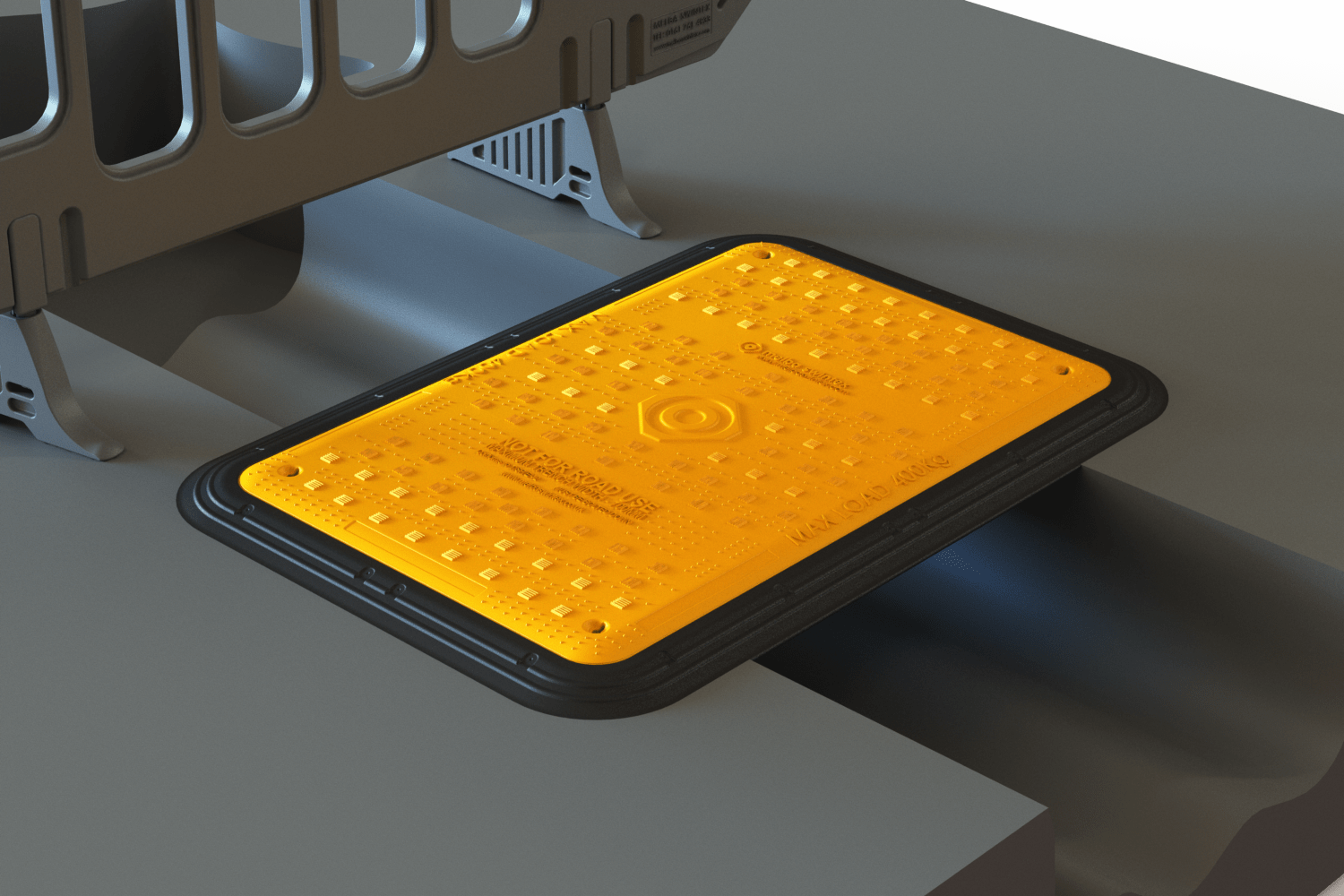

The Tuff Tread was placed unbolted over a trench span of 700mm. Using calibrated 25 kgs barbells located onto a pole with a bottom 250mm disc. Weight loading was applied onto the board and measured at intervals of 100 kgs.
When loaded with 400 kgs, the board should not deflect more than 5% of the maximum allowable span over the design life of the board. The ultimate failure load should not be less than 800 kg.
All tests concluded that the Tuff Tread conformed to all current legislation.
View our test video below.Download Spec Sheet Slip Resistance Testing Pressure Load Testing
