⊛ Manufactured to BSEN12899-1:2007 and UK Highway Regulations
⊛ All signs are CE Marked
⊛ Wall mounted or post mounted fixing options
⊛ Class 2 R2/RA2 Reflectivity
Signs are made to order and are delivered on average in 2 - 5 working days.
If you require pre-12 delivery or other requirements for delivery please phone us for a price on 0161 706 0479. Or visit our Delivery Information page for further information.
We work with several courier services to provide our customers the best prices and value when ordering with us.
Frequently Purchased with This Product
SPECIFICATIONS
Certifications | |
---|---|
Diagram Reference | 524.1 |
Sign Reflectivity | Class 2 R2/RA2 |
CE Marked | BSEN12899-1:2007 |
Features | |
Mounting Method | Wall Mounted or Post Mounted |
Sign Details | |
Sign Face Thickness | 3mm |
Material | Aluminium Composite |
Sign Face Colour | Red / White / Black |
Sign Rear Colour | Grey |

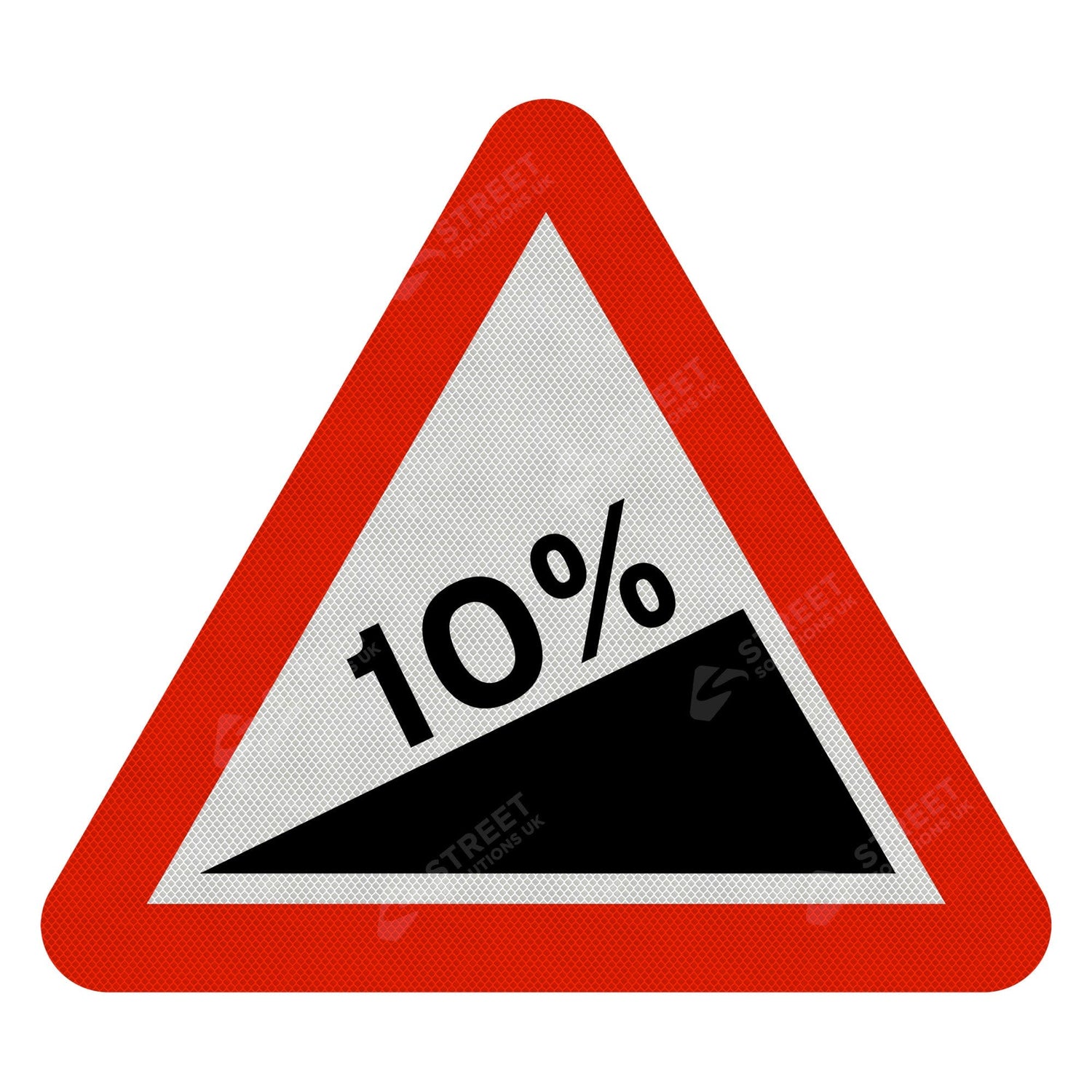

The permanent warning sign indicated by diagram 523 is used to warn drivers of a steep uphill gradient ahead
The percentage marked on the sign varies depending on the road conditions, and in our example, the sign indicates a 10% uphill gradient
This means that for every meter traveled, the elevation will increase by 0.1 meters
This sign is often used in combination with supplementary plates 525, 526, and 527, which warn drivers to use a low gear to regulate speed and prevent overheating of their brakes
Due to the unique nature of this sign, it is made to order based on the specific gradient of the road, we have pre-select gradients available. However if you require a custom gradient percentage please contact us.
The gradient is rounded to the nearest whole number according to government guidelines
For example, a gradient of 10.4% would be rounded to 10%, while 11.6% would be rounded to 12%
POST & WALL MOUNTABLE

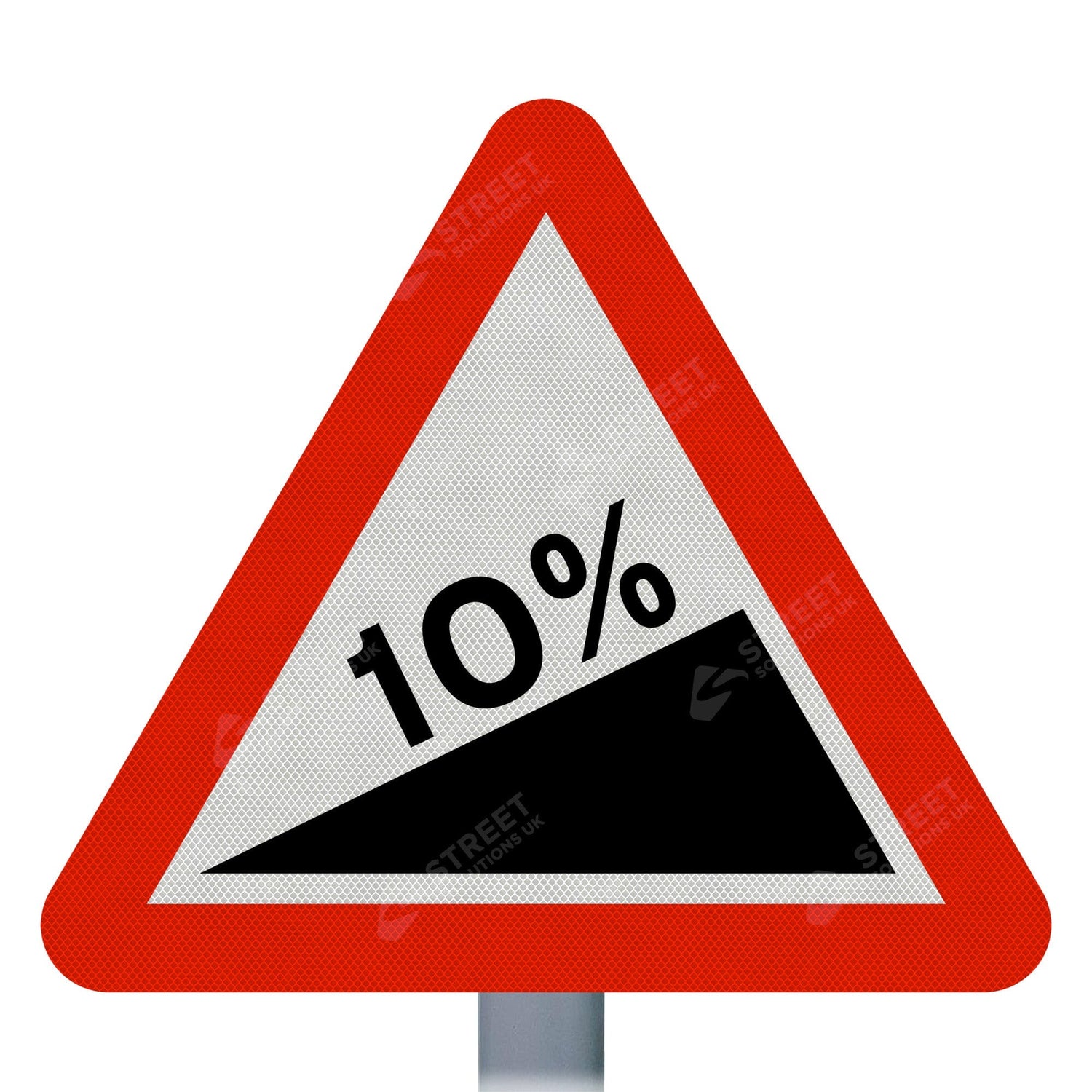

Post Mounted: These signs are supplied with rear channels that can be clamped in to place with anti-rotational post clips. Once secured the sign face will be fixed and will not twist out of place
This product is for the sign face only, posts & clipsare available and are sold separately
Wall Mounted: These signs are supplied untouched with no holes, the sign material is easily drilled for screw fixing or fixed to the wall with a no nails adhesive
RA2 CLASS REFLECTIVITY
The permanent road signs are suitable for both public highways and private road usage, offering best in class reflectivity standards
RA2 Class 2 Reflectivity: This is a high intensity reflective surface that is suited to highways and road usage, the signs surface is suitable for vehicles as it will reflect a significant amount of light back to drivers making it an extremely safe option during low light conditions
CE MARKED
All sizes of this permanent sign are CE marked, the legal requirement for every permanent road sign installed on any public highway or road
CE marked products like these signs pass all the EU health and safety regulations and are manufactured from long lasting materials that will withstand all weather conditions
