Prosolve · SKU:
170014

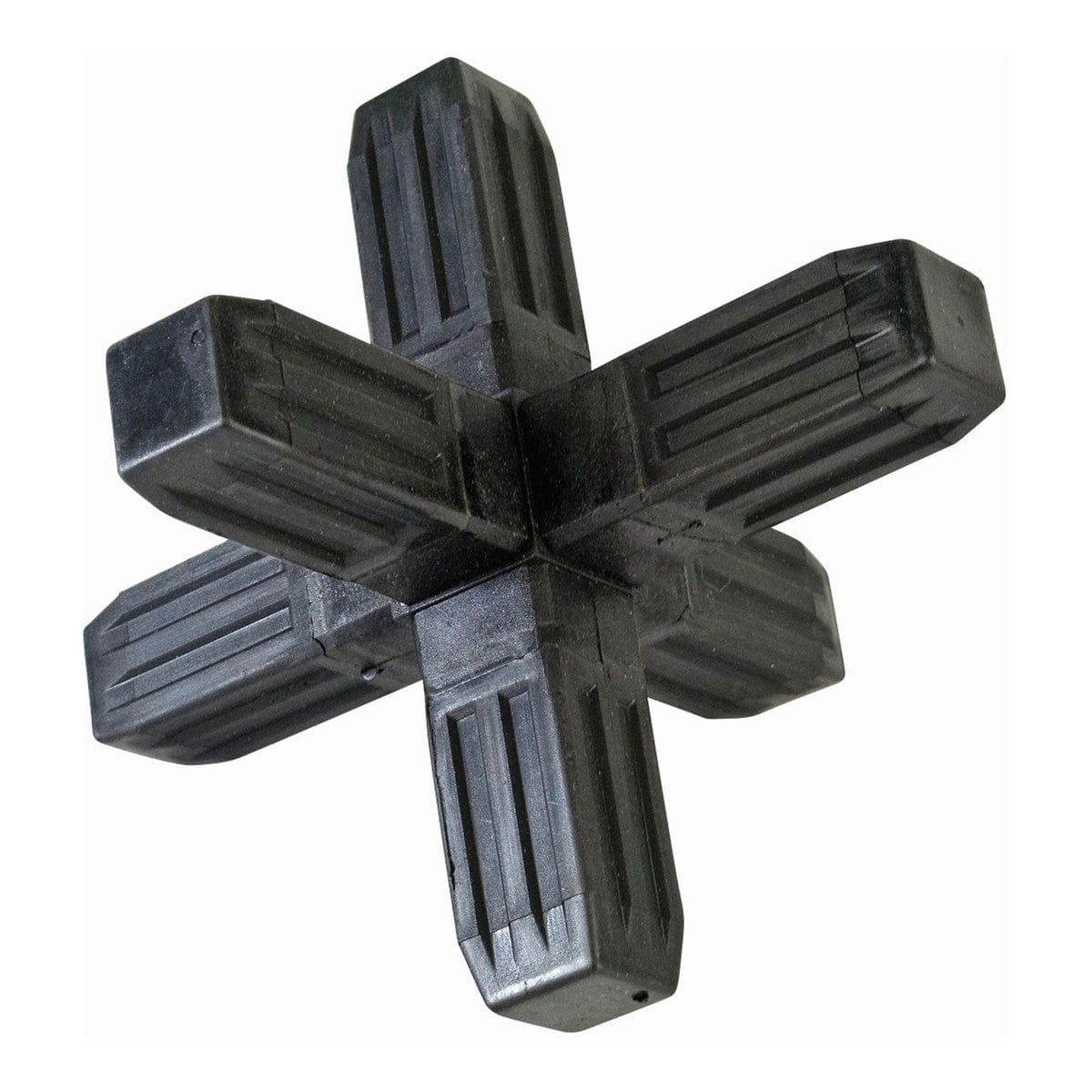

6 Way Joint (Black)
6-way joint connects six lengths of 25mm square tube across three axes for 3D frame builds. Push-fit, no tools. Moulded plastic, 0.22kg.
£9.13
each, ex VAT
£10.95
inc VAT
Ships in 1 to 5 working days
6 Way Joint (Black) is backordered and will ship as soon as it is back in stock.
Buy more, pay less
Per unit, ex VAT. Applied automatically.
Ships in
1 to 5 working days
Formal quote back in 3 hours. No account needed.
Quote in 3 hours
No account needed
- Made in the UK
- Next Day Delivery Available
- Pay in 30 days with a Trade Account. No fees.
- UK stock. Stock and lead time are shown above.
- Seen it cheaper? We beat any genuine quote. 0161 706 0479
Frequently purchased with
Tick to add
Complete the kit
0 add-ons selected · £0.00 ex VAT
You may also like
Other square tube & fittings in the range
3 Way JointSquare Tube & Fittings
£5.93 ex VAT
£7.12 inc VAT
4 Way JointSquare Tube & Fittings
£6.92 ex VAT
£8.30 inc VAT
5 Way JointSquare Tube & Fittings
£9.16 ex VAT
£10.99 inc VAT
6 Way Joint (Black)
Regular price
£10.95
Unit price
Unavailable
6 Way Joint (Black) is backordered and will ship as soon as it is back in stock.
Why it works
Quick push-fit joint for 3D frames
Tool-free push-fit
Ribbed spigot ends grip the tube for a secure join with no welding, screws or adhesive.
True 3D connection
Joins six tube ends across three axes, keeping cube frames and 3D structures square and stable.
Compact and light
At 70 x 25 x 25mm per arm and 0.22kg, it adds minimal bulk or weight to a build.
Recyclable plastic
Moulded from plastic, which can be recycled at end of life.
Overview
6 Way Joint (Black) - Overview
The 6-way joint connects six lengths of 25mm square tube across three axes, forming the centre node of a three-dimensional frame. It push-fits onto the tube ends for a quick, tool-free connection, and is supplied in Black.
6tubes
Joined per connector
3axes
X, Y and Z
70mm
Arm length
0.22kg
Weight
| Dimensions | |
|---|---|
| Length | 70mm |
| Width | 25mm |
| Height | 25mm |
| Weight | 0.22kg |
| Details | |
|---|---|
| Material | Moulded plastic |
| Colour | Black |
| Fixing | Push-fit, no tools required |
| Tube size | 25mm square |
Frequently asked questions
How many tube ends does the 6-way joint connect, and in what directions?
How many tube ends does the 6-way joint connect, and in what directions?
Six. The connector joins tube ends across three axes - X, Y and Z - so it forms the centre node of a fully three-dimensional frame rather than a flat join.
What tube size does it fit?
What tube size does it fit?
25mm square tube - all six arms are sized for the same profile.
Do I need tools, screws or adhesive to fit it?
Do I need tools, screws or adhesive to fit it?
No. The ribbed ends push-fit into the tube and hold it in place without any extra fixings.
What colour is it available in?
What colour is it available in?
Black only, in this single-variant listing (SKU 170014).
What is it made from?
What is it made from?
Moulded plastic, giving a light, corrosion-free connector for indoor and light outdoor use.
How much does it weigh?
How much does it weigh?
0.22kg, so it adds very little weight even at the busiest joins in a 3D frame.
Can I build a cube frame with this joint?
Can I build a cube frame with this joint?
Yes - it is designed for exactly that: use it at the internal nodes of a cube or box frame where tube meets in three directions, and pair it with the flat joints, such as the 3-way and 4-way, at the outer faces.
