Adjustable Feet

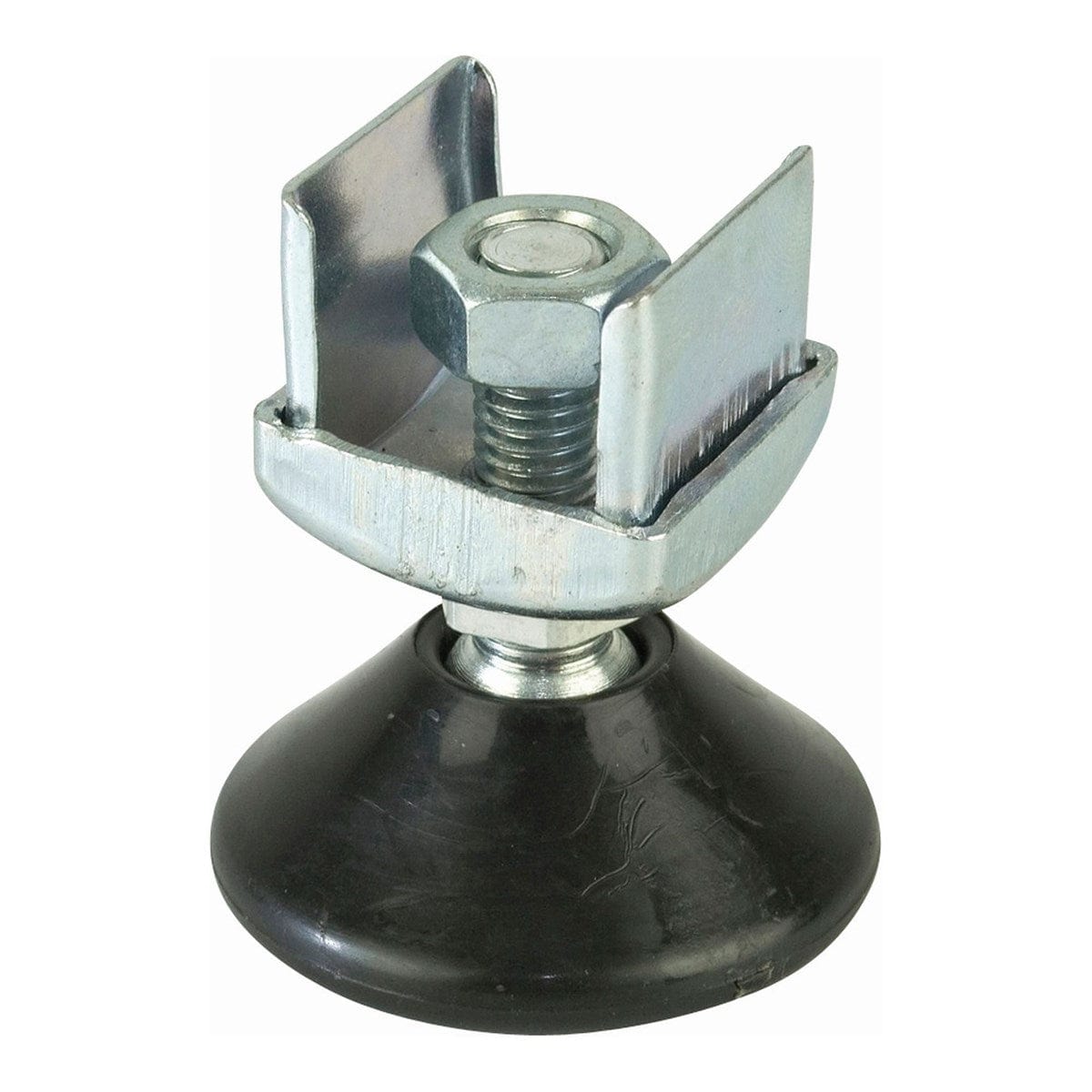

Adjustable levelling foot for 25mm square tube. Zinc-plated steel bracket, rubber base, threaded-bolt height adjustment. 45 x 45 x 60mm, 0.17kg.
£9.84
each, ex VAT
£11.81
inc VAT
Ships in 1 to 5 working days
Adjustable Feet is backordered and will ship as soon as it is back in stock.
Buy more, pay less
Per unit, ex VAT. Applied automatically.
Ships in
1 to 5 working days
Formal quote back in 3 hours. No account needed.
Quote in 3 hours
No account needed
- Made in the UK
- Next Day Delivery Available
- Pay in 30 days with a Trade Account. No fees.
- UK stock. Stock and lead time are shown above.
- Seen it cheaper? We beat any genuine quote. 0161 706 0479
Frequently purchased with
Tick to add
Complete the kit
0 add-ons selected · £0.00 ex VAT
You may also like
See all round and square tubes ›Other square tube & fittings in the range
Light Duty WheelSquare Tube & Fittings
£58.21 ex VAT
£69.85 inc VAT
Metal End CapSquare Tube & Fittings
£2.03 ex VAT
£2.44 inc VAT
Steel Square Tube - BlackSquare Tube & Fittings
£5.32 ex VAT
£6.38 inc VAT
You may be looking for
Adjustable Feet
Regular price
£11.81
Unit price
Unavailable
Adjustable Feet is backordered and will ship as soon as it is back in stock.
Why it works
Simple levelling for tube-frame builds
Tool-free height adjustment
Turn the bolt by hand to raise, lower or lock the foot - no separate tools needed.
Secure clamp fit
A zinc-plated steel bracket grips the tube wall for a stable, secure fit.
Floor-friendly rubber base
The rubber pad spreads the load and grips the floor without marking it.
Compact and light
At 45 x 45 x 60mm and 0.17kg, it adds minimal bulk to a frame leg.
Overview
Adjustable Feet - Overview
This adjustable foot clamps onto the end of 25mm square tube and gives a levelling point that can be raised, lowered and locked with a single bolt. It suits shelving, racking and furniture frames that need to sit level on an uneven floor.
45mm
Base diameter
60mm
Height
0.17kg
Weight
25mm
Tube size
| Dimensions | |
|---|---|
| Length | 45mm |
| Width | 45mm |
| Height | 60mm |
| Weight | 0.17kg |
| Details | |
|---|---|
| Bracket material | Zinc-plated steel |
| Base material | Rubber |
| Colour | Black |
| Tube size | 25mm square |
| Fixing | Clamp bracket with adjustable bolt |
Frequently asked questions
What tube size does the adjustable foot fit?
What tube size does the adjustable foot fit?
25mm square tube, matching the rest of this fitting range.
How do I adjust the height?
How do I adjust the height?
Turn the bolt at the top of the bracket by hand - turning it one way raises the foot, the other way lowers it, and it locks in place once set.
What is the foot made from?
What is the foot made from?
A zinc-plated steel clamp bracket and bolt, with a rubber base pad that grips the floor and spreads the load.
How does it fix to the tube?
How does it fix to the tube?
The steel bracket clamps over the outside of the tube wall - no drilling or welding is needed.
What colour is it available in?
What colour is it available in?
Black, in this single-variant listing (SKU 170015).
Can this replace a wheel or castor?
Can this replace a wheel or castor?
No - it is a static levelling foot, not a wheel. If a mobile base is needed, the Light Duty Wheel in this range fits the same 25mm tube.
