Prosolve | SKU:
174046
Heavy Duty Twin Slot Brackets
£4.16
Ex. VAT
£4.99
Inc. VAT
Why buy from us
- Pay in 30 days with a Trade Account. No fees.
- Trade and bulk pricing available on request
- UK stock, dispatched fast
Heavy Duty Twin Slot Brackets - 370mm x 50mm is backordered and will ship as soon as it is back in stock.
Ships in
1 – 5 working days
Quote in 3 hours
No account needed
- Made in the UK
- Pay in 30 days with Klarna. No fee. Learn more
- Next Day Delivery Available

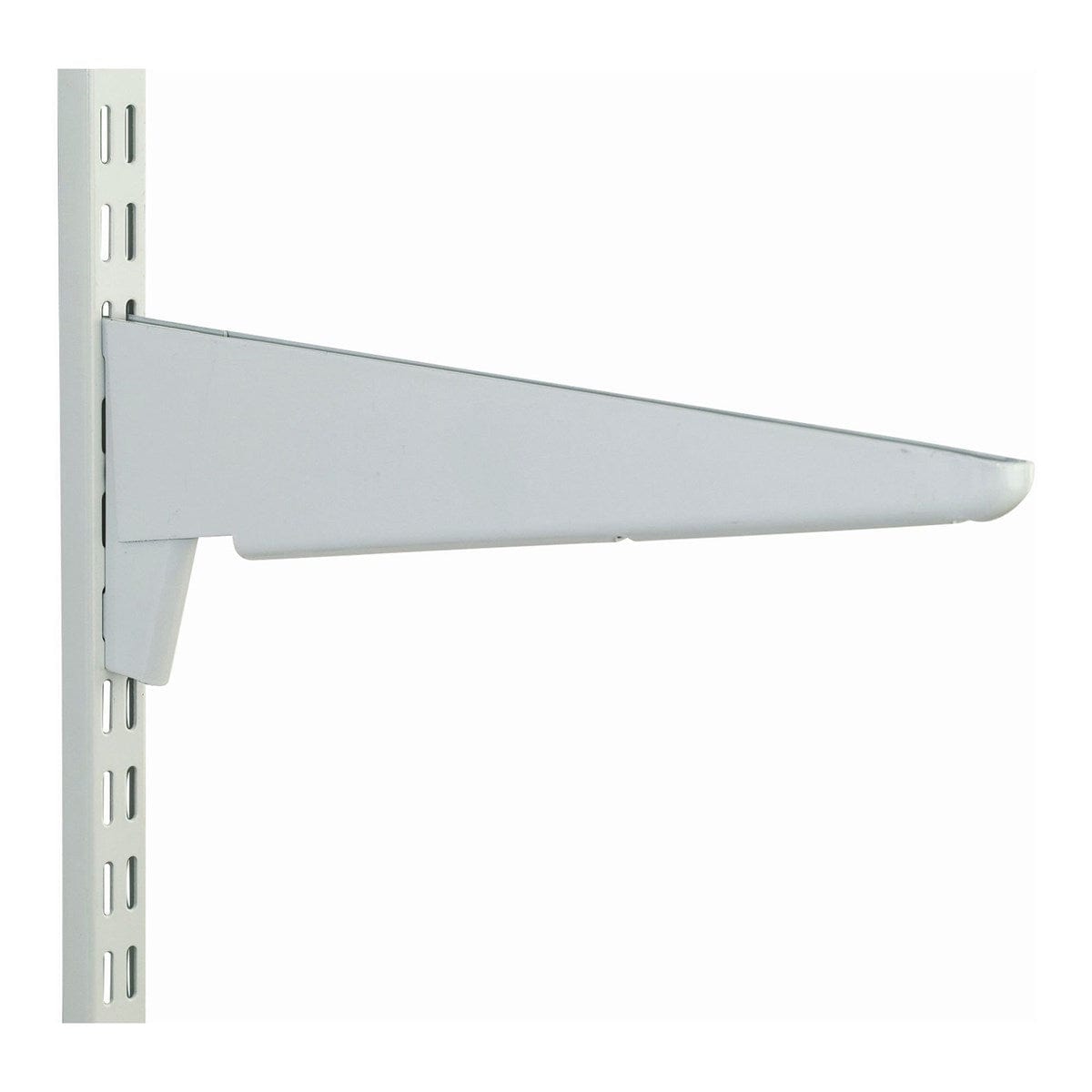

Heavy Duty Twin Slot Brackets
Regular priceFrom
£4.78
Unit price
Unavailable
Heavy Duty Twin Slot Brackets - 370mm x 50mm is backordered and will ship as soon as it is back in stock.
Why it works
Where the strength comes from
Gusset carries the load
The triangular web between arm and hook is what separates this from the standard bracket at the same depth.
Three working depths
370mm, 470mm and 610mm cover most stores and workshop shelf sizes without going to a full racking system.
Fits the uprights you already have
Standard twin slot hook fit, so heavy duty brackets can be swapped into an existing bay where the load has gone up.
Deeper section on the long sizes
470mm and 610mm step up to the 85mm section rather than staying at 50mm.
Overview
The reinforced twin slot bracket
A plain shelf bracket loses capacity as it gets longer, because the arm is working harder against the hook. The heavy duty version adds a triangular gusset between the arm and the upright, which puts the load back through the fixing instead of the tip of the bracket. Same twin slot fit, same 1.5mm grade 202 steel, three depths from 370mm to 610mm.
370-610mm
Depth range
1.5mm
Steel thickness
3sizes
In the range
9002RAL
White finish
| Dimensions | |
|---|---|
| Depths | 370mm, 470mm, 610mm |
| Width | 13.5mm |
| Section height | 50mm or 85mm, by size |
| Thickness | 1.5mm |
| Weight | 0.52kg to 0.93kg, by size |
| Details | |
|---|---|
| Material | Steel, grade 202 |
| Colour | White, RAL 9002 |
| Reinforcement | Triangular underside gusset |
| System | Twin slot |
| Fitting | Tool-free hook fit |
| Sold as | Single bracket |
Frequently asked questions
What makes these heavy duty?
What makes these heavy duty?
The gusset. A triangular web runs from under the arm back to the upright hook, so load is carried through the fixing rather than cantilevered off the end of a plain bracket.
What load will they take?
What load will they take?
The supplier rates them for heavy domestic and light commercial use but does not publish a figure per size, so we would rather not quote one. If you need a stated load for a specification, get in touch and we will ask the manufacturer.
Will they fit my existing twin slot uprights?
Will they fit my existing twin slot uprights?
Yes, they use the standard twin slot hook fit, so they go into the same uprights as the standard brackets. That makes them a straight swap where a shelf has started carrying more.
What sizes are available?
What sizes are available?
Three: 370mm x 50mm, 470mm x 85mm and 610mm x 85mm. The second figure is the section height of the bracket.
Why are the 470mm and 610mm a different height?
Why are the 470mm and 610mm a different height?
They use the deeper 85mm section. A longer arm needs more section depth to stay stiff, so the range steps up above 370mm.
What colour are they?
What colour are they?
White, RAL 9002. That is a slightly warmer white than the RAL 9003 used on the standard brackets, so a mixed bay may show a small difference in shade.
Are they sold singly?
Are they sold singly?
Yes, one bracket per unit. A shelf normally needs one at each upright.
