Autopa · SKU: 066063

Inglewood Modular Smoking Shelter with Clear PETG Cladding 1m - 5m

Name: Inglewood Modular Smoking Shelter with Clear PETG Cladding 1m - 5m
Brand: Autopa
SKU: 066063
Price: 2116.99 GBP
Availability: InStock

Free-standing smoking shelter, galvanised steel frame, 4mm UV-stabilised PETG clear roof and panels. Bolt-down fixing, 1m to 5m lengths.

£1,764.16 each, ex VAT

£2,116.99 inc VAT

Ships in 10 to 15 working days

Shelter Size (L x W)

Fixing Option

Buy more, pay less Per unit, ex VAT. Applied automatically.

Ships in 10 to 15 working days

Formal quote back in 3 hours. No account needed.

We can fit this for you

This product is covered by our installation service. Tell us about the site and we will quote for supply and fitting.

How installation works

Quote in 3 hours No account needed

Made in the UK
Next Day Delivery Available

Pay in 30 days with a Trade Account. No fees.
UK stock. Stock and lead time are shown above.
Seen it cheaper? We beat any genuine quote. 0161 706 0479

Frequently purchased with

Complete the kit

Tick to add

Inglewood Modular Smoking Shelter with Clear PETG Cladding 1m - 5m Extension BaysSmoking Shelters 1 £1,121.83 £1,121.83 each

Wall Ashtray for Smoking ShelterSmoking Shelter Accessories 1 £79.49 £79.49 each

0 add-ons selected · £0.00 ex VAT

Why choose the Inglewood shelter

Built to BS EN ISO 1461

Galvanised steel frame designed for long-term outdoor durability.

Clear all-round visibility

4mm UV-stabilised PETG panels keep the shelter light and open.

Weather protection

Curved roof sheds rain while half-clad sides keep the shelter ventilated.

Straightforward installation

Ships flat-packed with a bolt-down flanged base for on-site fitting.

Overview

Inglewood Modular Smoking Shelter - Overview

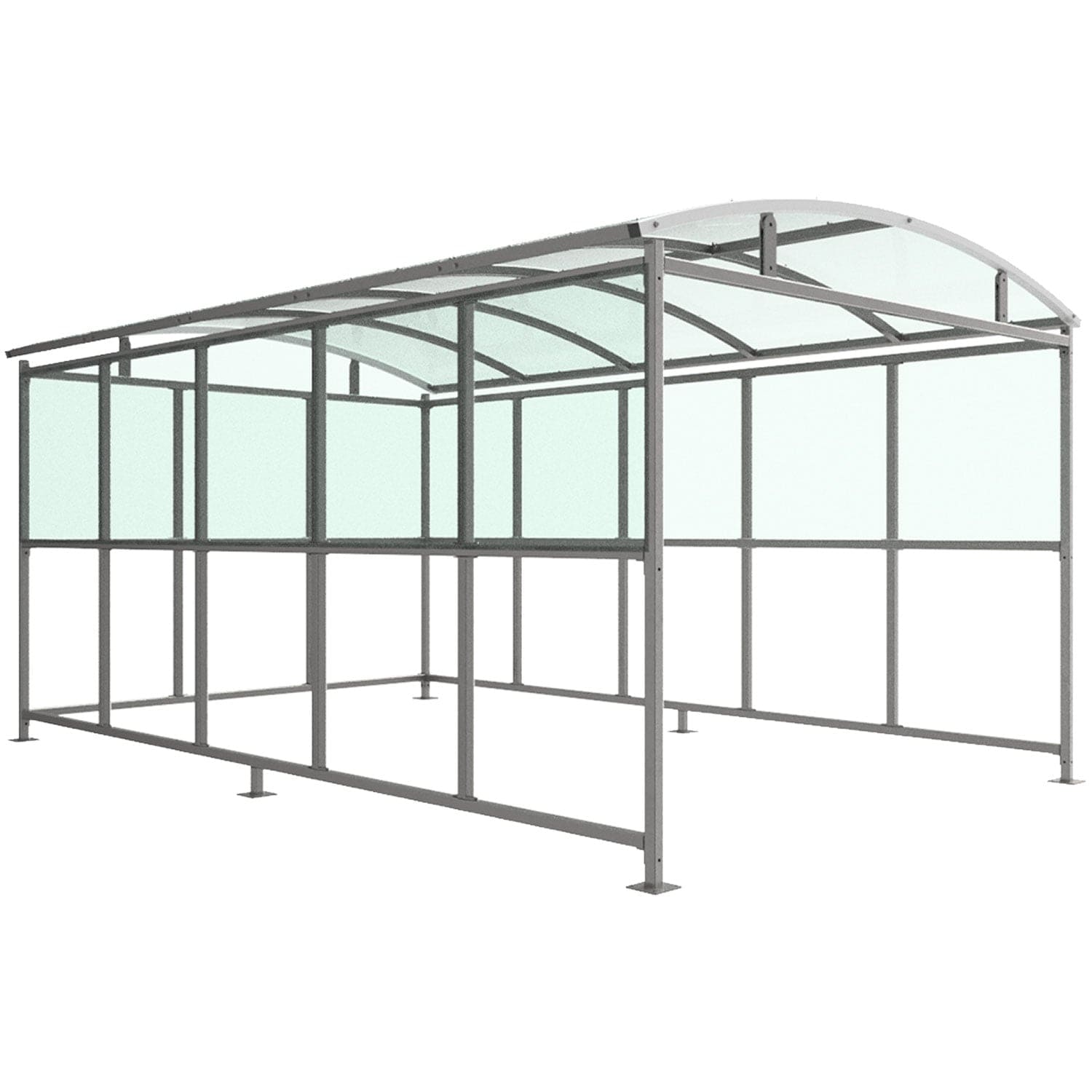

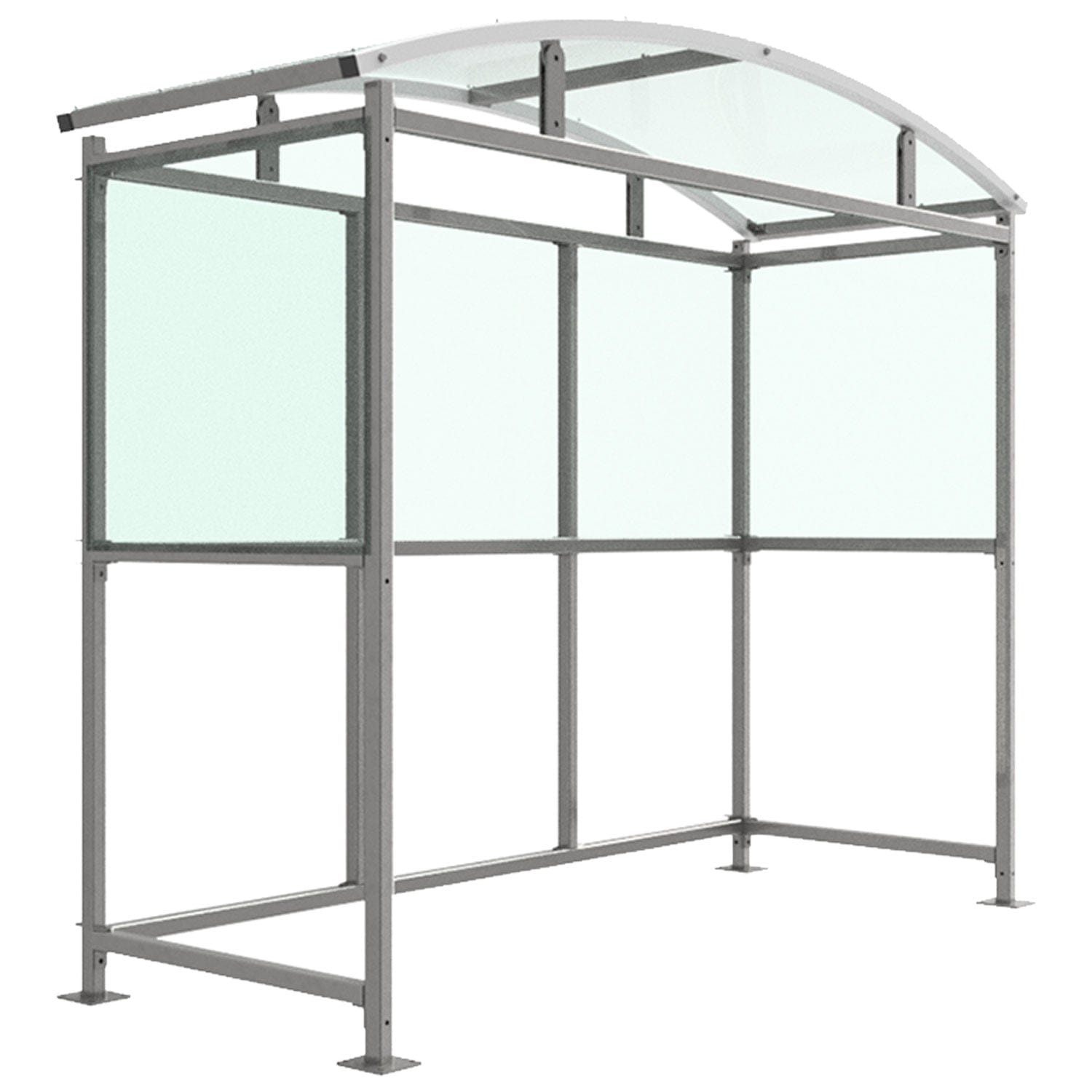

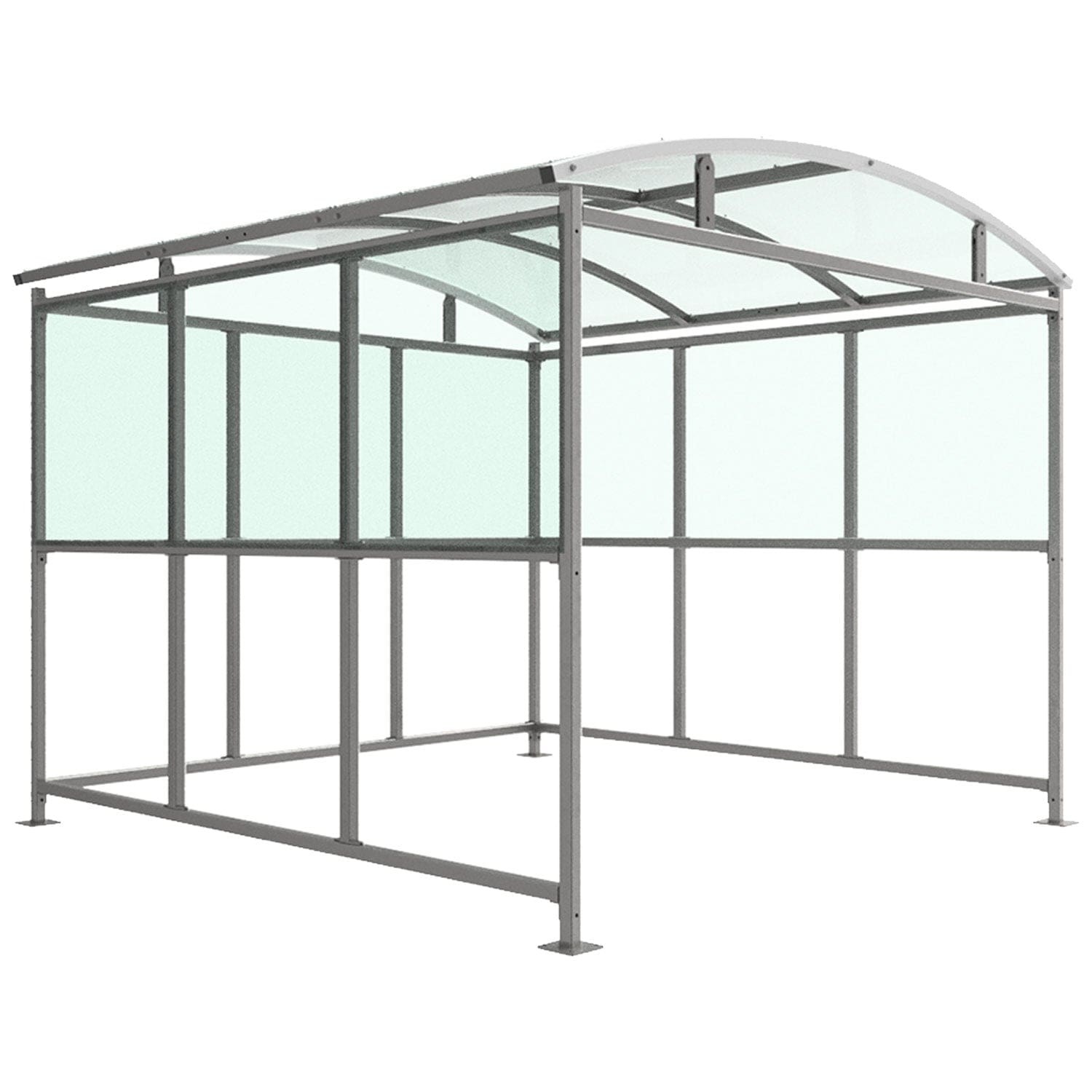

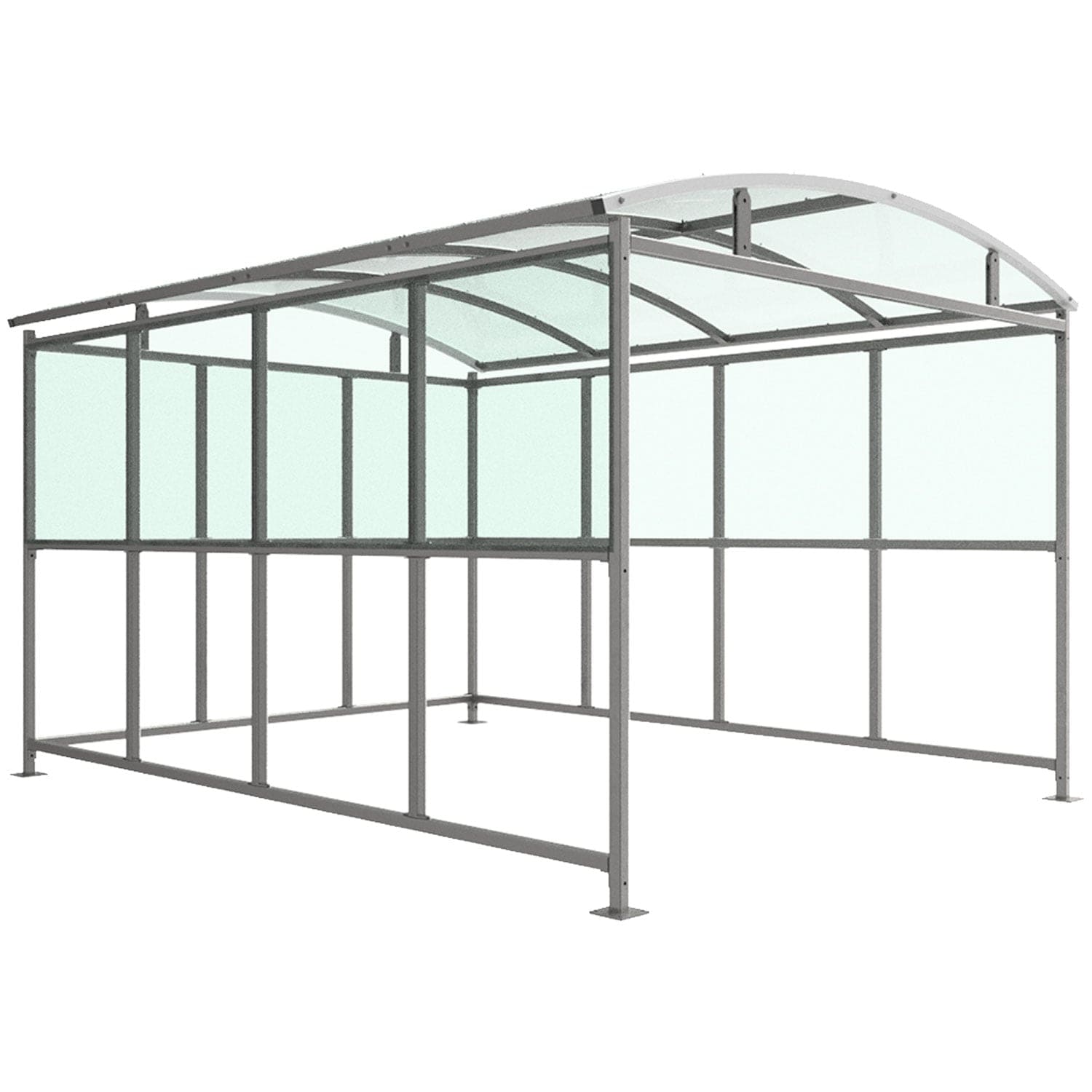

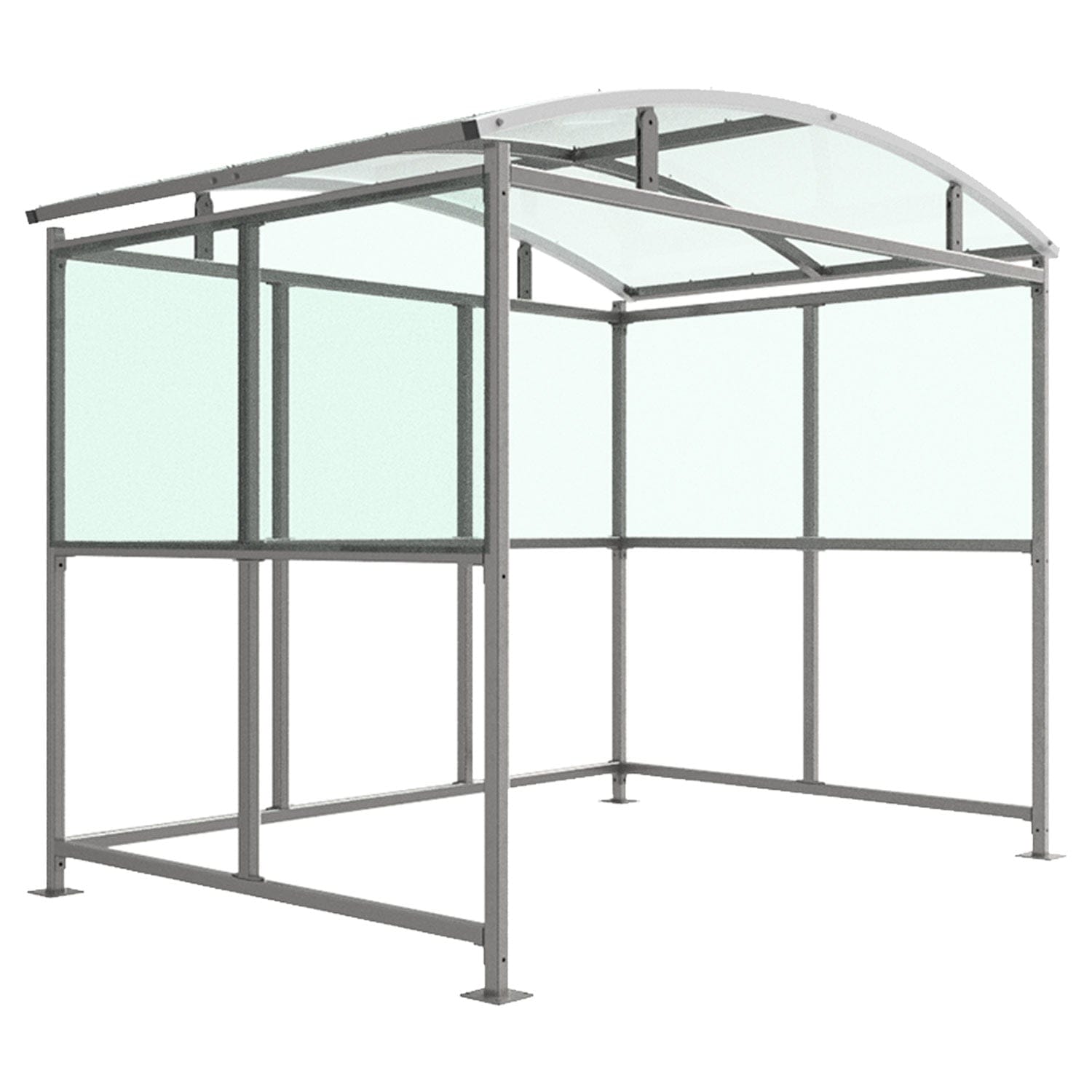

A free-standing, open-fronted smoking shelter with a galvanised steel frame and clear PETG cladding. The curved roof and half-height side panels give cover from rain while keeping the shelter ventilated, and it ships flat-packed for straightforward on-site assembly.

2513mm

Height

3147mm

Width

5lengths

1m to 5m range

4mm

PETG panel thickness

Dimensions
Height	2513mm
Width	3147mm
Length options	1m / 2m / 3m / 4m / 5m
Weight	214kg to 585kg depending on length

Details
Frame material	Mild galvanised steel
Panel material	4mm PETG clear sheet
Fixing	Bolt-down flanged plate, 140mm x 140mm x 10mm
Origin	UK manufactured

Frequently asked questions

What lengths does the Inglewood range cover?

Five lengths - 1m, 2m, 3m, 4m and 5m - all built to the same 2513mm height and 3147mm width, so extension bays line up cleanly with the main unit.

Can I choose whether the fixing bolts are included?

Yes - each length comes as two separate SKUs, one with the bolt-down fixing bolts included and one without, so you only pay for what you need.

Why are the side panels only half height?

The lower half of each side is left open by design, so air moves through the shelter rather than trapping smoke and fumes inside.

What certification does the frame carry?

The steel frame is galvanised to BS EN ISO 1461, the British Standard for hot-dip galvanising.

How many bolts does each base plate take?

Four bolts per flanged base plate (140mm x 140mm x 10mm), bolted down to a prepared hard-standing surface.

Does the shelter turn up ready-built?

No - it's shipped flat-packed and built on site, which keeps handling and transport straightforward for a structure this size.

What if I need more covered length than 5m?

Matching extension bays are sold separately, so you can extend an existing Inglewood shelter run beyond the standard 1m-5m sizes.
